HOME VISION Fixed TV Wall Mount Instruction Manual

1. Product Overview

The HOME VISION Fixed TV Wall Mount (Model HV8802) provides a secure and low-profile solution for mounting your television. Designed for most 42-inch to 100-inch flat and curved TVs, this heavy-duty bracket ensures stability and a sleek appearance.

Key features include an ultra-slim 0.86-inch profile, universal VESA compatibility (200x200mm to 800x600mm), and a robust design capable of supporting up to 200 lbs. It is suitable for installation on wood studs (8-32 inches spacing), concrete, and brick walls. The quick lock and release mechanism simplifies TV mounting and unmounting.

Figure 1: Overview of the HOME VISION Fixed TV Wall Mount and included accessories.

2. Important Safety Information

• Always read and understand all instructions before beginning installation. If you have any questions, contact customer support.
• Do not exceed the maximum weight capacity of 200 lbs (90 kg).
• Ensure the mounting surface can safely support the combined weight of the mount and the television.
• This mount is designed for wood stud walls (8-32 inch spacing), concrete walls, and brick walls. DO NOT mount on drywall alone.
• Use appropriate safety gear, including eye protection, during installation.
• Two people are recommended for installation to ensure safety and ease of handling.

3. Setup and Installation

Follow these steps for proper installation of your HOME VISION TV Wall Mount. A detailed graphical installation guide is included with your product for visual assistance.

3.1. Pre-Installation Checks

• TV Compatibility: Verify your TV size is between 42 and 100 inches. Check your TV's VESA pattern (mounting hole distance on the back) to ensure it falls within 200x200mm to 800x600mm.
• Weight Capacity: Confirm your TV's weight does not exceed 200 lbs (90 kg).
• Wall Type: Identify your wall type (wood studs, concrete, or brick). The mount is compatible with wood studs spaced 8 to 32 inches apart.

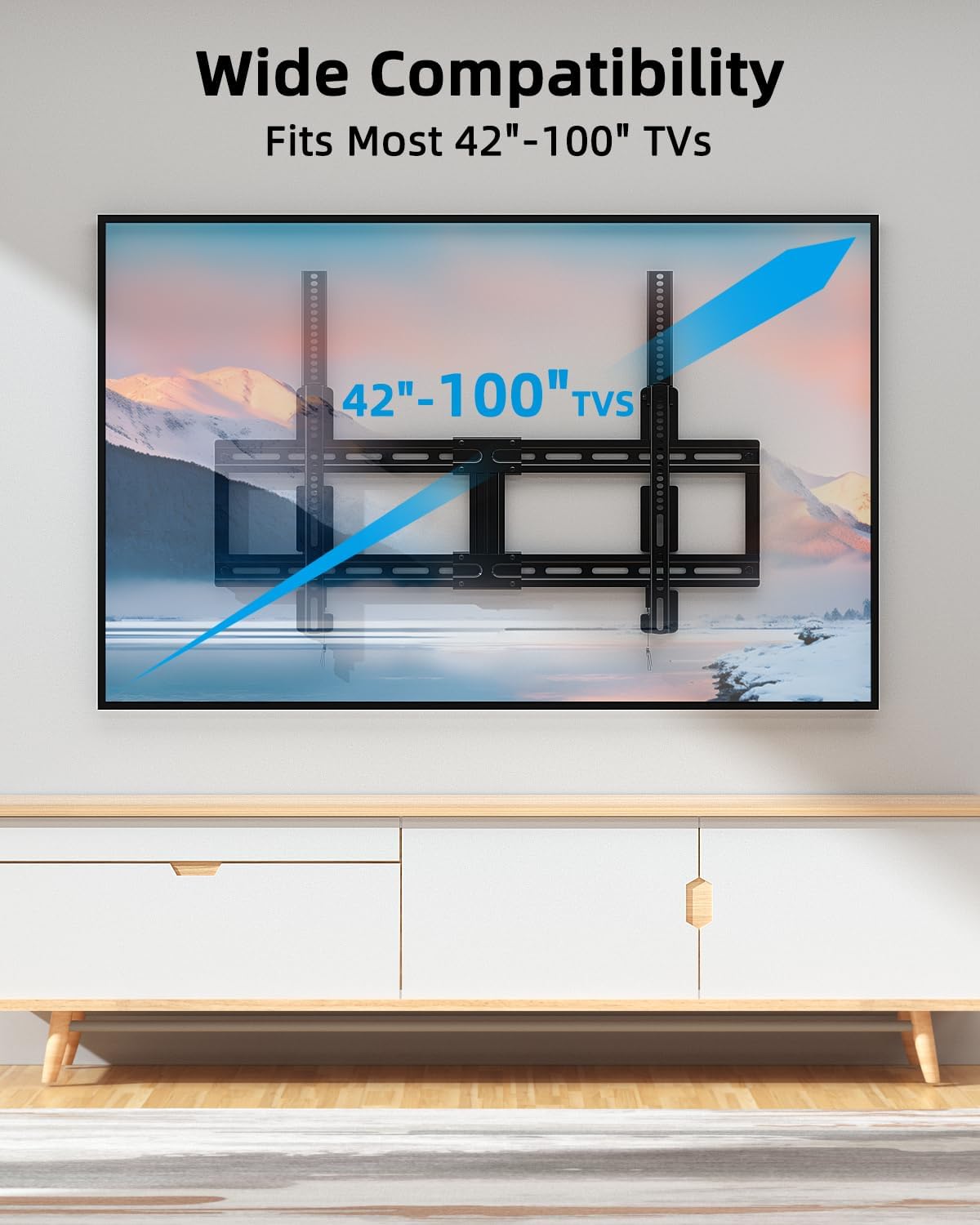

Figure 2: The mount supports TVs from 42 to 100 inches.

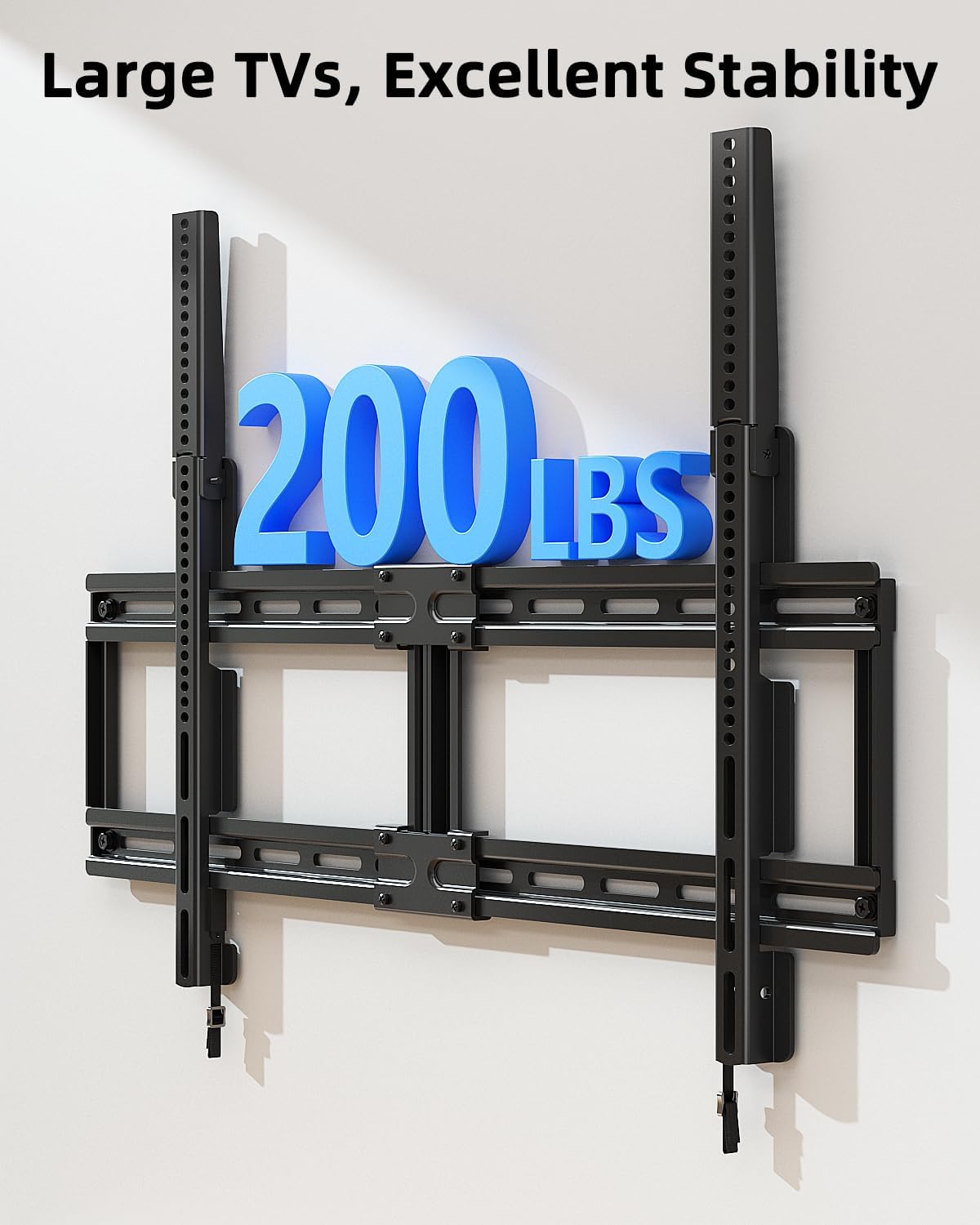

Figure 3: The mount is heavy-duty, supporting up to 200 lbs (90 kg).

Figure 4: Compatible wall types include concrete, wood studs, and brick. Do not mount on drywall alone.

Figure 5: VESA patterns supported and when to use extension brackets (for VESA > 400mm).

3.2. Component Identification

Unpack all components and verify against the included parts list in your product manual. The kit includes all necessary mounting hardware and a bubble level.

Figure 6: All accessories, including hardware and a bubble level, are provided for installation.

3.3. Installation Steps (Summary)

1. Attach TV Brackets: Secure the vertical TV brackets to the back of your television using the appropriate screws and spacers. Ensure the brackets are centered and level. If your VESA pattern is greater than 400mm, assemble the extension brackets first.
2. Mark Wall and Drill Pilot Holes: Position the wall plate assembly on the wall at the desired height. Use the integrated bubble level to ensure it is perfectly horizontal. Mark the drill points for the mounting screws. Drill pilot holes according to the wall type and hardware size.
3. Mount Wall Plate: Secure the wall plate assembly to the wall using the provided lag bolts and washers. Tighten all bolts firmly.
4. Hang TV: Carefully lift the television with the attached brackets and hook them onto the wall plate. Ensure the TV brackets are properly seated on the wall plate.
5. Secure TV: Engage the quick lock mechanism by pushing the bottom of the TV brackets upwards until they click into place. This secures the TV to the wall plate.

For a visual step-by-step guide, please refer to the official product video below:

Figure 7: The ultra-slim 0.86-inch low profile design keeps your TV close to the wall.

4. Operating Instructions

Once installed, the HOME VISION Fixed TV Wall Mount is designed for stable, permanent placement. However, if you need to remove the TV for maintenance or relocation, the quick release mechanism allows for easy detachment.

4.1. Quick Lock and Release Mechanism

• To Lock: After hanging the TV, push the bottom of the TV brackets upwards until you hear a "click." This indicates the spring locks have engaged, securing the TV to the wall plate.
• To Release: Locate the pulling cords at the bottom of the TV brackets. Gently pull these cords downwards to disengage the spring locks. With the locks released, carefully lift the TV off the wall plate.

Figure 8: Illustration of the quick lock and release feature using the pulling cords.

5. Maintenance

The HOME VISION Fixed TV Wall Mount requires minimal maintenance. Regular checks can help ensure its continued performance and safety.

• Cleaning: Wipe the mount with a soft, dry cloth to remove dust. Avoid abrasive cleaners or solvents.
• Hardware Check: Periodically inspect all mounting screws and bolts to ensure they remain tight. Re-tighten if necessary.
• Structural Integrity: Check the wall and the mount for any signs of damage or wear. If any issues are observed, consult a professional or contact customer support.

6. Troubleshooting

If you encounter issues during installation or use, refer to the following common problems and solutions:

7. Product Specifications

8. Warranty and Customer Support

For warranty information or technical assistance, please refer to the warranty card included with your product or contact HOME VISION customer support directly. Details for contacting support are typically found on the product packaging or the official HOME VISION website.

Additional protection plans may be available for purchase to extend coverage beyond the standard warranty period. Please check with your retailer for details.
