1. Introduction
Thank you for choosing the KOOZ 24V 250W Electric Dirt Bike HP120E. This manual provides essential information for the safe assembly, operation, and maintenance of your electric dirt bike. Please read this manual thoroughly before use and retain it for future reference. This product is designed for children aged 6-14 years, with a maximum rider weight of 110 pounds.
Image 1.1: The KOOZ 24V 250W Electric Dirt Bike HP120E, featuring a green and black design with a number '2' on the front plate. The bike has knobby tires suitable for off-road use and a comfortable seat.
2. Safety Guidelines
WARNING: Failure to follow these safety instructions may result in serious injury or death.
- Adult Supervision Required: Always supervise children while they are riding the electric dirt bike.
- Protective Gear: Riders must always wear appropriate safety gear, including a helmet, knee pads, elbow pads, and sturdy closed-toe shoes.
- Age and Weight Limits: This product is recommended for riders aged 6-14 years and with a maximum weight of 110 pounds (50 kg).
- Operating Environment: Ride only in safe, open areas free from traffic, obstacles, and hazards. Avoid riding on public roads, sidewalks, or steep inclines.
- Weather Conditions: Do not ride in wet conditions, heavy rain, or snow, as this can affect traction and braking performance.
- Pre-Ride Check: Before each ride, ensure the brakes are functioning correctly, tires are properly inflated, and all bolts and fasteners are secure.
- Battery Safety: Use only the charger provided. Do not modify the electrical system. Keep the battery away from extreme temperatures and moisture.
- UL2849 Certified: This electric dirt bike is UL2849 certified, ensuring compliance with electrical safety standards.
3. Package Contents
Before assembly, please verify that all items listed below are present in the box:
- KOOZ 24V 250W Electric Dirt Bike (main unit)
- Battery Charger
- Assembly Tools (wrenches, hex keys)
- User Manual (this document)
- Miscellaneous Accessories (e.g., chain guard, fenders, if not pre-installed)
4. Assembly Instructions
The KOOZ Electric Dirt Bike requires minimal assembly. Please follow these steps carefully:
- Unpacking: Carefully remove all components from the packaging. Retain packaging materials for potential future transport or returns.
- Handlebar Installation: Attach the handlebars to the steering column. Ensure they are centered and tightened securely using the provided tools. The handlebars should be firm and not rotate freely.
- Foot Pedal Attachment: Install the foldable foot pedals onto the bike frame. Ensure they are threaded correctly and tightened to prevent loosening during use.
- Initial Battery Charge: Before first use, fully charge the battery. Refer to Section 5 for detailed charging instructions.
- Tire Inflation: Check the tire pressure and inflate to the recommended PSI as indicated on the tire sidewall.
- Final Inspection: Double-check all connections, bolts, and fasteners to ensure they are tight and secure. Verify brake functionality before the first ride.
Image 4.1: A detailed view of the KOOZ Electric Dirt Bike's foldable footrests and the protective chain guard, highlighting components that may require assembly or inspection.
5. Charging the Battery
Proper battery charging is crucial for performance and longevity.
- Locate Charging Port: The charging port is typically located on the side of the battery housing or frame.
- Connect Charger: Plug the charger into a standard wall outlet (100-240V AC). The charger indicator light will typically show green.
- Connect to Bike: Plug the charger's output connector into the bike's charging port. The charger indicator light should turn red, indicating charging is in progress.
- Full Charge: Allow the battery to charge until the indicator light on the charger turns green again. This indicates a full charge.
- Disconnect: Once fully charged, disconnect the charger from the bike first, then from the wall outlet.
Important Notes:
- Initial charge time may be longer (up to 8-12 hours). Subsequent charges typically take 4-6 hours.
- Do not overcharge the battery.
- Charge the battery in a dry, well-ventilated area.
- Charge the battery after every use, or at least once a month if not in use, to maintain battery health.
6. Operation
6.1 Powering On/Off
- To Power On: Locate the power switch (usually near the battery compartment or handlebars) and flip it to the 'ON' position.
- To Power Off: Flip the power switch to the 'OFF' position when not in use to conserve battery life.
6.2 Speed Modes
The KOOZ Electric Dirt Bike features two adjustable speed modes:
- Low Speed Mode: Approximately 6.3 MPH (10.1 km/h). Ideal for beginners or smaller riding areas.
- High Speed Mode: Approximately 10 MPH (16.1 km/h). For experienced riders in suitable environments.
The speed mode selector is typically a switch located on the handlebars or near the battery. Consult the physical product for exact location.

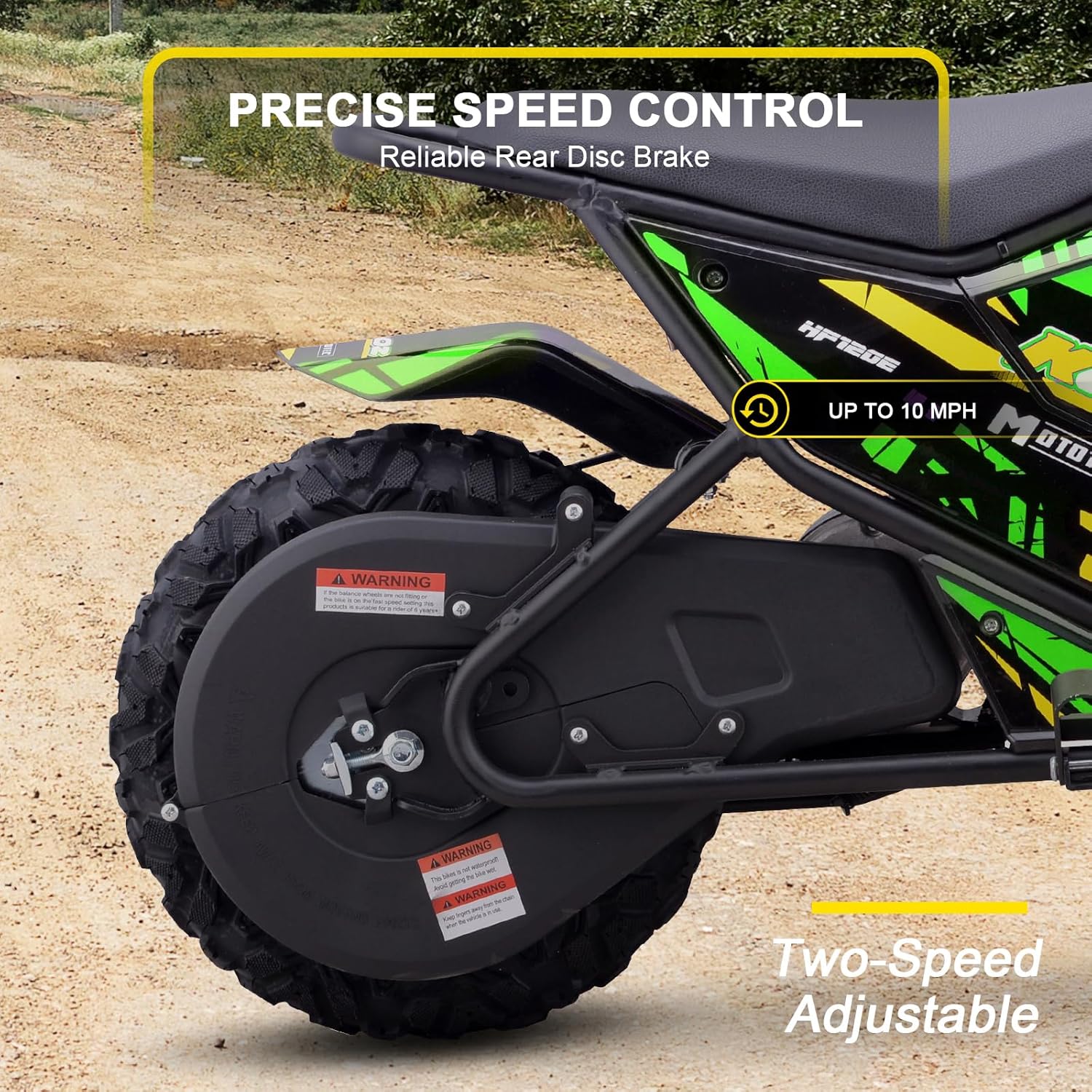

Image 6.1: A close-up view of the rear wheel and chain guard, indicating the presence of a two-speed adjustable control for precise speed management.
6.3 Acceleration and Braking
- Acceleration: Twist the throttle grip on the right handlebar to accelerate. Twist gently for smooth acceleration.
- Braking: The bike is equipped with a reliable drum brake system. Squeeze the brake lever (typically on the left handlebar) to engage the rear brake. Apply brakes smoothly and gradually to avoid sudden stops.
6.4 Riding Tips
- Always start in Low Speed Mode until the rider is comfortable.
- Maintain a safe distance from other riders and obstacles.
- Practice turning and stopping in an open, flat area before attempting more challenging terrain.
- The rear-wheel drive enhances balance and traction, making it suitable for various terrains.
Image 6.2: A close-up of the front tire, illustrating its robust, knobby tread designed to adapt to diverse road conditions such as snow, mountain trails, sand, and flat surfaces.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your KOOZ Electric Dirt Bike.
- Battery Care: Always fully charge the battery after each use. If storing for extended periods, charge monthly. Do not allow the battery to fully discharge for long periods.
- Tire Pressure: Check tire pressure before each ride. Maintain the recommended PSI (usually found on the tire sidewall) for optimal performance and safety.
- Cleaning: Clean the bike with a damp cloth. Avoid using high-pressure water jets or harsh chemicals, which can damage electrical components.
- Brake Inspection: Regularly check the brake lever for proper tension and ensure the drum brake provides effective stopping power. Adjust if necessary.
- Chain Maintenance: Inspect the chain for proper tension and lubrication. Lubricate the chain periodically with bicycle chain lubricant to ensure smooth operation and prevent rust.
- Fastener Check: Periodically inspect all nuts, bolts, and fasteners to ensure they are tight. Loose components can affect safety and performance.
8. Troubleshooting
This section addresses common issues you might encounter with your electric dirt bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on | Battery is not charged Power switch is off Loose battery connection | Charge the battery fully Ensure power switch is 'ON' Check battery connections are secure |
| Low power or slow speed | Low battery charge Rider weight exceeds limit Riding on steep incline/rough terrain | Recharge the battery Ensure rider is within 110 lbs limit Ride on appropriate terrain |
| Brakes not effective | Brake cable loose Brake pads worn | Adjust brake cable tension Contact customer support for replacement parts |
| Unusual noises | Loose chain Foreign object in chain/wheel | Adjust chain tension Inspect and remove any obstructions |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact KOOZ Customer Support.
9. Specifications
Key technical specifications for the KOOZ 24V 250W Electric Dirt Bike HP120E:
- Model: HP120E
- Motor: 250W Mid-mounted
- Battery: 24V (2 AAAA batteries required, included for control systems, main battery is integrated)
- Max Speed: Up to 10 MPH (16.1 km/h)
- Speed Modes: 2 (Low: 6.3 MPH, High: 10 MPH)
- Recommended Age: 6 - 14 years
- Max Rider Weight: 110 lbs (50 kg)
- Brakes: Drum Brake System
- Drive System: Chain Drive, Rear-wheel drive
- Tires: 12/13 inch Fat Tires
- Product Dimensions: 37 x 22 x 27 inches (L x W x H)
- Item Weight: 53 pounds (24 kg)
- Certification: UL2849

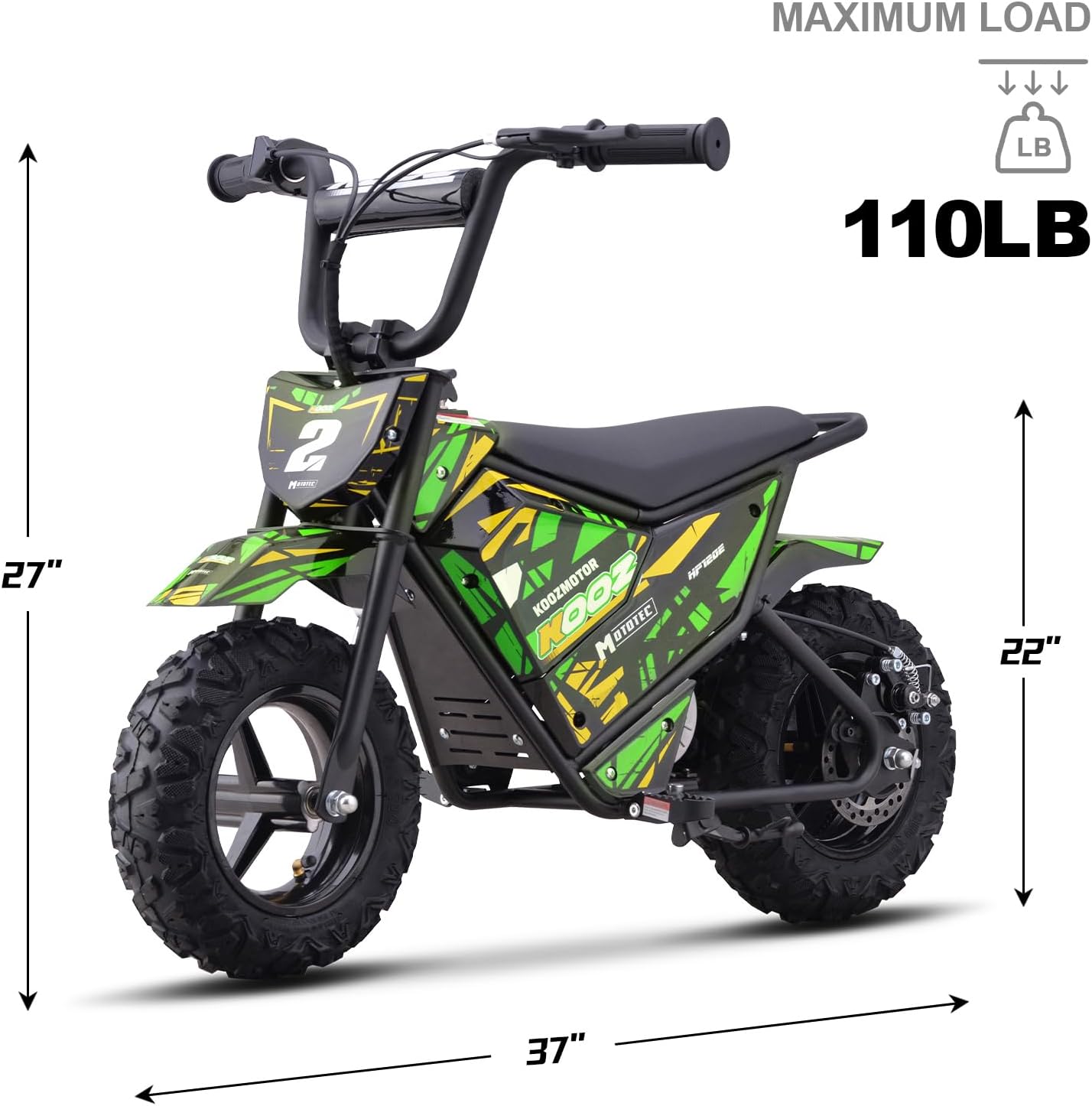

Image 9.1: The KOOZ Electric Dirt Bike shown with its key dimensions (37 inches length, 22 inches width, 27 inches height) and a maximum load capacity of 110 pounds.
10. Warranty Information
For detailed warranty information regarding your KOOZ Electric Dirt Bike, please refer to the warranty card included with your product or visit the official KOOZ website. Keep your purchase receipt as proof of purchase for any warranty claims.
11. Customer Support
If you have any questions, require technical assistance, or need to report an issue, please contact KOOZ Customer Support:
- Email: support@koozmotor.com
- Our team aims to respond within 24 hours with a solution.
- Please review our return policy before returning items.
- Retain the product box for at least 30 days for return or after-sales service purposes.
Image 11.1: KOOZ Professional After-Sales Support team, available to provide comprehensive technical guidance and assistance.
