Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and care of your ZENBON ZBLY626 Electric Wheelchair. Please read this manual thoroughly before using the wheelchair to ensure proper understanding of its features and functions. Keep this manual for future reference.
Safety Information
Your safety is paramount. Always adhere to the following safety guidelines:
- Always ensure the wheelchair is fully unfolded and locked before use.
- Do not exceed the maximum weight capacity of 300 lbs (approximately 136 kg).
- Operate the wheelchair at a safe speed, especially in crowded areas or on uneven terrain. The maximum speed is 6 km/h.
- Be aware of your surroundings and avoid obstacles.
- Use the electromagnetic braking system for controlled stopping.
- Avoid operating the wheelchair on slopes exceeding 12 degrees.
- Keep hands and clothing clear of moving parts.
- Do not attempt to modify the wheelchair. Any modifications may void the warranty and compromise safety.
- Ensure the battery is fully charged before long journeys.
- Consult a healthcare professional for guidance on safe usage if you have specific medical conditions.
Package Contents
Upon unpacking, verify that all components are present:
- ZENBON ZBLY626 Electric Wheelchair Unit
- Lithium-ion Battery (pre-installed or separate)
- Battery Charger
- Instruction Manual (this document)
- Remote Control (if applicable)
Setup
1. Unfolding the Wheelchair
The ZENBON ZBLY626 features an automatic folding mechanism. To unfold the wheelchair:
- Place the folded wheelchair on a flat, stable surface.
- Ensure the power is off.
- Press the "Expand" button on the joystick controller. The wheelchair will automatically unfold.
- Verify that all locking mechanisms are engaged and the wheelchair is stable before sitting in it.

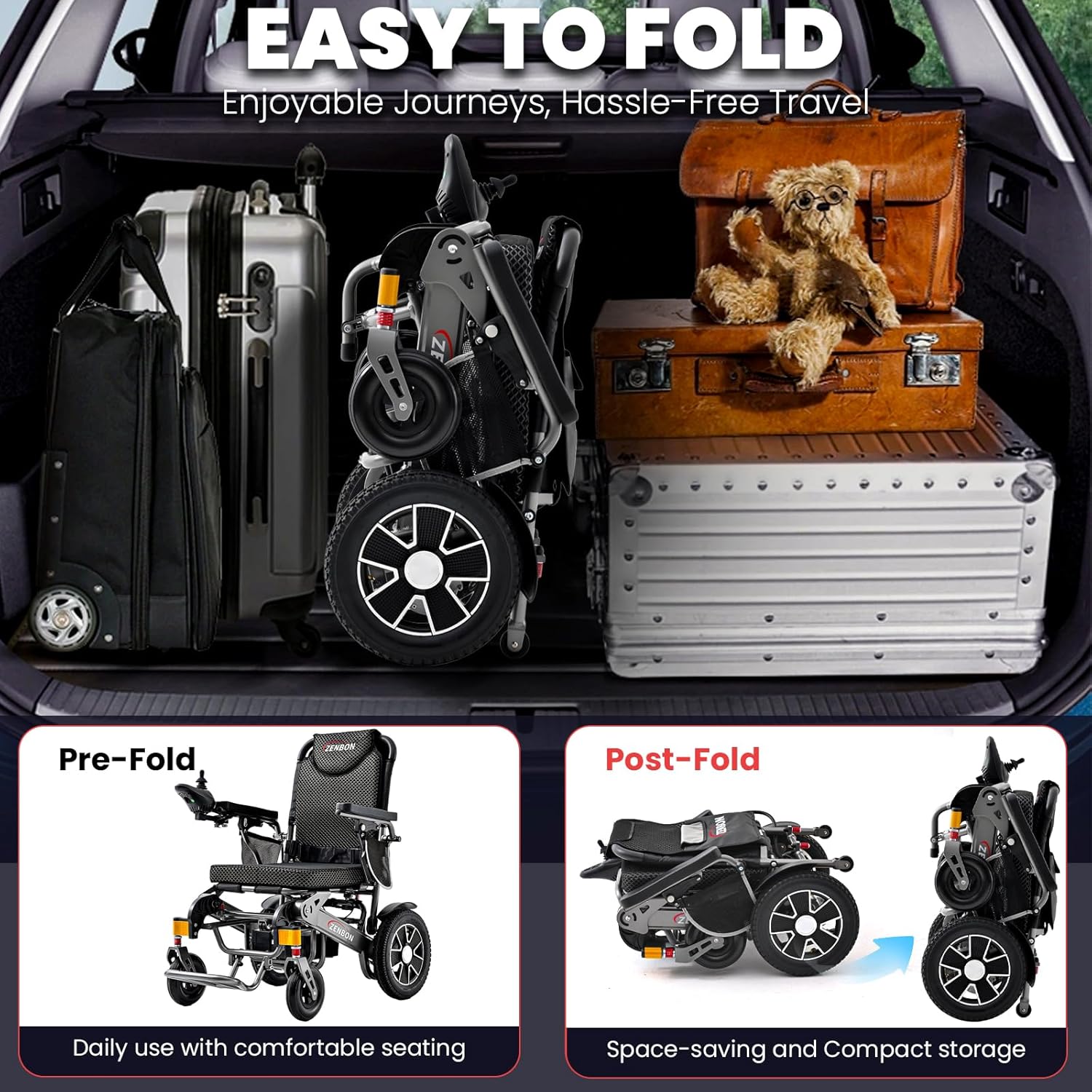

Image: The automatic folding feature allows for compact storage, as shown with the wheelchair fitting into a car trunk. The image displays the wheelchair before and after folding.
2. Charging the Battery
Before initial use, fully charge the lithium-ion battery. A full charge typically takes 6-8 hours.
- Locate the charging port on the wheelchair or the battery pack.
- Connect the charger to the charging port.
- Plug the charger into a standard electrical outlet.
- The charging indicator light on the charger will show the charging status (e.g., red for charging, green for fully charged).
- Once fully charged, disconnect the charger.
Image: Visual representation of the 20Ah lithium-ion battery, highlighting its capacity and typical charging duration.
Operating Instructions
1. Joystick Control
The 360° joystick provides intuitive control over the wheelchair's movement.
- Power ON/OFF: Press the power button to turn the wheelchair on or off.
- Movement: Gently push the joystick in the desired direction (forward, backward, left, right) to move. The wheelchair will respond proportionally to the joystick's movement.
- Stopping: Release the joystick to its neutral position. The electromagnetic braking system will automatically engage, bringing the wheelchair to a smooth stop.
- Horn: Press the horn button to alert others.
- Battery Display: Monitor the battery level on the display.
Image: Detailed view of the joystick controller, illustrating the various buttons and their functions for operation.
2. Speed Adjustment
Adjust the wheelchair's speed using the dedicated buttons on the joystick controller.
- Speed+: Press to increase the maximum speed setting.
- Speed-: Press to decrease the maximum speed setting.
- The current speed level will be indicated on the speed display.
3. Automatic Folding and Unfolding
The wheelchair can be folded or unfolded automatically with a single touch.
- To Fold: Ensure the wheelchair is empty and on a flat surface. Press the "Collapse" button on the joystick controller.
- To Unfold: Press the "Expand" button on the joystick controller.
- Always ensure the process is complete and the wheelchair is stable before use or transport.
4. All-Terrain Capability
The ZENBON ZBLY626 is designed for various terrains, including uphill roads, grass, bumpy roads, deceleration strips, gravel roads, and muddy roads. Always exercise caution and reduce speed when navigating challenging surfaces.
Image: The wheelchair's versatility across different road types, including uphill, grass, bumpy, deceleration strips, gravel, and muddy surfaces.
Maintenance
Regular maintenance ensures the longevity and safe operation of your wheelchair.
- Cleaning: Wipe down the frame and seat with a damp cloth. Avoid using abrasive cleaners or excessive water.
- Battery Care:
- Charge the battery regularly, even if not in frequent use, to maintain its health.
- Do not allow the battery to fully discharge for extended periods.
- Store the wheelchair and battery in a cool, dry place.
- Tires: The wheelchair is equipped with solid, puncture-proof tires, reducing the need for frequent maintenance. Periodically inspect them for wear and tear.
- Moving Parts: Periodically check all bolts, nuts, and moving parts for tightness and proper function. Do not lubricate unless specified by the manufacturer.
- Professional Inspection: It is recommended to have the wheelchair inspected by a qualified technician annually.
Troubleshooting
Refer to this section for common issues and their potential solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Wheelchair does not power on. | Battery is discharged or not properly connected. | Ensure battery is fully charged and securely connected. Check power button. |
| Wheelchair moves slowly or erratically. | Low battery, speed setting too low, or joystick malfunction. | Charge battery. Increase speed setting. If issue persists, contact support. |
| Automatic folding/unfolding not working. | Obstruction, low battery, or mechanism fault. | Check for obstructions. Ensure battery is charged. If problem continues, seek professional assistance. |
| Unusual noises during operation. | Loose components or motor issue. | Stop using the wheelchair immediately and have it inspected by a qualified technician. |
Specifications
Key technical specifications for the ZENBON ZBLY626 Electric Wheelchair:
- Model Number: ZBLY626
- Brand: ZENBON
- Motor: Dual 350W Brushless Motors
- Battery: 20Ah Lithium-ion (Rechargeable)
- Max Driving Range: Up to 30 km (approximately 18.6 miles)
- Max Speed: 6 km/h
- Max Load Capacity: 300 lbs (approximately 136 kg)
- Product Dimensions (Unfolded): Approximately 74.98 cm (L) x 61.98 cm (W) x 101.98 cm (H)
- Product Weight: 39 kg (approximately 86 lbs)
- Turning Radius: 60 cm
- Wheel Type: Solid, Puncture-Proof
- Braking System: Electromagnetic
- Special Features: Automatic folding, long range, high weight capacity, powerful motor, large battery capacity, comfortable seat, intelligent control, remote control.
Image: Detailed product dimensions for the ZENBON ZBLY626 Electric Wheelchair, including unfolded and folded measurements.
Image: Visual representation of the dual 350W brushless motors, highlighting their strong power.
Image: The wheelchair demonstrating its stability and safety features on an incline, including electromagnetic braking and anti-skid design.
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or contact ZENBON customer service directly. Keep your purchase receipt as proof of purchase.
