00625486 Washer Door Hinge Instruction Manual

Introduction

This manual provides essential information for the installation, maintenance, and troubleshooting of the 00625486 Washer Door Hinge. This component is designed to ensure the proper functioning of your washing machine door, providing secure closure and smooth operation. Please read these instructions carefully before proceeding with installation or maintenance.

Product Overview

Top view of the washer door hinge, showing the part number 00625486 stamped on it.

Image 1: Top view of the 00625486 Washer Door Hinge, clearly displaying the part number and structural details.

Close-up side view of the hinge mechanism, highlighting the hook and pin components.

Image 2: Close-up side view of the hinge, showing the hook and pin components essential for door latching.

Front view of the washer door hinge, showing the mounting points.

Image 3: Front view of the hinge, illustrating its overall shape and mounting points.

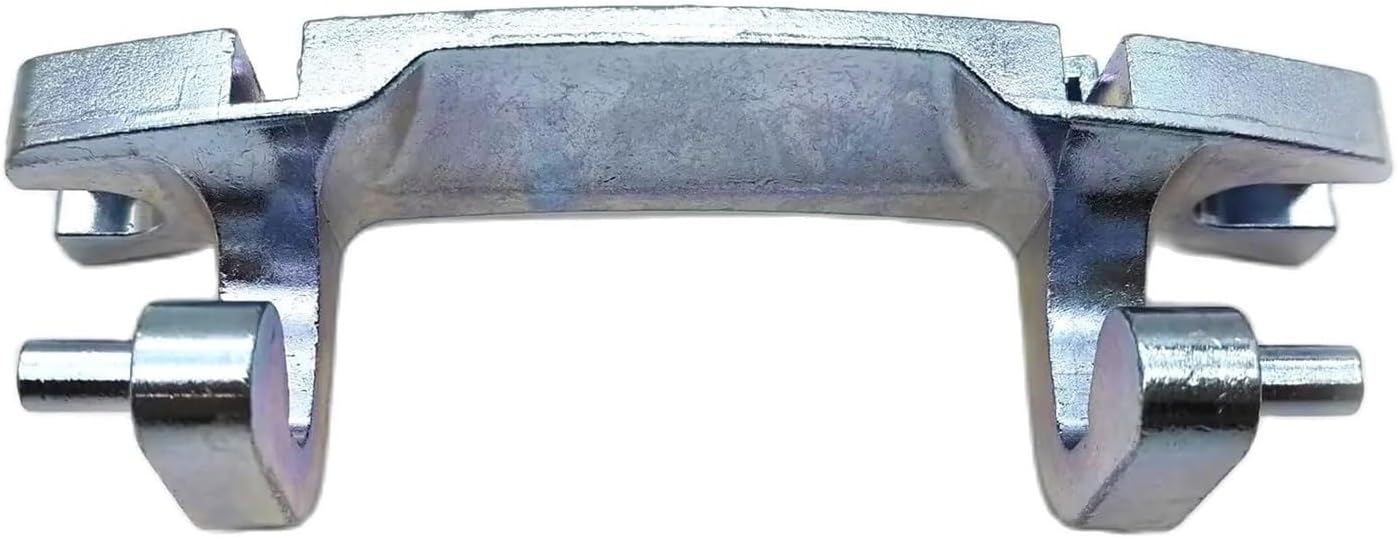

Rear view of the washer door hinge, showing the back side of the mounting brackets.

Image 4: Rear view of the hinge, providing a perspective of the back side of the mounting brackets.

Detailed close-up of the hinge pin, showing its connection point.

Image 5: Detailed close-up of one of the hinge pins, showing its robust construction and connection point.

Compatibility

This washer door hinge (Model Number: 00625486) is compatible with various Bosch and Siemens washing machine models, including but not limited to:

WAB12060BY, WAB12060TR, WAB12061TR
WAB16010TR, WAB16060BY, WAB16060II, WAB16060IL, WAB16060IN, WAB16060ME, WAB16060TR, WAB16061IN, WAB16061ME, WAB16061TR, WAB16061ZA, WAB16063PL, WAB1606SCY, WAB1606SZA, WAB16071CE, WAB16160IN, WAB16161IN, WAB16210TR, WAB16211TR, WAB16212TR, WAB16260IL, WAB16260IN, WAB16260ME, WAB16260TR, WAB16261IN, WAB16261ME, WAB16261TR, WAB16262ME, WAB16262TR, WAB16263TR
WAB20060BY, WAB20060EE, WAB20060GC, WAB20060GR, WAB20060II, WAB20060IL, WAB20060SN, WAB20061BY, WAB20061GR, WAB20063PL, WAB20064PL, WAB20066EE, WAB2006SBC, WAB20071CE, WAB2007KPL, WAB20082CE, WAB2021JPL, WAB20260BY, WAB20260EE, WAB20260GC, WAB20260GR, WAB20260II, WAB20260IL, WAB20260ME, WAB20260TR, WAB20261BY, WAB20261EE, WAB20261II, WAB20261ME, WAB20261TR, WAB20262BY, WAB20262IR, WAB20262ME, WAB20262PL, WAB20262TR, WAB20263PL, WAB20264PL, WAB20264TR, WAB20266EE, WAB20267IN, WAB20268IN, WAB20268ZA, WAB2026APL, WAB2026FPL, WAB2026KPL, WAB2026PPL, WAB2026QPL, WAB2026SKE, WAB2026SME, WAB2026SPL, WAB2026SZA, WAB2026TPL, WAB2026YPL, WAB20272CE, WAB2027FPL, WAB2027KPL, WAB2027SME, WAB2027SPL, WAB2028FPL, WAB2028JPL, WAB2028KPL, WAB2028SPL, WAB2029JPL, WAB202S0TR, WAB202S1ME, WAB202S1TR, WAB202S2IR, WAB202S2ME, WAB202S2TR
WAB22066EE, WAB24060, WAB24060BY, WAB24060GB, WAB24060SN, WAB24063PL, WAB24066EE, WAB24161GB, WAB24166SN, WAB24210FF, WAB24211FF, WAB24220, WAB24260BY, WAB24260EE, WAB24260GB, WAB24260GR, WAB24260IL, WAB24260SN, WAB24261BY, WAB24261EE, WAB24261SN, WAB24262BY, WAB24262GB, WAB24262PL, WAB24262SN, WAB24263PL, WAB24264PL, WAB24266EE, WAB2426PPL, WAB24272CE, WAB2428SCE
WAB28060, WAB28060FG, WAB28060GB, WAB28060NL, WAB28061GB, WAB280K0NL, WAB28160NL, WAB28161FG, WAB28161GB, WAB28162GB, WAB281C0CH, WAB28210FF, WAB28211FF, WAB28220, WAB28220CH, WAB28221, WAB28222, WAB28260FG, WAB28260GB, WAB28260NL, WAB28260SN, WAB28261FG, WAB28261GB, WAB28261NL, WAB28261SN, WAB28262FG, WAB

Please verify your washing machine's model number against this list to ensure compatibility.

Key Features

Durable Construction: Engineered with high-quality materials to withstand the rigors of daily use, ensuring long-lasting performance.
Efficiency: Optimized for maximum efficiency, reducing energy consumption and water usage while maintaining superior cleaning results.
Enhanced Performance: Upgrade your washing machine's capabilities with our advanced parts, ensuring a smoother and more effective wash cycle.
Cost-Effective: A smart investment that saves you money in the long run by reducing the need for frequent replacements and repairs.

Setup and Installation

Disclaimer: Installation of washing machine parts may require technical knowledge and tools. If you are unsure, it is recommended to consult a qualified technician. Always disconnect the washing machine from the power supply before beginning any installation or repair work.

Safety First: Unplug the washing machine from the electrical outlet and turn off the water supply.
Access the Hinge Area: Depending on your washing machine model, you may need to remove the front panel or the door assembly to access the existing hinge. Refer to your washing machine's specific service manual for detailed instructions on accessing the door hinge.
Remove Old Hinge: Carefully unscrew and detach the old, damaged hinge from both the washing machine frame and the door. Note the orientation and position of the old hinge for correct installation of the new one.
Install New Hinge: Position the new 00625486 Washer Door Hinge in the same orientation as the old one. Secure it to the washing machine frame and the door using appropriate screws. Ensure all screws are tightened firmly but do not overtighten.
Test Door Operation: Gently open and close the washing machine door several times to ensure smooth movement and proper alignment. The door should close securely without excessive force.
Reassemble: Reattach any panels or components that were removed to access the hinge.
Restore Power: Plug the washing machine back into the electrical outlet and turn on the water supply.

Operating Principle

The washer door hinge facilitates the opening and closing mechanism of your washing machine door. It provides the pivot point for the door, allowing it to swing freely and securely latch when closed. A properly functioning hinge ensures a tight seal, preventing water leaks during operation and maintaining the integrity of the washing cycle.

Maintenance

To prolong the life of your washer door hinge and ensure continued smooth operation:

Regular Inspection: Periodically check the hinge for any signs of wear, corrosion, or looseness. Look for cracks, bends, or excessive play in the hinge mechanism.
Cleaning: Keep the hinge area clean from detergent residue, lint, and debris. A damp cloth can be used for cleaning. Avoid abrasive cleaners.
Lubrication (if applicable): If the hinge develops a squeak or stiffness, a small amount of silicone-based lubricant (safe for plastics and metals) can be applied to the pivot points. Avoid using oil-based lubricants that can attract dirt.
Avoid Forcing the Door: Do not force the washing machine door open or closed. If it feels stiff, investigate the cause rather than applying excessive force, which can damage the hinge or door frame.

Troubleshooting

Problem	Possible Cause	Solution
Door does not close or latch properly.	Hinge is bent or damaged. Hinge screws are loose. Door misaligned.	Inspect hinge for damage; replace if necessary. Tighten hinge mounting screws. Adjust door alignment if possible, or check for other obstructions.
Door squeaks when opening/closing.	Lack of lubrication. Minor wear on pivot points.	Apply a small amount of silicone-based lubricant to the hinge pivot points. If squeaking persists, consider hinge replacement if wear is significant.
Door feels loose or wobbly.	Loose hinge screws. Worn hinge pins or mounting holes.	Check and tighten all hinge mounting screws. If screws are tight but wobble persists, the hinge may be worn and require replacement.

Specifications

Item: Washer Door Hinge
Model Number: 00625486
Compatible Models: Bosch/Siemens WAB12, WAB16, WAB20, WAB22, WAB24, WAB28 series (and others listed in Compatibility section)
Package Dimensions: 1.18 x 0.79 x 0.39 inches
Item Weight: 1.76 ounces
Manufacturer: GOGOSHOP01
Country of Origin: China
Assembly Required: No
Number of Pieces: 1

Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the purchase documentation or contact the seller directly. Specific warranty terms may vary depending on the retailer and region.
