Laffizz Mini Butane Multipurpose Utility Torch Lighter Instruction Manual

Introduction

Thank you for choosing the Laffizz Mini Butane Multipurpose Utility Torch Lighter. This compact and powerful lighter is designed for various tasks, from lighting candles to assisting with camping and BBQ needs. It features a robust construction, an extended wand for safety, and is easily refillable. Please read this manual carefully to ensure safe and proper use of your new lighter.

Important Safety Information

WARNING: Keep out of reach of children. Ignite lighter away from face and clothing. Contains flammable gas under pressure. Never expose to heat above 120°F (49°C) or prolonged sunlight. Never puncture or incinerate. Ensure flame is extinguished after each use. Do not keep lit for more than 10 seconds. Do not attempt to repair or modify the lighter.

• All lighters are shipped without butane gas to comply with shipping regulations. You must refill it with high-quality butane gas before using.
• When adjusting the flame, do not turn the gas valve too large. The optimal flame length for safety and efficiency is 1.0 to 1.5 inches.
• Exercise extreme caution during refilling. Ensure no open flames or ignition sources are nearby.
• Store the lighter in a cool, dry place, away from direct sunlight and heat sources.

Setup: Refilling Your Lighter

Your Laffizz Mini Butane Torch Lighter is shipped empty. Follow these steps to safely refill it with butane gas:

1. Prepare Butane: Choose a butane gas container that has a long and plastic universal filling tip. Avoid butane cans with short metal tips, as these may not create a proper seal and can lead to gas leakage during refilling.
2.

   Image: Illustration showing the correct type of butane gas canister with a long plastic universal filling tip (indicated by a green checkmark) and an incorrect type with a short metal tip (indicated by a red cross).

3. Release Residual Gas: Before refilling, invert the lighter and use a small tool (like a screwdriver or the tip of the butane can) to push the filling hole on the bottom of the lighter. This releases any remaining air or residual butane gas, which is crucial for a complete and efficient refill. You will hear a hissing sound as the gas escapes.
4.

   Image: A hand using a small tool to press the filling valve on the bottom of the lighter, with vapor escaping, illustrating the process of releasing residual gas.
5. Refill the Lighter: Hold the butane can upside down and firmly insert its nozzle into the lighter's filling valve. Press down for 5-10 seconds. Repeat this process 2-3 times, allowing a few seconds between each press for the gas to settle. The clear gas tank allows you to easily monitor the butane level.
6.

   Image: A butane gas canister being used to refill the lighter, with the nozzle inserted into the filling valve.

7. Wait Before Use: After refilling, wait for at least 2-3 minutes before attempting to ignite the lighter. This allows the gas to stabilize and reach room temperature.

Operating Instructions

Once your lighter is refilled and the gas has stabilized, you can begin using it:

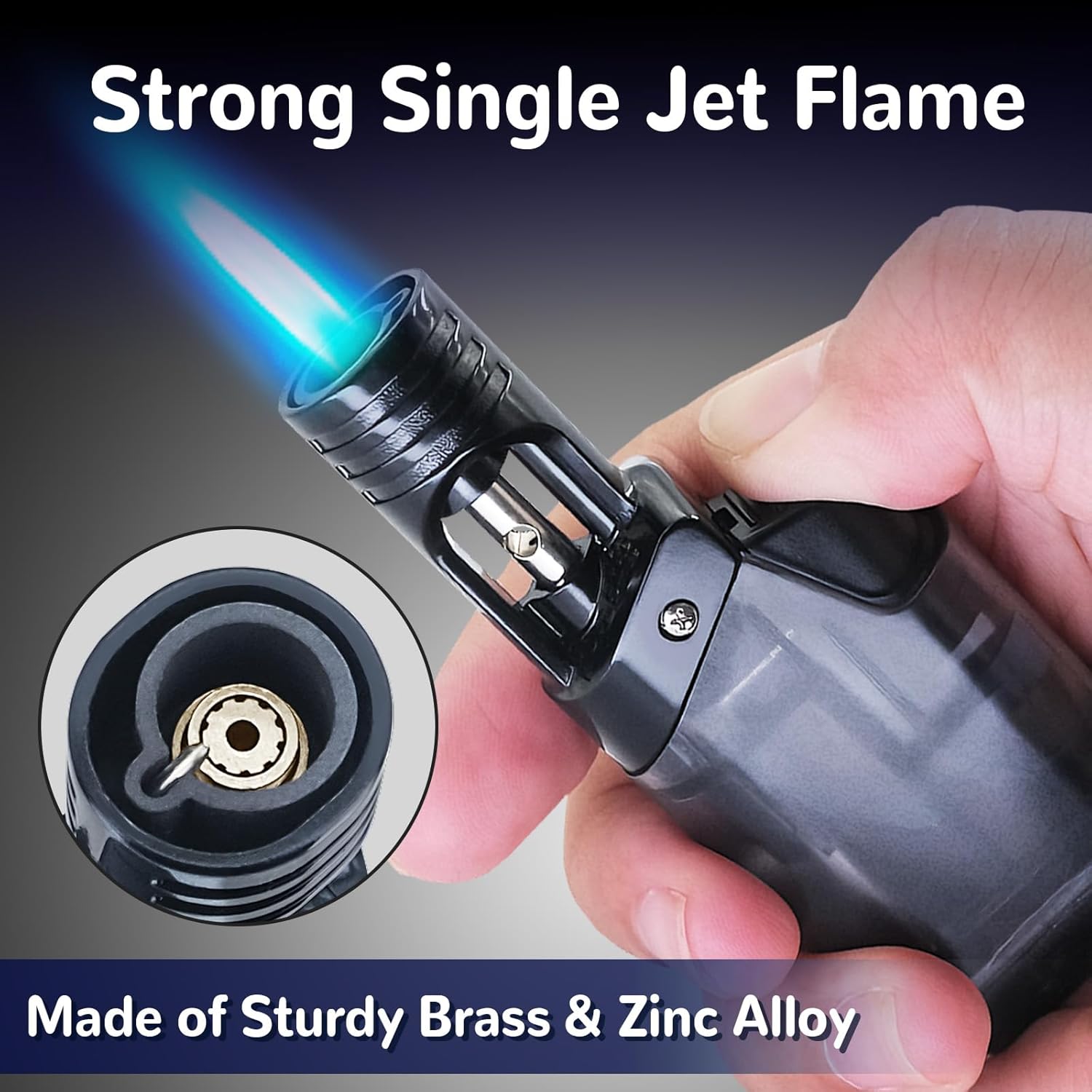

1. Ignition: Press the ignition button to activate the jet flame. The lighter produces a strong single jet flame, capable of reaching approximately 2800°F.
2.

   Image: A close-up view of the lighter's nozzle with a strong blue jet flame ignited, highlighting the durable brass and zinc alloy components.

3. Extended Wand: The lighter features a 1.2-inch extended metal wand, providing a safe distance from the flame for lighting hard-to-reach items like candles, grills, or campfires.
4.

   Image: A hand holding the lighter, with the 1.2-inch extended wand directing the flame to light an object, emphasizing safety and reach.

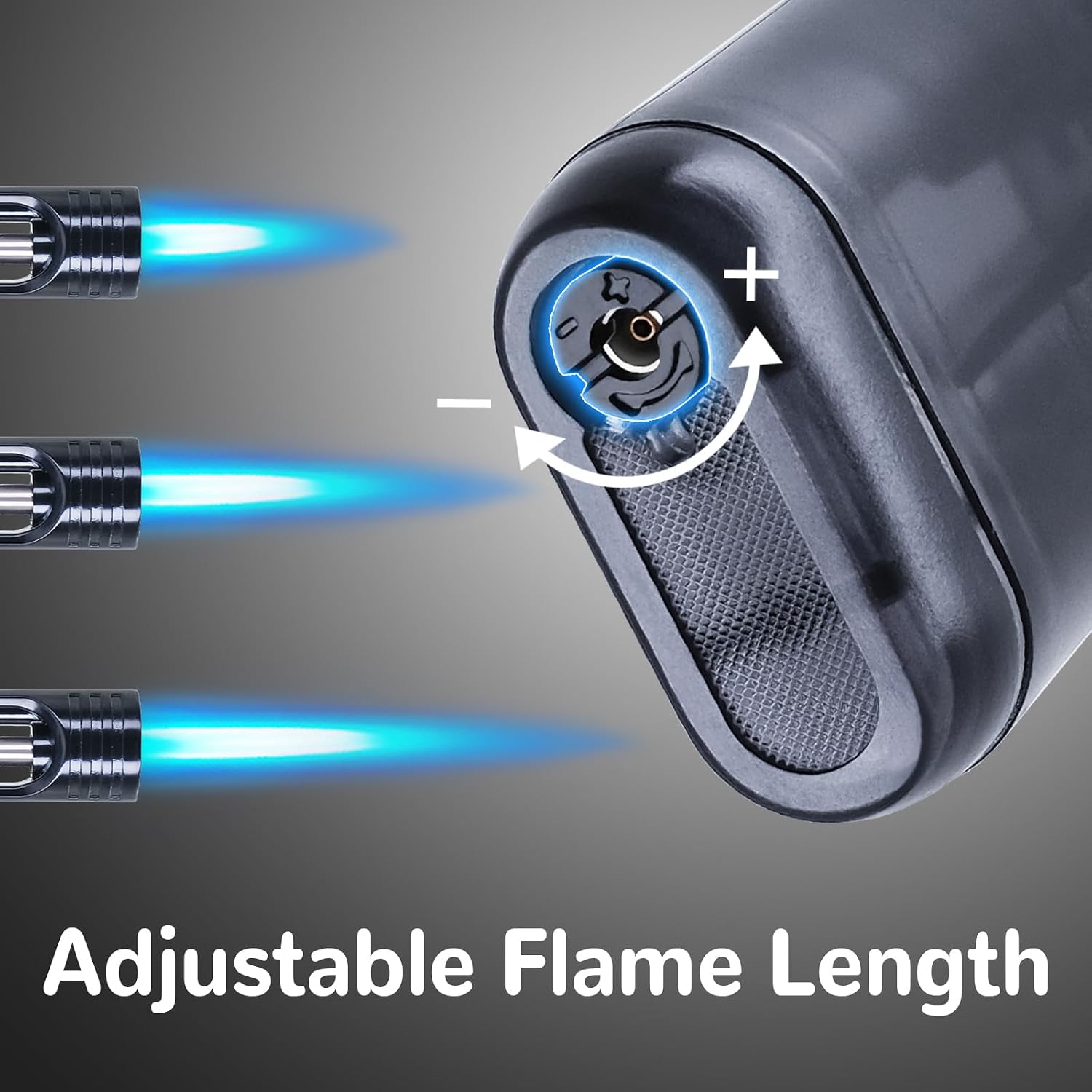

5. Adjusting Flame Length: Locate the flame adjustment knob at the bottom of the lighter. Use a small tool to turn the knob towards the '+' symbol for a longer flame or towards the '-' symbol for a shorter flame.
6.

   Image: A close-up of the bottom of the lighter, showing the flame adjustment knob with '+' and '-' indicators.

7. Flame Length Recommendation: For optimal safety and performance, maintain a flame length between 1.0 and 1.5 inches. Avoid setting the flame too high.

Maintenance

Proper maintenance will extend the life of your Laffizz Mini Butane Torch Lighter:

• Cleaning: Periodically clean the lighter's exterior with a soft, dry cloth. Ensure no debris obstructs the nozzle or ignition mechanism.
• Storage: Store the lighter in a cool, dry place, away from direct sunlight, extreme temperatures, and flammable materials.
• Refill Regularly: Do not let the lighter run completely dry for extended periods. Refill as needed to ensure consistent performance.

Troubleshooting

If you encounter issues with your lighter, refer to the following common solutions:

• Lighter Not Filling:
  • Ensure you are using a butane can with a long and plastic universal filling tip.
  • Crucially, release all residual air/gas from the lighter's filling hole before attempting to refill. Trapped air can prevent new butane from entering.
  • Check the flame adjustment knob. If it is turned completely to the 'OFF' position (often the maximum '-' setting), it can prevent proper refilling. Adjust it to a mid-range setting before refilling.
• Lighter Not Igniting or Flame is Weak:
  • Check the butane level through the clear tank. If low, refill the lighter.
  • Adjust the flame length knob at the bottom. If it's set too low (towards '-'), the flame may be too small or not ignite. Turn it towards '+' to increase the flame.
  • After refilling, wait 2-3 minutes for the gas to stabilize before attempting to ignite.
  • Ensure the ignition mechanism is clean and free from debris.
• Gas Leakage During Refill:
  • Ensure the butane can's nozzle is firmly and straightly inserted into the lighter's filling valve to create a good seal.
  • Verify that your butane can has a long and plastic universal filling tip. Incorrect tips can cause leakage.

Specifications

Image: A visual representation of the lighter's dimensions, indicating a height of 3.36 inches and a width of 1.38 inches.

Warranty and Support

Specific warranty details are not provided in the product information. For any product inquiries, technical support, or warranty claims, please contact Laffizz customer service through the retailer where the product was purchased.
