1. Introduction
This manual provides essential information for the safe and effective use of your Hanorld AC Power Adapter. This adapter is designed as a replacement power supply for various TP-Link router models, ensuring reliable power delivery.
Please read this manual thoroughly before using the product and retain it for future reference.
2. Package Contents
Verify that all items are present in your package:
- 1 x Hanorld AC Power Adapter
- 2 x USB cables (Note: USB cables are included but may not be directly used with the router adapter function. They are for general charging purposes.)
3. Specifications
| Input Voltage | 100-240V AC, 50-60Hz |
| Output Voltage | 12V DC |
| Output Current | 2 Amps |
| Wattage | 24 Watts |
| Cord Length | 5 feet (approx. 1.5 meters) |
| Connector Type | Round tip |
| Special Feature | Lightweight Design, Horizontal Plug Design |
4. Setup
Follow these steps to connect your Hanorld AC Power Adapter to your compatible TP-Link router:
- Verify Compatibility: Ensure your TP-Link router model (e.g., Archer A7, A8, C80, AX73, A6, AX10) requires a 12V, 2A power supply with a round tip connector. Refer to your router's original specifications if unsure.
- Disconnect Old Adapter: If replacing an existing adapter, safely unplug the old power adapter from both the router and the wall outlet.
- Connect to Router: Insert the round tip connector of the Hanorld AC Power Adapter firmly into the power input port on your TP-Link router.
- Connect to Power Outlet: Plug the AC power adapter into a standard 100-240V wall outlet. The horizontal plug design helps save space on power strips or wall outlets.
- Power On: Your router should now receive power and begin its startup sequence. Observe the router's indicator lights to confirm it is powering on correctly.
Figure 4.1: The Hanorld AC Power Adapter, showing the main unit and the attached power cord with a round tip connector.
Figure 4.2: The horizontal plug design of the adapter, demonstrating how it can be plugged into a wall outlet without obstructing adjacent sockets, shown with a TP-Link router on a desk.
5. Operation
Once connected, the Hanorld AC Power Adapter operates automatically to provide continuous power to your router. No user intervention is required for its basic function.
- Power Indicator: The adapter itself does not have an indicator light. Refer to your router's power indicator lights to confirm it is receiving power.
- Continuous Power: The adapter is designed for continuous operation. Unplug it from the wall outlet only when you need to power off the router or relocate it.
6. Safety Information and Protection Features
The Hanorld AC Power Adapter incorporates multiple safety features to protect your device and ensure stable operation:
- Output Short Circuit Protection: Prevents damage in case of a short circuit in the connected device.
- Over Current Protection: Safeguards against excessive current flow, protecting both the adapter and the router.
- Over Voltage Protection: Protects against voltage spikes that could harm your equipment.
- Over Temperature Protection: Monitors internal temperature to prevent overheating.
General Safety Guidelines:
- Do not expose the adapter to water, moisture, or extreme temperatures.
- Avoid dropping or subjecting the adapter to strong impacts.
- Do not attempt to disassemble or repair the adapter. Contact qualified personnel for service.
- Ensure the adapter is used in a well-ventilated area.
Figure 6.1: Visual representation of the adapter's multi-protection features, highlighting the built-in IC chip for enhanced safety and stability.
7. Maintenance
The Hanorld AC Power Adapter requires minimal maintenance:
- Cleaning: Disconnect the adapter from the power outlet and the router before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- Storage: When not in use, store the adapter in a cool, dry place, away from direct sunlight and moisture. The compact and lightweight design makes it easy to store or transport.
- Cable Care: Avoid bending or kinking the power cord excessively. Do not place heavy objects on the cord.

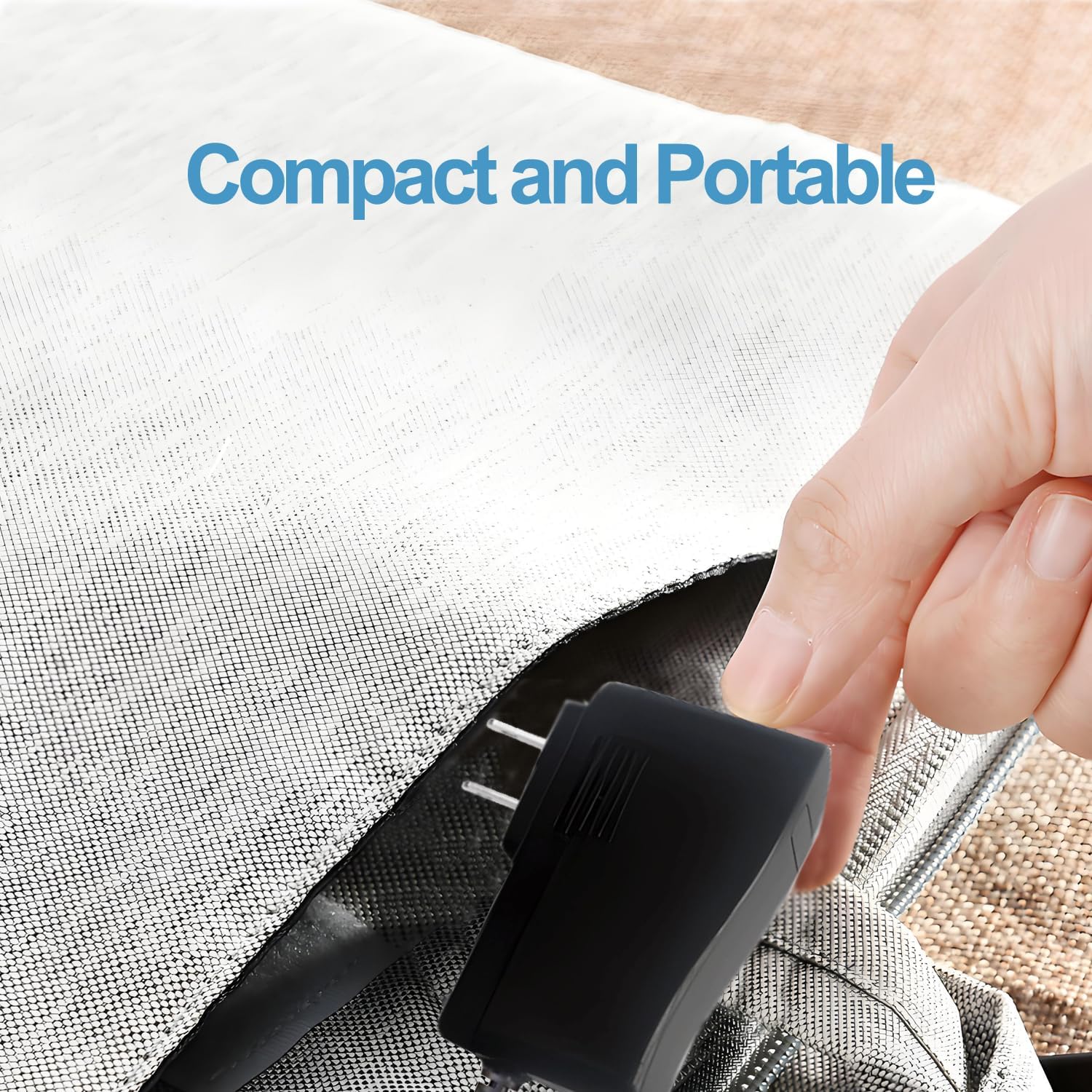

Figure 7.1: The compact and portable design of the adapter, shown being placed into a bag for easy transport.
Figure 7.2: Illustration of the high-quality copper wire and tangle-free PVC jacket, contributing to the adapter's efficiency and durability.
8. Troubleshooting
If you encounter issues with your Hanorld AC Power Adapter, refer to the following common problems and solutions:
- Router Not Powering On:
- Ensure the adapter is securely plugged into both the router and a working wall outlet.
- Test the wall outlet with another device to confirm it has power.
- Verify that the adapter's specifications (12V, 2A) match your router's power requirements.
- Adapter Feels Warm:
- It is normal for power adapters to feel slightly warm during operation.
- If the adapter is excessively hot, unplug it immediately. Ensure it is in a well-ventilated area and not covered.
- Intermittent Power:
- Check for loose connections at both the router and the wall outlet.
- Inspect the power cord for any visible damage or fraying. If damaged, discontinue use.
9. Warranty and Support
For warranty information or technical support, please refer to the retailer or manufacturer's official website where the product was purchased. Keep your purchase receipt as proof of purchase.
