Beautiful 1.5 Qt Ice Cream Maker

Introduction

Thank you for choosing the Beautiful 1.5 Qt Ice Cream Maker. This appliance is designed to help you create delicious homemade ice cream, sorbet, gelato, and frozen yogurt with convenience and precision. Featuring a touch-activated display and a built-in timer, this machine simplifies the process of making frozen treats for your family and friends.

Please read this manual thoroughly before first use to ensure safe operation and optimal performance of your ice cream maker. Keep this manual for future reference.

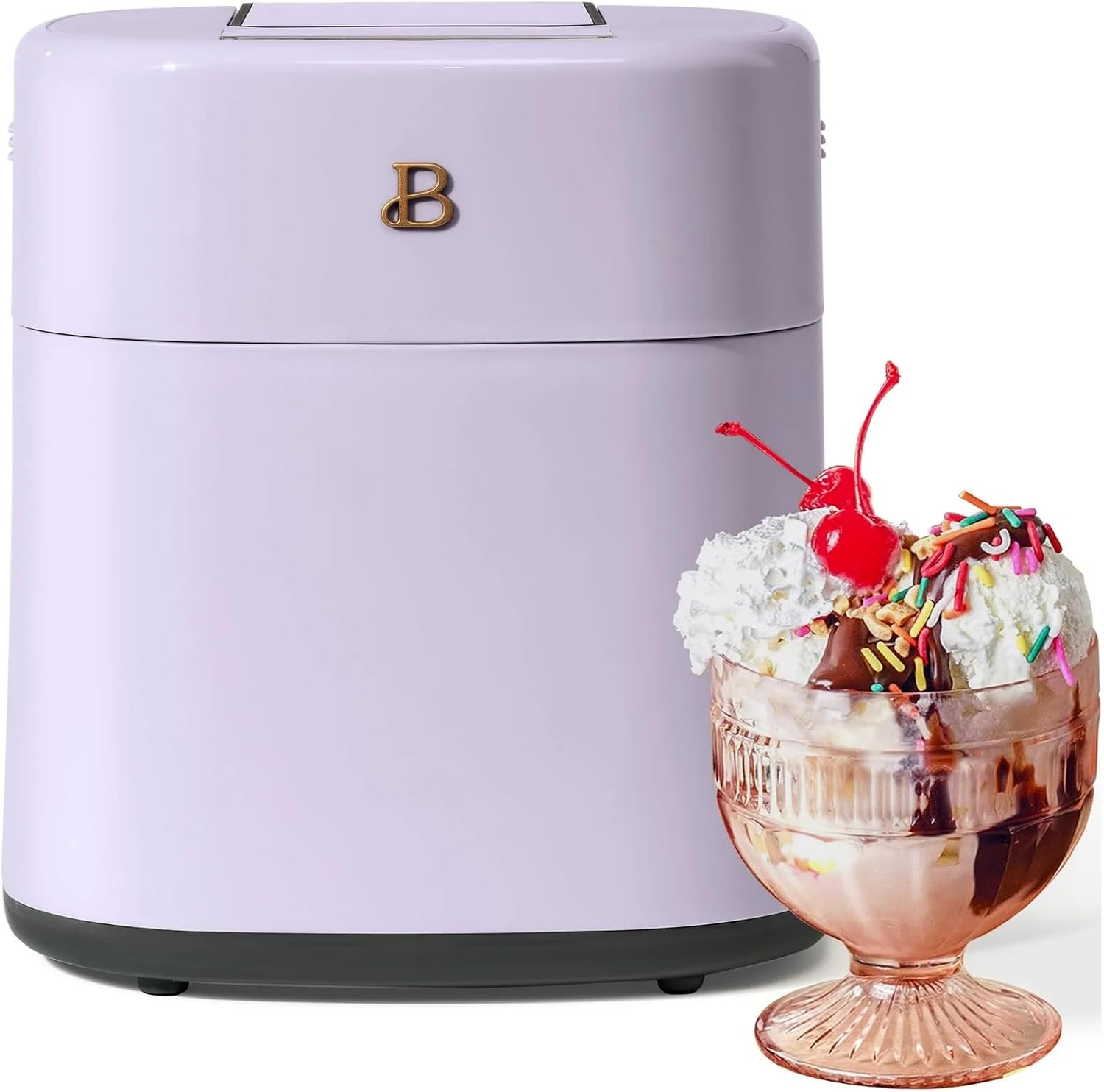

Image: The Beautiful 1.5 Qt Ice Cream Maker in Lavender, showcasing its sleek design alongside a serving of ice cream.

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use appliance for other than intended use.
• Avoid contact with moving parts.
• Ensure the lid is securely locked in place before operation.

Parts and Features

Familiarize yourself with the components of your Beautiful Ice Cream Maker:

• Main Unit: Houses the motor and control panel.
• Touch Activated Display: Digital interface for selecting modes and setting timers.
• Flip-up Lid: Allows for easy addition of ingredients during operation.
• Double-Wall Insulated Freezing Bowl: The core component that freezes ingredients without the need for ice.
• Mixing Paddle: Churns the ingredients to create smooth, consistent frozen treats.
• Ice Cream Scoop: Included for convenient serving.

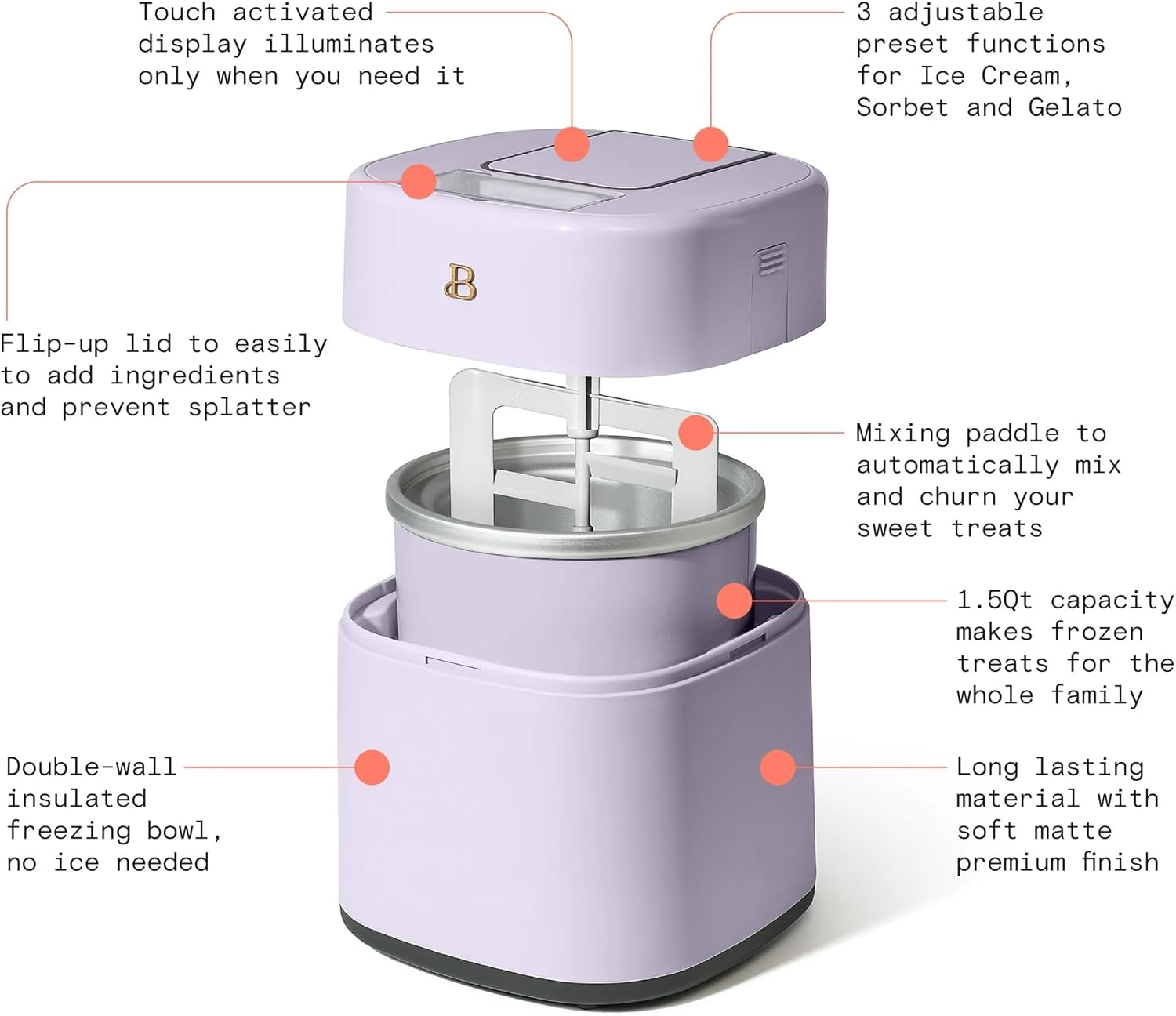

Image: Exploded view diagram illustrating the main components of the ice cream maker, including the touch-activated display, flip-up lid, mixing paddle, and double-wall insulated freezing bowl.

Before First Use

1. Unpack all parts and remove any packaging materials.
2. Wash the mixing paddle, freezing bowl, and lid in warm, soapy water. Rinse thoroughly and dry completely.
3. Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
4. Ensure all parts are completely dry before assembly and storage.

Operating Instructions

Assembly

1. Place the main unit on a clean, dry, and stable surface.
2. Insert the double-wall insulated freezing bowl into the main unit. Ensure it sits securely.
3. Place the mixing paddle into the center of the freezing bowl, ensuring it is properly seated.
4. Align the lid with the main unit and twist or press down until it locks into place.

Using the Touch Activated Display

The touchscreen display illuminates when needed and provides intuitive control over the ice cream maker's functions.

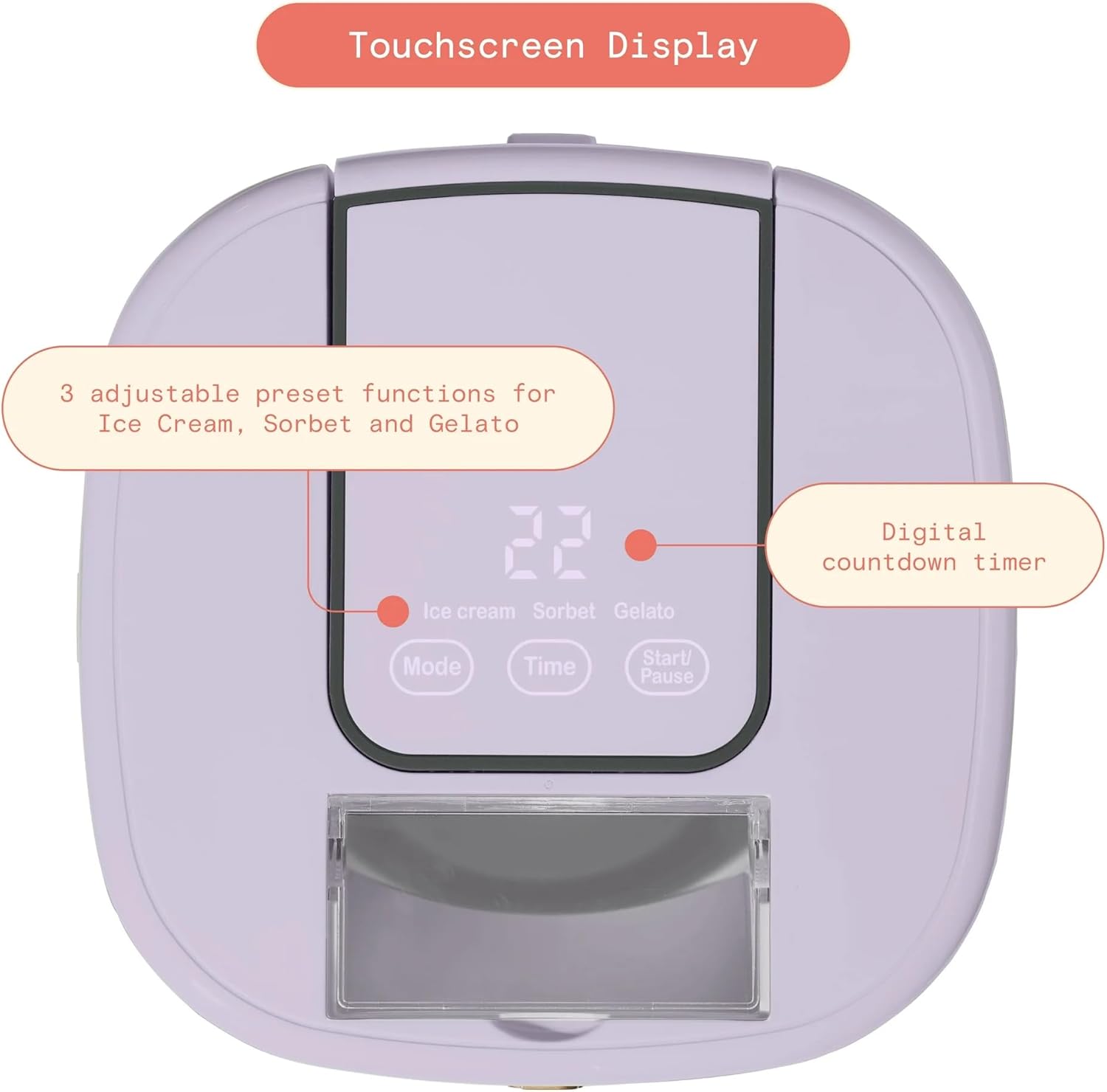

Image: Detailed view of the touchscreen display, highlighting the 'Mode', 'Time', and 'Start/Pause' buttons, along with indicators for Ice Cream, Sorbet, and Gelato.

• Mode Button: Press to cycle through the 3 preset functions: Ice Cream, Sorbet, and Gelato.
• Time Button: Adjusts the digital countdown timer for precise operation.
• Start/Pause Button: Initiates or temporarily stops the churning process.

Making Frozen Treats

1. Prepare your desired ice cream, sorbet, or gelato mixture according to your recipe. Ensure the mixture is chilled for best results.
2. With the machine assembled and plugged in, select your desired mode (Ice Cream, Sorbet, or Gelato) using the Mode button. The digital countdown timer will display the recommended time for the selected mode.
3. Press the Start/Pause button to begin the churning process.
4. While the machine is churning, lift the flip-up lid to slowly pour your chilled mixture into the freezing bowl. The mixing paddle will begin to incorporate the ingredients.


Image: A hand pouring a liquid mixture into the ice cream maker's opening, demonstrating the use of the flip-up lid for adding ingredients during operation.

5. For adding solid ingredients like chocolate chips, nuts, or fruit pieces, wait until the last 5 minutes of the churning cycle. Lift the flip-up lid and add them gradually.

Image: A hand adding solid ingredients, such as chocolate chunks, into the ice cream maker through the open lid, illustrating how to customize your frozen treats.
6. The machine will automatically shut off when the timer reaches zero, signaling that your treat is ready.
7. Use the included ice cream scoop to remove the finished product from the freezing bowl.

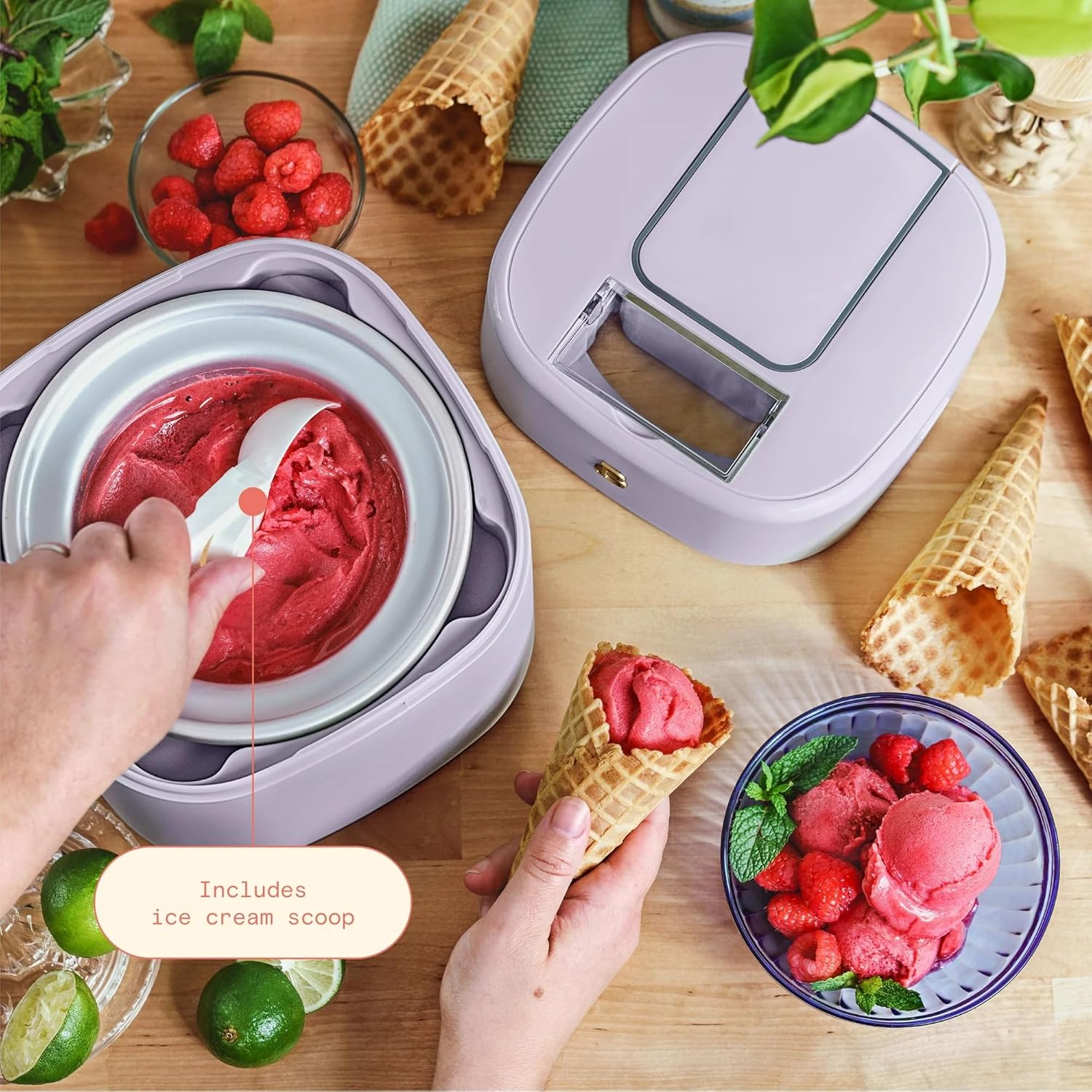

Image: A person using the provided scoop to serve freshly made frozen dessert from the ice cream maker into a bowl, with waffle cones and fresh fruit nearby.

8. For a firmer consistency, transfer the frozen treat to an airtight container and place it in the freezer for 1-2 hours.

Care and Maintenance

Proper care ensures the longevity and performance of your ice cream maker.

• Cleaning: Always unplug the appliance before cleaning. All removable parts (freezing bowl, mixing paddle, lid) should be hand washed with warm, soapy water. Rinse thoroughly and dry completely.
• Main Unit: Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water or any other liquid.
• Storage: Store the assembled ice cream maker in a clean, dry place.
• Do not use abrasive cleaners or scouring pads on any part of the ice cream maker.

Troubleshooting

Specifications

• Model Name: 1.5 Qt Ice Cream Maker with Touch Activated Display
• Model Number: 19270
• Capacity: 1.5 Quarts
• Color: Lavender
• Material: Plastic
• Special Features: Touchpad control, Digital countdown timer, Built-in timer
• Included Components: Ice cream maker, double-wall insulated freezing bowl, mixing paddle, ice cream scoop
• Product Dimensions: 8.26"L x 8.97"W x 8.97"H
• Item Weight: 7 Pounds
• Operation Mode: Touchscreen Operation with preset functions
• Product Care Instructions: Hand Wash
• Recommended Uses: Residential use, homemade ice cream, sorbet, frozen yogurt, gelato

Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your purchase or visit the manufacturer's official website. Do not attempt to repair the appliance yourself; contact qualified service personnel for assistance.
