1. Introduction
This manual provides detailed instructions for the safe and efficient operation, maintenance, and troubleshooting of your STAGEEK Electric Pencil Sharpener. Please read this manual thoroughly before using the product and retain it for future reference.
Image: The STAGEEK Electric Pencil Sharpener, highlighting its compatibility with 6-8mm pencils.
2. Product Features
- Versatile Pencil Compatibility: Designed to sharpen No.2 pencils, colored pencils, and standard 6-8mm art pencils, making it suitable for various users including students, teachers, artists, and office professionals.
- Efficient Sharpening: Equipped with a high-speed motor and durable alloy blades for quick and precise sharpening, minimizing lead waste.
- Safety Features: Features an auto-lock mechanism that prevents operation when the shaving box is not securely engaged, enhancing user safety.
- Large Shaving Box: A spacious, transparent shaving box reduces the frequency of emptying, promoting a cleaner workspace.
- Dual Power Options: Can be powered by 4 AA batteries (not included) for portability or via a USB charger for continuous use.
- Durable Construction: Built with a sturdy ABS structure to withstand regular use in various environments.
- Anti-Slip Base: An anti-slip silicone base ensures stable operation and reduces noise during sharpening.
3. Setup
3.1 Power Supply Options
Your STAGEEK Electric Pencil Sharpener offers two convenient power options:
- USB Power: Connect the provided USB cable to the sharpener's power input port and plug the other end into a USB power source (e.g., computer, wall adapter, power bank).
- Battery Power: Open the battery compartment on the bottom of the sharpener and insert 4 AA alkaline batteries (not included), ensuring correct polarity.
Image: A diagram illustrating the dual power supply methods: USB power and 4 AA batteries.
3.2 Secure Shaving Box
Ensure the shaving box is correctly installed and securely engaged before operation. The sharpener will not function if the shaving box is open or improperly attached due to its auto-lock safety mechanism.
Image: Visual guide on how to correctly verify the installation of the shaving box for proper operation.
4. Operating Instructions
Follow these steps to sharpen your pencils:
- Insert Pencil: Gently insert the pencil into the sharpening hole.
- Apply Pressure: Apply light downward pressure to start the sharpening process. The sharpener will automatically activate.
- Remove Pencil: Once the pencil is sharpened to your desired point (typically 3-5 seconds), remove it. The sharpener will automatically stop.
Image: A visual demonstration of the three-step sharpening process: insert, apply pressure, and remove.
4.1 Pencil Compatibility
This sharpener is compatible with pencils ranging from 6mm to 8mm in diameter, including standard No.2 pencils, colored pencils, and sketching pencils. It is not recommended for very soft charcoal pencils.
Image: An illustration detailing the types of pencils (rounded, hexagonal, triangular) that fit the 6-8mm sharpener opening.
5. Maintenance
5.1 Emptying Shavings
Regularly empty the shaving box to maintain optimal performance and prevent blockages. The transparent design allows you to easily monitor the fill level.
- Disconnect the sharpener from its power source (unplug USB or remove batteries).
- Gently pull the front part of the sharpener (shaving box) away from the main unit.
- Empty the pencil shavings into a waste bin.
- Reattach the shaving box securely until it clicks into place.

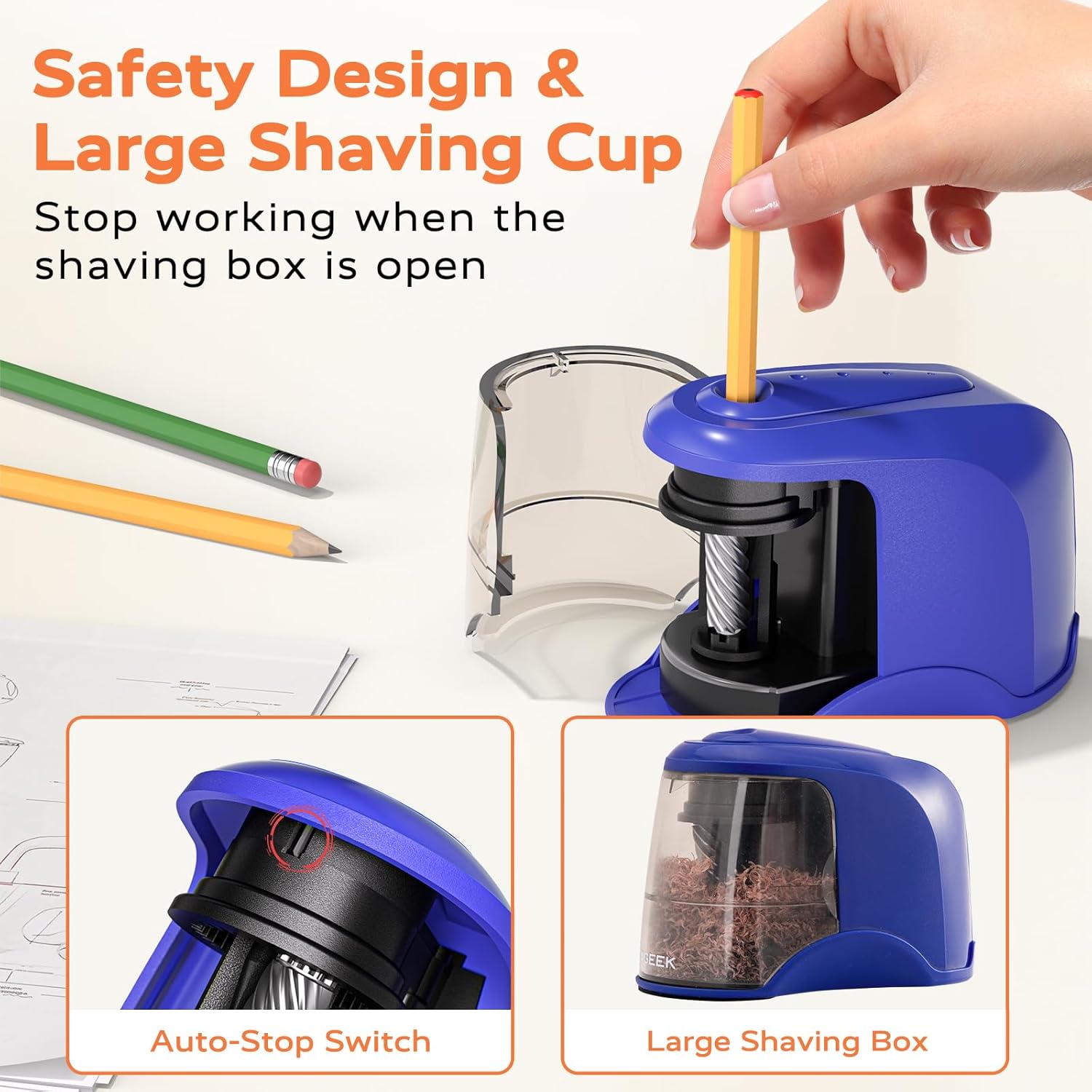

Image: The large, clear shaving box and the auto-stop switch, which prevents operation when the box is open.
5.2 Cleaning
Wipe the exterior of the sharpener with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Sharpener does not turn on. | No power supply, batteries drained, or shaving box not secured. | Check USB connection or replace batteries. Ensure shaving box is fully closed and locked. |
| Pencil is not sharpening effectively. | Dull blades, excessive shavings, or incorrect pencil size. | Empty shaving box. Ensure pencil is 6-8mm. If issues persist, blades may need replacement (contact support). |
| Pencil lead breaks frequently. | Excessive pressure, very soft lead, or dull blades. | Apply lighter pressure. Avoid using very soft pencils. Empty shaving box. |
7. Product Videos
STAGEEK Electric Pencil Sharpener Overview
Video: An official overview of the STAGEEK Electric Pencil Sharpener, demonstrating its features and ease of use. This video highlights the product's design and functionality for various pencil types.
Fast Sharpening and Dual Power Demonstration
Video: This video showcases the fast sharpening capability and the dual power options (USB and battery) of the STAGEEK Electric Pencil Sharpener, emphasizing its convenience and efficiency.
Testing the STAGEEK Electric Pencil Sharpener
Video: A demonstration of the STAGEEK Electric Pencil Sharpener in action, highlighting its performance and suitability for various pencil types and sharpening needs.
8. Specifications
| Brand | STAGEEK |
| Model Number | SGDDJBD001-LA |
| Color | Blue |
| Power Source | Corded Electric (USB) / 4 AA Batteries (not included) |
| Material | Alloy Steel, Plastic (ABS) |
| Compatible Pencil Sizes | 6-8mm (No.2 pencils, colored pencils, charcoal pencils) |
| Additional Features | Lightweight, Portable, Safety Switch, Super Fast, Anti-slip Silicone Base |
9. Warranty and Support
This product comes with a 90-day warranty. For support or warranty claims, please contact STAGEEK customer service or visit the official STAGEEK store on Amazon: STAGEEK Amazon Store.
