Dvsripa Heavy-Duty 4-Wheel Mobility Scooter AFD-1 User Manual

1. Introduction

This manual provides essential information for the safe and effective operation, maintenance, and care of your Dvsripa Heavy-Duty 4-Wheel Mobility Scooter, model AFD-1. Please read this manual thoroughly before initial use and retain it for future reference.

Product Overview

The Dvsripa AFD-1 is a heavy-duty 4-wheel mobility scooter designed for enhanced mobility for adults, particularly seniors. It features an 800W motor, a 500 lbs weight capacity, and is capable of navigating various terrains, including slopes up to 20 degrees. The scooter is equipped with a 60V20Ah battery, offering a range of 35-40 miles and a top speed of 15 mph.

Figure 1: Dvsripa Heavy-Duty 4-Wheel Mobility Scooter AFD-1 in black.

Safety Information

Always prioritize safety. Ensure you understand all controls and features before operating the scooter. Wear appropriate safety gear, such as a helmet, if required by local regulations or for personal preference. Always use the safety belt provided. Avoid operating the scooter under the influence of alcohol or medication that may impair your judgment.

2. Setup

Initial Assembly

The scooter requires minimal assembly upon delivery. Refer to the included user manual for detailed assembly instructions. Ensure all components are securely fastened before first use.

Battery Installation and Initial Charge

Locate the battery compartment, typically under the seat. Connect the battery terminals as indicated in the detailed manual. For optimal battery life, fully charge the scooter before its first use. The 60V20Ah battery provides robust and stable power.

Seat and Tiller Adjustments

Adjust the seat position (forward/backward), backrest angle, and armrest height for optimal comfort. The tiller height can also be adjusted to suit your preference. Ensure all adjustments are locked into place before driving.

Seat Adjustments

Figure 2: Illustration of seat adjustments including forth/back, backrest, and armrest adjustments for personalized comfort.

The scooter features a luxurious reclining seat with folding armrests. You can adjust the seat forward and backward, recline the backrest, and adjust the armrests to find your most comfortable driving position.

3. Operating Instructions

Power On/Off and Controls

The scooter can be powered on using the ignition key or a keychain remote. The electronic control panel display provides real-time updates on speed and travel distance. Familiarize yourself with the LED display, speed gear selector, light switch, horn, and reverse function.

Figure 3: Overview of the easy-to-use control panel, showing the LED display, speed gear selector, light switch, and horn.

Driving and Terrain Navigation

The Dvsripa AFD-1 is designed for all-terrain use, featuring large 16-inch tires and two rear shock absorbers for a smooth ride over sand, snow, grass, and muddy roads. The powerful 800W motor allows for effortless navigation of slopes up to 20 degrees.

Lighting System

The scooter features a complete lighting system for enhanced visibility and safety. This includes front lights, tail lights, and turn signals. Use the high-low beam switch for appropriate lighting conditions.

Storage Options

The Dvsripa AFD-1 offers multiple storage solutions: a lockable storage box, a rear basket, and an under-seat storage compartment. These provide ample space for personal items and valuables.

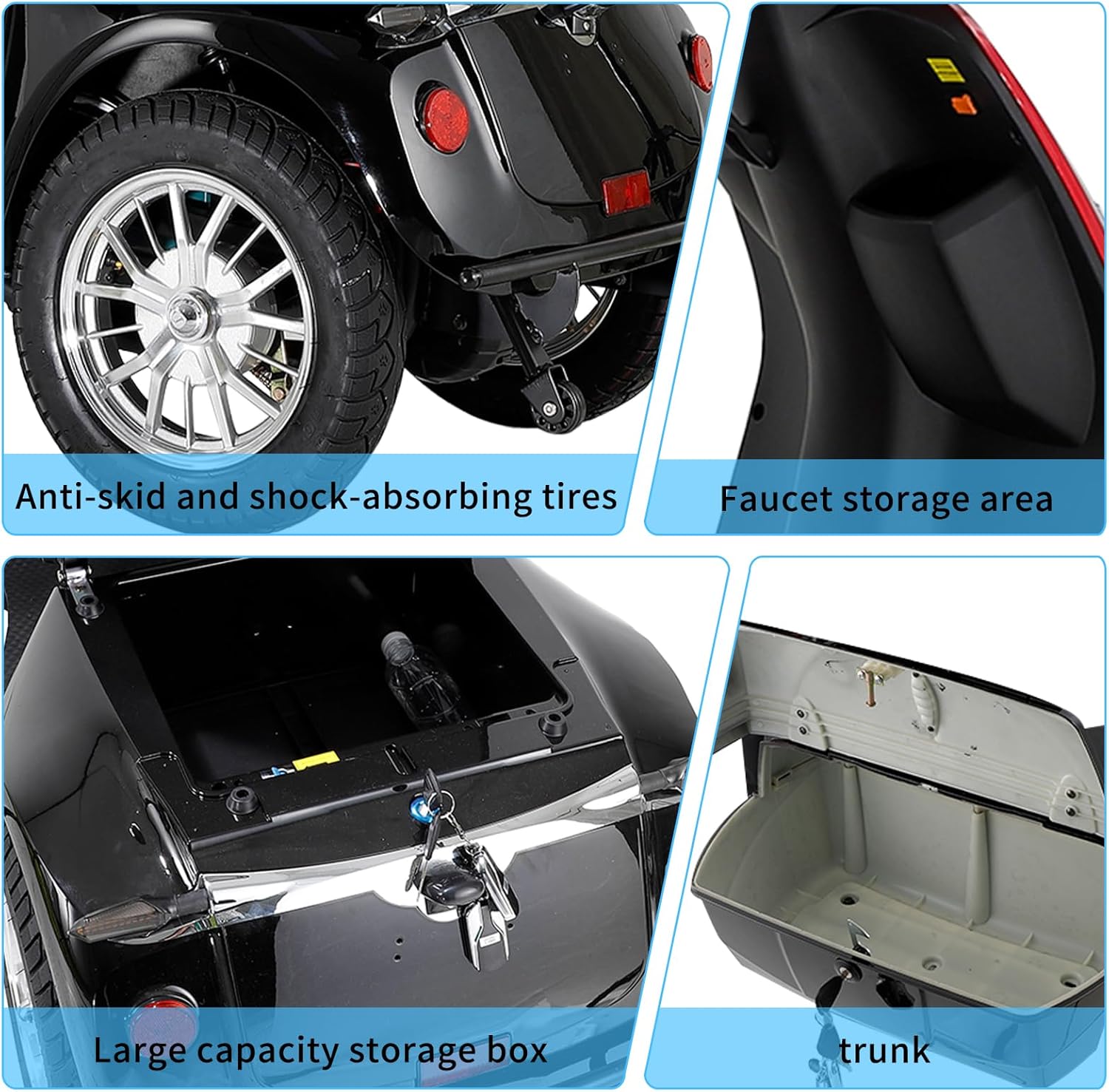

Figure 4: Details of the anti-skid and shock-absorbing tires, faucet storage area, large capacity storage box, and trunk.

4. Maintenance

Battery Care

To prevent battery damage, avoid leaving the mobility scooter unused for extended periods. Regular charging and use are recommended to maintain battery health and longevity. Refer to the full user manual for specific charging guidelines.

General Care

Keep the scooter clean and dry. Regularly inspect tires for wear and proper inflation. Check all moving parts and fasteners for tightness. If any issues arise, consult the troubleshooting section or contact customer support.

5. Troubleshooting

For common operational issues, please refer to the comprehensive troubleshooting guide in the full user manual. If you encounter problems that cannot be resolved, contact customer support for assistance.

6. Specifications

7. Warranty and Support

Warranty Information

This Dvsripa Mobility Scooter comes with a one-year warranty (excluding batteries). Please retain your proof of purchase for warranty claims.

Customer Support

For any questions regarding your purchase, operation, or service (except batteries), please feel free to contact Dvsripa customer service. Lifetime service is provided for this product.
