Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your MEASUREMAN MA263 in-Cab Single Air Gauge Control Kit. This kit is designed to offer precise pressure monitoring and convenient control for your vehicle's air suspension system, ensuring optimal stability and comfort under various load conditions.
Product Overview
The MEASUREMAN MA263 kit features a single air gauge for accurate pressure readings and an intuitive paddle switch for dual-function control of one or two air springs. Its robust construction ensures durability and reliable performance.

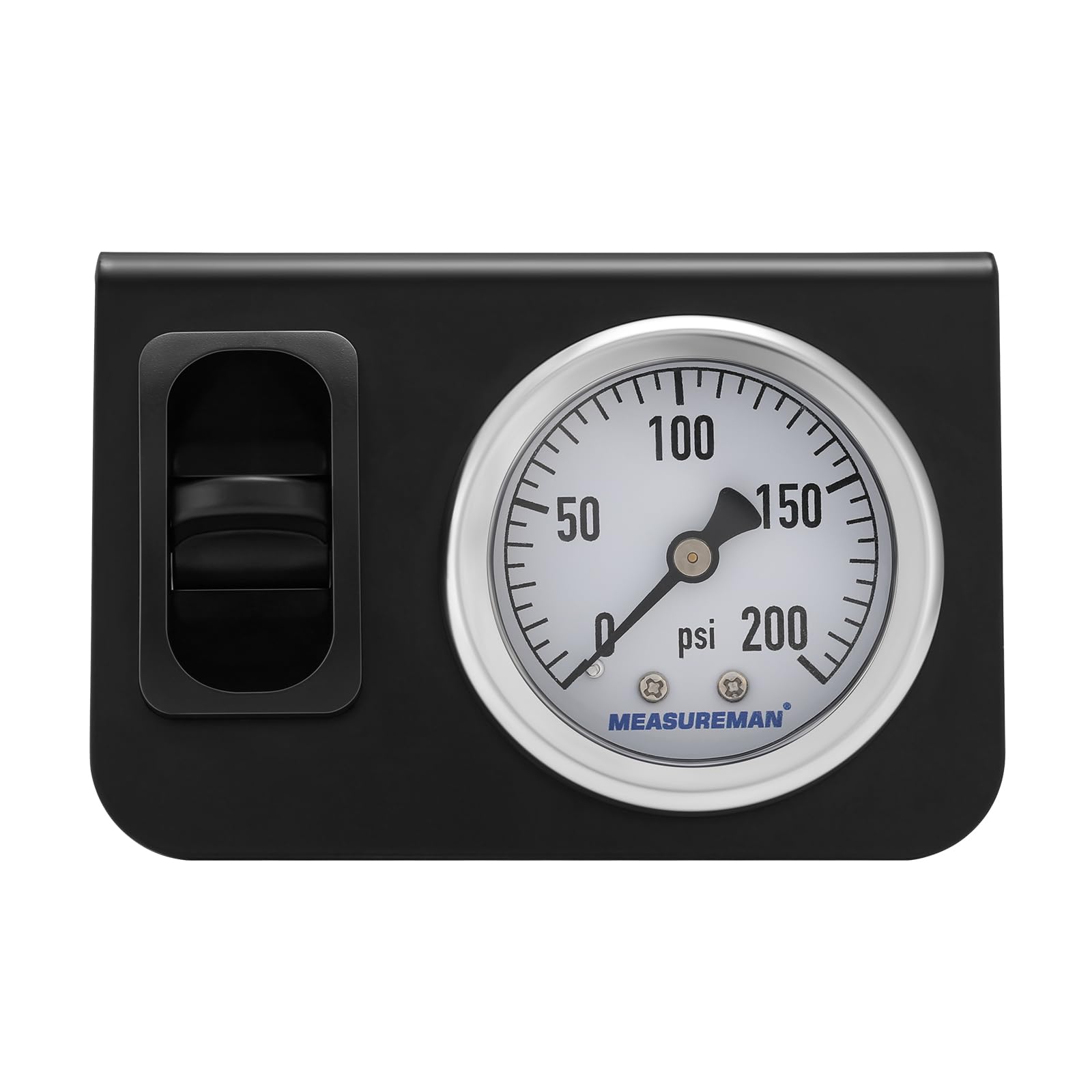

Figure 1: MEASUREMAN in-Cab Single Air Gauge Control Kit
Setup and Installation
The MEASUREMAN MA263 kit is designed for a straightforward, plug-and-play setup, typically installing in minutes with universal 1/4" air hose connections. No complex wiring is required for basic pneumatic function.
Components Overview
Figure 2: Durable Construction - Featuring a black steel panel and stainless steel gauge for longevity.
Figure 3: Side View of Gauge and Connections - Illustrates the air hose and wiring connections for installation.
Air System Connection
Connect the air gauge control kit to your air suspension system using the provided 1/4" air hoses. Ensure all connections are secure to prevent leaks.
Figure 4: Air System Connection Diagram - Shows how to connect the air bag and air source to the control unit.
Installation Tips
- Ensure all air lines are routed away from sharp edges and heat sources.
- Use appropriate tools for tightening connections to avoid overtightening or stripping.
- Verify that the gauge is mounted in a location easily visible from the driver's seat.
Related Video: Air Ride Suspension Control Switch
Video 1: This video demonstrates the functionality of an air ride suspension control switch, similar to the paddle switch included in your kit. It shows how the switch operates to adjust air pressure.
Operating Instructions
The MEASUREMAN MA263 kit allows for precise control and monitoring of your air suspension system from within the vehicle cabin.
Pressure Monitoring
The integrated 0-200 PSI gauge provides accurate, real-time pressure readings, allowing you to monitor the air pressure in your air springs for optimal vehicle stability and comfort.
Figure 5: Accurate Reading - The large, clear numbers on the gauge ensure easy and precise pressure monitoring.
Dual-Function Control
Utilize the intuitive paddle switch to inflate or deflate one or two air springs simultaneously. This dual-function control allows for quick adjustments without needing to exit the vehicle, enhancing safety and convenience, especially when adjusting for heavy loads.
Adjusting Air Springs
To inflate, push the paddle switch in the 'up' direction. To deflate, push the paddle switch in the 'down' direction. Observe the gauge to reach your desired pressure. The system supports fully adjustable rear air springs to provide stability and level your vehicle under heavy loads.
Related Video: Single Needle Gauge Operation
Video 2: This video demonstrates the operation of a single needle air gauge, showing how to inflate and deflate an air spring and monitor pressure changes.
Related Video: Air Spring Controller Demonstration
Video 3: A general demonstration of an air spring controller, illustrating how air springs are inflated and deflated to adjust vehicle height and support.
Maintenance
The MEASUREMAN MA263 kit is constructed from high-quality materials designed to resist vibration, moisture, and daily wear, ensuring long-term reliability with minimal maintenance.
- Regular Inspection: Periodically check all air hose connections for signs of wear, cracks, or leaks. Ensure all fittings are snug.
- Cleanliness: Keep the gauge and paddle switch free from dirt and debris to ensure smooth operation and clear readings. Use a soft, damp cloth for cleaning.
- Air Filter (if applicable): If your air compressor system includes an air filter, inspect and clean or replace it according to the compressor manufacturer's recommendations to maintain optimal air quality and system performance.
Troubleshooting
If you encounter issues with your air gauge control kit, consider the following common troubleshooting steps:
- No Pressure Reading: Check all air line connections for leaks. Ensure the air source is active and providing pressure to the system.
- Inaccurate Pressure Reading: Verify that the gauge is properly calibrated. If possible, compare the reading with another known accurate pressure gauge.
- Air Leakage: Listen for hissing sounds around connections. Apply a soapy water solution to connections; bubbles indicate a leak. Tighten or replace faulty fittings/hoses.
- Paddle Switch Malfunction: Ensure the switch moves freely and is not obstructed. Check for any visible damage to the switch or its pneumatic connections.
For persistent issues, please contact MEASUREMAN customer support.
Specifications
| Feature | Specification |
|---|---|
| Brand | MEASUREMAN |
| Model Number | MA263 |
| Pressure Range | 0-200 PSI |
| Material | Metal |
| Item Weight | 386 g (0.85 lbs) |
| Product Dimensions (L x W x H) | 15.24 x 12.7 x 10.16 cm (6 x 5 x 4 inches) |
| Item Package Quantity | 1 |
| Batteries Required | No |
| Thread Type | NPT |
Warranty and Support
For warranty information, technical support, or any inquiries regarding your MEASUREMAN MA263 in-Cab Single Air Gauge Control Kit, please refer to the contact information provided with your product packaging or visit the official MEASUREMAN website.
