Introduction
This manual provides comprehensive instructions for the setup, operation, and maintenance of your LANCHEZ 12in Sand Filter Pump. Designed for above-ground pools, this system offers high-efficiency filtration to ensure crystal-clear water. With a maximum flow of 2400 gallons per hour (GPH), it is ideal for pools up to 7000 gallons.
The reinforced thermoplastic filter tank ensures durability, and the copper motor is engineered for an extended lifespan and reduced energy consumption. The integrated 6-way valve provides versatile control for various filtration needs.
Product Overview
Figure 1: LANCHEZ 12in Sand Filter Pump System. This image displays the complete sand filter pump unit, including the filter tank, pump, and connecting hose.
The LANCHEZ Sand Filter Pump system includes:
- 12in Filter Tank
- 1/3HP Pump
- 6-Way Multi-Port Valve
- Pressure Gauge
- Connecting Hoses and Fittings
- Filter Balls (initial supply)
Figure 2: Key specifications including 2400 GPH flow, 12-inch tank size, 55 lb sand capacity, and 1.5 lb filter ball capacity.
Setup and Installation
Careful assembly is crucial for optimal performance. Please follow these steps:
- Unboxing and Component Identification:
Begin by unboxing all components and verifying that all parts listed in the packing list are present. Familiarize yourself with each part before proceeding with assembly.
Video 1: LANCHEZ 12in Sand Filter Pump Unboxing. This video demonstrates the unboxing process and shows all included components of the sand filter pump system.
- Base and Tank Assembly:
Place the filter tank onto its designated base. Ensure it is stable and on a level surface near your pool.
- Pump Attachment:
Attach the pump motor securely to the side of the filter tank. Ensure all connections are tight to prevent leaks.
- Internal Tubing Placement:
Insert the white internal tubing (standpipe) into the center of the filter tank. This tube is crucial for proper water flow through the filter media.
- Adding Filter Media:
Carefully add your chosen filter media (either filter sand or filter balls) into the tank. Refer to Figure 2 for recommended capacities. Ensure the standpipe remains centered during this process.

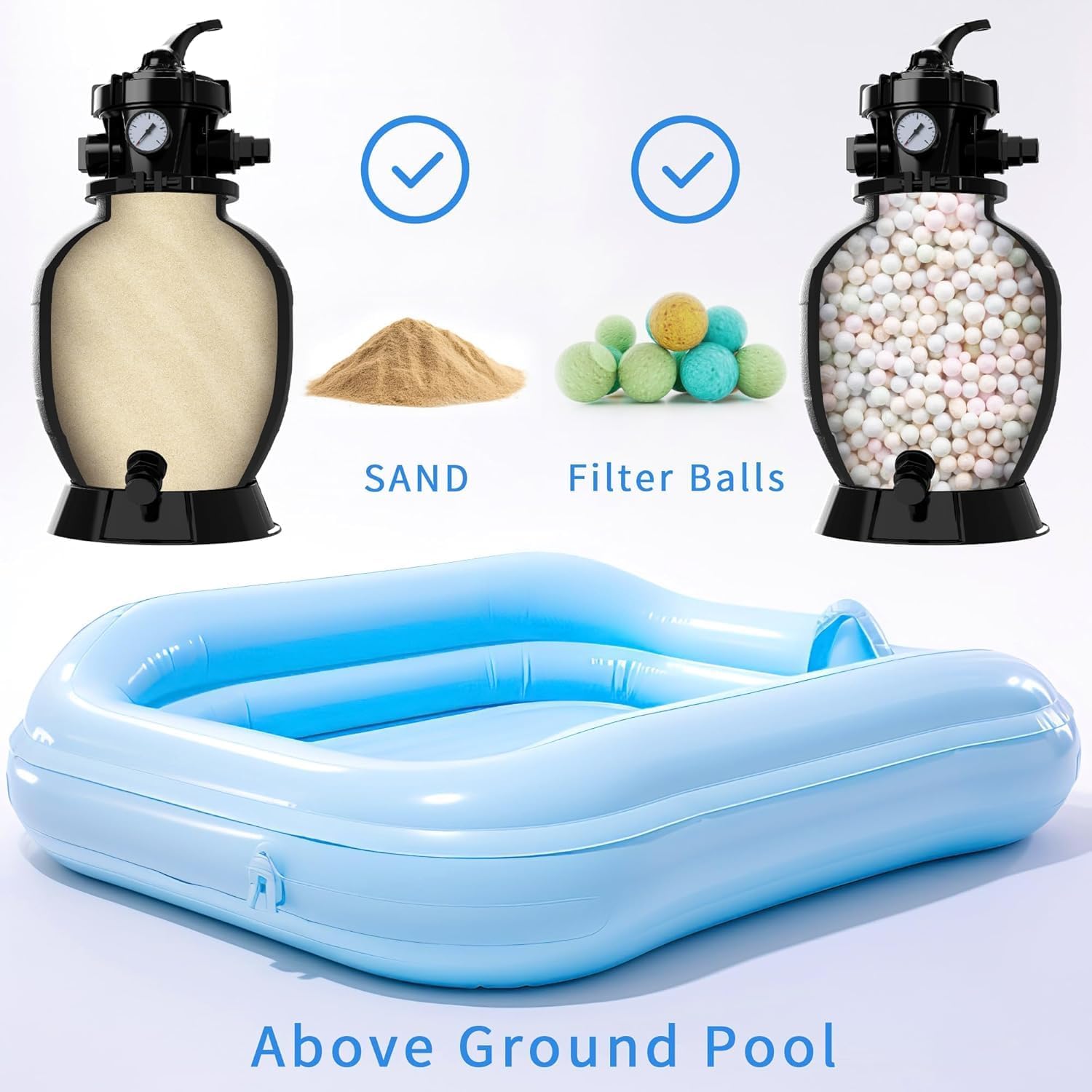

Figure 3: Illustration showing the use of either sand or filter balls as media within the filter tank.
- Multi-Port Valve Installation:
Place the 6-way multi-port valve onto the top of the filter tank, aligning it with the internal tubing. Secure it firmly using the provided clamp and screws. Ensure the O-ring is properly seated for a watertight seal.
- Hose Connections:
Connect the provided hoses between the pump and the multi-port valve, and from the valve to your pool's inlet and outlet. Use Teflon tape on threaded connections as needed to prevent leaks. Ensure all hose clamps are tightened securely.
Video 2: How to install this sand filter pool pump for above ground pools. This video provides a step-by-step guide for the physical installation of the sand filter pump system.
- Electrical Connection:
Connect the pump's 3-prong plug to a grounded electrical outlet. Ensure the outlet is protected by a Ground Fault Circuit Interrupter (GFCI) for safety.
Operating the 6-Way Valve
The 6-way multi-port valve allows you to control the water flow for different functions. Always turn off the pump before changing valve positions.
Figure 4: Detailed view of the 6-way valve with its various operational settings.
- 1. FILTER: This is the standard operating position for daily filtration. Water flows through the filter media, cleaning the pool water, and returns to the pool.
- 2. BACKWASH: Used for cleaning the filter media. Water flow is reversed, flushing trapped debris out through the waste port. Perform backwash when the pressure gauge reading is 8-10 PSI above its clean operating pressure.
- 3. RINSE: Used after backwashing to flush out any remaining dirty water from the filter and lines before returning to FILTER mode. Run for 30-60 seconds.
- 4. WASTE: Drains water directly from the pool, bypassing the filter. Useful for vacuuming heavy debris directly to waste or lowering the pool water level.
- 5. CLOSED: Shuts off all flow to the filter and pump. Never operate the pump with the valve in the CLOSED position.
- 6. RECIRCULATE: Circulates pool water without filtering it. Useful for distributing chemicals quickly or when the filter media needs to be bypassed.
Figure 5: Visual representation of the 6-way valve settings and their corresponding functions.
Maintenance
Regular maintenance ensures the longevity and efficiency of your LANCHEZ Sand Filter Pump.
- Backwashing and Rinsing:
Monitor the pressure gauge (Figure 6). When the pressure rises 8-10 PSI above its normal clean operating pressure, it's time to backwash. Follow these steps:
- Turn off the pump.
- Set the valve to BACKWASH.
- Turn on the pump and run until the water in the sight glass (if available) runs clear (typically 2-3 minutes).
- Turn off the pump.
- Set the valve to RINSE.
- Turn on the pump and run for 30-60 seconds.
- Turn off the pump.
- Set the valve back to FILTER.
- Turn on the pump.
Figure 6: The pressure gauge helps monitor filter performance and indicates when backwashing is needed.
- Filter Media Replacement:
Sand filter media typically needs replacement every 3-5 years, depending on usage and water quality. Filter balls may require cleaning or replacement more frequently based on their condition.
- Winterization:
Before freezing temperatures, drain all water from the pump and filter. Disconnect hoses and store the unit in a dry, protected area to prevent freeze damage. Set the multi-port valve to the "Winter" position if available, or between two settings to relieve pressure on the internal seal.
Troubleshooting
This section addresses common issues you might encounter with your sand filter pump.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow / Poor Filtration | Clogged filter media, dirty pump impeller, air in the system, incorrect valve setting. | Perform backwash and rinse. Check pump basket for debris. Bleed air from the system. Ensure valve is on FILTER. |
| Water Leaking from Connections | Loose connections, worn O-rings, insufficient Teflon tape. | Tighten all hose clamps and threaded connections. Inspect and replace O-rings if damaged. Apply more Teflon tape to threaded fittings. |
| Pump Not Priming | Low water level in pool, air leak in suction line, clogged skimmer/main drain. | Ensure pool water level is adequate. Check all suction side connections for air leaks. Clear any blockages in skimmer or main drain. |
| Unusual Noise from Pump | Air in the system, debris in impeller, motor bearing issue. | Check for air leaks. Turn off pump and inspect impeller for debris. If noise persists, contact customer support. |
If you encounter issues not covered here or require further assistance, please refer to the Warranty and Support section for contact information.
Specifications
| Feature | Detail |
|---|---|
| Brand | LANCHEZ |
| Model Number | LZ-CLP2502F |
| Style | Sand Filter Pump |
| Material | Plastic |
| Product Dimensions | 10.27"L x 6.92"W x 7.08"H |
| Item Weight | 22.8 Pounds |
| Power Source | Corded Electric |
| Voltage | 115 Volts |
| Maximum Flow Rate | 2400 GPH (40 Gallons Per Minute) |
| Maximum Lifting Height | 27 Feet |
| Recommended Pool Capacity | Up to 7000 Gallons |
Figure 7: Technical specifications chart for the LANCHEZ sand filter pump, including flow rate and head pressure.
Warranty and Support
Your LANCHEZ 12in Sand Filter Pump is backed by a three-year worry-free manufacturer after-sales service, ensuring peace of mind and customer satisfaction.
For any questions, technical assistance, or warranty claims, please contact LANCHEZ customer service. Details can typically be found on the product packaging or the official LANCHEZ website.
Figure 8: LANCHEZ commitment to quality, warranty, and customer support, along with company background information.
