MAIHUITE 13-inch Laminate Floor Cutter (Model HTC-330) Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and efficient operation, setup, and maintenance of your MAIHUITE 13-inch Laminate Floor Cutter, Model HTC-330. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage.

Product Overview

• Universal Compatibility: Designed to cut a variety of flooring materials, including laminate, engineered hardwood, vinyl plank (LVT, LVP), stone plastic composite (SPC), wood plastic composite (WPC), vinyl composition tile (VCT), siding, and more. It accommodates materials up to 13 inches in width and 16 mm in thickness.
• Efficient and Precise Adjustable Angle Cuts: Capable of making angle cuts from 0° to 45°. Clear angle markings facilitate quick and accurate adjustments for various project requirements, including straight cuts, baseboards, and intricate designs.
• Heavy-Duty, Durable Construction: Constructed with a high-strength aluminum alloy and a reinforced steel frame for stability and long-term reliability, even with heavy-duty use on tough materials.
• Sharp Tungsten Steel Blade: Features an ultra-sharp tungsten steel blade for smooth, splinter-free cuts. A honing stone is included to maintain blade sharpness and extend its lifespan.
• User-Friendly, Ergonomic Design: Operates manually without electricity, ensuring a quiet and dust-free cutting experience. Ergonomic rubber grips reduce hand fatigue and provide maximum control and comfort during prolonged use.

2. Safety Information

Always prioritize safety when operating any cutting tool. Failure to follow these safety guidelines may result in serious injury or damage to the tool.

• Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, at all times.
• Ensure the cutter is placed on a stable, level surface before operation.
• Keep hands and fingers clear of the blade area during operation.
• Do not attempt to cut materials exceeding the specified maximum width (13 inches) or thickness (16 mm).
• Inspect the blade for damage or dullness before each use. A dull blade can lead to uneven cuts and increased effort.
• Keep children and bystanders away from the work area.
• Store the cutter in a safe, dry place when not in use, ensuring the blade is protected.

3. Setup

Follow these steps to set up your MAIHUITE 13-inch Laminate Floor Cutter.

1. Unpack all components and verify that all parts are present according to the packing list.
2. Place the main cutter body on a sturdy, flat surface.
3. Attach the handle to the designated pivot point on the cutter. Secure it firmly with the provided hardware.
4. Ensure all bolts and fasteners are tightened securely before initial use.

Figure 3.1: Assembled MAIHUITE 13-inch Laminate Floor Cutter.

Installation Video

4. Operating Instructions

This section details how to use your floor cutter for various types of cuts.

4.1 Making Straight Cuts

1. Place the flooring material firmly against the back fence of the cutter.
2. Align the desired cut line with the blade.
3. Step on the base of the cutter to stabilize it.
4. Firmly pull down the handle with a steady, continuous motion to cut through the material.
5. Release the handle and remove the cut piece.

4.2 Making Angle Cuts (0° to 45°)

1. Locate the angle adjustment mechanism on the cutter.
2. Loosen the locking knob or lever for angle adjustment.
3. Adjust the fence to the desired angle (e.g., 15°, 30°, 45°) using the clear markings on the base.
4. Tighten the locking knob or lever to secure the angle.
5. Place the flooring material against the angled fence, ensuring it is flush.
6. Step on the base and pull down the handle to make the angle cut, similar to straight cuts.

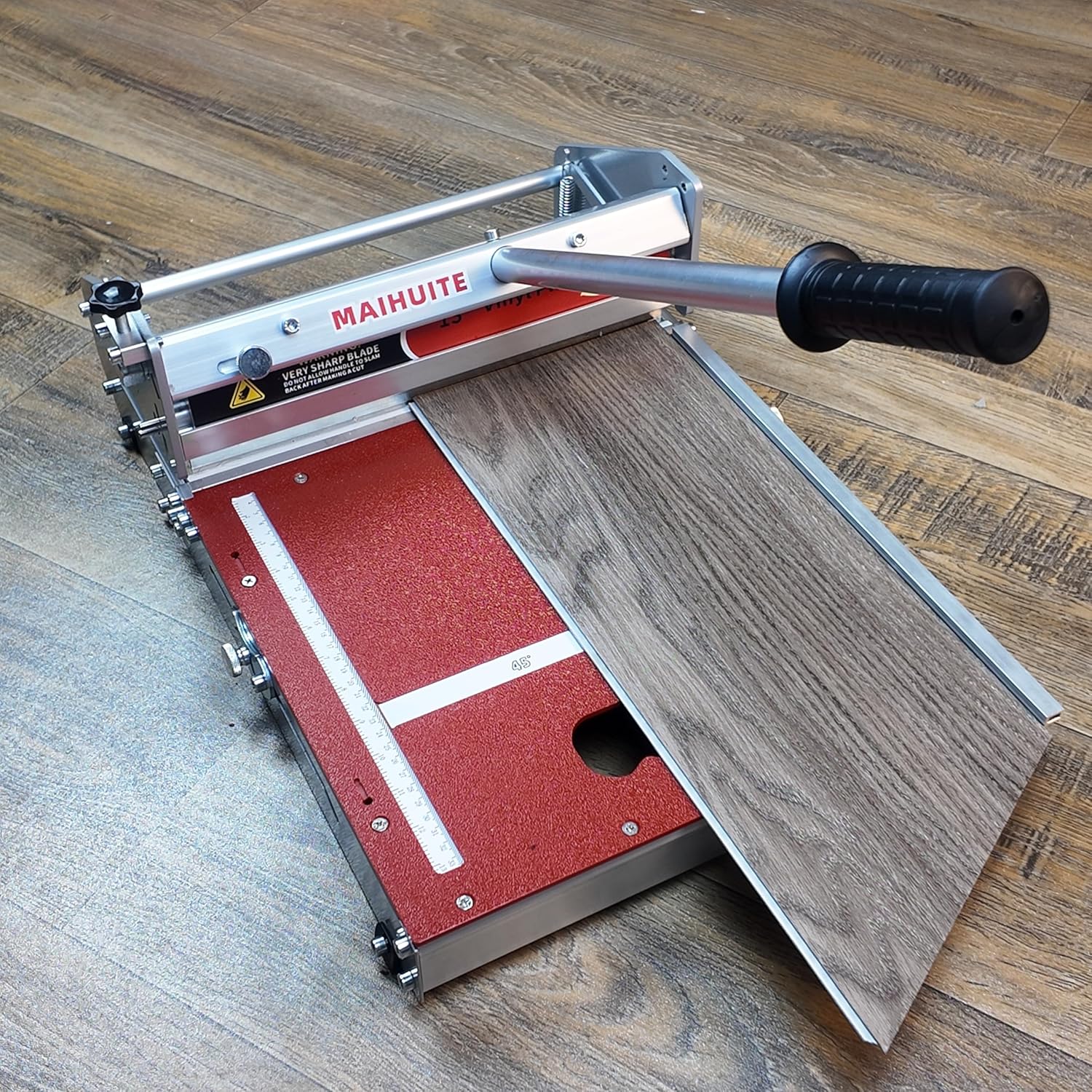

Figure 4.1: Demonstrating an angle cut with the MAIHUITE Floor Cutter.

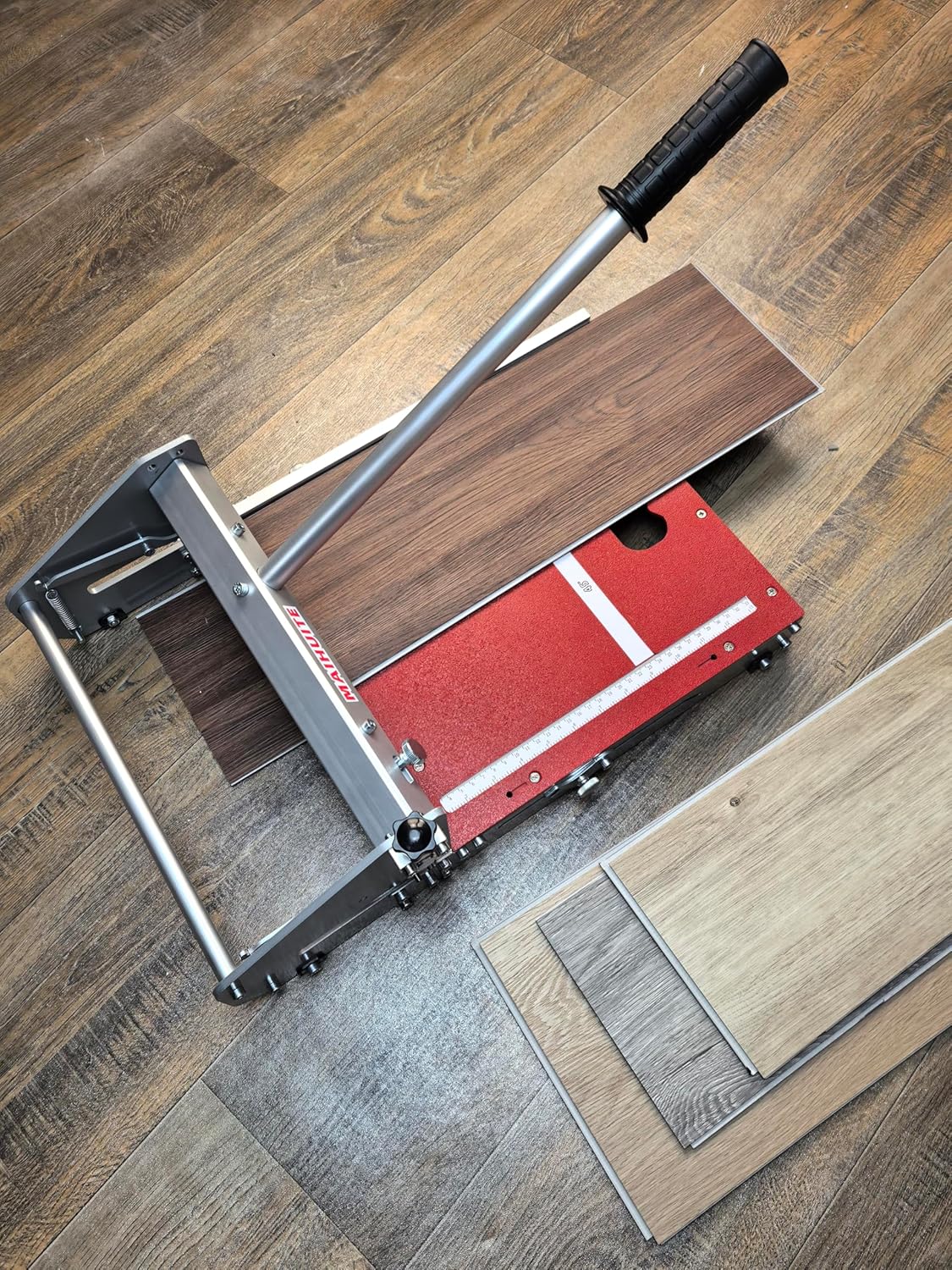

Figure 4.2: Examples of various cuts achievable with the MAIHUITE Floor Cutter.

Operation Video

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your floor cutter.

5.1 Blade Sharpening

The tungsten steel blade is designed for durability, but regular sharpening will maintain its cutting efficiency. Use the provided honing stone to sharpen the blade as needed. Follow the honing stone's instructions for best results, maintaining the original blade angle.

5.2 Cleaning

• After each use, clear any debris or dust from the cutter's base and blade area.
• Use a dry cloth to wipe down all surfaces. Avoid using harsh chemicals that could damage the finish or components.
• Ensure the blade is clean and dry before storage to prevent rust.

5.3 Storage

Store the cutter in a dry, secure location, away from moisture and extreme temperatures. The cutter's foldable design allows for compact storage.

6. Troubleshooting

If you encounter issues with your MAIHUITE Floor Cutter, refer to the following common problems and solutions:

• Uneven or Ragged Cuts:
  • Check if the blade is dull and requires sharpening.
  • Ensure the material is firmly seated against the fence and not shifting during the cut.
  • Verify that the handle is pulled down with a steady, continuous motion, not abruptly.
• Difficulty Cutting Through Material:
  • Confirm the material thickness does not exceed 16 mm.
  • The blade may be dull; sharpen it using the honing stone.
  • Apply firm, consistent pressure on the handle and step on the base for leverage.
• Cutter Not Stable:
  • Ensure the cutter is on a flat, stable surface.
  • Check all assembly bolts and fasteners to ensure they are securely tightened.

7. Specifications

8. Warranty and Support

For warranty information or technical support regarding your MAIHUITE 13-inch Laminate Floor Cutter, please refer to the product packaging or contact MAIHUITE customer service directly. Contact details are typically available on the manufacturer's official website or through your point of purchase.
