1. Introduction
Thank you for choosing the APPINESSEY XD013 External CD/DVD Drive. This versatile device provides a comprehensive solution for your optical media needs, featuring a CD/DVD reader and burner, an integrated SD/TF card reader, and four USB 3.0 ports. Designed for portability and ease of use, it is compatible with a wide range of operating systems, including Windows, Linux, and Mac OS.
This manual will guide you through the setup, operation, and maintenance of your new external drive to ensure optimal performance and longevity.
2. Product Features
- 7-in-1 Multifunctionality: Combines an external CD/DVD drive with an SD/TF card reader and 4 USB 3.0 ports, acting as a versatile expansion hub. (Note: SD and TF cards cannot be read simultaneously.)
- Plug-and-Play Convenience: Requires no additional software or drivers for basic operation. Simply connect to a USB port.
- High-Speed Data Transmission: Equipped with USB 3.0 technology for fast and stable data transfers. Supports DVD reading/writing up to 8x and CD reading up to 24x.
- Wide Compatibility: Supports Windows 11/10/8/7, Linux, and Mac OS. Ideal for laptops, MacBooks, and desktops.
- Compact & Portable Design: Ultra-slim and lightweight with an integrated USB cable for easy transport. Features anti-slip pads for stability.
- Stable Power Supply: Includes an extra Micro USB power supply port for enhanced stability, especially when connecting multiple devices or for intensive operations.

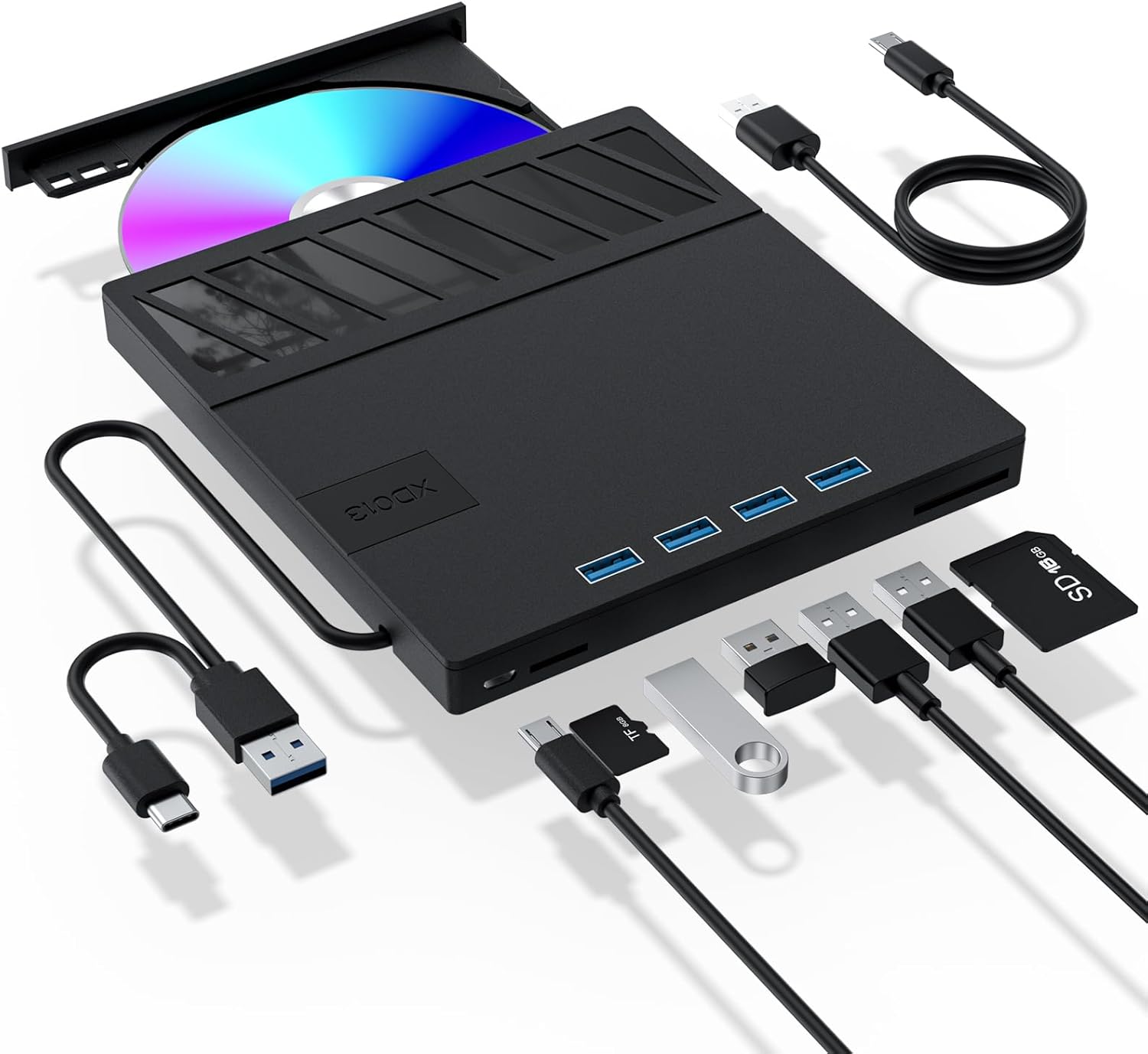

Figure 2.1: The APPINESSEY XD013 External CD/DVD Drive, showcasing its compact design and various included accessories such as USB-A to USB-C adapter, USB 3.0 cable, and power cable, alongside SD and TF card slots and multiple USB 3.0 ports.
3. Package Contents
- APPINESSEY XD013 External CD/DVD Drive
- Integrated USB 3.0 Data Cable (USB-A connector)
- USB-A to USB-C Adapter
- Micro USB Power Cable (for auxiliary power, if needed)
- User Manual (this document)
4. Setup Instructions
- Connect to Host Device:
Locate an available USB port on your laptop or desktop computer. Plug the integrated USB 3.0 data cable from the external drive into the USB port on your computer. If your computer only has USB-C ports, use the provided USB-A to USB-C adapter.
Figure 4.1: Connecting the external drive to a laptop's USB port. The integrated cable ensures a secure and direct connection.
- Auxiliary Power (Optional but Recommended):
For optimal performance, especially when burning discs or using multiple USB devices simultaneously, connect the Micro USB power cable to the drive's Micro USB power supply port and the other end to a USB power source (e.g., a USB wall adapter, a powered USB hub, or another USB port on your computer).
- Driver Installation:
The drive is plug-and-play. Your operating system should automatically detect and install the necessary drivers. No manual driver installation is typically required.
- Verification:
Once connected, the drive should appear as a removable storage device in "My Computer" (Windows) or "Finder" (Mac OS).
5. Operating Instructions
5.1. Using the CD/DVD Drive
- Inserting a Disc:
Press the eject button located on the front of the drive to open the disc tray. Carefully place a CD or DVD onto the tray with the label side facing up. Gently push the tray back into the drive until it clicks into place.
Figure 5.1: The external drive with its disc tray extended, ready for disc insertion. The drive connects to the laptop via a USB cable.
- Reading Discs:
After inserting a disc, your computer should automatically detect it. You can then access the disc's contents through "My Computer" or "Finder." For playing movies or music, you may need compatible media player software installed on your computer.
- Burning Discs:
To burn data to a CD-R/RW or DVD-R/RW, you will need third-party burning software (e.g., Nero, Roxio, or built-in Windows/Mac burning utilities). Follow the instructions provided by your chosen burning software.
- Ejecting a Disc:
To eject a disc, either press the eject button on the drive or right-click the drive icon in "My Computer"/"Finder" and select "Eject."
5.2. Using the SD/TF Card Reader
- Insert your SD card into the SD slot or your TF (Micro SD) card into the TF slot. Ensure the card is inserted correctly with the contacts facing down.
- The card will appear as a removable drive on your computer.
- Note: The SD and TF card slots cannot be used simultaneously.
5.3. Using the USB 3.0 Hub
- The drive features four USB 3.0 ports. You can connect USB devices such as flash drives, external hard drives, keyboards, or mice to these ports.
- For power-intensive USB devices, ensure the external drive is connected to an auxiliary power source using the Micro USB power cable.

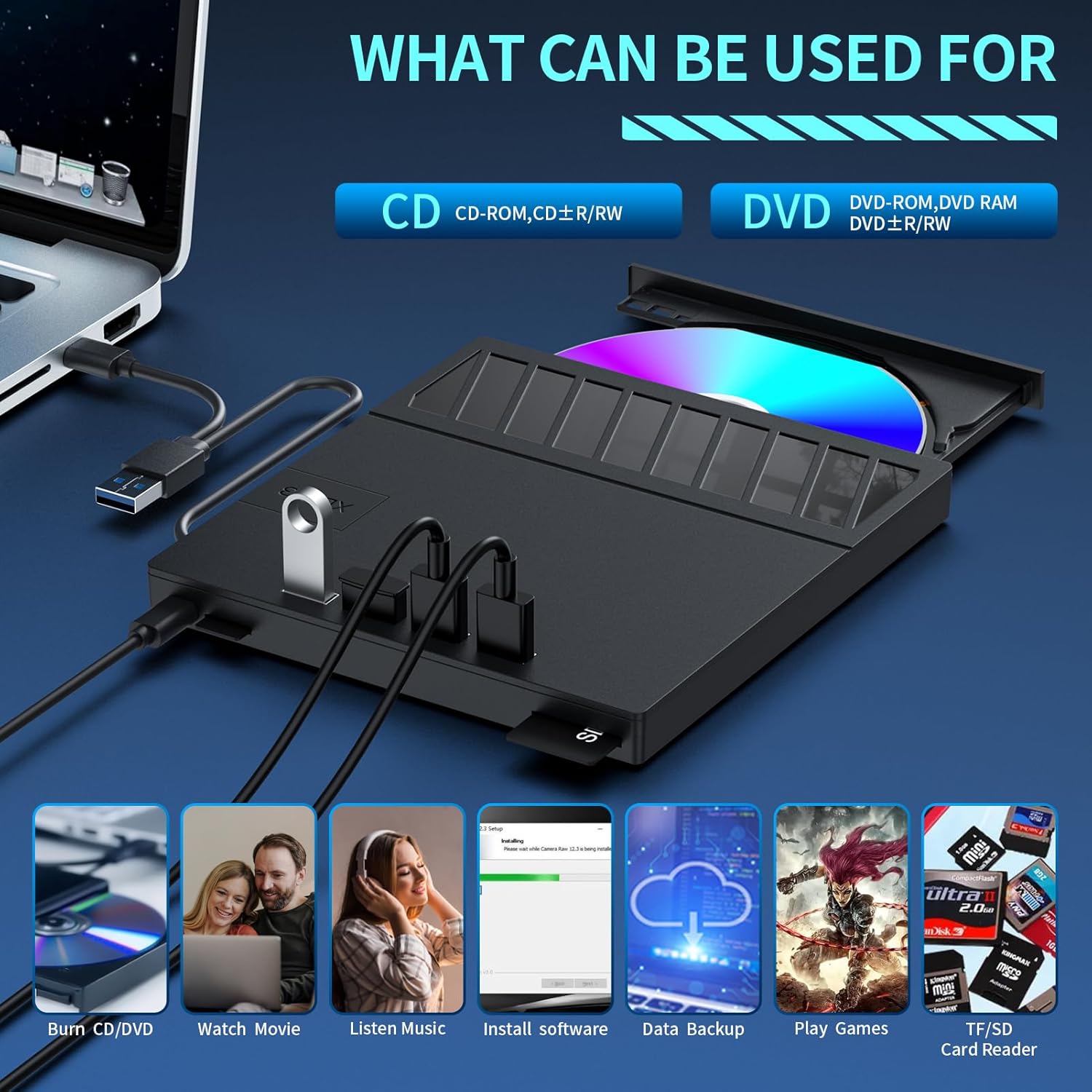

Figure 5.2: Illustrates the diverse applications of the APPINESSEY XD013, from burning and playing optical media to data backup and utilizing its integrated card reader functionality.
6. Compatibility
The APPINESSEY XD013 External CD/DVD Drive is designed for broad compatibility with various computer systems:
- Supported Operating Systems: Windows 11, Windows 10, Windows 8, Windows 7, Windows XP, Linux, Mac OS.
- Supported Devices: Laptops, MacBooks, Desktop PCs.
Important Compatibility Notes:
- Not compatible with iPad, mobile phones, Chromebook, TV, cars, or Blu-ray discs.
- Ensure your device has a functional USB port (USB 3.0 or higher recommended for optimal speed).

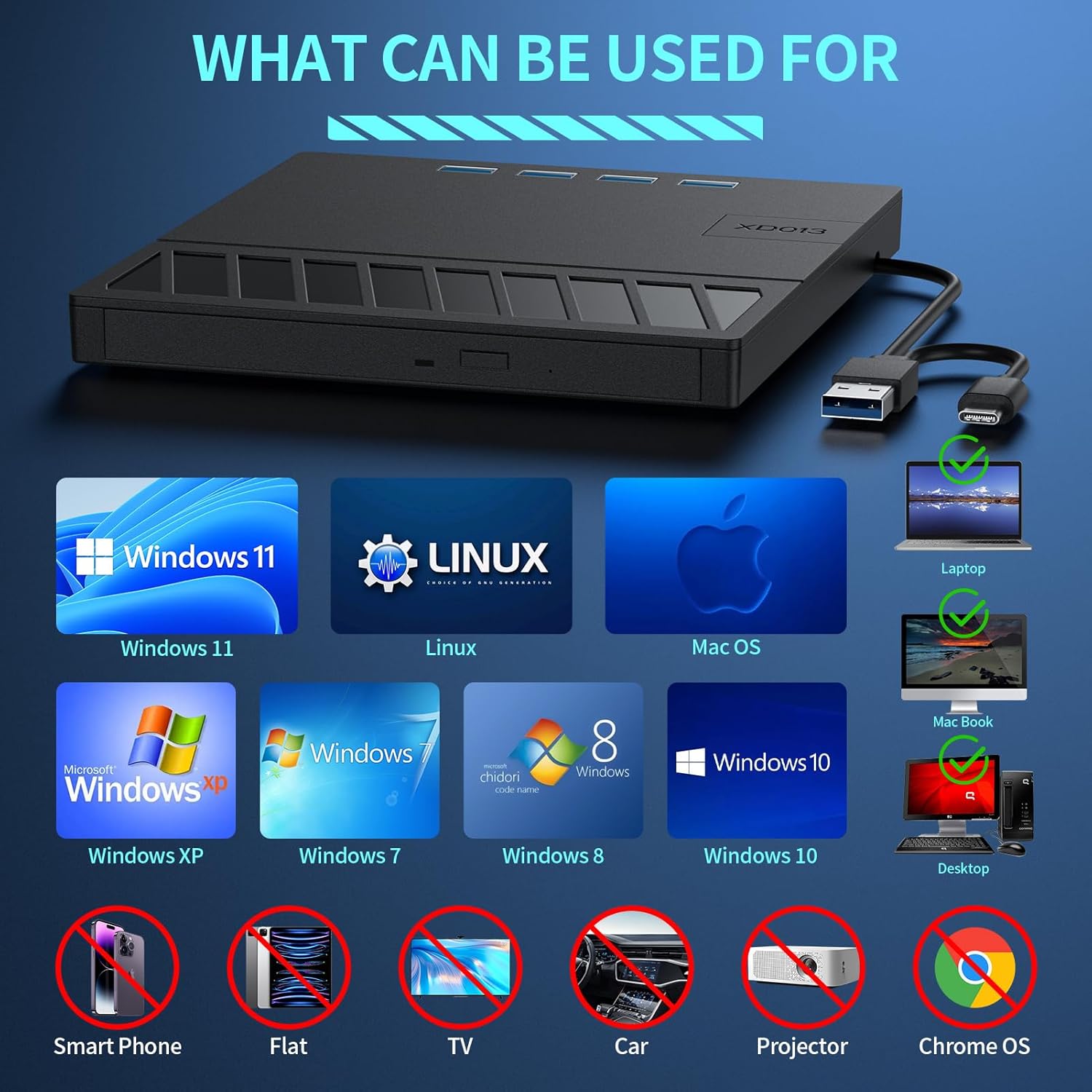

Figure 6.1: Visual representation of the drive's compatibility with various operating systems and devices, clearly indicating unsupported platforms.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Drive not recognized by computer. | Loose USB connection, insufficient power, faulty USB port. | Ensure the USB cable is securely connected. Try a different USB port. Connect the auxiliary Micro USB power cable. Restart your computer. |
| Disc not reading or burning properly. | Dirty or scratched disc, incompatible disc format, insufficient power, no burning software. | Clean the disc. Ensure the disc format is supported (CD-ROM, DVD-ROM, CD-R/RW, DVD±R/RW). Connect auxiliary power. Install appropriate burning software for writing operations. |
| Slow data transfer speeds. | Connected to a USB 2.0 port, auxiliary power not connected. | Connect the drive to a USB 3.0 port (usually blue). Ensure auxiliary power is connected, especially for large file transfers. |
| SD/TF card not detected. | Card not inserted correctly, both slots in use. | Reinsert the card, ensuring it's fully seated. Ensure only one card (SD or TF) is inserted at a time. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | XD013 |
| Interface | USB 3.0 (backward compatible with USB 2.0) |
| Optical Storage Read Speed | DVD: 8x Max; CD: 24x Max |
| Optical Storage Write Speed | DVD: 8x Max; CD: 24x Max |
| Supported Disc Formats | CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM |
| Additional Ports | 4 x USB 3.0 ports, 1 x SD card slot, 1 x TF card slot, 1 x Micro USB power port |
| Operating System Compatibility | Windows 11/10/8/7, Linux, Mac OS |
| Dimensions (LxWxH) | 6.24 x 5.8 x 0.6 inches (approx.) |
| Weight | 10.5 ounces (approx.) |
| Power Supply | DC 5V (via USB) |

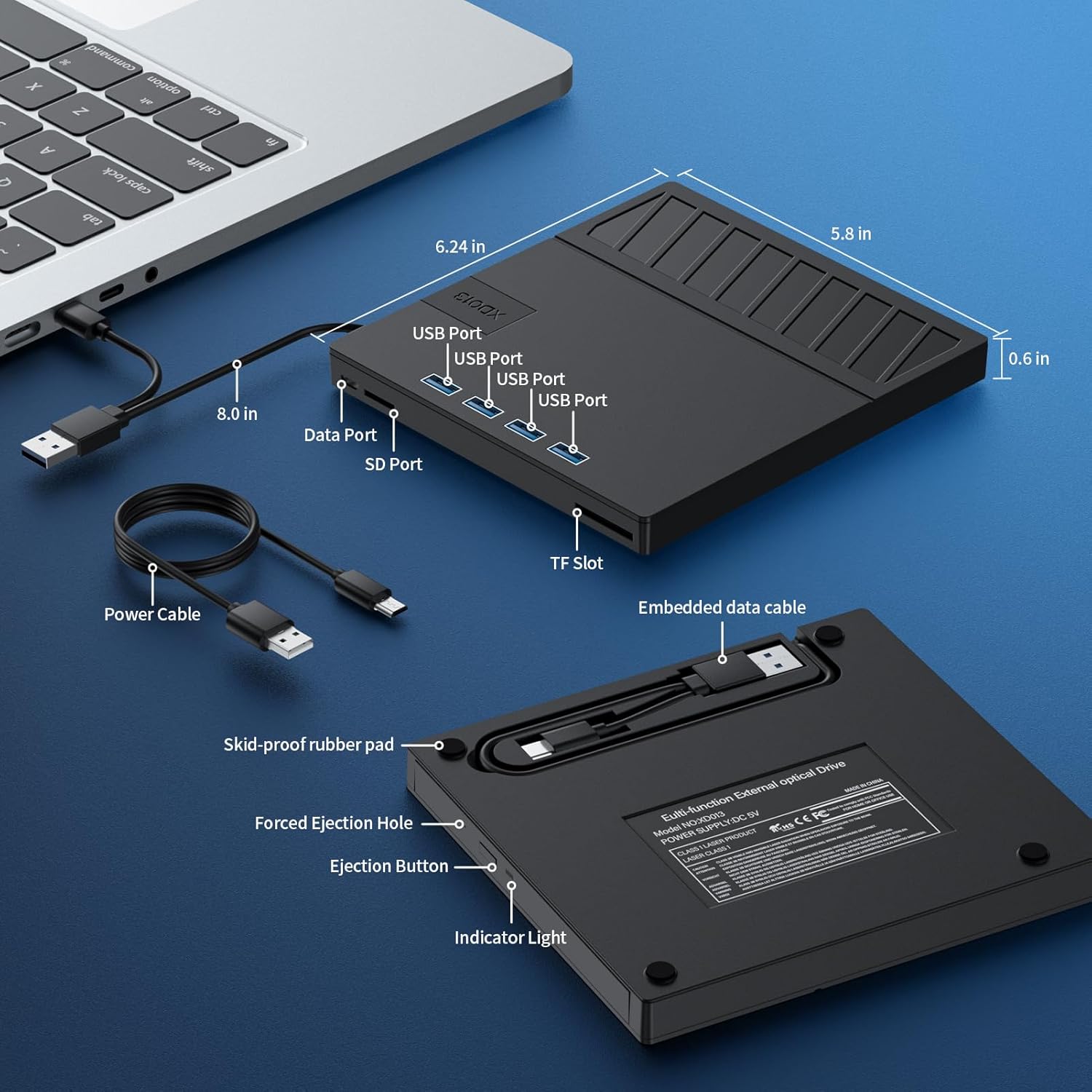

Figure 8.1: Detailed diagram of the APPINESSEY XD013, highlighting its dimensions and the location of all ports and features, including USB ports, SD/TF slots, and the eject button.
9. Safety Information
- Do not expose the device to water, moisture, or extreme temperatures.
- Avoid dropping or subjecting the device to strong impacts.
- Do not attempt to disassemble or repair the device yourself. Refer to qualified service personnel.
- Keep the device away from strong magnetic fields.
- Use only the provided cables and accessories.
10. Warranty and Support
APPINESSEY provides a standard warranty for this product. For detailed warranty terms and conditions, please refer to the warranty card included in your package or visit the official APPINESSEY website. If you encounter any issues or require technical assistance, please contact APPINESSEY customer support through the contact information provided on our website or your purchase platform.
Please have your model number (XD013) and purchase details ready when contacting support.
