ECAHAYAKU LED Front Grille DRL with Amber Turn Signal

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your ECAHAYAKU LED Front Grille DRL with Amber Turn Signal. This product is designed to enhance the visibility and aesthetic of your vehicle.

Compatibility: This LED grille light is specifically designed for 2020-2024 Toyota Highlander SUV LE, LE Plus, XLE, SE, Limited, and Limited Platinum models. Note: It is not compatible with Toyota Highlander XSE models from 2020-2024.

Image 1.1: The ECAHAYAKU LED Grille Light unit, designed for the Toyota Highlander.

2. Package Contents

Please verify that all components are present and undamaged upon opening the package:

• 2 x LED Grille Turn Signal Light Units
• 1 x Wiring Harness

Image 2.1: Contents of the ECAHAYAKU LED Grille Light package, including the light units and wiring.

3. Product Features

The ECAHAYAKU LED Front Grille DRL offers multiple functionalities and robust construction:

• 3-in-1 Functionality:
  • White Daytime Running Light (DRL): Illuminates when the vehicle's ignition is on.
  • Amber Sequential Turn Signal: Provides a dynamic, flowing amber light when the turn signal is activated.
  • Blue Night Driving Light: Activates when the vehicle's headlights are turned on at night.
• Durable Construction: Made from ABS plastic with an oxidation treatment on the surface, ensuring good shakeproof and corrosion-resistant properties. Designed to be waterproof.
• Enhanced Safety: Ultra-bright LEDs provide a faster on/off response, improving driving safety by making your vehicle more visible.

Image 3.1: The LED grille light displaying its white Daytime Running Light (DRL) function.

Image 3.2: The LED grille light demonstrating its amber sequential turn signal function.

Image 3.3: The LED grille light displaying its blue night driving light function.

4. Installation Guide

Professional installation is recommended for this product. Ensure the vehicle's power is off before beginning installation. Refer to your vehicle's service manual for specific grille removal procedures.

General Installation Steps:

1. Prepare the Vehicle: Park the vehicle on a level surface and turn off the engine. Disconnect the negative terminal of the car battery to prevent electrical shorts.
2. Remove Existing Grille Components: Carefully remove the front grille components of your Toyota Highlander to access the installation area. This may involve removing clips, screws, or bolts.
3. Mount the LED Grille Lights: Position the new LED grille light units into the designated slots on the grille. Ensure they are securely fastened according to the vehicle's design.
4. Wire the Lights: Connect the provided wiring harness to the LED grille lights. Route the wiring neatly and securely, avoiding moving parts or heat sources. Connect the wiring to the appropriate power sources for DRL, turn signal, and headlight functions. Consult a professional if unsure about wiring connections.
5. Test Functionality: Before reassembling the grille, reconnect the car battery and test all light functions (DRL, turn signal, night driving light) to ensure they operate correctly.
6. Reassemble Grille: Once confirmed, reattach all grille components and ensure they are securely in place.

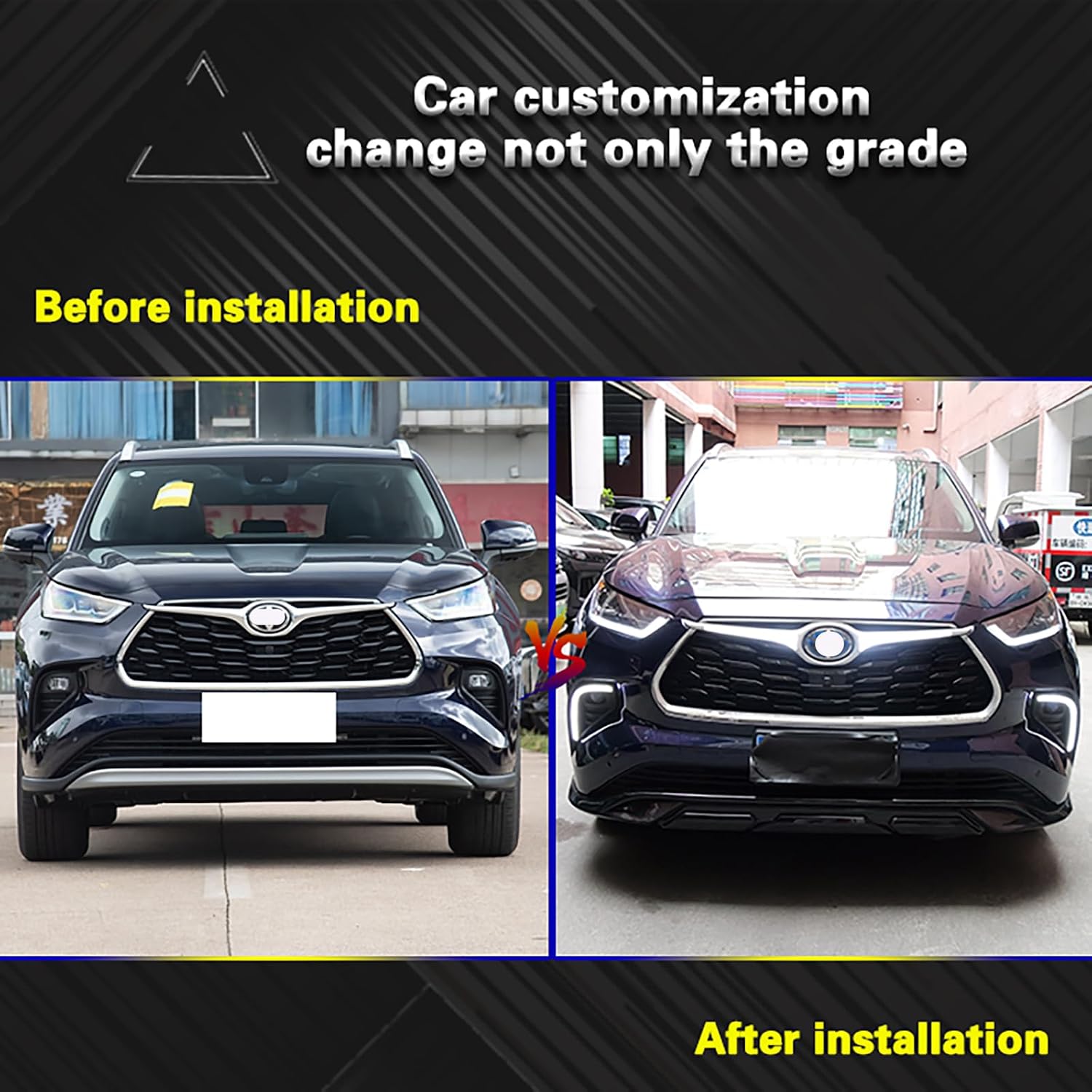

Image 4.1: Visual comparison of a Toyota Highlander before and after the LED grille light installation.

Image 4.2: The LED grille lights installed on a Toyota Highlander, showcasing the DRL function.

Installation Video:

Video 4.1: This video demonstrates the various lighting functions of the ECAHAYAKU LED Front Grille DRL, including the white Daytime Running Light, amber sequential turn signal, and blue night driving light, installed on a 2020-2024 Toyota Highlander.

5. Operating Instructions

The ECAHAYAKU LED Front Grille DRL operates automatically based on your vehicle's electrical system:

• Daytime Running Light (DRL): The white LED lights will automatically illuminate when the vehicle's ignition is turned on. These lights provide increased visibility during daylight hours.
• Amber Sequential Turn Signal: When you activate your vehicle's turn signal (left or right), the corresponding LED grille light will flash in a dynamic, sequential amber pattern, clearly indicating your turning intention.
• Blue Night Driving Light: When your vehicle's headlights are turned on, the LED grille lights will switch to a blue illumination, providing an additional aesthetic and subtle light accent during nighttime driving.

6. Maintenance

To ensure the longevity and optimal performance of your LED grille lights, follow these simple maintenance guidelines:

• Cleaning: Clean the light surfaces regularly with a soft cloth and mild automotive cleaning solution. Avoid abrasive cleaners or harsh chemicals that could damage the plastic lens.
• Inspection: Periodically inspect the wiring and connections for any signs of wear, corrosion, or damage. Ensure all mounting points remain secure.
• Water Exposure: While the product is waterproof, avoid directing high-pressure water jets directly at the lights during car washes, especially around wiring connections.

7. Troubleshooting

If you encounter issues with your LED grille lights, consider the following troubleshooting steps:

• Lights Not Illuminating:
  • Check all wiring connections to ensure they are secure and properly connected to the vehicle's power source.
  • Verify that the vehicle's ignition is on for DRL function, or headlights are on for blue night driving light function.
  • Inspect vehicle fuses related to lighting to ensure they are not blown.
• Incorrect Light Function (e.g., DRL not white, turn signal not amber):
  • Re-check wiring connections to ensure each wire is connected to the correct vehicle circuit (DRL, turn signal, headlight).
• Loose Fitment:
  • Ensure all mounting clips and screws are fully engaged and tightened.
  • Confirm that the product is compatible with your specific Highlander trim level (e.g., not XSE).

If problems persist after attempting these steps, please contact customer support.

8. Specifications

9. Warranty and Support

This ECAHAYAKU LED Front Grille DRL comes with a 1-year manufacturer's warranty from the date of purchase, covering defects in materials and workmanship.

For warranty claims, technical assistance, or any questions regarding your product, please contact the seller or manufacturer directly through the platform where the purchase was made. Please have your order number and product model information ready when contacting support.
