1. Introduction
Thank you for choosing the Nine point nine Electric Bluetooth Smart Baby Bedside Bassinet. This manual provides essential information for the safe assembly, operation, and maintenance of your bassinet. Please read all instructions carefully before use and retain this manual for future reference.
2. Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always provide the supervision necessary for the continued safety of your child.
- Discontinue use of the bassinet when the infant begins to push up on hands and knees or has reached the manufacturer's recommended weight limit, whichever comes first.
- Never place an infant in the bassinet with pillows, quilts, comforters, or other soft bedding that could cause suffocation.
- Ensure all assembly components are securely fastened before each use.
- Do not use the bassinet if any parts are missing, damaged, or broken. Contact the manufacturer for replacement parts.
- Keep the bassinet away from open flames, heaters, and other heat sources.
- Always engage the wheel locks when the bassinet is stationary.
3. Package Contents
Verify that all components listed below are present in your package:
- Bassinet Frame and Bed Unit
- Mattress
- Remote Control
- Power Adapter/Charger
- Mosquito Net
- Storage Basket
- Storage Bags
- Hanging Toys (Moon and Star)
Image: All components included with the Nine point nine Electric Bluetooth Smart Baby Bedside Bassinet.
4. Setup Instructions
Follow these steps to assemble your bassinet:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
- Assemble Frame: Connect the frame pieces according to the diagrams provided in the product packaging. Ensure all locking mechanisms click into place securely.
- Attach Bed Unit: Secure the fabric bed unit to the assembled frame. Ensure all zippers and fasteners are properly engaged.
- Insert Mattress: Place the mattress firmly into the bed unit. Ensure it lies flat and there are no gaps between the mattress and the bassinet sides.
- Install Hanging Toys: Attach the moon and star hanging toys to the overhead bar.
- Connect Power: Plug the power adapter into the bassinet's power port and then into a wall outlet.

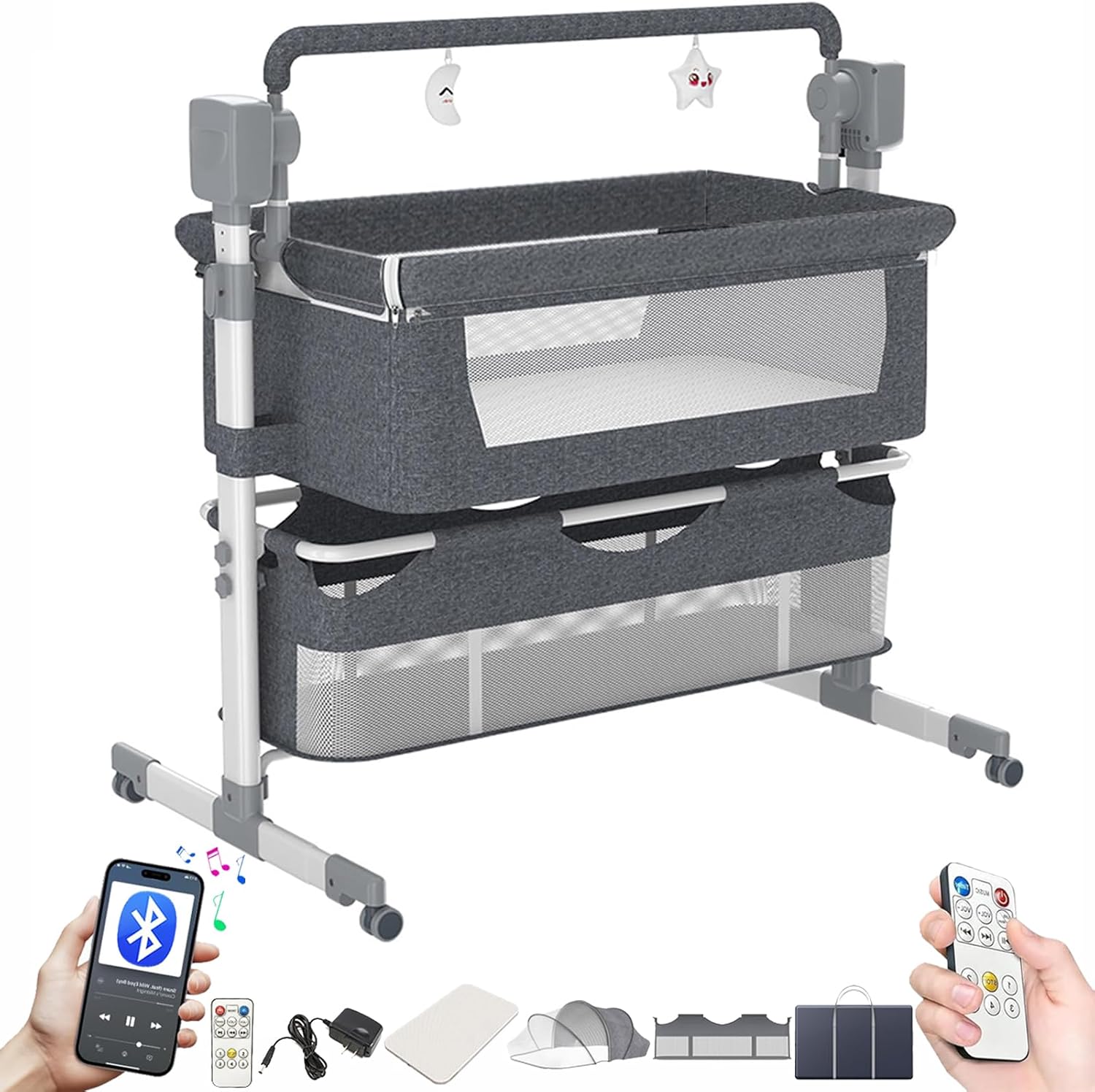

Image: The Nine point nine Electric Bluetooth Smart Baby Bedside Bassinet fully assembled.
5. Operating Instructions
5.1. Control Panel and Remote Control
The bassinet can be operated using the integrated control panel or the included remote control. The control panel features buttons for power, timing, swing gear adjustment, and music playback.
Image: Detailed view of the control panel and remote control functions.
5.2. Bluetooth Connectivity and Lullabies
The bassinet features Bluetooth connectivity for streaming music and pre-loaded lullabies.
- Bluetooth Pairing: Turn on the bassinet. Activate Bluetooth on your mobile device and search for available devices. Select the bassinet from the list to pair.
- Playing Music: Once paired, you can stream music from your device or select from the bassinet's pre-loaded lullabies using the control panel or remote.
Image: Bluetooth music streaming feature in use with a smartphone.
5.3. Swaying Gears and Timing Modes
The bassinet offers five adjustable swaying gears and three timing modes for customized comfort.
- Swaying Gears: Use the 'Swing gear plus' and 'Swing gear reduction' buttons on the control panel or remote to select one of five rocking strengths.
- Timing Modes: Press the 'Timing button' to cycle through 8, 15, or 30-minute automatic shut-off timers for the swaying function.
Image: Visual representation of the five-speed swaying motion.
Image: Bassinet demonstrating the three timing modes for automatic swaying.
5.4. Adjustable Height and Co-Sleeping Function
The bassinet features two adjustable height settings to align with different bed heights for co-sleeping or for standalone use.
- Adjusting Height: Locate the height adjustment buttons on the side of the bassinet frame. Press and hold the buttons while raising or lowering the bed unit to the desired height. Ensure both sides are adjusted evenly.
- Co-Sleeping Mode: To use as a bedside sleeper, lower one side of the bassinet by unzipping the mesh panel and securing it down. Adjust the bassinet height to match your bed.
Image: Detail of the height adjustment mechanism.
5.5. Lockable Wheels
The bassinet is equipped with retractable, lockable wheels for easy movement and secure positioning.
- Locking Wheels: Push down the lever on each wheel to engage the lock. This prevents the bassinet from moving.
- Unlocking Wheels: Lift the lever on each wheel to disengage the lock, allowing the bassinet to be moved.
Video: This video demonstrates the assembly process, the bassinet's swaying function, height adjustment, and the locking mechanism for the wheels, showcasing its versatility and ease of use.
5.6. Mosquito Net and Storage
The bassinet includes a semi-shaded mosquito net and a large storage basket.
- Mosquito Net: Attach the mosquito net over the bassinet to protect your baby from insects. It features a zipper for easy access.
- Storage Basket: Utilize the spacious storage basket located beneath the bed unit for baby essentials like diapers, wipes, and toys.
6. Maintenance
6.1. Cleaning
- Fabric Components: The fabric bed circumference is skin-friendly cotton. Refer to the care label for specific washing instructions. Generally, spot clean with a mild detergent and warm water. Allow to air dry completely.
- Mattress: The multi-layer composite mattress can be wiped clean with a damp cloth and mild soap. Ensure it is thoroughly dry before placing it back in the bassinet.
- Frame: Wipe the alloy steel frame with a damp cloth. Do not use abrasive cleaners.
6.2. Storage
When not in use, the bassinet can be folded for compact storage. Place all components in the provided storage bags to protect them from dust and damage.
7. Troubleshooting
If you encounter issues with your bassinet, please refer to the following common solutions:
- Bassinet Not Swaying: Ensure the power adapter is securely connected and the bassinet is powered on. Check if a timing mode is selected.
- Bluetooth Not Connecting: Ensure the bassinet is powered on and Bluetooth is enabled on your device. Try restarting both devices and attempting to pair again.
- Unstable Bassinet: Verify that all frame connections are securely locked and the wheels are engaged if stationary. Ensure the bassinet is placed on a flat, level surface.
- Remote Control Not Working: Check the battery in the remote control. Ensure there are no obstructions between the remote and the bassinet's receiver.
For further assistance, please contact customer support.
8. Specifications
| Brand | Nine point nine |
| Model Number | Baby Crib (601 Grey) |
| Product Dimensions | 41.73"L x 31.49"W x 24.4"H |
| Frame Material | Alloy Steel |
| UPC | 730635890973 |
| ASIN | B0DK1MN3MR |
| Swaying Gears | 5 |
| Timing Modes | 8, 15, 30 minutes |
Image: Product dimensions for the bassinet.
9. Warranty and Support
Specific warranty information for the Nine point nine Electric Bluetooth Smart Baby Bedside Bassinet (Model 601 Grey) was not provided in the available product data. For details regarding warranty coverage, returns, or technical support, please refer to the product packaging or contact the manufacturer directly through their official channels.
