VEVOR FLO800 Macerating Toilet System User Manual
Model: FLO800
Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your VEVOR FLO800 Macerating Toilet System. This system is designed to provide a complete wastewater solution for areas where traditional gravity drainage is not feasible, such as basements, attics, or extensions. It efficiently processes and pumps wastewater from a toilet, as well as additional fixtures like sinks, showers, and washing machines.
Image: The VEVOR FLO800 Macerating Toilet System, showing the toilet bowl, cistern, and the macerator pump unit connected by piping.
Key Features
- Powerful 800W Macerator Pump: Enables efficient sewage extraction and transportation, offering a vertical lift of 36 ft (11 m) and a horizontal transport distance of 394 ft (120 m).
- Multiple Inlets: Features 4 additional inlets for connecting various wastewater sources such as sinks, bathtubs, showers, and washing machines, alongside the toilet connection.
- Quiet Grinding Mechanism: Equipped with stainless steel impeller blades that grind waste into fine particles, ensuring smooth water flow and minimizing clogging. Operates at a low noise level of approximately 40 decibels.
- Dual Flush Ceramic Toilet: A sturdy, easy-to-clean ceramic toilet with a dual-flush mechanism for effective waste removal and water conservation. Its raised design enhances user comfort.
- Durable Construction: The macerator pump casing is made from a high-strength mixture of polypropylene (PP) and glass fiber (GF) with added silver ions for enhanced durability and hygiene.
Image: A diagram illustrating the VEVOR macerating pump's capability to pump wastewater up to 36 ft (11 m) vertically and 394 ft (120 m) horizontally, with a toilet connected.
Image: A detailed view of the macerator pump unit, highlighting the main toilet inlet, four additional water inlets, and discharge outlets for connecting various plumbing fixtures.
Image: A close-up view of the VEVOR ceramic toilet bowl, part of the macerating system.
Installation
Safety Precautions:
- Ensure the power supply is disconnected before beginning installation.
- All electrical connections must comply with local codes and regulations.
- Wear appropriate personal protective equipment (PPE) during installation.
- If you are unsure about any step, consult a qualified plumber or electrician.
General Installation Tips:
- Pipe Selection: Purchase pipes of corresponding specifications for proper connection. For the outlet pipe, a smaller diameter can result in a higher lift height.
- Placement: The system can be installed behind the toilet or behind a wall using an extension pipe (sold separately) for flexible space settings.
- Inlet Covers: If not all inlets are used, ensure the remaining inlets are securely closed with the included covers to prevent leaks.
- Ventilation: The pump has a built-in vent to optimize performance and reduce odors. Ensure proper ventilation around the unit.
- No Destructive Modifications: This rear discharge toilet system is designed for easy installation without requiring destructive modifications to walls.
Image: A visual comparison of two installation methods: directly behind the toilet or concealed behind a wall using an extension pipe.
Image: The VEVOR Macerating Toilet System fully installed in a bathroom setting, showing the toilet and the macerator pump unit connected to plumbing and an electrical outlet.
Operation
The VEVOR FLO800 Macerating Toilet System operates automatically. When the toilet is flushed or wastewater enters the pump from connected fixtures, the macerator pump activates to grind and discharge the waste.
- Flushing: Use the dual-flush mechanism on the toilet cistern. Select the appropriate flush volume for liquid or solid waste.
- Automatic Activation: The pump will automatically start when water levels rise within the unit, indicating waste needs to be processed.
- Noise Level: The grinding process is designed to be quiet, operating at approximately 40 decibels, which is generally not disruptive.

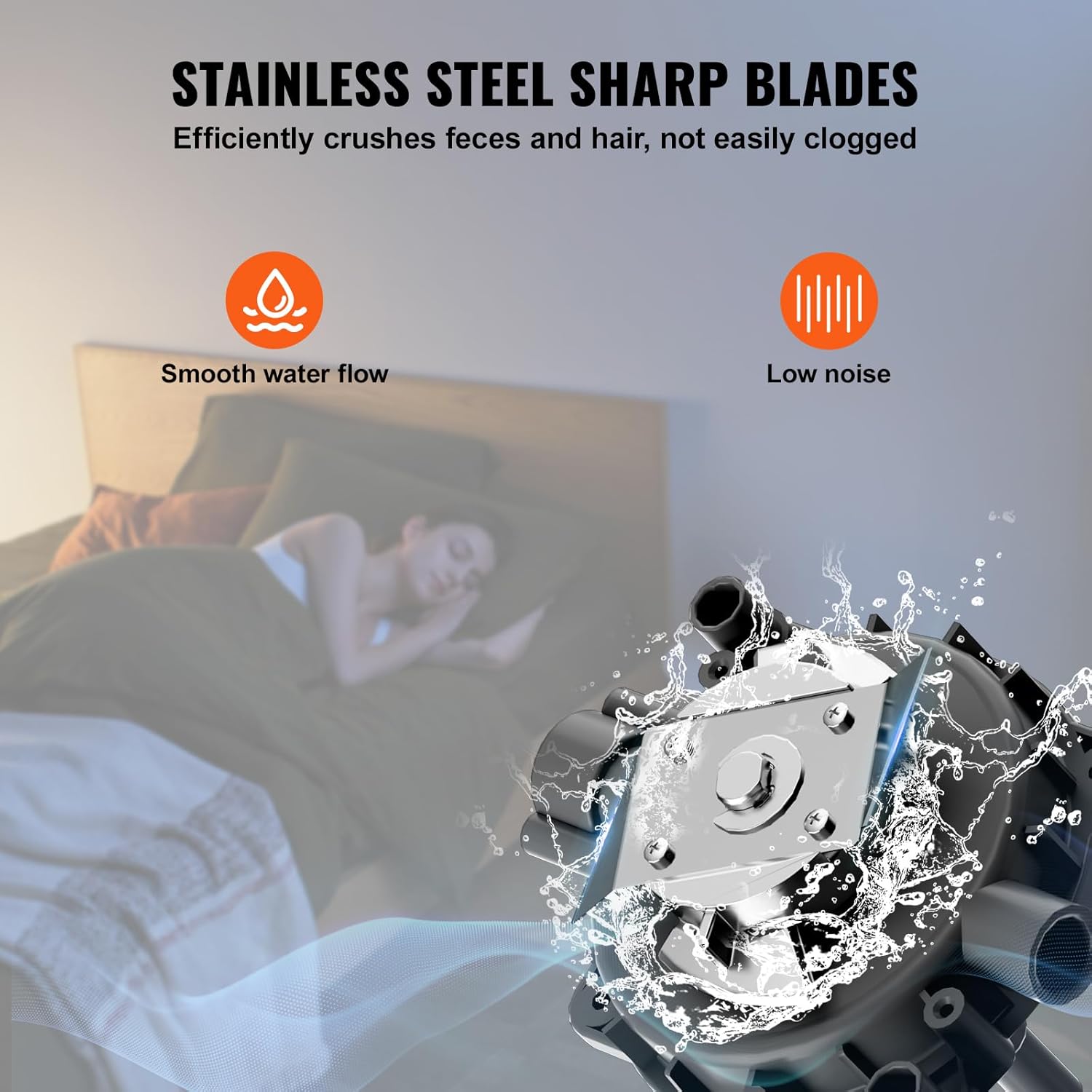

Image: A close-up diagram illustrating the stainless steel sharp blades within the macerator pump, designed to efficiently crush waste for smooth water flow and low noise operation.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your macerating toilet system.
- Cleaning the Toilet: The ceramic toilet is designed for easy cleaning. Use standard toilet bowl cleaners. Avoid harsh abrasives that could damage the surface.
- Preventing Clogs:
- Do not flush anything other than human waste and toilet paper.
- Avoid flushing feminine hygiene products, wet wipes (even "flushable" ones), paper towels, dental floss, or other non-biodegradable items.
- For connected sinks and showers, use drain strainers to prevent hair and large debris from entering the pump.
- Pump Inspection: Periodically check the pump unit for any unusual noises or leaks. If any issues are detected, disconnect power and consult the troubleshooting section or a qualified technician.
Troubleshooting
This section addresses common issues you might encounter with your VEVOR FLO800 Macerating Toilet System.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not start | No power; float switch stuck; motor fault. | Check power connection and circuit breaker. Ensure nothing obstructs the float switch. If problem persists, contact support. |
| Pump runs continuously | Float switch stuck; blockage in discharge pipe; faulty pressure switch. | Check for obstructions around the float switch. Inspect discharge pipes for blockages. Contact support if issue continues. |
| Poor discharge/slow drainage | Partial blockage in pump or pipes; insufficient water flow. | Ensure proper water supply to the toilet. Check for foreign objects in the pump or pipes. Avoid flushing non-toilet paper items. |
| Unusual noise from pump | Foreign object in macerator blades; motor issue. | Immediately disconnect power. Do not attempt to clear blockages without proper tools and safety precautions. Contact support. |
| Leaks | Loose connections; damaged seals or pipes. | Check all pipe connections and tighten as necessary. Inspect seals and pipes for damage. Replace any damaged components. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact VEVOR customer support.
Specifications
| Feature | Detail |
|---|---|
| Item Model Number | FLO800 |
| Power | 800W |
| Vertical Lift | 36 ft / 11 m |
| Horizontal Transport Distance | 394 ft / 120 m |
| Number of Inlets | WC + 4 (Toilet + 4 additional) |
| Number of Outlets | 2 |
| Main Material of Toilet Pump | PP-GF20 (casing with added silver ions) |
| Toilet Pump Weight | 17.1 lbs / 7.75 kg |
| Toilet Pump Dimension (L x W x H) | 17.3 x 7.1 x 12.6 inch / 440 x 180 x 320 mm |
| Toilet Material | Ceramic |
| Toilet Weight | 68.7 lbs / 31.17 kg |
| Toilet Dimension (L x W x H) | 17.3 x 28.1 x 30.3 inch / 440 x 715 x 770 mm |
| Color | White |
| Installation Type | Floor Mounted |
| UPC | 197988109617 |

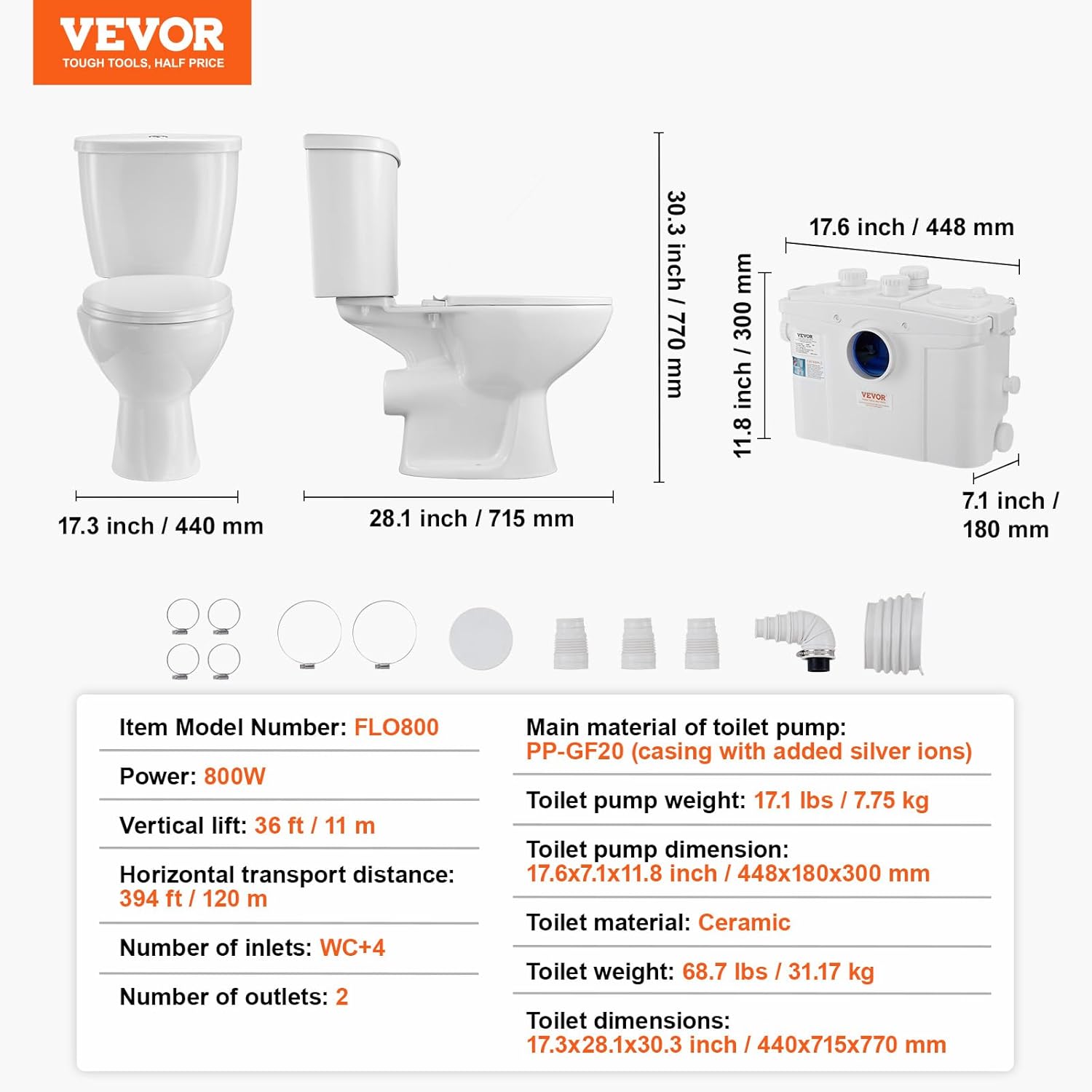

Image: A graphic displaying the key dimensions and technical specifications for both the macerator pump and the ceramic toilet components of the system.
Warranty and Support
VEVOR products are designed for durability and performance. For warranty information and customer support, please refer to the documentation included with your purchase or visit the official VEVOR website.
- Protection Plans: Extended protection plans may be available for purchase. Refer to your retailer for details on 3-Year or 4-Year protection plans.
- Customer Service: For technical assistance, troubleshooting, or parts inquiries, contact VEVOR customer support.
- Returns: Please adhere to the return policy of your place of purchase.
