ZHRCLY LMI Dosing Pump Universal Parts Instruction Manual

1. Introduction

1.1 Product Overview

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of ZHRCLY Universal Parts for LMI Dosing Pumps, specifically for model PD056-738NI. These parts are designed to be compatible with various LMI dosing pump models, including PD056-738NI, PD016-708NI, PD046-728NI, PD066-748NI, and P+086-738NI, ensuring proper function and longevity of your dosing system.

It is crucial to read and understand all instructions before attempting any installation or maintenance to ensure safe and effective use.

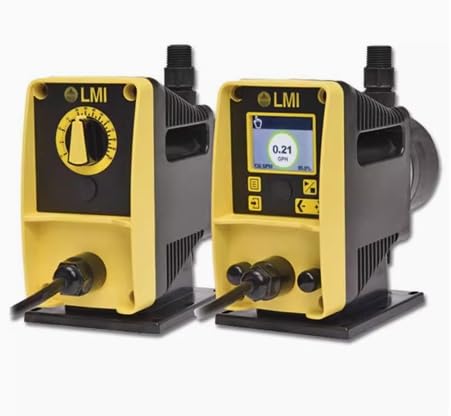

Figure 1: ZHRCLY Universal Parts for LMI Dosing Pumps. This image displays the general appearance of the universal replacement parts.

1.2 Safety Information

WARNING: Always disconnect power to the dosing pump before performing any installation, maintenance, or troubleshooting. Failure to do so may result in electric shock or serious injury.

• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when handling chemicals or pump components.
• Ensure the work area is well-ventilated, especially when dealing with chemical solutions.
• Refer to the original LMI dosing pump manual for specific safety guidelines related to your pump model.
• Only qualified personnel should perform installation and maintenance procedures.
• Dispose of old parts and chemical waste according to local regulations.

2. Setup and Installation

These universal parts are designed for replacement within existing LMI dosing pump systems. Proper installation is critical for optimal performance and safety.

2.1 Pre-Installation Checklist

• Verify that the replacement parts match the specific model number of your LMI dosing pump (e.g., PD056-738NI).
• Ensure all necessary tools are available (e.g., wrenches, screwdrivers, sealant).
• Confirm that the pump system is depressurized and drained of any chemicals.
• Have a clean work surface and appropriate containers for old parts and any residual chemicals.

2.2 Installation Steps (General)

1. Disconnect Power: Turn off and unplug the LMI dosing pump from its power source.
2. Isolate System: Close any valves leading to and from the pump to prevent chemical spills.
3. Remove Old Parts: Carefully disassemble the section of the pump containing the parts to be replaced. Refer to your original LMI pump manual for detailed disassembly instructions.
4. Clean Area: Clean any residue or debris from the pump housing and connection points.
5. Install New Parts: Install the ZHRCLY universal parts, ensuring all seals and gaskets are correctly seated. Do not overtighten fasteners.
6. Reassemble Pump: Reassemble the pump components according to the original manufacturer's instructions.
7. Leak Check: Before reconnecting power, slowly open isolation valves and check for any leaks. Address any leaks immediately.
8. Reconnect Power: Once confident there are no leaks and all connections are secure, reconnect power to the pump.

3. Operating Considerations After Part Replacement

After replacing universal parts, it is important to verify the pump's operation to ensure proper function and dosing accuracy.

• Prime the Pump: If the pump head or fluid end components were replaced, ensure the pump is properly primed according to the original LMI pump manual. This typically involves allowing the pump to run for a short period to expel air.
• Verify Dosing Rate: After priming, verify the dosing rate against the desired set point. Adjust pump settings as necessary.
• Monitor for Leaks: Continuously monitor all connections and seals for any signs of leakage during initial operation.
• Observe Performance: Pay attention to any unusual noises, vibrations, or inconsistent operation, which may indicate an issue with the newly installed parts or the pump itself.

4. Maintenance

Regular maintenance of your LMI dosing pump, including its universal parts, is essential for extending its lifespan and ensuring reliable performance.

• Routine Inspection: Periodically inspect all visible parts for wear, corrosion, or damage. Pay close attention to seals, diaphragms, and tubing.
• Cleaning: Clean the exterior of the pump and any accessible parts regularly to prevent buildup of chemicals or debris. Use cleaning agents compatible with the pump materials.
• Part Replacement Schedule: Follow the original LMI pump manufacturer's recommended replacement schedule for wear parts. Even universal parts have a finite lifespan.
• Storage: If the pump is to be stored for an extended period, ensure it is thoroughly cleaned and drained of chemicals. Store in a dry, temperate environment.

5. Troubleshooting

This section provides general troubleshooting tips for issues that may arise after replacing universal parts. Always refer to the original LMI pump manual for comprehensive troubleshooting guides.

If troubleshooting steps do not resolve the issue, contact a qualified service technician or the manufacturer for assistance.

6. Specifications

The following specifications pertain to the ZHRCLY Universal Parts for LMI Dosing Pump Model PD056-738NI.

• Brand: ZHRCLY
• Model Number: PD056-738NI (Compatible with PD016-708NI, PD046-728NI, PD066-748NI, P+086-738NI)
• Manufacturer: Original factory (as per product listing)
• Item Weight: Approximately 20 pounds (9.07 kg)
• Product Dimensions: Approximately 1 x 1 x 1 inches (2.54 x 2.54 x 2.54 cm) - Note: Dimensions may vary based on specific component.
• ASIN: B0DJX59M8K
• Included Components: Universal replacement parts for LMI Dosing Pumps.

7. Warranty and Support

For warranty information and technical support regarding ZHRCLY Universal Parts, please contact your original point of purchase or the manufacturer directly. Keep your purchase receipt as proof of purchase.

For support related to the LMI dosing pump itself, refer to the documentation provided by the LMI pump manufacturer.
