Homtone ICE2580 Ice Cream Maker Instruction Manual

1. Introduction

Thank you for choosing the Homtone 2.64QT Automatic Ice Cream Maker with Compressor. This appliance is designed to simplify the process of making delicious homemade ice cream, gelato, and sorbet without the need for pre-freezing. Its built-in compressor ensures efficient and rapid cooling, allowing you to enjoy your frozen treats in approximately one hour. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your ice cream maker.

Figure 1.1: The Homtone automatic ice cream maker eliminates the need for pre-freezing, unlike traditional models.

2. Important Safety Instructions

To ensure safe operation and prevent damage to the appliance or injury to yourself and others, please read and follow all safety instructions carefully.

• Always connect the appliance to a grounded power outlet.
• Do not immerse the main unit in water or other liquids. Clean only with a damp cloth.
• Ensure the voltage indicated on the appliance matches your local power supply before connecting.
• Keep hands, hair, clothing, and utensils away from the mixing paddle during operation to prevent injury and damage.
• Unplug the appliance from the power outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Do not operate the appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• This appliance is for household use only. Do not use outdoors.
• Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.
• Avoid placing heavy objects on the power cord.
• Ensure proper ventilation around the appliance during operation. Do not block the ventilation holes.

3. Product Overview

The Homtone ICE2580 Ice Cream Maker is designed for convenience and performance. Key features include:

• 250W Built-in Compressor: Enables rapid ice cream production in approximately one hour without pre-freezing.
• Extra-Large 2.64 QT Capacity: Stainless steel bowl suitable for family-sized batches.
• 3 Operating Modes: Ice Cream Mode, Cooling Only Mode, and Mixing Only Mode for versatile use.
• Intuitive LCD Digital Display: Easy-to-use interface with buttons and a timing knob for precise control.
• All Stainless Steel Construction: Durable and easy to clean, with BPA-free food contact parts.
• 2-Hour Keep-Cool Function: Maintains optimal texture and prevents melting after preparation.
• Motor Protection: Prevents overheating and damage to the appliance.

Figure 3.1: Front view of the Homtone ICE2580 Ice Cream Maker.

Figure 3.2: Multifunctionality and safety features of the Homtone Ice Cream Maker.

4. Setup

Before first use, ensure all packaging materials are removed and clean all removable parts according to the "Maintenance and Cleaning" section.

4.1 Initial Assembly

1. Place the main unit on a stable, flat, and dry surface. Ensure adequate ventilation around the machine.
2. Insert the stainless steel mixing bowl into the main unit. Ensure the handle tabs align with the notches in the machine's casing for a proper fit. The handle should face forward when fully seated.
3. Place the mixing paddle onto the motor shaft inside the mixing bowl. Ensure it is fully seated and can rotate freely.
4. Place the transparent lid on top of the mixing bowl and rotate it counter-clockwise to lock it into place. The lid has lock/unlock symbols to guide you.

Figure 4.1: Key components and dimensions for proper setup.

4.2 Unboxing and Initial Setup Video

5. Operating Instructions

The Homtone Ice Cream Maker features an intuitive LCD display and three primary operating modes.

5.1 Control Panel Overview

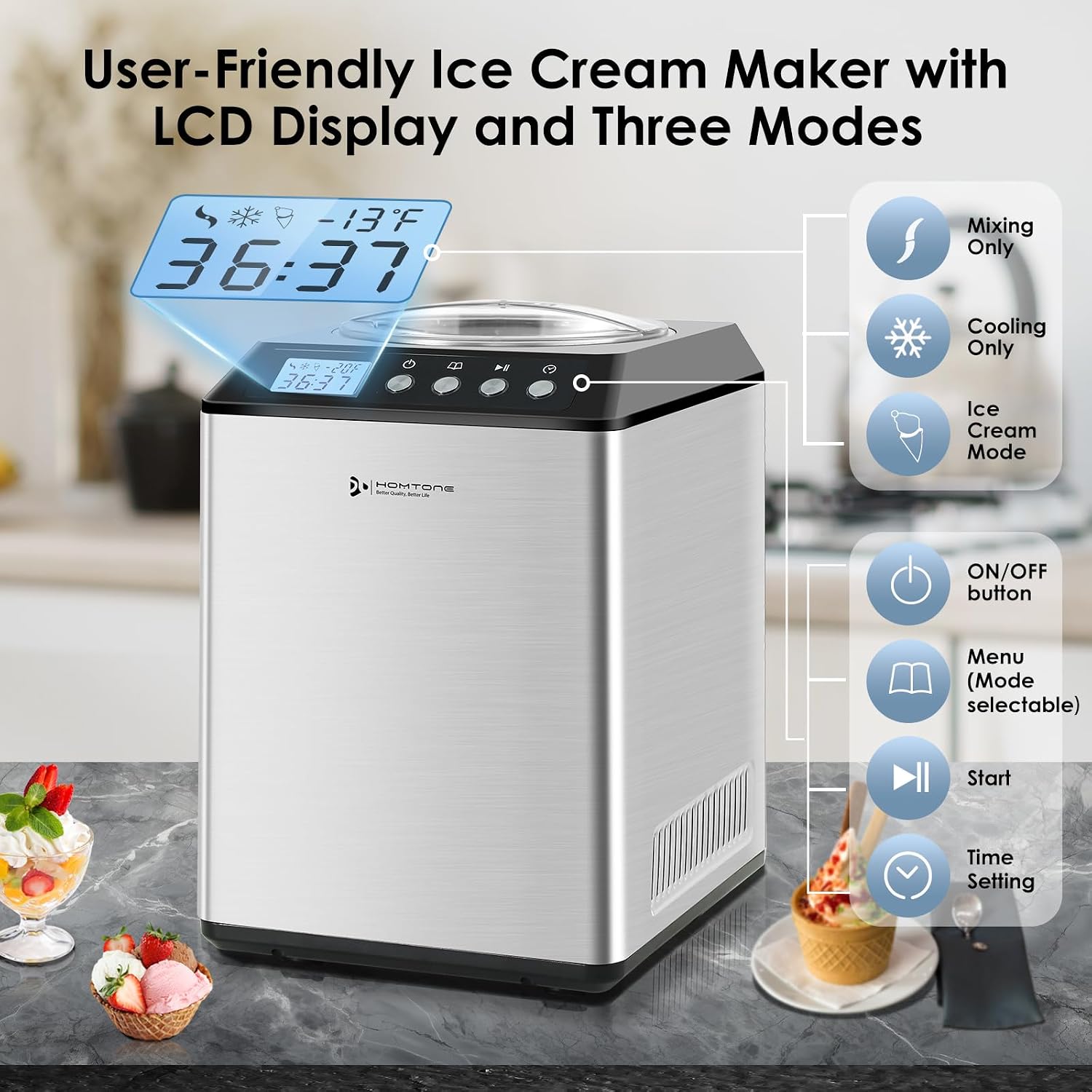

Figure 5.1: User-friendly LCD display and control buttons.

• ON/OFF Button: Powers the unit on or off.
• Menu Button: Cycles through the three operating modes:
  • Ice Cream Mode: Activates both cooling and mixing for ice cream, gelato, and sorbet.
  • Cooling Only Mode: Engages the compressor to keep contents cold without mixing. Ideal for maintaining temperature after preparation or for pre-chilling.
  • Mixing Only Mode: Activates the mixing paddle without cooling. Useful for pre-mixing ingredients or adding mix-ins.
• Start/Pause Button: Initiates or pauses the selected operation.
• Time Setting Knob: Adjusts the operating time. The default time is 60 minutes. Each press adds one minute.

5.2 Basic Ice Cream Making Steps

1. Prepare your desired ice cream, gelato, or sorbet mixture. Ensure ingredients are at refrigerator temperature for best results.
2. Pour the mixture into the stainless steel mixing bowl. Do not overfill; leave space for expansion as the mixture freezes.
3. Secure the transparent lid and mixing paddle as described in the "Setup" section.
4. Press the ON/OFF button to power on the machine.
5. Use the Menu button to select "Ice Cream Mode".
6. Adjust the time using the Time Setting knob if needed (default is 60 minutes).
7. Press the Start button to begin churning. The machine will automatically stop when the set time is complete or when the mixture reaches optimal consistency.
8. After completion, the machine will automatically enter a 2-hour keep-cool mode to prevent melting.

Figure 5.2: Easy-to-follow steps for making ice cream.

5.3 Sorbet Making Demonstration

6. Maintenance and Cleaning

Regular cleaning ensures hygiene and extends the lifespan of your ice cream maker.

1. Always unplug the appliance before cleaning.
2. Remove the transparent lid, mixing paddle, and stainless steel mixing bowl from the main unit.
3. The stainless steel mixing bowl and mixing paddle are dishwasher safe. Alternatively, wash them with warm, soapy water and rinse thoroughly.
4. Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
5. Ensure all parts are completely dry before reassembling or storing.

Figure 6.1: Cleaning steps for the ice cream maker components.

7. Troubleshooting

If you encounter issues with your Homtone Ice Cream Maker, refer to the common problems and solutions below:

7.1 Common Issues and Solutions

• Problem: The mixing bowl is stuck after making ice cream.

  Cause: Condensation or water droplets on the outside of the bucket may have frozen, adhering the bowl to the machine's casing.

  Solution: Turn off the cooling function or the entire machine. Wait a few minutes for the ice to defrost, then the bowl should be easily removable.

• Problem: The ice cream maker stops before the ice cream reaches the desired texture.

  Cause 1: Uneven cooling or ingredients freezing faster than others, causing stress on the motor.

  Cause 2: The motor may have overheated due to a warm environment or repetitive cycles of ice cream making. The motor has an overheat protection feature that will pause operation to prevent damage.

  Solution: Allow the machine to rest for a few minutes to cool down. Once the motor has cooled, you can resume operation.

• Problem: The lid does not lock properly or the mixing paddle is not fully seated.

  Cause: The mixing bowl or mixing paddle may not be correctly positioned. The mixing bowl's handle tabs must align with the notches in the machine. The mixing paddle's slot shape must fully engage with the motor shaft.

  Solution: Ensure the mixing bowl is rotated so its handle tabs fall completely into the notches. For the mixing paddle, give it a slight spin to ensure it drops fully into place. The lowest part of the mixer should be flush with the bottom of the bucket.
• Problem: The mixing bowl seems uneven or has lost its shape.

  Cause: The stainless steel bucket may have become bent or dented, affecting its fit within the machine.

  Solution: While it may be possible to gently reshape the bucket, if the deformation is significant, replacing the bucket may be necessary to ensure proper operation and a tight fit.

7.2 Troubleshooting Video Guide

8. Specifications

Figure 8.1: Product dimensions and included accessories.

9. Warranty and Support

The Homtone ICE2580 Ice Cream Maker is backed by a 1-year warranty and lifetime technical support. For any questions, concerns, or technical assistance, please contact Homtone customer service. Your satisfaction is guaranteed.

For further assistance, please visit the Homtone Store on Amazon.
