Moimhear Loft Bed 90x200cm with Desk and Shelves Instruction Manual

1. Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your Moimhear Loft Bed 90x200cm. This loft bed features an integrated desk, shelves, a sturdy railing, and a ladder, designed to optimize space in your room. Please read these instructions carefully before beginning assembly and retain them for future reference.

2. Safety Warnings

WARNING: Failure to follow these safety instructions may result in serious injury.

• This bed frame is designed for children aged 6 years and older.
• Always ensure the robust guardrail around the upper bed is securely in place to prevent accidental falls.
• Follow all assembly instructions precisely to prevent risks of tipping or collapse.
• Regularly check all bolts and connections to ensure they remain tight.
• Do not allow jumping on the bed.
• Use only the recommended mattress thickness (10 cm) for the upper bunk.
• The maximum weight capacity for the bed is 120 kg. Do not exceed this limit.

3. Product Overview

The Moimhear Loft Bed is constructed from a durable iron frame and MDF components, providing a stable and functional sleeping and working solution. It includes a spacious desk for study or work, and integrated shelves for organized storage. The design is modern and suitable for various room aesthetics.

Figure 3.1: The Moimhear Loft Bed in a room setting, showcasing the integrated desk, shelves, and ladder.

4. Specifications

Figure 4.1: Detailed dimensions of the Moimhear Loft Bed, including height, length, and width measurements.

5. Setup and Assembly Instructions

Assembly of the Moimhear Loft Bed is required. The product is shipped in two packages, which may arrive on different dates. Please ensure you have received all packages before beginning assembly.

5.1 Before You Begin

• Unpack all components and verify against the parts list provided in the separate assembly guide.
• Ensure you have all necessary tools as specified in the assembly guide.
• Assemble the bed on a soft, clean surface to prevent scratching.
• It is recommended to have two adults for assembly.

5.2 Assembly Steps

Refer to the detailed assembly instructions included in your product packaging for step-by-step guidance. All parts are numbered for easy identification. Follow the diagrams and written instructions carefully.

Figure 5.1: An angled view of the loft bed, showing the metal frame, wooden desk, and ladder components before full assembly.

Figure 5.2: Side view of the loft bed structure, illustrating the ladder and desk attachment points.

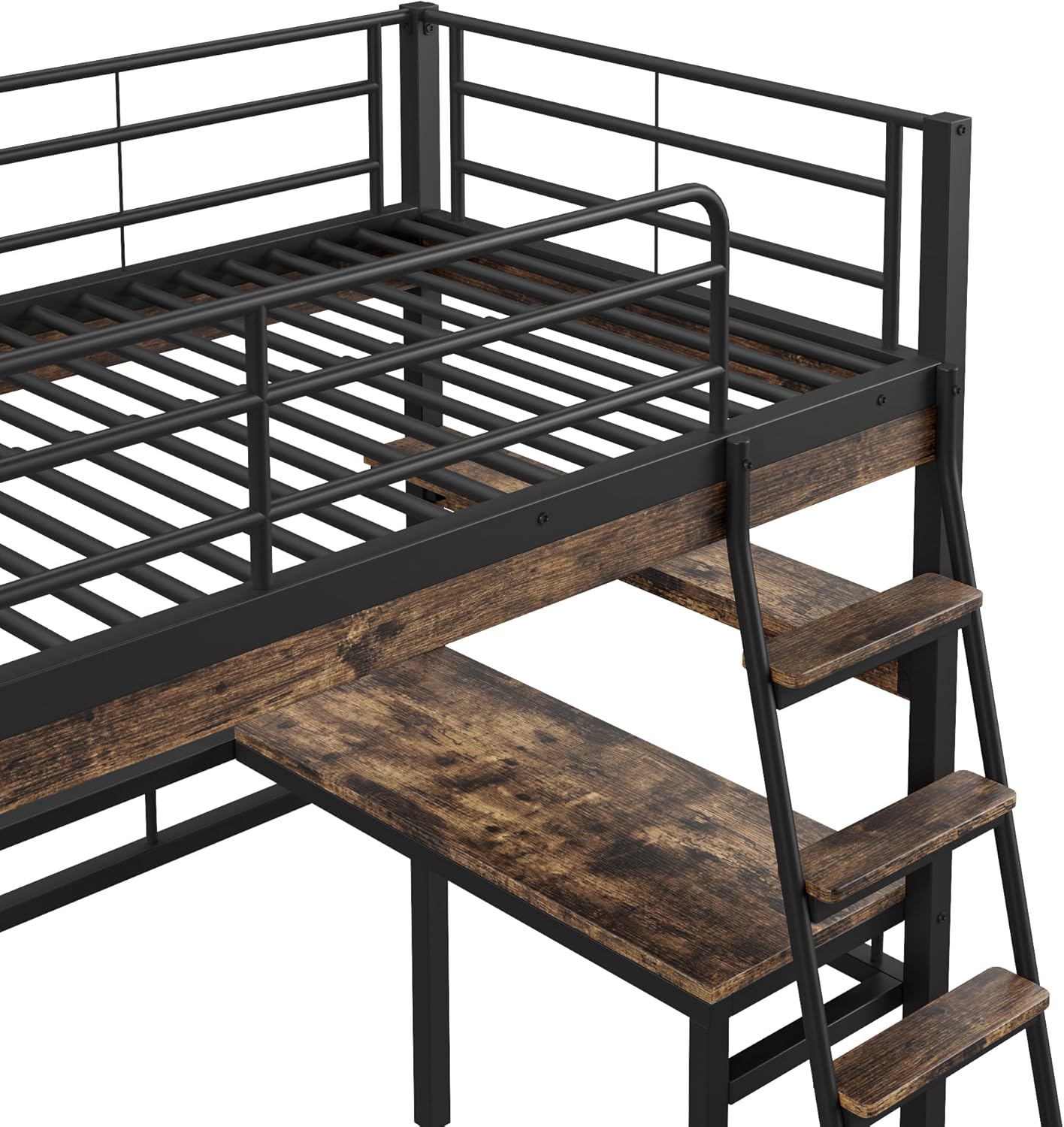

Figure 5.3: Close-up detail of the ladder steps and the integrated desk surface, showing their connection to the main bed frame.

6. Usage (Operating)

Once fully assembled and secured, the Moimhear Loft Bed provides a multi-functional space.

• Sleeping Area: The upper bunk is designed for a 90x200cm mattress with a recommended thickness of 10 cm. Always use the ladder for safe access to and from the bed.
• Work/Study Area: The integrated desk provides a dedicated space for studying, working, or creative activities.
• Storage: Utilize the built-in shelves to keep books, stationery, and other personal items organized and within reach.
• Space Optimization: The area beneath the bed, adjacent to the desk, can be used for additional furniture such as a sofa, small cabinet, or storage bins, maximizing room utility.

Figure 6.1: Front view of the Moimhear Loft Bed, highlighting the desk area and the space available underneath the bed.

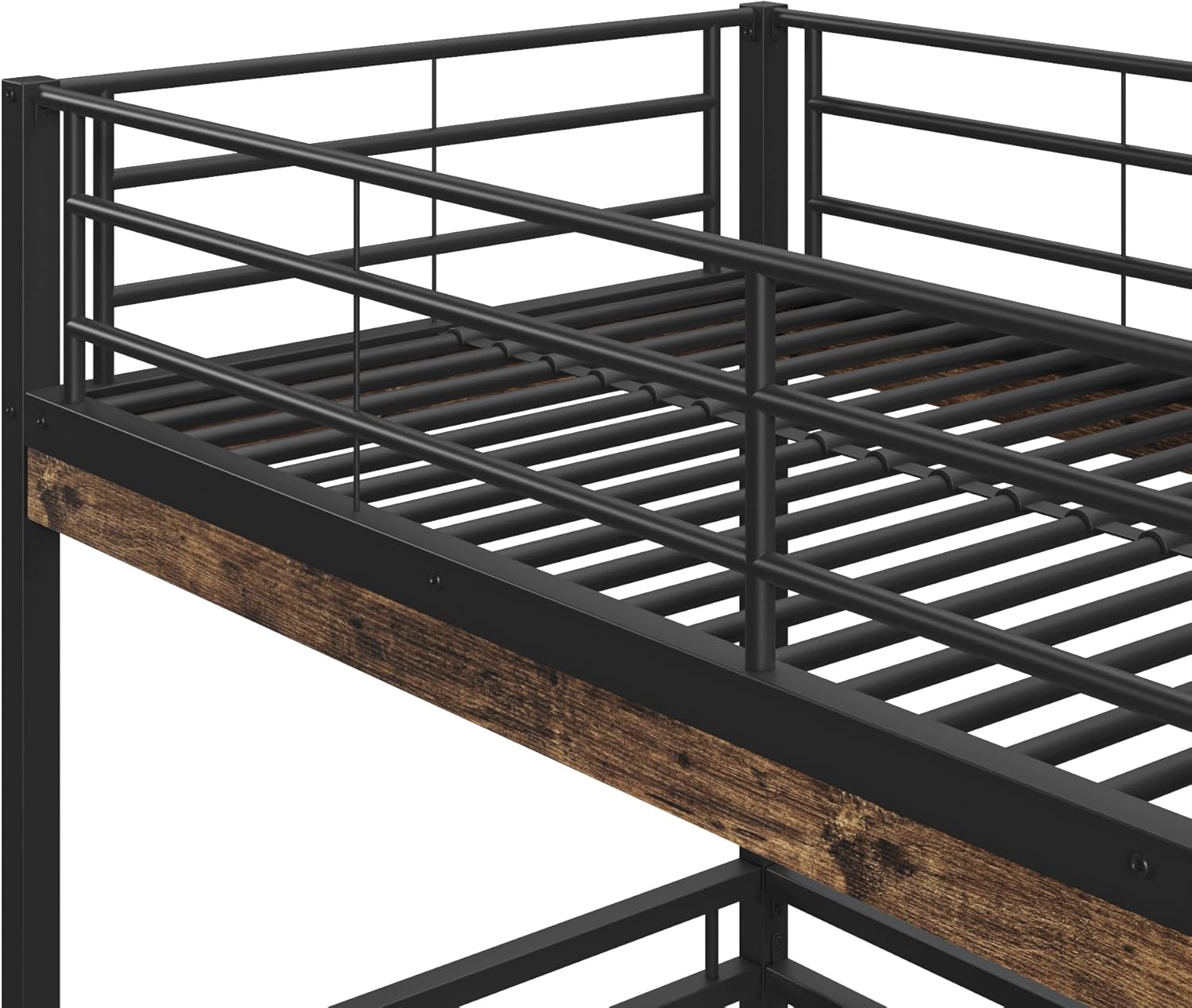

Figure 6.2: Close-up of the bed frame and safety railing, demonstrating the robust construction.

7. Maintenance

To ensure the longevity and safety of your Moimhear Loft Bed, regular maintenance is recommended:

• Cleaning: Wipe down metal and MDF surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Hardware Check: Periodically inspect all bolts, screws, and connections. Tighten any that have become loose to maintain structural integrity.
• Structural Inspection: Check for any signs of wear, damage, or bending in the metal frame or MDF components. Address any issues promptly.

8. Troubleshooting

If you encounter any issues with your Moimhear Loft Bed, consider the following:

• Wobbling or Instability: This is often caused by loose hardware. Re-tighten all bolts and screws, ensuring the bed is on a level surface.
• Missing Parts: If you find any parts missing during assembly, refer to the parts list in your assembly guide and contact customer support.
• Difficulty with Assembly: Review the assembly instructions carefully. If problems persist, contact customer support for assistance.

9. Warranty and Support

For any questions, concerns, or issues regarding your Moimhear Loft Bed, please contact our customer service department. While specific warranty details are not provided in this manual, our team is available to assist you with product support and troubleshooting.

When contacting support, please have your model number (WX000128AAB-ZXYY) and purchase information readily available.
