Imagitarium IN-CIRC 800 Water Pump

Product Overview

The Imagitarium IN-CIRC 800 Water Pump is a versatile, multi-purpose pump designed for circulating water in various aquatic environments. It is suitable for use in aquariums, filtration systems, ponds, and fountains. This pump supports both wet (submerged) and dry (external) applications and includes a range of adaptors for connecting to different tubing sizes.

• Rated for 350-800 Gallons Per Hour (GPH) flow rate.
• Features an adjustable water flow valve for precise control.
• Includes 1/2-inch, 5/8-inch, and 3/4-inch hose connectors for broad compatibility.
• Equipped with cord management suction cups for tidy installation.
• Comes with 4 suction cups for secure placement of the pump.
• Maximum lift height (head lift) is 7.5 feet.

Safety Instructions

Please read and understand all safety instructions before operating this pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Disconnect Power: Always unplug the pump from the electrical outlet before performing any maintenance, installation, or handling.
• Proper Grounding: Ensure the pump is connected to a properly grounded outlet. Do not remove the grounding prong from the plug.
• Indoor Use: This pump is designed for indoor use in aquariums, ponds, and fountains. Do not use it for purposes other than those specified.
• Avoid Running Dry: Never operate the pump without water. Running the pump dry can cause permanent damage and void the warranty.
• Water Temperature: Do not use the pump with liquids above 95°F (35°C).
• Cord Protection: Do not place the pump cord in areas where it can be walked on or pinched. Do not use the cord to lift or carry the pump.
• Children and Pets: Keep the pump and its electrical connections out of reach of children and pets.
• Damage Inspection: Regularly inspect the pump and power cord for any signs of damage. Do not use if damaged.

Package Contents

Verify that all items are present in the package before proceeding with installation.

• Imagitarium IN-CIRC 800 Water Pump
• 1/2-inch Hose Connector
• 5/8-inch Hose Connector
• 3/4-inch Hose Connector
• 4 Suction Cups (pre-attached or separate for pump base)
• Cord Management Suction Cups (for securing power cord)

Setup Instructions

1. Choose Application Type: Determine if the pump will be used in a wet (submerged) or dry (external) application.
2. Attach Hose Connector: Select the appropriate hose connector (1/2-inch, 5/8-inch, or 3/4-inch) for your tubing and securely attach it to the pump's outlet.
3. Connect Tubing: Connect your desired tubing to the attached hose connector. Ensure a tight fit to prevent leaks.
4. Position the Pump:
   • For Wet Applications: Place the pump completely submerged in water, ensuring the water level is above the pump's intake.
   • For Dry Applications: Position the pump externally, ensuring it is below the water level of the source to allow for gravity-fed intake.

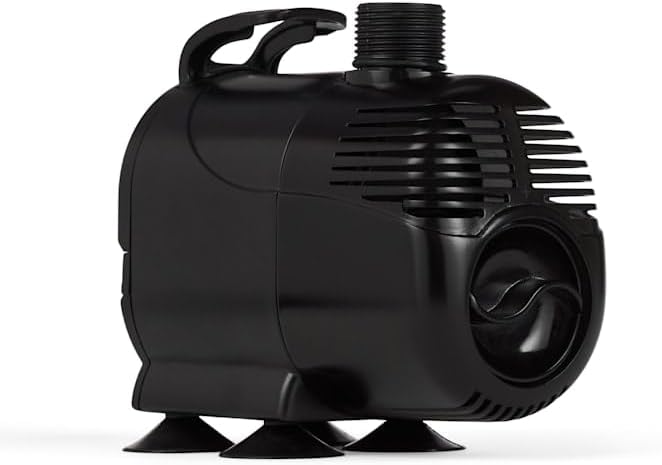

5. Secure the Pump: Use the four suction cups on the base of the pump to secure it firmly to a clean, smooth surface. This helps reduce vibration and noise.
6. Manage Power Cord: Route the power cord safely, using the included cord management suction cups to keep it tidy and prevent accidental dislodgement. Ensure a drip loop is formed to prevent water from traveling along the cord to the electrical outlet.

Operating Instructions

1. Ensure Water Level: For submerged applications, confirm the pump is fully immersed in water. For dry applications, ensure the pump is primed (water flows into the intake by gravity or manual priming) before starting.
2. Plug In: Connect the pump's power plug to a properly grounded electrical outlet. The pump will begin operating.
3. Adjust Flow Rate: Use the adjustable flow valve located on the pump to increase or decrease the water flow to your desired level.
4. Monitor Performance: Observe the pump's operation to ensure proper water circulation and flow.

Maintenance

Regular maintenance is crucial for the longevity and efficient operation of your Imagitarium IN-CIRC 800 Water Pump.

1. Disconnect Power: Always unplug the pump from the power source before performing any cleaning or maintenance.
2. Disassemble: Carefully remove the pump from its location. Depending on the model, you may need to unclip the intake cover to access the impeller.
3. Clean Impeller and Housing: Remove any debris, algae, or mineral buildup from the impeller, impeller shaft, and pump housing. A small brush or cotton swab can be helpful for hard-to-reach areas.
4. Rinse Components: Rinse all cleaned components thoroughly with clean water.
5. Reassemble: Carefully reassemble the pump, ensuring all parts are correctly seated.
6. Check Tubing: Periodically inspect the connected tubing for blockages or kinks that could impede water flow.

Troubleshooting

If you encounter issues with your pump, refer to the following troubleshooting guide:

Specifications

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact Imagitarium customer service directly. Keep your purchase receipt as proof of purchase.

You can often find additional support and contact details on the official Imagitarium website or through the retailer where the product was purchased.
