AIR2GO Activated Carbon Filter

Product Overview

The AIR2GO Activated Carbon Filter is designed to effectively capture grease, cooking odors, and fish smells during cooking. Regular replacement of this filter significantly reduces grease deposits in the kitchen, improves air quality, and can help reduce allergy risks. This filter is specifically designed for use in flat panel range hoods, positioned above the metal grease filter.

Image: The AIR2GO Activated Carbon Filter, showing its circular shape and honeycomb pattern.

Installation Guide

Follow these steps to install your new AIR2GO Activated Carbon Filter:

1. Safety First: Before beginning installation, ensure your range hood is turned off and unplugged from the power outlet to prevent electrical hazards.
2. Locate Filter Compartment: Open the latch or release mechanism on your range hood to access the filter compartment. This is typically located behind the metal grease filters.
3. Remove Old Filter (if applicable): If replacing an old filter, carefully remove it. Note its orientation for correct installation of the new filter.
4. Insert New Filter: Place the AIR2GO Activated Carbon Filter into the designated slot. For flat panel range hoods, this filter is typically inserted above the existing metal grease filter. Ensure it sits securely and correctly. The filter is sealed in foil and does not need to be installed immediately upon purchase.
5. Secure Compartment: Close the filter compartment securely.
6. Restore Power: Plug your range hood back into the power outlet.

Image: Top view of the filter, showing symbols that may indicate locking or unlocking mechanisms for installation.

Operation

Once installed, the AIR2GO Activated Carbon Filter operates passively as part of your range hood's ventilation system. It works by absorbing odors and grease particles from the air as it passes through the filter. No specific user interaction is required for its operation beyond ensuring it is correctly installed.

Maintenance

To ensure optimal performance and air quality, regular maintenance is crucial:

• Carbon Filter Replacement: Depending on your cooking habits, the activated carbon filter should be replaced every 6 months. This ensures continued effective odor absorption.
• Metal Grease Filter Cleaning: In addition to replacing the carbon filter, the metal grease filter in your range hood should be cleaned once a month. Refer to your range hood's manual for specific cleaning instructions for its metal filters.

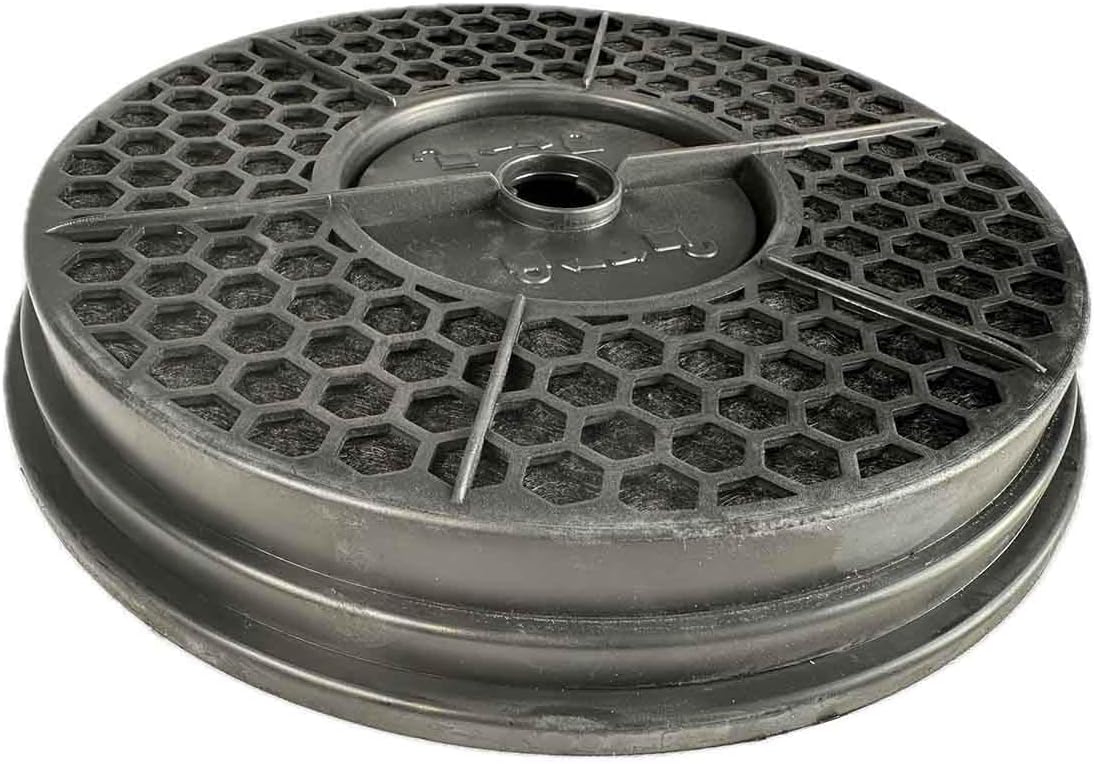

Image: An angled view of the activated carbon filter, highlighting its structure and depth.

Troubleshooting

If you experience persistent odors or reduced air purification after installing the filter, consider the following:

• Filter Age: Check if it has been more than 6 months since the last carbon filter replacement. An old, saturated filter will lose its effectiveness.
• Metal Filter Cleanliness: Ensure the metal grease filters are clean. Clogged metal filters can impede airflow and reduce the overall efficiency of the range hood, affecting the carbon filter's performance.
• Proper Installation: Verify that the carbon filter is correctly seated and secured in its compartment, allowing air to flow through it properly.
• Cooking Habits: Very frequent or intense cooking (e.g., deep frying) may require more frequent filter replacement.

Specifications

Image: The activated carbon filter with its key dimensions, 212mm diameter and 35mm height, clearly marked.

Warranty Information

Specific warranty details for the AIR2GO Activated Carbon Filter are not provided in this manual. Please refer to the product packaging or contact AIR2GO customer support for information regarding warranty coverage.

Support and Contact

For further assistance, questions, or to purchase replacement filters, please visit the official AIR2GO store or contact their customer service:

• AIR2GO Store: Visit the AIR2GO Brand Store on Amazon
• General Inquiries: Refer to the contact information provided on the product packaging or the AIR2GO official website.
