Instruction Manual for RZHBYS Replacement Parts for Xiaomi Roidmi EVA Self-Cleaning Emptying Robot Vacuum SDJ06RM

Introduction

This manual provides instructions for the installation, maintenance, and troubleshooting of RZHBYS replacement parts for the Xiaomi Roidmi EVA Self-Cleaning Emptying Robot Vacuum, model SDJ06RM. These parts are designed to maintain the optimal performance of your robot vacuum cleaner.

The "Set11" package typically includes:

• Side Brushes
• HEPA Filters
• Mop Cloths
• Dust Bags

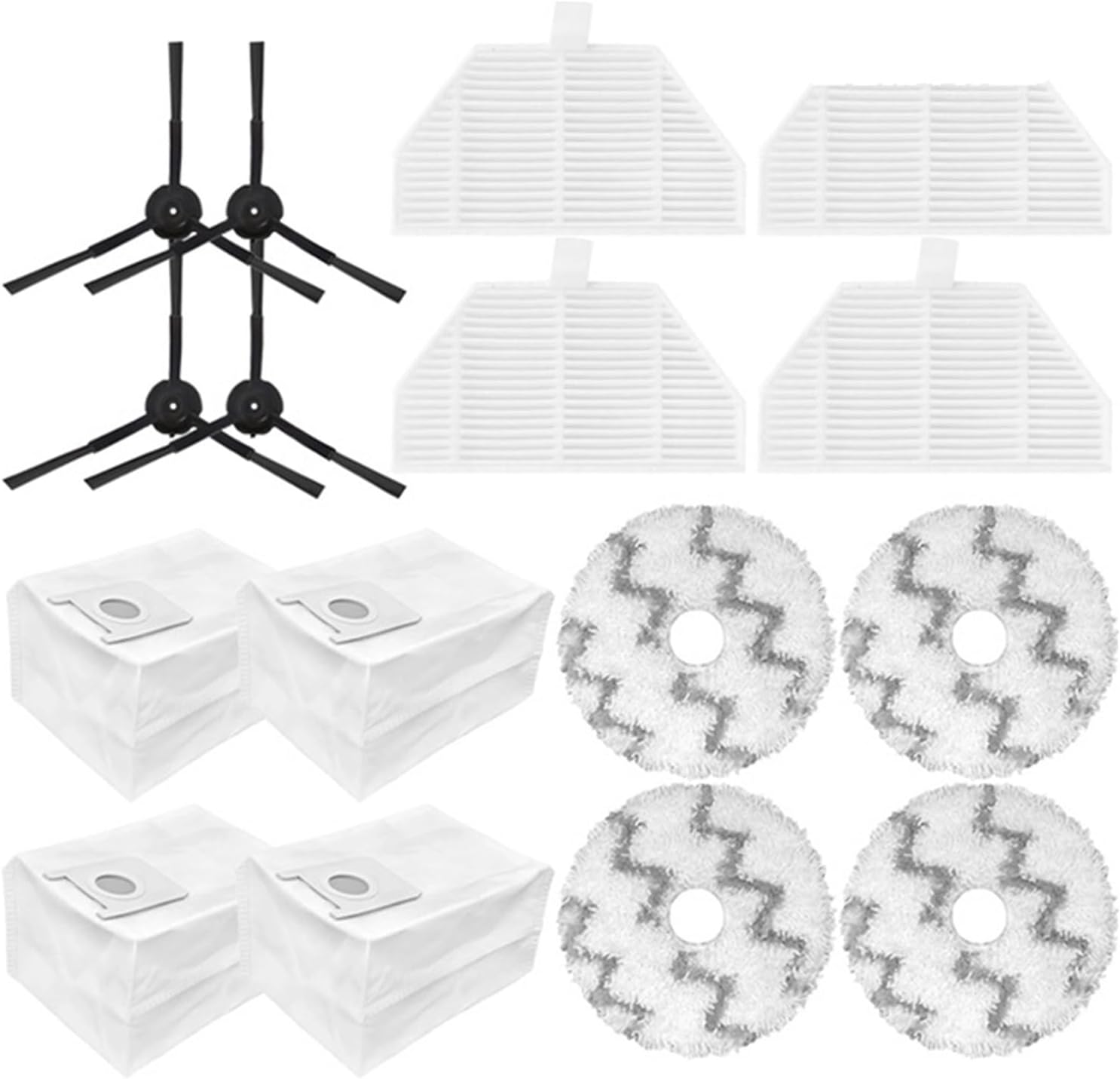

Image: Contents of RZHBYS Set11 replacement parts, including side brushes, HEPA filters, mop cloths, and dust bags.

Setup and Installation

Before installing any replacement parts, ensure your Xiaomi Roidmi EVA robot vacuum is powered off and unplugged from its charging dock. Refer to your robot vacuum's original instruction manual for specific access panel locations if needed.

1. Side Brush Installation

1. Turn the robot vacuum upside down.
2. Locate the side brushes. They are typically held in place by a single screw or a snap-on mechanism.
3. If screwed, use a screwdriver to remove the retaining screw. If snap-on, gently pull the old brush upwards to remove it.
4. Align the new side brush with the corresponding post on the robot. Ensure the brush arms are correctly oriented.
5. Press down firmly or re-insert the screw to secure the new side brush.

Image: A single replacement side brush with three arms, designed for sweeping debris into the vacuum's path.

2. HEPA Filter Replacement

1. Open the dust bin compartment on your robot vacuum.
2. Remove the dust bin.
3. Locate the filter assembly within the dust bin. The old HEPA filter can usually be pulled out from its slot.
4. Insert the new HEPA filter into the designated slot, ensuring it fits snugly and completely seals the opening.
5. Reinsert the dust bin into the robot vacuum until it clicks into place.

Image: A rectangular pleated HEPA filter, showing its dimensions of 87mm width and 47mm height, crucial for trapping fine dust particles.

3. Mop Cloth Installation

1. Locate the mop module or water tank on your robot vacuum.
2. Remove the used mop cloth from the module. It is typically attached via Velcro or a sliding mechanism.
3. Attach the new mop cloth to the mop module, ensuring it is securely fastened and evenly spread.
4. Reattach the mop module or water tank to the robot vacuum.

Image: A circular white mop cloth with a textured pattern, designed for wet cleaning floors.

4. Dust Bag Replacement

1. Open the dust collection compartment on the self-emptying base station.
2. Carefully remove the full dust bag from its slot. Ensure the bag's opening is sealed to prevent dust leakage.
3. Insert a new dust bag into the slot, making sure it is fully seated and the opening aligns with the vacuum's dust port.
4. Close the dust collection compartment door securely.

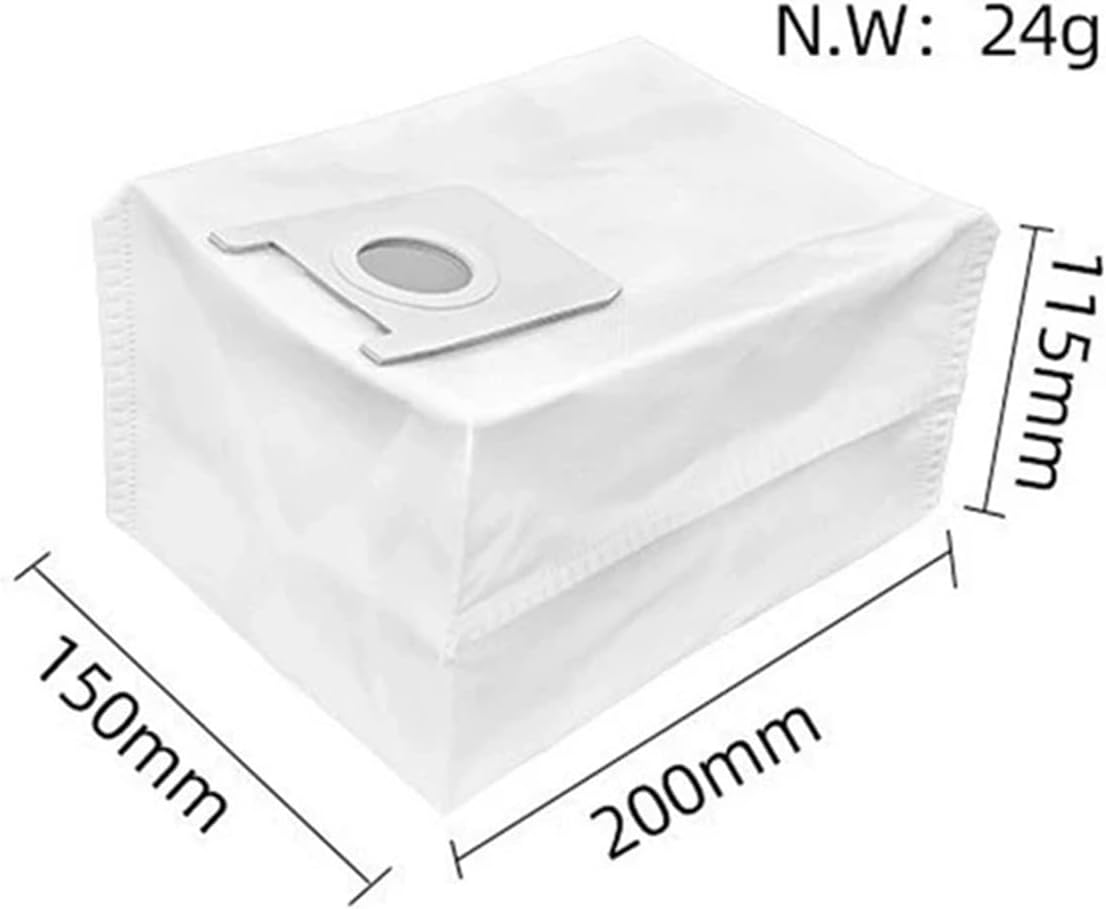

Image: A white disposable dust bag for a robot vacuum's self-emptying station, showing approximate dimensions of 200mm length, 150mm width, and 115mm height.

Operating

Once the replacement parts are correctly installed, the Xiaomi Roidmi EVA robot vacuum will utilize them automatically during its cleaning cycles. These parts are crucial for the robot's effective operation:

• Side Brushes: Sweep debris from edges and corners into the main cleaning path.
• HEPA Filters: Trap fine dust, allergens, and pet dander, preventing them from being released back into the air.
• Mop Cloths: Absorb water and clean hard floors during mopping cycles.
• Dust Bags: Collect dust and debris from the robot's dust bin when it self-empties at the charging station.

For detailed operating instructions of the robot vacuum itself, please refer to the original Xiaomi Roidmi EVA user manual.

Maintenance

Regular maintenance of these replacement parts is essential for prolonging their lifespan and ensuring the continued high performance of your robot vacuum.

• Side Brushes: Inspect weekly for tangled hair or debris. Remove any obstructions. If bristles are bent or worn, replace the brush.
• HEPA Filters: Tap the filter gently over a trash can to remove loose dust. Do not wash HEPA filters with water unless explicitly stated by the original manufacturer, as this can damage the filter material. Replace every 2-3 months, or more frequently if you have pets or allergies.
• Mop Cloths: After each mopping session, remove the mop cloth and wash it thoroughly with water. Air dry completely before reattaching. Replace every 1-2 months depending on usage and wear.
• Dust Bags: Replace the dust bag when the robot vacuum or its app indicates it is full, or when you notice a decrease in self-emptying efficiency. Do not attempt to empty and reuse disposable dust bags.

Note: The frequency of replacement may vary based on usage, environment, and pet presence. Always refer to the original robot vacuum's manual for specific maintenance guidelines.

Troubleshooting

If you encounter issues with your robot vacuum's performance after replacing parts, consider the following:

If issues persist after addressing the part-specific problems, consult the original Xiaomi Roidmi EVA robot vacuum's troubleshooting guide or contact Xiaomi customer support.

Specifications

Warranty and Support

These RZHBYS replacement parts are third-party accessories designed for compatibility with the Xiaomi Roidmi EVA SDJ06RM robot vacuum. Any warranty or support for these specific replacement parts would be provided by the seller or manufacturer, RZHBYS.

For issues related to the robot vacuum itself, please refer to the warranty information provided with your original Xiaomi Roidmi EVA product. For support regarding these replacement parts, please contact the seller directly through your purchase platform.
