Introduction
This manual provides essential information for the installation, understanding, and maintenance of your Allstar Appliance Parts Dishwasher Heating Element, model WD05X35098. This component is a genuine OEM replacement part designed to ensure proper heating function within your dishwasher. It replaces several older part numbers, including WD05X25583, WD05X28460, WD05X29418, WD05X30298, WD05X30299, WD05X30318, and WD05X33952.

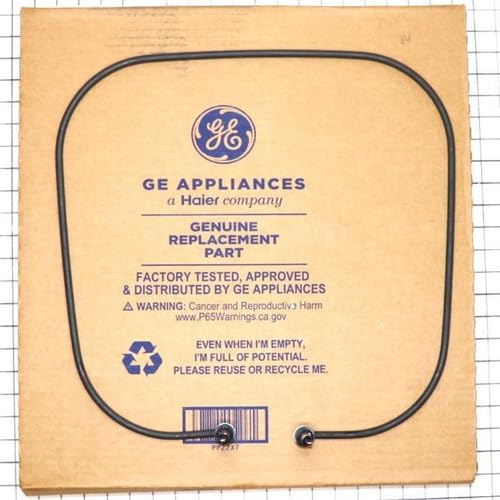

Image: The Allstar Appliance Parts Dishwasher Heating Element WD05X35098, shown in its original GE Appliances packaging, indicating it is a genuine replacement part.
Safety Information
Before attempting any installation or repair, please read and understand all safety precautions. Failure to follow these instructions could result in electric shock, fire, property damage, or personal injury.
- Disconnect Power: Always disconnect the dishwasher from its power source (unplug or turn off the circuit breaker) before beginning any service or installation.
- Wear Protective Gear: Use appropriate personal protective equipment, such as gloves and eye protection, during installation.
- Professional Installation Recommended: Installation of appliance parts can be complex and may require specialized tools and knowledge. If you are unsure about any step, it is highly recommended to consult a qualified appliance technician.
- Handle with Care: The heating element may have sharp edges or delicate components. Handle it carefully to avoid injury or damage to the part.
- Verify Compatibility: Ensure this part is compatible with your specific dishwasher model before installation. Refer to your dishwasher's service manual or contact a professional if uncertain.
Setup and Installation
The WD05X35098 heating element is a critical component for your dishwasher's washing and drying cycles. Proper installation is essential for its function and safety. Due to the technical nature of this replacement, professional installation is strongly advised.
General Installation Steps (Consult a Professional)
- Preparation: Disconnect power to the dishwasher. Turn off the water supply. Pull the dishwasher out from its cabinet enclosure if necessary.
- Access the Heating Element: Depending on your dishwasher model, you may need to remove the lower spray arm, racks, and possibly the wash tub bottom to access the heating element.
- Disconnect Wiring: Carefully disconnect the electrical wires from the terminals of the old heating element. Note their positions for reinstallation.
- Remove Old Element: Unfasten any nuts or clips securing the old heating element to the wash tub. Gently remove the old element, being mindful of any rubber gaskets.
- Install New Element: Insert the new WD05X35098 heating element into position, ensuring any gaskets are properly seated to prevent leaks. Secure it with the fasteners.
- Connect Wiring: Reconnect the electrical wires to the terminals of the new heating element. Ensure connections are secure.
- Reassemble: Reinstall any removed components (wash tub bottom, spray arm, racks).
- Test: Restore water and power to the dishwasher. Run a short cycle to check for leaks and proper heating function.
Image: A close-up view of the heating element's electrical terminals and the part number WD05X35098 visible on the packaging, aiding in identification during installation.
Operating Principle
The dishwasher heating element WD05X35098 is responsible for two primary functions during a dishwasher cycle:
- Water Heating: During the wash and rinse cycles, the element heats the water to the optimal temperature for effective cleaning and sanitization.
- Drying: In the drying cycle, the element heats the air inside the dishwasher to facilitate the evaporation of water from dishes, leaving them dry.
The dishwasher's control board activates the heating element as needed, based on the selected cycle and temperature settings.
Maintenance
While the heating element itself typically requires no direct maintenance, its longevity can be affected by the overall condition and usage of the dishwasher. Consider the following general maintenance tips:
- Clean Dishwasher Regularly: Periodically clean the dishwasher interior, including filters and spray arms, to prevent food particles and mineral deposits from accumulating. Excessive buildup can strain the heating element.
- Use Appropriate Detergent: Use only dishwasher-safe detergents and rinse aids as recommended by your dishwasher manufacturer.
- Avoid Overloading: Do not overload the dishwasher, as this can impede water circulation and potentially affect heating efficiency.
- Check Water Hardness: In areas with hard water, mineral deposits (limescale) can build up on the heating element, reducing its efficiency and lifespan. Consider using a dishwasher cleaner designed to remove limescale or a water softener if applicable.
Troubleshooting
If your dishwasher is experiencing issues related to heating or drying, the heating element may be a factor. Always ensure power is disconnected before inspecting components.
| Symptom | Possible Cause | Action |
|---|---|---|
| Dishes not drying | Faulty heating element, rinse aid dispenser empty, vent issue | Check heating element for continuity (requires multimeter). Ensure rinse aid is full. Inspect vent. |
| Water not heating | Faulty heating element, thermostat issue, control board issue | Test heating element for resistance. Check thermostat for continuity. Consult a technician for control board diagnosis. |
| Error codes related to heating | Heating element failure, sensor malfunction | Refer to your dishwasher's specific error code chart. Test heating element and associated sensors. |
For complex issues or if you are uncomfortable performing diagnostic tests, contact a certified appliance repair technician.
Specifications
- Part Number: WD05X35098
- Replaces Part Numbers: WD05X25583, WD05X28460, WD05X29418, WD05X30298, WD05X30299, WD05X30318, WD05X33952
- Brand: Allstar Appliance Parts
- Installation Type: Built-In (for dishwashers)
- Product Dimensions: Approximately 20"D x 3"W x 20"H (overall element shape)
- Item Weight: Approximately 2 Pounds
- Recommended Uses: For everyday dishware and glassware washing and drying in compatible dishwashers.
Image: The heating element WD05X35098 displayed on a grid, where each square represents 1 inch, providing a visual reference for its size and shape.
Warranty
This Allstar Appliance Parts heating element comes with a 90-day warranty from the date of purchase. All warranty claims require the model and serial numbers of the appliance in which the part was installed. Please retain your proof of purchase.
Support
For further assistance, technical inquiries, or warranty claims regarding your Allstar Appliance Parts Dishwasher Heating Element WD05X35098, please contact the seller or manufacturer directly. Ensure you have your purchase details and appliance model/serial numbers available for efficient support.
You can often find contact information on your original purchase receipt or the product packaging.
