NJORD GEAR Indestructible Smartwatch User Manual

Product Overview

The NJORD GEAR Indestructible Smartwatch is designed for durability and functionality, featuring a 1.83-inch HD Gorilla Glass screen and an anodized aluminum case. It boasts an IP68 waterproof and dustproof rating, making it suitable for demanding environments. Key features include Bluetooth calling, comprehensive health monitoring (heart rate, sleep tracking, temperature, pedometer, calorie tracking), music playback control, and various utility tools.

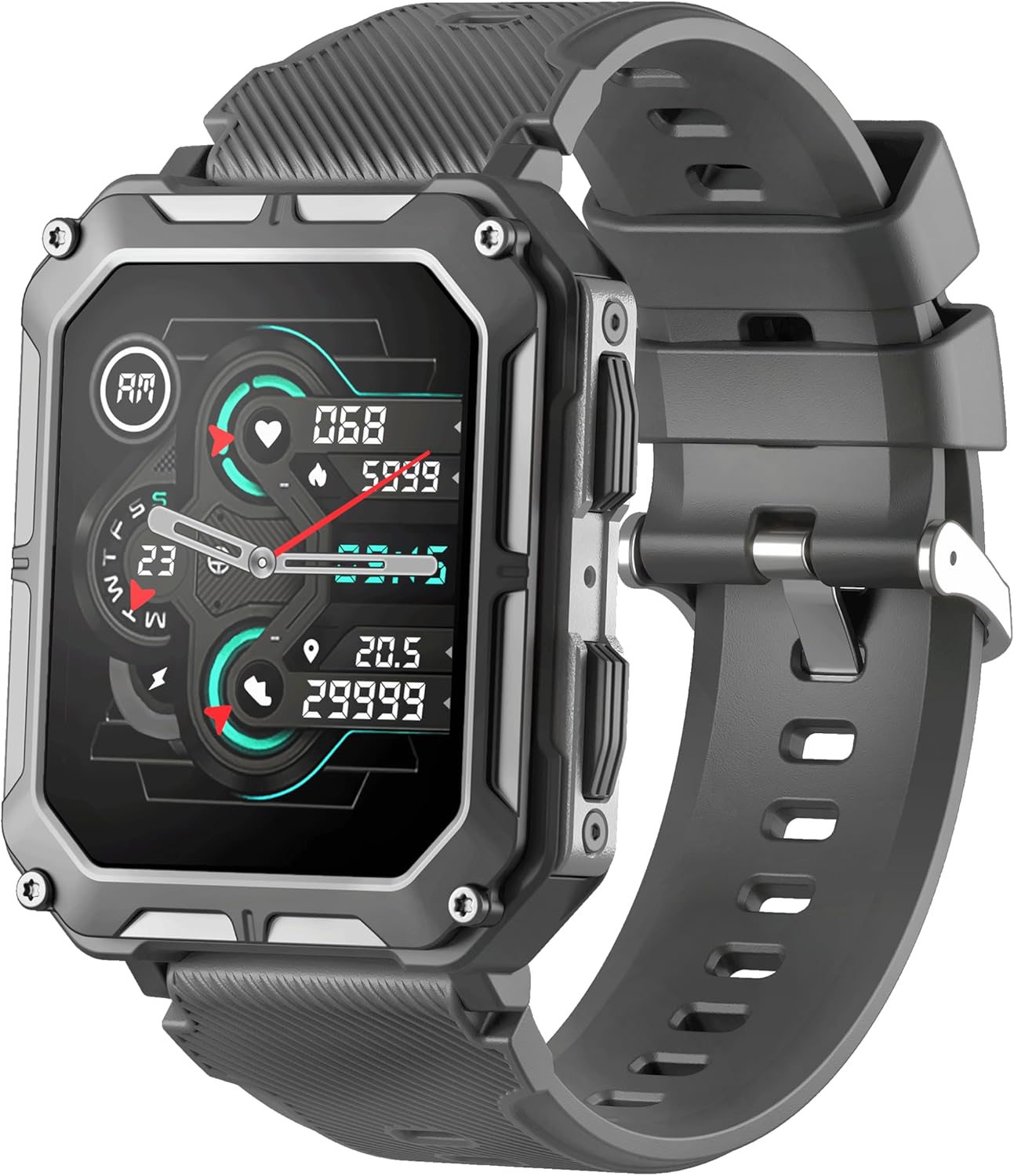

Image: The NJORD GEAR Indestructible Smartwatch, showcasing its rugged design and vibrant display with health metrics.

Image: Visual representation of the smartwatch's core features, including phone calls, real-time heart rate, steps and calories counter, Bluetooth music player, IP68 dust-proof rating, and text/notification alerts.

Image: An exploded view illustrating the robust construction of the smartwatch, highlighting the Gorilla Glass, OLED screen, metal bezel, IP68 waterproof sealing, and anodized aluminum case.

What's in the Box

• Watch
• Band

Setup

1. Charging the Smartwatch

Before first use, fully charge your smartwatch. Connect the magnetic charging cable to the charging points on the back of the watch and plug the USB end into a compatible power adapter (not included) or a computer's USB port. The watch display will indicate charging status. A full charge typically takes approximately 2 hours.

2. Initial Power On

Press and hold the power button (usually located on the side of the watch) for a few seconds until the screen illuminates and the NJORD GEAR logo appears. The watch will then boot up.

3. Pairing with Your Smartphone

To unlock the full potential of your smartwatch, pair it with your Android or iOS smartphone. First, download the companion application (e.g., 'Da Fit' or similar, refer to your watch's quick start guide for the exact app name) from your phone's app store. Enable Bluetooth on your smartphone. Open the app, create an account if prompted, and follow the on-screen instructions to search for and connect to your smartwatch. Ensure the smartwatch is discoverable during this process.

Image: The smartwatch screen showing an incoming call notification, demonstrating its Bluetooth calling capability once paired with a smartphone.

Operating Your Smartwatch

Navigation

• Touchscreen: Swipe left/right to navigate between main screens (e.g., watch face, activity data, heart rate). Swipe up/down to access quick settings or notifications. Tap to select items or confirm actions.
• Side Buttons: The physical buttons on the side of the watch typically serve as power on/off, back, or quick access to specific functions (e.g., sports modes). Refer to the in-app guide for specific button assignments.

Key Features

Bluetooth Calling

Once paired, you can make and receive calls directly from your smartwatch. Access the call function through the main menu. You can dial numbers, view recent calls, and sync contacts from your phone.

Health Monitoring

The smartwatch continuously monitors various health metrics:

• Heart Rate: Provides real-time heart rate data.
• Sleep Tracking: Monitors sleep patterns, including deep sleep, light sleep, and awake times.
• Pedometer & Calorie Tracking: Counts steps taken and estimates calories burned throughout the day.
• Temperature Checks: Provides an estimate of body temperature.

Image: The smartwatch screen showing detailed health data, including heart rate, steps, and distance, providing a quick overview of daily activity.

Image: A composite view showing the smartwatch displaying heart rate and blood pressure, alongside a smartphone app interface illustrating continuous heart rate, blood pressure, and blood oxygen monitoring.

Notifications

Receive alerts for incoming calls, text messages, and app notifications directly on your wrist. Configure notification settings within the companion app.

Music Playback Control

Control your smartphone's music playback (play, pause, skip tracks) directly from the smartwatch.

Other Tools

The smartwatch includes useful tools such as a stopwatch, calculator, weather display, wrist and screen illumination, and a 'find your phone' feature.

Maintenance

Cleaning

Regularly clean your smartwatch and band. Wipe the screen and case with a soft, damp cloth. For the band, use mild soap and water if necessary, then rinse thoroughly and dry completely before wearing. Avoid harsh chemicals or abrasive materials.

Water Resistance (IP68)

The smartwatch has an IP68 rating, meaning it is protected against dust ingress and can withstand immersion in water up to 1.5 meters for up to 30 minutes. It is suitable for everyday use, including rain and shallow water activities. However, it is not recommended for hot showers, saunas, or deep-sea diving, as steam and high water pressure can compromise the seals.

Battery Care

To maximize battery life, avoid extreme temperatures. Charge the watch regularly and avoid letting the battery completely drain for extended periods. If storing the watch for a long time, charge it to about 50%.

Troubleshooting

• Watch not turning on: Ensure the watch is fully charged. Connect it to the charger and wait a few minutes before attempting to power it on again.
• Cannot pair with phone: Check that Bluetooth is enabled on your phone and the smartwatch. Ensure the companion app is installed and running. Try restarting both your phone and the smartwatch.
• Inaccurate health readings: Ensure the watch is worn snugly on your wrist, not too tight or too loose. Clean the sensor on the back of the watch. Avoid excessive movement during readings.
• Screen unresponsive: If the touchscreen is not responding, try restarting the watch by pressing and holding the power button until it reboots.
• Short battery life: Reduce screen brightness, disable unnecessary notifications, and limit continuous health monitoring if not needed. Ensure background app refresh is optimized on your phone.

Specifications

Warranty Information

This product comes with a standard manufacturer's warranty. For specific details regarding the warranty period, coverage, and terms, please refer to the product packaging or contact NJORD GEAR customer support directly.

Customer Support

For any questions, technical assistance, or warranty claims not covered in this manual, please reach out to NJORD GEAR customer service. You can typically find contact information on the official NJORD GEAR website or through the retailer where you purchased the product.
