Sannwsg 10X30 Party Tent Instruction Manual

Product Overview

The Sannwsg 10X30 Party Tent is designed to provide a spacious and reliable shelter for various outdoor events. Measuring 10x30 feet, it can comfortably accommodate up to 45 people standing, making it ideal for gatherings, parties, weddings, and family events. Crafted with heavy-duty 1.5-inch steel tubes and durable 180g PE fabric, this tent ensures reliable stability and weather resistance. It offers excellent sun protection (95% UV protection), is waterproof, windproof, and fade-resistant, providing a versatile solution for creating memorable outdoor experiences.

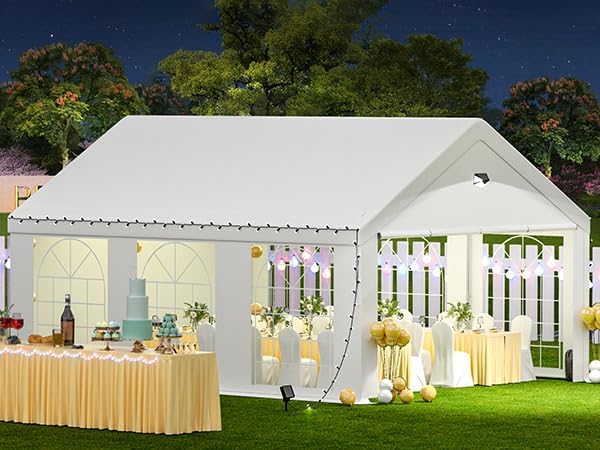

Figure 1: The Sannwsg 10X30 Party Tent providing shelter for an outdoor event.

Key Features:

• Spacious Design: Measures L10xW30FT, accommodating up to 45 people standing.
• Heavy Duty Construction: Features 1.5-inch steel tubes and durable 180g PE fabric for stability and weather resistance.
• Enhanced Value: Includes light strips, solar lights for illumination, 4 wind ropes, 2 tie-down straps, and 4 sandbags for secure setup in windy conditions.
• Versatile Usage: Perfect for birthdays, weddings, family gatherings, and various outdoor events.
• Easy Assembly: Designed with numbered parts, spring buttons, and ball straps for quick setup without additional tools.

Figure 2: The tent's versatility for various events.

Setup Instructions

Setting up your Sannwsg Party Tent is designed to be straightforward, thanks to numbered parts and a tool-free connection system for most components. It is recommended to have at least two people for assembly, especially when raising the frame.

1. Unpack and Organize: Lay out all components and identify them using the numbered labels. Separate poles, connectors, fabric sections, and accessories.
2. Assemble the Roof Frame: Begin by connecting the roof poles and connectors. The spring buttons and ball straps allow for quick and secure connections. Ensure all connections click into place.
3. Attach the Canopy Cover: Carefully drape the main canopy cover over the assembled roof frame. Ensure it is centered and aligned correctly.
4. Install Leg Poles: Attach the leg poles to the roof frame, lifting the structure as you go. Secure the leg poles to the ground using the provided alloy ground nails and screwed base nails.
5. Add Side Panels: Attach the side panels to the tent frame. These panels feature transparent windows and can be secured using Velcro straps on the inside of the poles. The end panels can be rolled up like a garage door for easy access.
6. Secure the Tent: Utilize the included wind ropes, tie-down straps, and sandbags to firmly anchor the tent, especially in windy conditions.
7. Install Lighting: Place the solar LED lights in desired locations, ensuring the solar panels receive adequate sunlight. String the included light strips along the tent frame for evening illumination.

Figure 3: Key design details and components for easy assembly.

Included Components

Your Sannwsg Party Tent package includes all necessary components for assembly and secure setup:

• Steel Frame Poles (1.5-inch galvanized pipe)
• Connectors (with spring buttons and ball straps)
• 180g PE Fabric Canopy Cover
• Removable Sidewalls with Transparent Windows
• Roll-Up Zipper Doors (for end panels)
• Alloy Ground Nails and Screwed Base Nails
• Wind Ropes (4 included)
• Tie-Down Straps (2 included)
• Portable Sandbags (4 included)
• Solar LED Light
• Lamp Strip (string lights)
• Assembly Gloves
• Basic Tools (Allen wrench, spanner)

Figure 4: Detailed view of included accessories and structural components.

Specifications

Figure 5: Product dimensions and capacity details.

Important Safety Warnings

• Ensure the tent is securely anchored in windy conditions using all provided ropes, straps, and sandbags. Failure to do so may result in damage to the tent or injury.
• Avoid direct heat exposure or fire hazards near or inside the tent. Keep all heat sources, open flames, and flammable materials away from the tent fabric.
• Use caution when handling metal components during assembly to prevent pinching or injury. Wear the provided gloves.
• Do not use the tent in extreme weather conditions such as heavy snow, strong winds, or thunderstorms. Disassemble and store the tent during severe weather.
• Regularly check all connections and anchoring points to ensure they remain secure.

Maintenance

• Cleaning: Clean the tent fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as they may damage the PE fabric.
• Drying: Ensure the tent fabric is completely dry before folding and storing to prevent mold and mildew.
• Storage: Store all components in a dry, cool place away from direct sunlight when not in use.
• Inspection: Periodically inspect the frame, fabric, and accessories for any signs of wear, tear, or damage. Repair any minor damage promptly using the provided repair kit or suitable materials.

Troubleshooting

• Tent Instability: Ensure all leg poles are fully extended and locked. Verify that all wind ropes, tie-down straps, and sandbags are properly secured and taut.
• Water Pooling on Roof: Check that the roof frame is correctly assembled and taut. Ensure the canopy cover is stretched evenly to prevent sagging.
• Difficulty Connecting Poles: Ensure you are using the correct numbered poles and connectors as per the instructions. Apply slight pressure and wiggle the poles to align the spring buttons with the holes.
• Damaged Fabric: Use the provided repair kit for small tears or punctures. For larger damage, contact Sannwsg customer support.
• Solar Lights Not Working: Ensure the solar panel is clean and exposed to direct sunlight for several hours. Check that the light is switched on and not in a shaded area.
