XvuaTeIw Microwave Oven Door Hooks Installation Guide

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of the XvuaTeIw replacement door hooks, compatible with specific Galanz Microwave Oven models. Please read these instructions carefully before attempting any installation or repair to ensure proper function and safety.

Product Overview

The XvuaTeIw door hooks are designed as a direct replacement part for the door latch mechanism in Galanz Microwave Oven models HC-83303FB and P70F23P-G5(SO). These components are crucial for the safe and secure closure of the microwave door, which is essential for the appliance's operation.

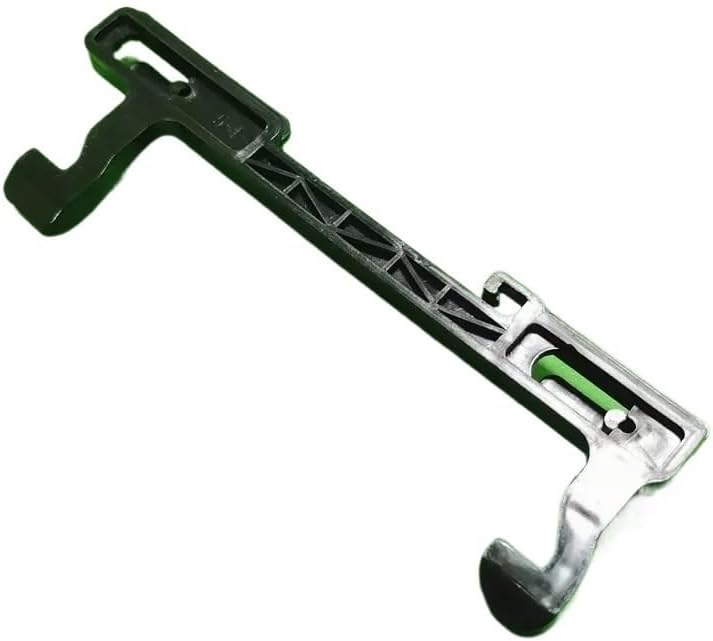

Image 1: XvuaTeIw replacement door hooks for microwave ovens. This image displays the two-part plastic hook assembly, featuring a green internal spring mechanism, designed to secure the microwave door.

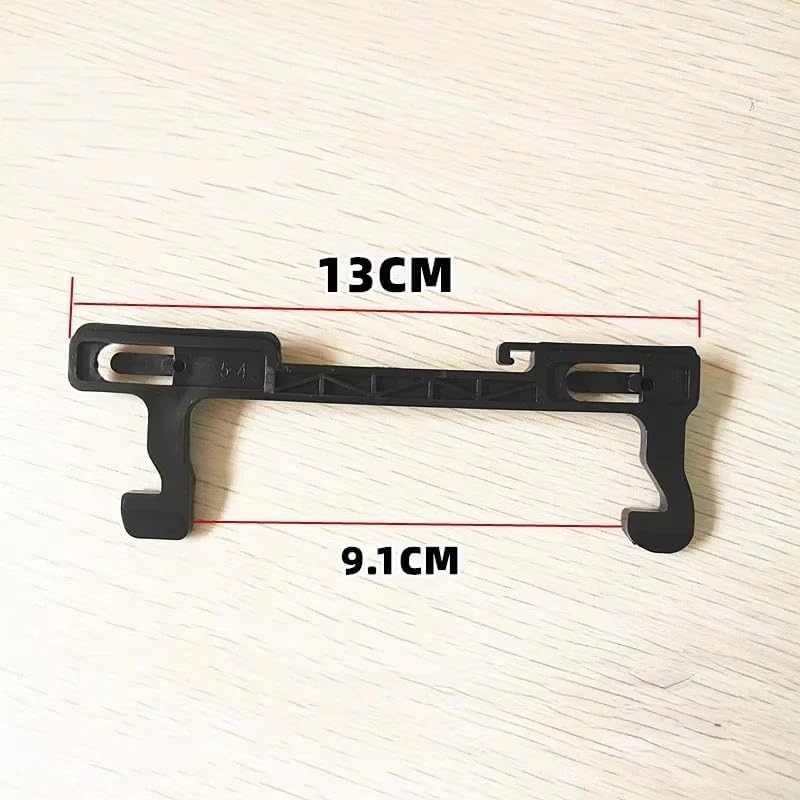

Image 2: Dimensions of the XvuaTeIw microwave oven door hooks. The image shows the overall length of the assembly as 13 cm and the distance between the two hook ends as 9.1 cm, providing critical measurements for compatibility verification.

Setup and Installation

Safety First: Before beginning any repair, ensure the microwave oven is unplugged from the power outlet to prevent electrical shock.

1. Preparation: Gather necessary tools, which may include a screwdriver (Phillips or flathead, depending on your microwave model) and possibly pliers.
2. Accessing the Door Mechanism:
   • Carefully open the microwave door.
   • Locate the screws or clips that secure the inner door panel or the existing door hook assembly. These are typically found along the edges of the door or near the latch mechanism.
3. Removing Old Hooks:
   • Unscrew or unclip the components holding the old door hooks in place.
   • Gently remove the damaged or broken door hooks. Note their orientation and how they were connected to the door's internal mechanism.
4. Installing New Hooks:
   • Position the new XvuaTeIw door hooks in the same orientation as the old ones. Ensure the spring mechanism (if visible) is correctly aligned.
   • Secure the new hooks using the original screws or clips. Do not overtighten.
5. Reassembly: Reattach any inner door panels or covers that were removed during the process. Ensure all components are securely fastened.
6. Testing: Plug the microwave oven back into the power outlet. Open and close the door several times to ensure it latches securely and opens smoothly. Perform a test run (e.g., heating a cup of water) to confirm proper operation and that the microwave starts only when the door is fully closed.

If you are unsure about any step, it is recommended to consult a qualified appliance technician.

Operating Instructions

Once the XvuaTeIw door hooks are correctly installed, the operation of your microwave oven door will return to its intended functionality.

• Opening the Door: Press the door release button or pull the door handle (depending on your microwave model) to open the door. The hooks will disengage from the latch mechanism.
• Closing the Door: Gently push the door until you hear a click, indicating that the door hooks have engaged with the latch mechanism and the door is securely closed. The microwave will not operate if the door is not fully latched.

Maintenance

Proper maintenance ensures the longevity and reliable operation of your microwave door hooks.

• Regular Cleaning: Keep the door hooks and the latch area clean from food debris and grease. Use a soft, damp cloth to wipe them down. Avoid abrasive cleaners that could damage the plastic.
• Inspection: Periodically inspect the door hooks for any signs of wear, cracks, or damage. If any issues are observed, consider replacing them to maintain safety and functionality.
• Gentle Use: Avoid slamming the microwave door, as this can put undue stress on the door hooks and latch mechanism, leading to premature wear or breakage.

Troubleshooting

If you encounter issues after installing the new door hooks, refer to the following common problems and solutions:

• Door Does Not Latch Securely:
  • Ensure the door hooks are correctly aligned and fully seated in their mounting points.
  • Check for any obstructions in the latch mechanism on the microwave body.
  • Verify that the inner door panel (if removed) is reinstalled correctly and not interfering with the hooks.
• Microwave Does Not Start When Door is Closed:
  • Confirm the door is fully closed and latched. A slight gap can prevent the safety interlock switches from engaging.
  • This could indicate an issue with the microwave's internal safety interlock switches, which are activated by the door hooks. If the hooks are correctly installed and the door latches, but the microwave still doesn't start, professional service may be required.
• Door is Difficult to Open or Close:
  • Check for any debris or misalignment.
  • Ensure screws are not overtightened, which could cause binding.
