Razer Barracuda X Chroma Wireless Gaming Headset

Introduction

The Razer Barracuda X Chroma is a versatile wireless gaming headset designed for seamless audio across multiple platforms. It combines Razer HyperSpeed Wireless and Bluetooth connectivity, a lightweight ergonomic design, customizable Chroma RGB lighting, and high-fidelity audio drivers for an immersive experience.

This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your headset to ensure optimal performance.

Package Contents

Verify that all the following components are included in your package:

• Razer Barracuda X Chroma Gaming Headset
• USB Type C Razer HyperSpeed Wireless Dongle
• Removable Razer HyperClear Cardioid Mic
• USB Type C Charging Cable
• Type C to Type A adapter
• User Manual (this document)

Image: The Razer Barracuda X Chroma headset laid flat with its accessories, including the USB-C dongle, USB-C to USB-A adapter, detachable microphone, and charging cable.

Setup

1. Initial Charging

Before first use, fully charge your headset using the provided USB Type C Charging Cable. Connect the USB-C end to the headset's charging port and the USB-A end to a powered USB port (e.g., computer, wall adapter). The LED indicator on the headset will show charging status.

A quick 15-minute charge provides approximately 6 hours of gameplay, while a full charge can last up to 70 hours.

2. Attaching the Microphone

Insert the detachable Razer HyperClear Cardioid Mic into the microphone jack located on the left earcup. Ensure it is securely connected. The microphone is flexible and can be adjusted for optimal voice capture.

Image: The Razer Barracuda X Chroma headset shown with its detachable HyperClear Cardioid microphone connected to the left earcup.

3. Connecting to Devices

The Razer Barracuda X Chroma supports two primary wireless connection methods: Razer HyperSpeed Wireless (2.4 GHz) and Bluetooth.

3.1. Razer HyperSpeed Wireless (2.4 GHz) for PC, PlayStation, Nintendo Switch (Docked)

1. Plug the USB Type C Razer HyperSpeed Wireless Dongle into an available USB-C port on your device. If your device only has USB-A ports, use the provided Type C to Type A adapter.
2. Power on your headset. It should automatically connect to the dongle.
3. Ensure the headset is selected as the audio input and output device in your system's sound settings.

Image: The Razer Barracuda X Chroma headset displayed alongside its USB-C wireless dongle and a USB-C to USB-A adapter, illustrating connectivity options.

3.2. Bluetooth for Mobile Devices, Nintendo Switch (Handheld)

1. With the headset powered on, press and hold the SmartSwitch button (refer to the Operating section for button location) until the LED indicator blinks blue, indicating Bluetooth pairing mode.
2. On your mobile device, navigate to Bluetooth settings and select "Razer Barracuda X Chroma" from the list of available devices.
3. Once paired, the LED indicator will show a solid blue light.

4. Software Installation (Recommended)

For advanced customization, including Chroma RGB lighting effects, audio equalization, and firmware updates, download and install the Razer Audio App on your mobile device or Razer Synapse on your PC. Regular firmware updates ensure optimal performance and access to new features.

Operating the Headset

1. Power On/Off

Press and hold the Power button for a few seconds to turn the headset on or off.

2. Razer SmartSwitch Dual Wireless

The SmartSwitch feature allows you to seamlessly switch between 2.4 GHz Razer HyperSpeed Wireless and Bluetooth connections. This is useful for transitioning between gaming on a PC/console and taking calls on a smartphone.

• Toggle Connection: Double-press the SmartSwitch button to switch between the active 2.4 GHz and Bluetooth connections.
• Incoming Calls: When connected via 2.4 GHz and a Bluetooth device is paired, incoming calls on the Bluetooth device will automatically switch the headset to the Bluetooth connection. After the call, the headset will revert to the 2.4 GHz connection.

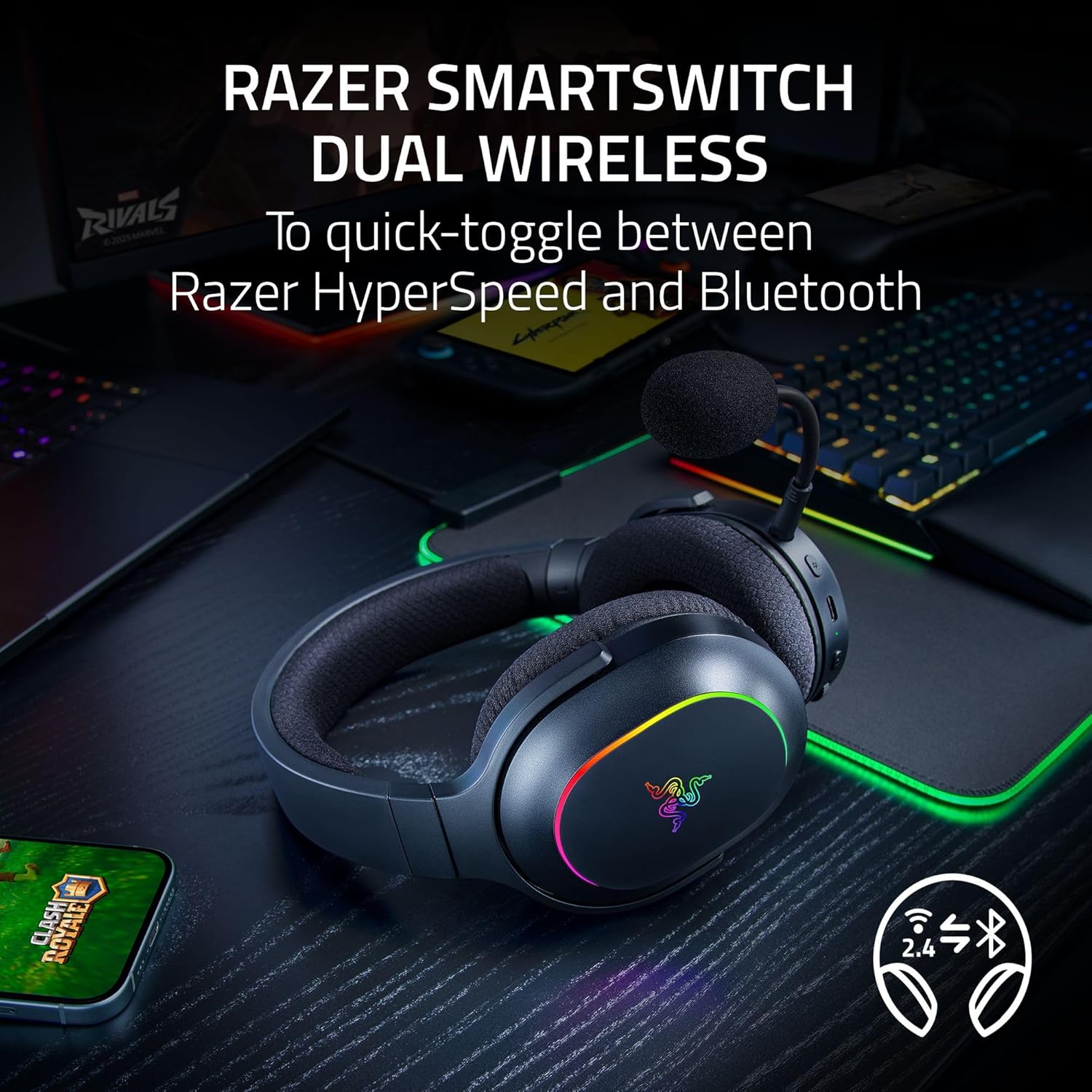

Image: The Razer Barracuda X Chroma headset on a desk with a laptop and smartphone, illustrating the SmartSwitch Dual Wireless capability to toggle between Razer HyperSpeed and Bluetooth connections.

3. Volume Control

Use the volume wheel located on the earcup to adjust the audio output level.

4. Microphone Mute

Press the microphone mute button to toggle the microphone on or off. An LED indicator on the microphone or headset will typically show its status.

5. Chroma RGB Lighting

The headset features 6-zone earcup lighting powered by Razer Chroma RGB. Customize lighting effects and colors using the Razer Audio App or Razer Synapse software.

Image: A close-up of the Razer Barracuda X Chroma earcup, displaying the vibrant 6-zone Chroma RGB lighting around the Razer logo.

Maintenance

1. Cleaning

• Wipe the headset surfaces with a soft, dry cloth.
• For ear cushions, gently wipe with a damp cloth and mild soap if necessary, then air dry completely. Avoid harsh chemicals or abrasive materials.
• Ensure all ports are free of dust and debris.

2. Storage

Store the headset in a cool, dry place away from direct sunlight and extreme temperatures. When traveling, consider removing the microphone to prevent damage.

3. Battery Care

To prolong battery life, avoid fully discharging the headset frequently. Charge it regularly, especially if it will be stored for an extended period.

Troubleshooting

1. No Audio / Poor Audio Quality

• Check Connection: Ensure the headset is properly connected via 2.4 GHz dongle or Bluetooth. Verify the correct audio output device is selected in your system settings.
• Volume Levels: Adjust the headset's volume wheel and your device's system volume.
• Firmware Update: Connect the headset to a PC and check for firmware updates using Razer Synapse or the Razer Audio App. Outdated firmware can sometimes cause audio issues.
• Interference: Move away from other wireless devices that might cause interference (e.g., Wi-Fi routers, other 2.4 GHz devices).

2. Microphone Issues (Static, Muffled, Not Working)

• Check Connection: Ensure the detachable microphone is fully inserted into its port.
• Mute Status: Verify the microphone is not muted via the headset button or system settings.
• Input Device: Confirm the Razer Barracuda X Chroma microphone is selected as the input device in your system's sound settings and communication applications.
• Software Settings: Use Razer Synapse or the Razer Audio App to adjust microphone sensitivity, noise gate, and other settings.
• Firmware Update: Update headset firmware as described above.

3. Connectivity Drops

• Range: Ensure you are within the effective range of the 2.4 GHz dongle or Bluetooth device.
• Interference: Minimize potential interference from other wireless devices.
• Battery Level: Low battery can affect wireless performance. Charge the headset.

Specifications

Warranty and Support

Razer products are built to high standards and undergo rigorous testing. In the unlikely event of any issues, Razer provides warranty coverage for its products. Please refer to the official Razer website for the most current and detailed warranty information specific to your region and product.

For technical support, driver downloads, firmware updates, and frequently asked questions, visit the official Razer Support page:

www.razer.com/support

You may also consider optional protection plans for extended coverage, if available, from your retailer.
