Full Electric Pallet Stacker User Manual

1. Product Overview

The SUNMAX Full Electric Pallet Stacker is designed for efficient and safe material handling in various industrial and warehouse environments. It features a robust design, powerful motors, and advanced safety mechanisms to ensure reliable operation.

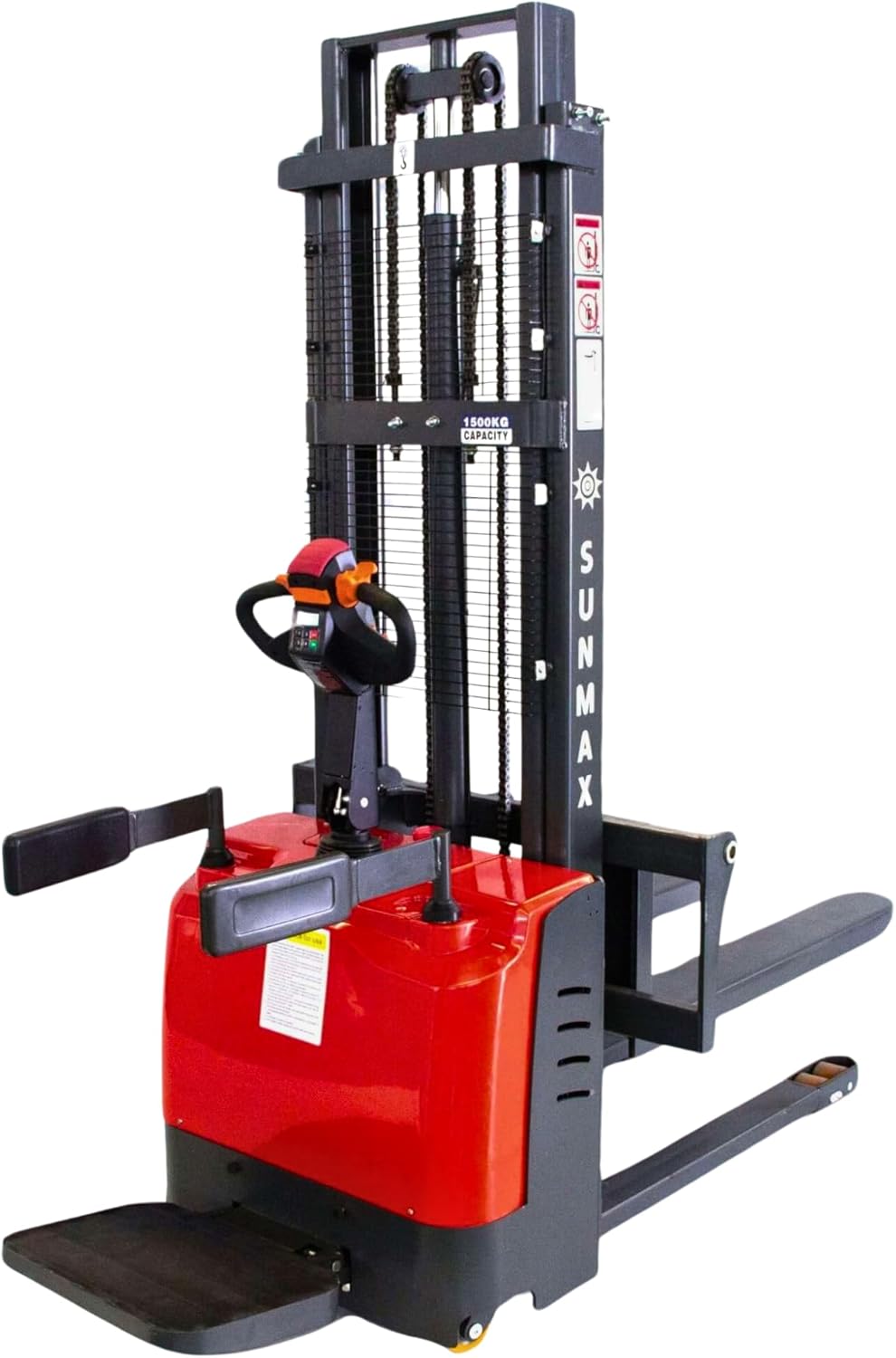

Figure 1: Full view of the SUNMAX Full Electric Pallet Stacker.

Key Features:

• High Load Capacity and Reach: 3300 lbs (1500 kg) loading capacity and 118" (9.8 feet, 3000 mm) lifting height for heavy loads and high stacking.
• Advanced Safety Features: Equipped with an emergency stop switch and an electromagnetic service brake for enhanced operator safety.
• Efficient and Powerful: Features a 1 hp drive motor and 3 hp lifting motor, powered by a 24V/80Ah battery for extended operation.
• User-Friendly Operation: Ergonomic control handle and smooth maneuverability with polyurethane wheels.
• Robust and Durable Construction: Built with high-quality components for rigorous use and longevity.

Figure 2: Visual representation of the key features of the pallet stacker.

2. Setup and Assembly

Before operating the pallet stacker, ensure proper setup and assembly according to these guidelines.

1. Unpacking: Carefully remove the pallet stacker from its packaging. Inspect for any visible damage during transit.
2. Initial Charge: Connect the charger to the pallet stacker's charging port and plug it into a suitable power outlet. Allow the battery to fully charge before first use. Refer to the charging indicator for status.
3. Handle Assembly: Ensure the control handle is securely attached and all connections are firm.
4. Pre-Operation Checks: Verify that all moving parts are free from obstruction, the emergency stop button is accessible, and the brakes are functional.

Figure 3: Detailed view of critical components including the composite plate chain, hydraulics, and emergency stop button.

3. Operating Instructions

Familiarize yourself with the controls and operating procedures before using the pallet stacker.

3.1. Controls Overview

Figure 4: Structural diagram highlighting key operational components such as the mast, handle, and adjustable support legs.

• Control Handle: Used for steering and controlling forward/reverse movement.
• Lifting/Lowering Buttons: Located on the control handle, these buttons control the vertical movement of the forks.
• Emergency Stop Button: A prominent red button that immediately cuts power to the unit in an emergency.
• Movable Joystick: Provides precise control over fork movements.

3.2. Basic Operation

1. Starting the Stacker: Ensure the emergency stop button is disengaged (pulled out). Turn the key switch (if present) to the ON position.
2. Driving: Use the control handle to steer. Gently push or pull the handle to engage forward or reverse motion. The speed is typically controlled by the angle of the handle or a dedicated speed control.
3. Lifting Loads: Position the forks under the pallet. Press and hold the "Lift" button on the control handle until the desired height is reached. Ensure the load is stable and centered on the forks.
4. Lowering Loads: Press and hold the "Lower" button to slowly descend the forks. Ensure the area below is clear.
5. Braking: The electromagnetic service brake engages automatically when the control handle is released or moved to the upright/downright position. The emergency stop button provides immediate braking.

Figure 5: Comparison of the pallet stacker's dimensions in both fully lowered and fully lifted positions.

Figure 6: Detailed measurements of the control handle, operator platform, and fork dimensions.

4. Maintenance

Regular maintenance is crucial for the longevity and optimal performance of your pallet stacker.

• Battery Care:
  • Charge the battery fully after each use, or at least once a week if not in frequent use.
  • Avoid deep discharges, which can shorten battery life.
  • Keep battery terminals clean and free of corrosion.
• Lubrication: Periodically lubricate all moving parts, including chains, mast channels, and pivot points, with appropriate grease or oil.
• Wheel Inspection: Regularly check the polyurethane wheels for wear, damage, or debris. Replace worn wheels to ensure smooth operation and prevent floor damage.
• Hydraulic System: Check hydraulic fluid levels and inspect for any leaks. Ensure seal rings and wear strips are intact to prevent oil leakage.
• General Inspection: Routinely inspect all bolts, nuts, and fasteners for tightness. Check electrical connections for security and signs of wear.

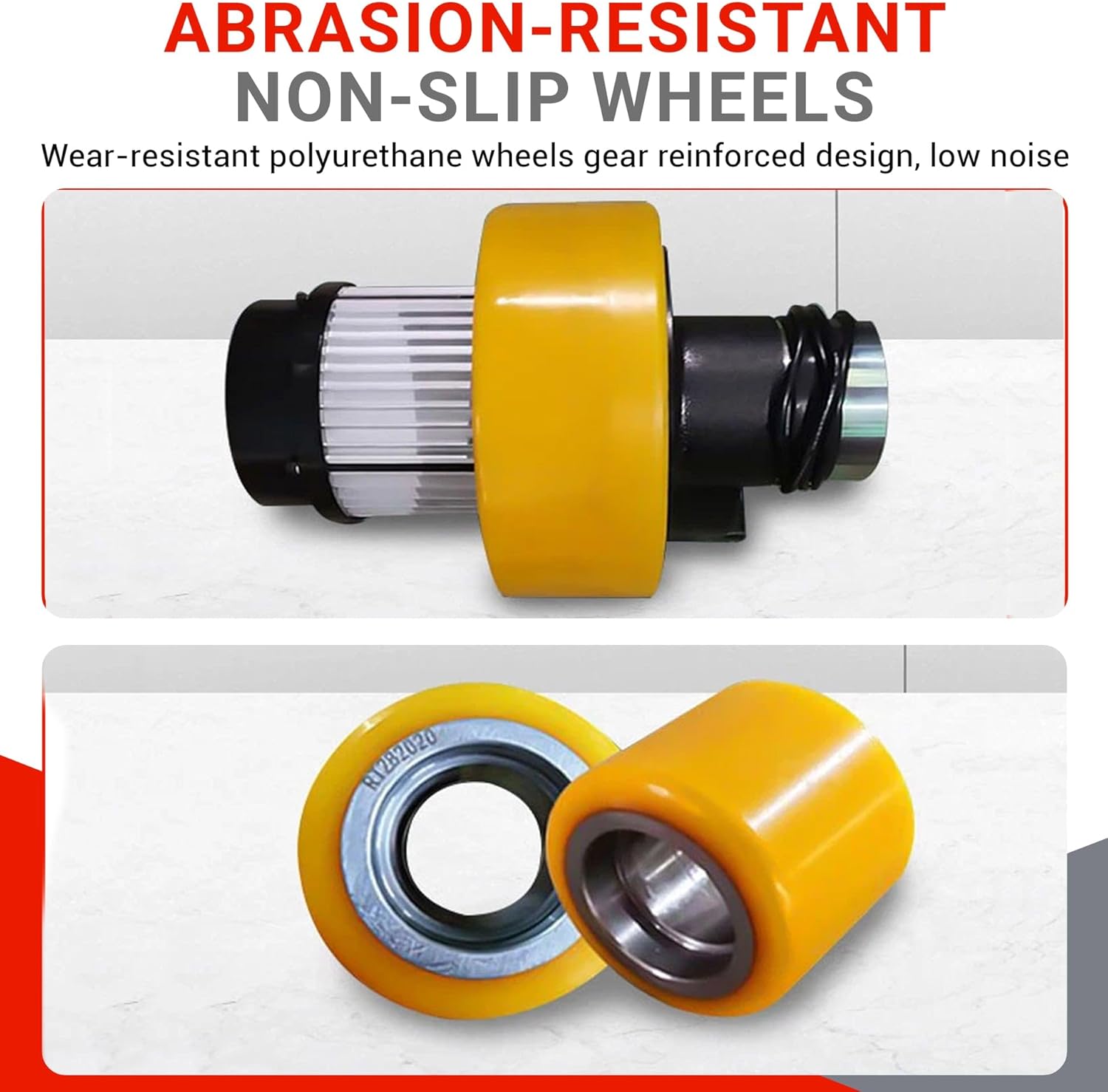

Figure 7: Close-up view of the durable, abrasion-resistant polyurethane wheels designed for low noise and smooth movement.

Figure 8: Illustration of the powerful 1 HP drive motor and 3 HP lifting motor, designed for efficient and low-noise operation.

5. Troubleshooting

This section provides solutions to common issues you might encounter.

6. Specifications

7. Warranty and Support

SUNMAX is committed to providing high-quality products and excellent customer service.

7.1. Protection Plans

Extended protection plans are available for purchase to cover your investment beyond the standard warranty:

• 3-Year Protection Plan: Provides extended coverage for 36 months.
• 4-Year Protection Plan: Provides extended coverage for 48 months.
• Complete Protect: A monthly plan covering eligible past and future purchases.

7.2. Returns and Customer Support

This product is eligible for 30-day easy returns. For any operational questions, technical assistance, or warranty claims, please contact SUNMAX customer support.

You can typically find contact information on the official SUNMAX website or through your purchase platform.
