User Manual

1. Safety Information

Please read and understand all safety warnings and instructions before installing, operating, or maintaining this product. Failure to follow these instructions may result in serious injury, death, or equipment damage.

• HAZARDOUS VOLTAGE: This product operates with hazardous voltage (220-250V AC/DC). Always disconnect power before performing any work on the equipment.
• ELECTRIC SHOCK AND BURNS: Contact with live electrical components can cause electric shock and burns. Ensure proper grounding and insulation.
• QUALIFIED PERSONNEL: Installation and maintenance should only be performed by qualified and authorized personnel familiar with electrical systems and safety procedures.
• EQUIPMENT DISCONNECTION: Before any intervention, ensure the equipment is completely disconnected from all power sources and locked out/tagged out according to local safety regulations.

2. Product Overview

The BXNXLX 3VL9600-3MQ00 is a new and original programmable logic circuit designed for industrial electrical applications. It is typically used as a motor drive with memory, operating within the VL630-VL800 range and requiring a 220-250V AC/DC power supply. This unit is supplied in a sealed box, ensuring its integrity upon delivery.

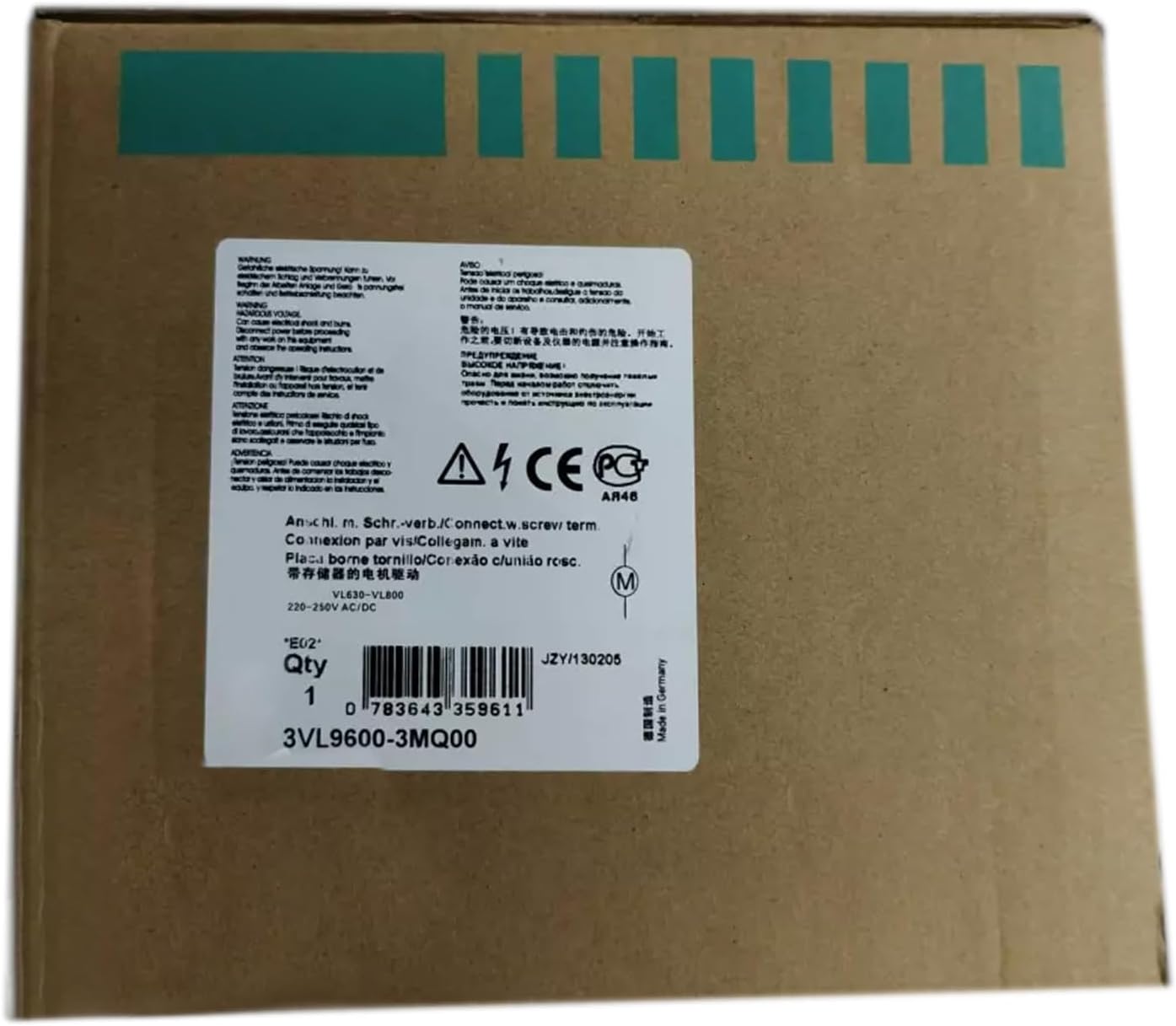

Image Description: A brown cardboard box containing the BXNXLX 3VL9600-3MQ00 product. The box features green stripes at the top and a white label with product information and safety warnings in multiple languages (German, English, French, Spanish, Chinese, Russian). Key details visible on the label include the model number "3VL9600-3MQ00", quantity "Qty 1", a barcode (0783643359611), voltage "220-250V AC/DC", and connection type "Connect.w.screw/term.". The label also indicates "Made in Germany".

The unit features screw terminals for secure and reliable electrical connections.

3. Setup and Installation

Follow these steps for proper installation of the 3VL9600-3MQ00 unit:

1. Power Disconnection: Ensure all power sources to the installation area are completely disconnected and secured according to safety protocols.
2. Mounting: Mount the 3VL9600-3MQ00 securely in a suitable enclosure or panel, ensuring adequate ventilation and clearance for wiring.
3. Wiring Connections: Connect the necessary power and control wiring to the screw terminals. Refer to your system's electrical schematics for specific wiring diagrams. Ensure all connections are tight and secure to prevent loose contacts.
   • Input Voltage: 220-250V AC/DC
   • Connection Type: Screw Terminal
4. Grounding: Properly ground the unit to prevent electrical hazards.
5. Initial Checks: Before restoring power, visually inspect all connections for correctness and security. Ensure no foreign objects are present within the enclosure.
6. Power Restoration: Carefully restore power to the system and observe the unit for proper operation.

4. Operating Instructions

The 3VL9600-3MQ00 is a programmable logic circuit designed for integration into industrial control systems. Its operation is typically managed through a larger control system or PLC (Programmable Logic Controller).

• System Integration: Integrate the unit into your existing control system according to the system's architecture and programming requirements.
• Programming: If the unit requires specific programming, refer to the programming guide provided with your overall control system or software. The "motor drive with memory" functionality implies it may retain specific operational parameters.
• Monitoring: Monitor the unit's status and performance through your control system's interface.

For detailed operational parameters and programming, consult the documentation specific to your industrial control system and the application in which this component is used.

5. Maintenance

Regular maintenance ensures the longevity and reliable operation of your 3VL9600-3MQ00 unit. Always disconnect power before performing any maintenance.

• Visual Inspection: Periodically inspect the unit for any signs of physical damage, overheating, or loose connections.
• Cleaning: Keep the unit and its surroundings clean and free from dust, dirt, and moisture. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
• Connection Check: Verify that all screw terminal connections remain tight and secure. Loose connections can lead to overheating and malfunction.
• Environmental Conditions: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature failure.

6. Troubleshooting

If you encounter issues with your 3VL9600-3MQ00, refer to the following basic troubleshooting steps. For complex issues, contact technical support.

7. Specifications

8. Warranty and Support

This product is supplied new and original. For any product or technical support issues, please contact JY-PLC customer service.

• Customer Service: JY-PLC provides 24-hour online customer service, 7 days a week.
• Contact Information: Please refer to your purchase documentation or the seller's information on Amazon for direct contact methods for JY-PLC.
• Warranty: Specific warranty terms may vary. Please consult the seller (JY-PLC US) or your purchase agreement for detailed warranty information.
