Fox 36 Factory Suspension Fork User Manual
Brand: FOX Factory | Model: 910-21-309
1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Fox 36 Factory Suspension Fork. Designed for mountain biking, this fork offers advanced features for enhanced performance and adaptability on various terrains. Please read this manual thoroughly before using the product to ensure safe and optimal performance.
Image 1: Front view of the Fox 36 Factory Suspension Fork. This image displays the fork's overall design, including the Kashima-coated stanchions, black lower legs with "FOX" and "FACTORY" branding, and the integrated arch. The blue adjusters on top of the stanchions are visible.
2. Safety Information
Always prioritize safety when working with or operating your suspension fork. Failure to follow these instructions could result in serious injury or product damage.
- Professional installation is recommended for all bicycle components.
- Always wear appropriate safety gear, including eye protection, when performing maintenance or adjustments.
- Ensure all bolts and fasteners are torqued to the manufacturer's specifications. Refer to your bicycle's manual for specific torque values.
- Do not attempt to disassemble internal components beyond what is described in this manual. Refer to an authorized service center for complex repairs.
- Regularly inspect the fork for any signs of damage, wear, or leaks. Do not ride with a damaged fork.
- Keep hands and clothing clear of moving parts during adjustments.
3. Package Contents
Verify that all components are present upon unboxing:
- Fox 36 Factory Suspension Fork (Model 910-21-309)
- Kabolt X Thru-Axle
- Star nut (for steerer tube installation)
- User Manual (this document)
- Note: Integrated Mud Guard is sold separately.
4. Setup and Installation
Proper installation is crucial for the performance and safety of your suspension fork. If you are unsure about any step, consult a professional bicycle mechanic.
- Steerer Tube Preparation: Measure and cut the steerer tube to the appropriate length for your bicycle frame and stem. Install the star nut into the steerer tube.
- Fork Installation: Insert the steerer tube through the head tube of your bicycle frame. Install the headset components, stem, and handlebars according to your bicycle manufacturer's instructions.
- Wheel Installation: Align your front wheel with the fork dropouts. Insert the Kabolt X Thru-Axle through the wheel hub and fork dropouts. Tighten the thru-axle securely according to Fox specifications.
- Brake Caliper Installation: Mount your disc brake caliper to the fork's post mount. The fork is compatible with 180mm to 230mm rotors. Ensure proper alignment and torque all brake bolts to the manufacturer's specifications.
- Initial Air Pressure Setting: Refer to the air pressure guide (often a sticker on the lower leg or available on the Fox website) for an initial air pressure setting based on your weight and riding style. Use a high-pressure shock pump to adjust the EVOL air spring.
Image 2: Front view of the Fox 36 Factory Suspension Fork, highlighting the Kabolt X Thru-Axle. This image shows the fork from the front, with the thru-axle securely installed in the lower legs, ready for wheel mounting.
5. Operating Instructions and Adjustments
The Fox 36 Factory Fork features advanced adjustability to fine-tune your ride experience.
5.1. Grip X Damper Adjustments
The Grip X Damper provides independent high-speed and low-speed compression and rebound controls, allowing precise tuning for various trail conditions.
- High-Speed Compression (HSC): Adjusts the damping for large impacts and high-speed terrain. Typically a larger knob.
- Low-Speed Compression (LSC): Controls damping for small bumps, rider input, and pedaling efficiency. Typically a smaller knob or dial.
- High-Speed Rebound (HSR): Manages how quickly the fork extends after large impacts.
- Low-Speed Rebound (LSR): Controls the fork's extension speed after small bumps and general trail chatter.
Refer to the Fox tuning guide for recommended starting points and detailed adjustment procedures. Make small, incremental changes and test them on familiar terrain.
5.2. EVOL Air Spring Adjustment
The EVOL (Extra Volume) air spring provides improved mid-stroke support and a more linear feel. Air pressure is adjusted via the Schrader valve located on the top cap of the left fork leg.
- Use a high-pressure shock pump to add or release air.
- Always check and adjust air pressure with the rider's weight on the bike in a riding position to set sag correctly.
- Higher pressure results in a firmer ride; lower pressure provides a softer ride.
5.3. Lower Leg Bleeders
The lower leg bleeders allow for atmospheric pressure equalization, which can build up during changes in altitude or temperature. This helps maintain consistent fork performance and full usable travel.
- To bleed the lower legs, gently press the small buttons located on the back of the lower legs.
- Perform this procedure periodically, especially before rides or after significant changes in elevation.

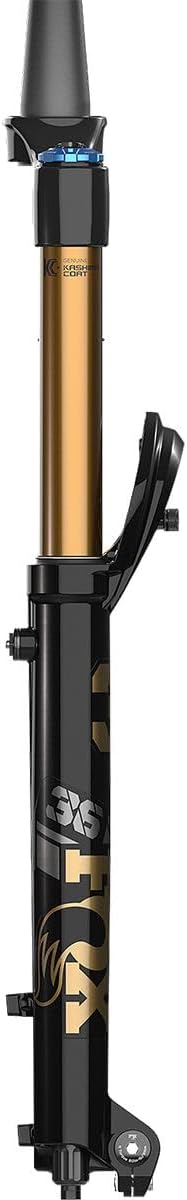

Image 3: Side view of the Fox 36 Factory Suspension Fork. This image provides a profile view, clearly showing the lower leg bleeders and the Kashima coating on the upper tubes.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Fox 36 Factory Fork.
- Clean After Every Ride: Wipe down the stanchions and seals with a clean, soft cloth after each ride. Avoid using harsh chemicals or high-pressure washers directly on seals.
- Inspect Regularly: Check for any scratches on the Kashima-coated stanchions, signs of oil leaks around the seals, or damage to the lower legs and arch.
- Lower Leg Service: Fox recommends a lower leg service every 50 hours of riding or annually, whichever comes first. This involves replacing the dust wipers and bath oil. This procedure requires specialized tools and knowledge; consult an authorized Fox service center or a qualified mechanic.
- Damper Service: Full damper service is recommended every 125 hours or annually. This is a more complex procedure and should be performed by an authorized Fox service center.
- Kashima Coating Care: The genuine Kashima coating is durable but can be damaged by abrasive materials. Clean gently and avoid scratching.
7. Troubleshooting
This section addresses common issues you might encounter with your suspension fork.
| Issue | Possible Cause | Solution |
|---|---|---|
| Fork feels too stiff | Too much air pressure; compression damping set too high. | Reduce air pressure to achieve correct sag; reduce LSC/HSC settings. |
| Fork feels too soft/bottoms out easily | Too little air pressure; compression damping set too low. | Increase air pressure to achieve correct sag; increase LSC/HSC settings. |
| Fork not returning quickly enough (packing up) | Rebound damping set too slow. | Increase rebound speed (turn adjuster towards faster/less damping). |
| Fork returning too quickly (pogo stick feel) | Rebound damping set too fast. | Decrease rebound speed (turn adjuster towards slower/more damping). |
| Loss of travel/harshness | Air pressure buildup in lower legs. | Press the lower leg bleeders to equalize pressure. |
| Oil leaking from seals | Worn or damaged seals; excessive dirt buildup. | Clean seals thoroughly; if leaking persists, perform a lower leg service or contact an authorized service center. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Name | 910-21-309 |
| Wheel Size | 27.5" |
| Travel | 160mm |
| Rake/Offset | 44mm |
| Damper | Grip X (High & Low Speed Compression & Rebound Controls) |
| Air Spring | EVOL Air Spring |
| Upper Tubes | Genuine Kashima Coating |
| Axle | Lightweight Kabolt X Thru-Axle |
| Brake Compatibility | Post Mount (180mm to 230mm Rotors) |
| Color | Shiny black |
| Material | Aluminum alloy |
| Item Weight | 7 Pounds (approx. 3.17 kg) |
| Manufacturer | Fox |
9. Warranty Information
This Fox 36 Factory Suspension Fork is covered by a Limited Warranty. For specific terms, conditions, and duration of the warranty, please refer to the official Fox Factory website or contact their customer support directly. Keep your proof of purchase for warranty claims.
10. Support and Contact
For further assistance, technical support, or to locate an authorized service center, please visit the official FOX Factory website or contact their customer service department. Always provide your product model number (910-21-309) when seeking support.
Official Website: www.ridefox.com
