Cazeboo KLEO Pergola/Carport Instruction Manual

1. Introduction

Thank you for choosing the Cazeboo KLEO Aluminium Pergola/Carport. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new structure. Please read these instructions carefully before beginning assembly and keep them for future reference.

1.1 Safety Information

Your safety and the safety of others are paramount. Always follow these safety guidelines:

• Ensure adequate weight distribution for the structure.
• Securely fasten the shelter to a stable and appropriate surface.
• Exercise extreme caution during assembly, especially when handling large or heavy components.
• Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses.
• Do not attempt assembly in strong winds or adverse weather conditions.
• Keep children and pets away from the assembly area.

2. Product Overview

The Cazeboo KLEO Pergola/Carport is a versatile, lean-to structure designed to provide shelter. It features a robust aluminum frame and a durable polycarbonate roof.

Figure 2.1: The Cazeboo KLEO Pergola/Carport providing shelter for an outdoor dining area.

2.1 Key Features

• Type: Lean-to Pergola / Carport with inclined roof
• Structure Material: Aluminium
• Roofing Material: Alveolar Polycarbonate
• Color: White
• Water Resistance: Waterproof
• UV Protection: UV30+

2.2 Dimensions

Refer to the diagram below for detailed dimensions of the pergola/carport.

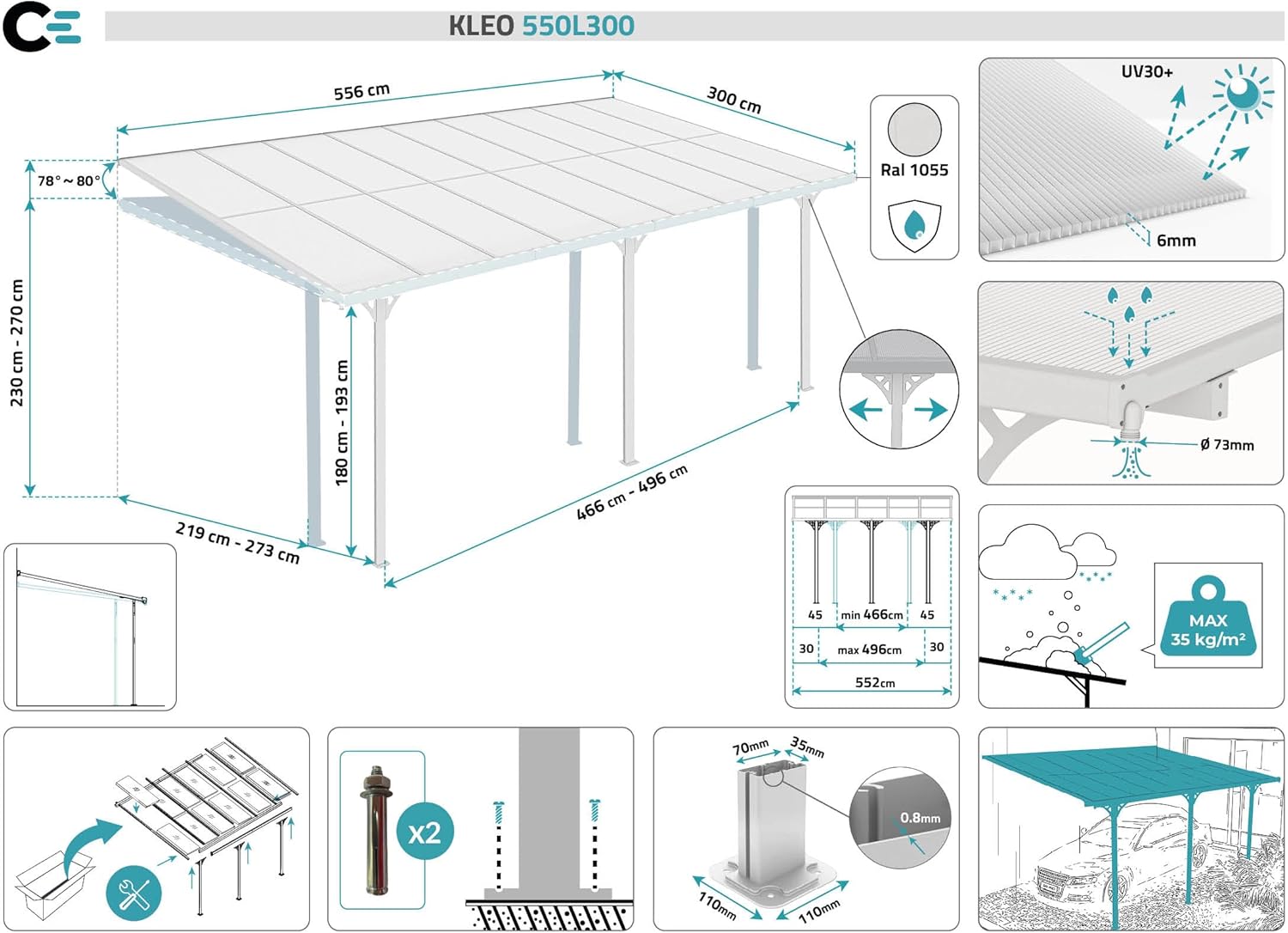

Figure 2.2: Detailed dimensions of the Cazeboo KLEO Pergola/Carport.

• Overall Dimensions (L x W x H): 556 x 300 x 270 cm (5.56L x 3W x 2.7H meters)
• Roof Slope Angle: Approximately 78° - 80°
• Post Height (Adjustable): 180 cm - 193 cm
• Distance Between Posts: 466 cm - 496 cm
• Wall Attachment Height: 230 cm - 270 cm
• Snow Load Capacity: Max 35 kg/m²

3. Setup and Installation

Assembly of the Cazeboo KLEO Pergola/Carport requires careful attention to detail and should be performed by at least two people for safety and ease of installation.

3.1 Pre-Assembly Checklist

• Verify all components and hardware are present according to the packing list.
• Ensure you have the necessary tools, including a drill with an 8mm drill bit (note: a 6mm drill bit may be insufficient as per user feedback).
• Choose a level and stable location for installation.
• Clear the assembly area of any obstructions.

3.2 Assembly Steps (General Guidelines)

The following are general steps. Always refer to the specific assembly diagrams and instructions provided with your product packaging for precise details.

1. Unpack and Organize: Carefully unpack all parts and lay them out, grouping similar components.
2. Assemble Frame Sections: Begin by assembling the main aluminum frame sections according to the diagrams. Ensure all connections are secure.
3. Attach Posts: Connect the support posts to the main frame. Adjust post height as needed for desired roof slope and attachment point.
4. Mount to Wall: Securely attach the lean-to side of the pergola to a sturdy wall structure using appropriate fasteners. Ensure the wall can support the weight and forces.
5. Install Polycarbonate Panels: Carefully slide or place the polycarbonate panels into the designated channels on the roof frame. Ensure they are properly seated and secured to prevent leaks.
6. Secure Base: Anchor the support posts to the ground or concrete foundation using the provided base plates and anchors. This is crucial for stability.
7. Final Checks: Double-check all bolts, screws, and connections for tightness. Ensure the structure is level and stable.

Figure 3.1: Top-down view of the pergola structure, showing roof panel layout.

Figure 3.2: Front view of the pergola, highlighting the support posts.

Figure 3.3: Angled view of the pergola, showing the roof and frame design.

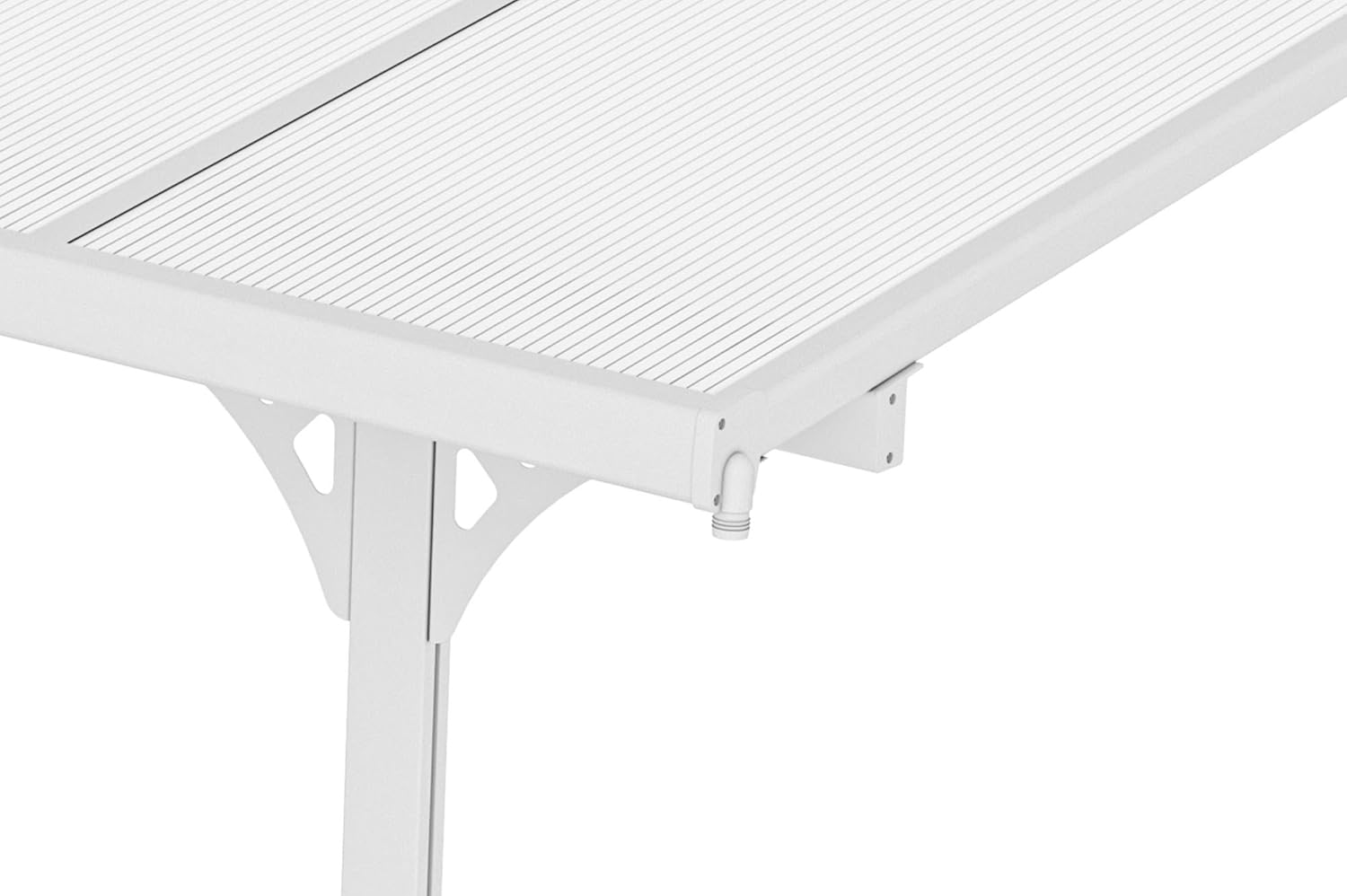

Figure 3.4: Close-up of the integrated drainage system at the edge of the roof.

4. Operating the Pergola/Carport

The Cazeboo KLEO Pergola/Carport is designed to provide reliable shelter from sun and rain. Its robust construction ensures long-term performance.

• Sun Protection: The polycarbonate roof offers UV30+ protection, reducing harmful UV radiation while allowing natural light to pass through.
• Rain Protection: The waterproof design and integrated drainage system effectively channel rainwater away from the covered area.
• Snow Load: The structure is designed to withstand a maximum snow load of 35 kg/m². In areas with heavy snowfall, it is advisable to regularly clear accumulated snow to prevent excessive stress on the roof.

5. Maintenance

Regular maintenance will extend the lifespan and preserve the appearance of your Cazeboo KLEO Pergola/Carport.

• Cleaning the Frame: Clean the aluminum frame periodically with a soft cloth, mild soap, and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Cleaning the Roof Panels: The polycarbonate panels can be cleaned with lukewarm water and a soft sponge or cloth. Do not use brushes or abrasive materials that could scratch the surface. Rinse thoroughly with clean water.
• Check Fasteners: Annually, inspect all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners.
• Drainage System: Ensure the drainage channels and outlets are clear of debris (leaves, dirt) to allow for proper water runoff.
• Snow Removal: In regions with heavy snowfall, gently remove excessive snow accumulation from the roof to prevent structural strain.

6. Troubleshooting

This section addresses common issues you might encounter.

6.1 Water Leaks

• Issue: Small water leaks observed during rain.
• Possible Cause: Improperly sealed polycarbonate panels or loose connections.
• Solution: Inspect the sealing strips around the polycarbonate panels. Ensure they are properly seated and not damaged. Check all roof panel fasteners for tightness. Apply a suitable waterproof sealant if necessary, ensuring it is compatible with polycarbonate and aluminum.

6.2 Assembly Difficulties

• Issue: Instructions seem brief or unclear.
• Solution: Review all diagrams carefully. If specific steps are unclear, consider searching for general pergola assembly guides online or contacting Cazeboo customer support for clarification.
• Issue: Incorrect drill bit size specified in instructions (e.g., 6mm instead of 8mm).
• Solution: Always use the drill bit size that matches the provided anchors or fasteners for a secure fit. If a specified size seems too small, verify with the actual hardware.

7. Specifications

8. Warranty and Support

For information regarding warranty coverage, please refer to the documentation provided with your purchase or contact Cazeboo customer service directly.

Spare Parts Availability: Information regarding the availability of spare parts is currently unavailable. Please contact the manufacturer or seller for inquiries about replacement components.

For any questions, technical assistance, or support, please contact Cazeboo customer service through their official website or the retailer where you purchased the product.
