KP1
Kinhank Smart Projector User Manual
Model: KP1
1. Introduction
Welcome to the user manual for your new Kinhank Smart Projector, Model KP1. This guide provides essential information to help you set up, operate, and maintain your projector, ensuring you get the best possible experience. Please read this manual thoroughly before using the product and keep it for future reference.
The Kinhank KP1 is a portable smart projector designed for versatile home entertainment, featuring advanced projection technology, high-definition display, and comprehensive connectivity options.
2. Product Overview
The Kinhank KP1 Smart Projector combines powerful performance with a compact design, offering a superior viewing experience. Key features include:
- Native 1080P Resolution & 450 ANSI Lumens: Delivers crisp, bright images with support for 4K video decoding.
- Smart Projection Technology: Features auto-focus, auto keystone correction, intelligent screen alignment, and intelligent obstacle avoidance for effortless setup.
- New WiFi 6 & Bluetooth 5.2: Ensures fast and stable wireless connectivity for streaming and device pairing.
- Dual Hi-Fi Speakers: Provides immersive 360-degree surround sound.
- 360° Rotating Stand: Allows for flexible projection angles, including ceiling projection.
- Wide Compatibility: Connects easily to phones, PCs, TV sticks, and gaming consoles via AV/USB/HDMI/audio ports.
Figure 2.1: Overview of the Kinhank Smart Projector KP1, highlighting its key features such as LCD technology, Native 1080P, WiFi 6, 2G DDR4/32G EMMC, Bluetooth 5.2, 4K support, and auto-correction capabilities, along with its 360-degree adjustable stand.
Figure 2.2: A visual summary of the projector's core specifications and smart features, including 450 ANSI Lumens, enclosed light machine, Native 1080P, Bluetooth 5.2, 4K support, 1000:1 contrast ratio, intelligent obstacle avoidance, intelligent screen alignment, auto focus, auto keystone correction, and dual 3W speakers.
3. Setup
3.1 Unboxing and Initial Placement
Carefully remove the projector and all accessories from the packaging. Place the projector on a stable, flat surface. Ensure there is adequate ventilation around the device.
3.2 Power Connection
- Connect the power adapter to the projector's power input port.
- Plug the power adapter into a suitable electrical outlet.
- The projector will typically power on or enter standby mode, indicated by an LED light.
3.3 Projector Placement and Screen Size
The KP1 projector features a 1.0:1 throw ratio, allowing for a larger screen size at a shorter distance compared to traditional projectors. The recommended projection distance and corresponding screen sizes are:
| Distance (ft) | Screen Size (inch) |
|---|---|
| 3.09 | 40" |
| 4.52 | 60" |
| 5.94 | 80" |
| 7.40 | 100" |
| 8.76 | 120" |

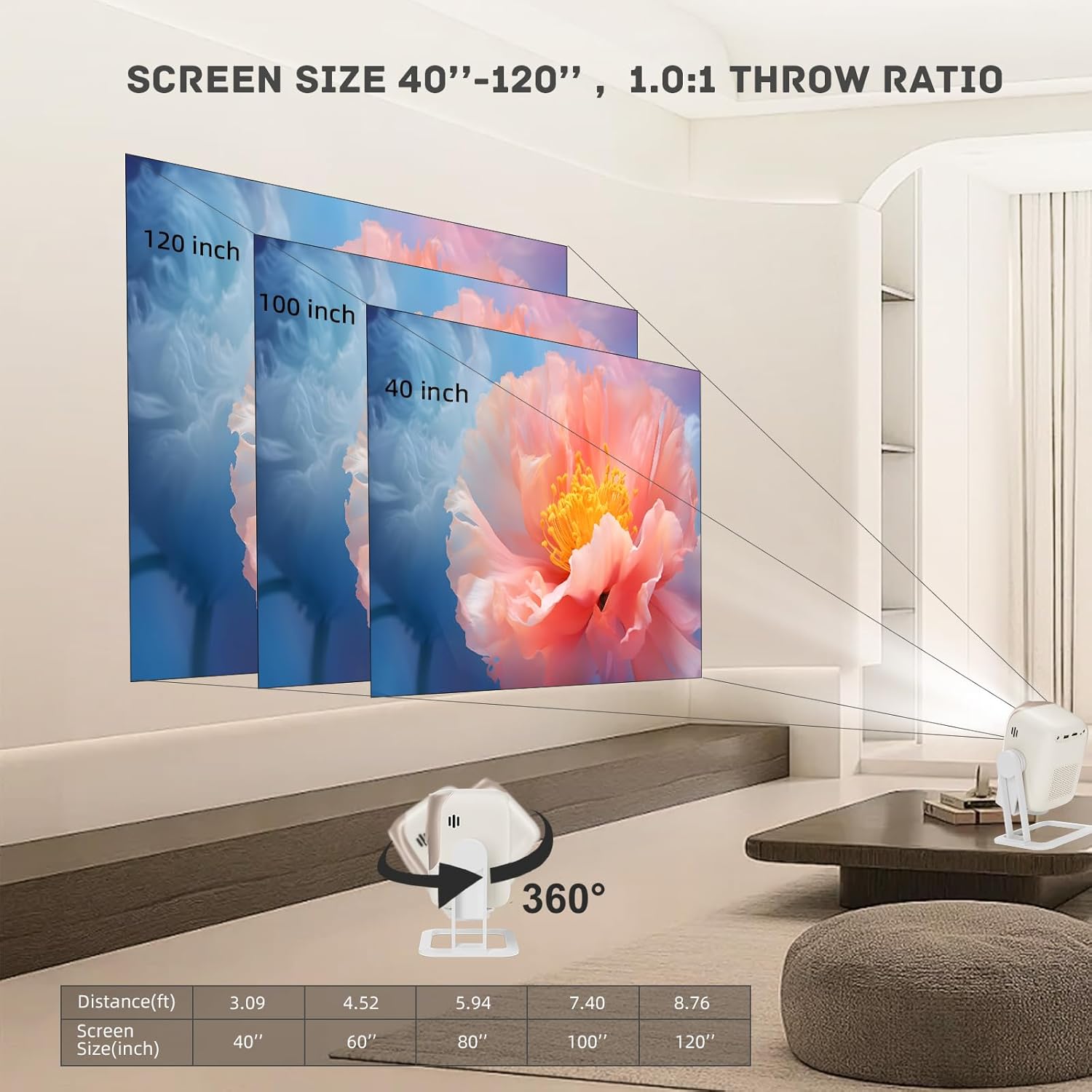

Figure 3.1: Illustration of the projector's throw ratio, demonstrating how different projection distances result in various screen sizes, from 40 inches up to 120 inches.
Utilize the 360° rotating stand to adjust the projection angle for optimal viewing on walls or ceilings.
Figure 3.2: The Kinhank KP1 projector positioned to demonstrate its 360-degree rotating stand, enabling flexible projection onto ceilings or walls for a versatile home cinema experience.
4. Operating Instructions
4.1 Power On/Off
Press the power button on the projector or the remote control to turn the device on or off. Allow a few seconds for the system to boot up or shut down completely.
4.2 Navigation
Use the directional buttons and 'OK' button on the remote control to navigate through the on-screen menus and select options. The projector runs on an Android 9.0 system, providing a familiar interface for accessing apps and settings.
Figure 4.1: The projector displaying its Android 9.0 system interface, showing access to popular streaming services like Netflix, Google Play Store, YouTube, and other applications.
4.3 Input Source Selection
To switch between different input sources (HDMI, USB, etc.), navigate to the input selection menu using the remote control. Select the desired source for your connected device.
5. Connectivity
5.1 Wireless Connectivity (WiFi 6 & Bluetooth 5.2)
The projector supports the latest WiFi 6 technology for faster and smoother wireless streaming and screen mirroring from compatible devices (iOS, Android, Windows). Bluetooth 5.2 allows for seamless connection to external audio devices like headphones and speakers.
Figure 5.1: Visual representation of the projector utilizing new WiFi 6 technology for faster and smoother wireless performance compared to WiFi 5, demonstrating connectivity with mobile devices.
Figure 5.2: A visual comparison highlighting the speed and efficiency of WiFi 6 connectivity with the projector, showing a mobile phone mirroring content wirelessly.
5.2 Wired Connections
The projector is equipped with multiple ports for wired connections:
- HDMI: For connecting laptops, gaming consoles (Switch), TV sticks, etc.
- USB: For reading WPS files directly from a USB drive.
- AV: For connecting older devices.
- Audio Jack: For connecting external speakers or headphones via cable.
- Ethernet: For a stable wired internet connection.
6. Smart Features
The Kinhank KP1 projector incorporates intelligent features to simplify setup and optimize your viewing experience:
- Auto Focus: Automatically adjusts the image clarity to ensure a sharp picture.
- Auto Keystone Correction: Corrects distorted images (trapezoid effect) automatically when the projector is not perfectly perpendicular to the screen.
- Intelligent Screen Alignment: Automatically adjusts the projected image to fit within the boundaries of your screen or wall.
- Intelligent Obstacle Avoidance: Detects and adjusts the image to avoid obstacles on the projection surface, preventing images from spilling over decor or furniture.

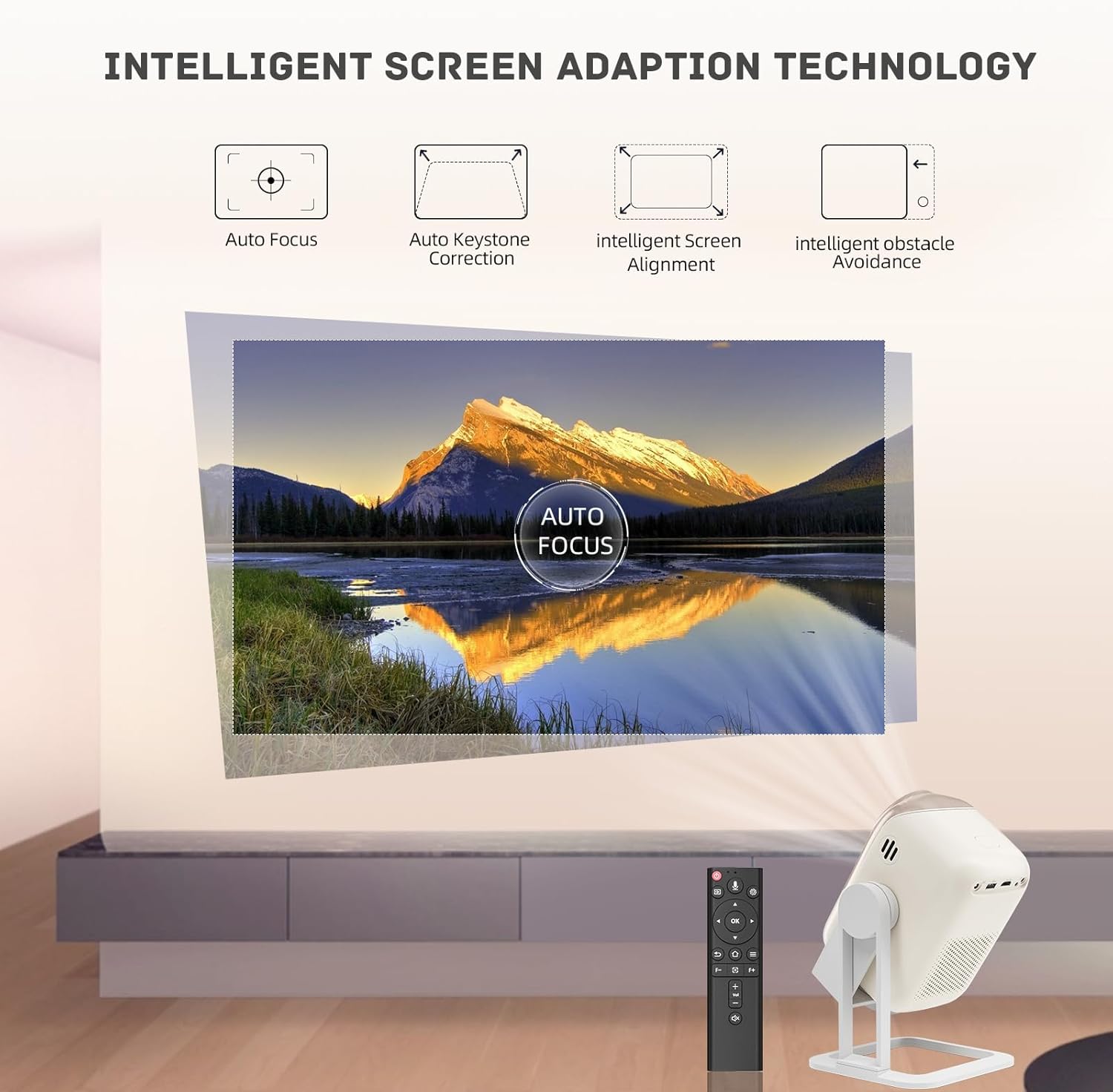

Figure 6.1: Diagram illustrating the intelligent screen adaptation features, including auto focus, auto keystone correction, intelligent screen alignment, and intelligent obstacle avoidance, which automatically optimize the projected image.
Figure 6.2: A visual example of the projector's intelligent screen alignment feature, showing how it automatically adjusts the image to fit perfectly within the designated projection area.
7. Maintenance
7.1 Cleaning the Projector
To ensure optimal performance and longevity, regularly clean your projector:
- Exterior: Use a soft, dry cloth to wipe the exterior of the projector. Do not use liquid cleaners or abrasive materials.
- Lens: Gently clean the projector lens with a lens cleaning cloth or a soft, lint-free cloth specifically designed for optical surfaces. Avoid touching the lens with your fingers.
- Ventilation: Ensure the ventilation openings are clear of dust and debris to prevent overheating. Use a can of compressed air to gently clear dust from vents if necessary.
7.2 Dust Prevention
The KP1 projector features a built-in fully sealed optical machine, which significantly reduces the risk of dust accumulation inside the optical path, contributing to a brighter image and longer service life. Despite this, keeping the projector in a clean environment will further enhance its lifespan.
8. Troubleshooting
If you encounter issues with your Kinhank Smart Projector, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No Power | Power cable loose; Outlet issue; Projector off. | Check power cable connection; Try a different outlet; Press power button on projector/remote. |
| No Image | Incorrect input source; Device not connected; Lens cap on. | Select correct input source; Ensure device is connected and powered on; Remove lens cap. |
| Blurry Image | Out of focus; Incorrect projection distance. | Allow auto-focus to adjust; Adjust projector distance to screen. |
| No Sound | Volume too low; Muted; External audio device not connected/selected. | Increase volume; Unmute; Check external audio connections/settings. |
| Wi-Fi/Bluetooth Connection Issues | Out of range; Incorrect password; Interference. | Move closer to router/device; Re-enter password; Reduce interference. |
If the problem persists after trying these solutions, please contact customer support for further assistance.
9. Specifications
Below are the detailed specifications for the Kinhank Smart Projector KP1:
- Brand: Generic
- Model Number: KP1
- Display Resolution: Native 1920 x 1080 (supports 4K video decoding)
- Brightness: 450 ANSI Lumens
- Contrast Ratio: 1000:1
- Connectivity Technology: Wi-Fi 6, Bluetooth 5.2
- Input Ports: HDMI, USB, AV, Ethernet
- Audio Output: 3.5mm Audio Jack, Dual Hi-Fi Speakers (2*3W)
- Special Features: Auto Focus, Auto Obstacle Avoidance, Auto Screen Alignment, Auto Keystone Correction, Portable, 360° Rotating Stand
- Recommended Uses: Home Cinema
- Product Dimensions: 5.5 x 4.9 x 7.48 inches
- Item Weight: 6 pounds
Figure 9.1: A visual comparison demonstrating the clarity of Native 1080P resolution and the brightness of 450 ANSI Lumens, highlighting the superior image quality compared to lower resolution projectors.
10. What's in the Box
Upon unboxing your Kinhank Smart Projector KP1, you should find the following items:
- Kinhank Smart Projector KP1 Unit
- Power Adaptor
- Remote Control
- User Manual (this document)
11. Warranty and Support
For warranty information and details regarding product support, please refer to the warranty card included with your product or visit the official Generic brand website. If you require technical assistance or have questions not covered in this manual, please contact customer support through the vendor's contact information provided at the point of purchase.
