Hamilton W-1430-RT-1 Mold-on Rubber Wheel Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Hamilton W-1430-RT-1 Mold-on Rubber Wheel. Engineered for durability and smooth operation, this industrial wheel is designed to deliver reliable performance in demanding environments. Please read this manual thoroughly before use to ensure safe and efficient operation and to maximize the lifespan of your wheel.

2. Product Overview

The Hamilton W-1430-RT-1 is a robust industrial wheel featuring a mold-on rubber tread securely bonded to a durable cast iron core. It is equipped with a precision tapered roller bearing, ensuring superior movement control and efficiency for heavy-load applications.

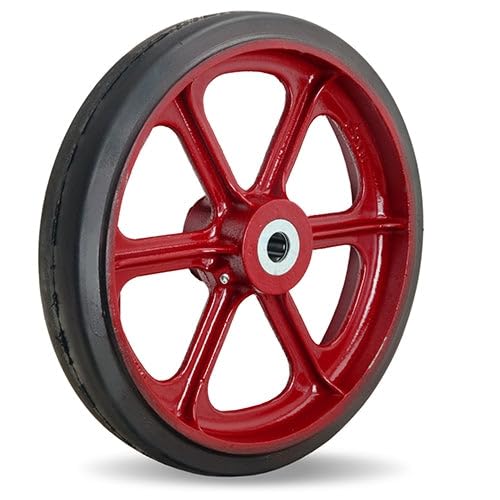

Figure 2.1: Hamilton W-1430-RT-1 Mold-on Rubber Wheel. This image displays the full wheel, highlighting its red cast iron core with spokes and the black mold-on rubber tread. The central hub with the precision tapered roller bearing is visible.

Key Components:

• Mold-on Rubber Tread: Provides cushioning, quiet operation, and floor protection, while offering good traction.
• Cast Iron Core: Offers exceptional strength and rigidity, capable of supporting heavy loads.
• Precision Tapered Roller Bearing: Designed for high radial and axial loads, ensuring smooth rotation and extended service life.

3. Setup and Installation

Proper installation is crucial for the performance and longevity of the Hamilton W-1430-RT-1 wheel. Ensure all components are clean and free of debris before assembly.

Installation Steps:

1. Inspect Components: Before installation, visually inspect the wheel, axle, and any associated hardware (e.g., spacers, washers, nuts) for damage or manufacturing defects.
2. Prepare Axle: Ensure the axle is clean and free of burrs or rust. Apply a thin layer of appropriate grease to the axle shaft where the bearing will sit.
3. Mount Wheel: Slide the Hamilton W-1430-RT-1 wheel onto the axle. Ensure the tapered roller bearing seats correctly within the housing or mounting bracket.
4. Secure Axle: Install any necessary spacers, washers, and nuts. Tighten the axle nut to the manufacturer's recommended torque specifications. Do not overtighten, as this can damage the bearing.
5. Test Rotation: After installation, manually rotate the wheel to ensure it spins freely and smoothly without binding or excessive play.
6. Load Test (Optional): If possible, perform a light load test to confirm proper function before full operational use.

Warning: Always use appropriate personal protective equipment (PPE) during installation. Consult the equipment's primary manual for specific mounting instructions if the wheel is part of a larger assembly.

4. Operating Guidelines

The Hamilton W-1430-RT-1 wheel is designed for industrial applications requiring robust load-bearing capabilities and smooth movement. Adhering to these guidelines will ensure optimal performance and safety.

General Operation:

• Load Capacity: Do not exceed the specified load capacity for the wheel. Overloading can lead to premature wear, bearing failure, and potential safety hazards.
• Surface Conditions: While durable, avoid operating the wheel over excessively rough, uneven, or debris-strewn surfaces for prolonged periods, as this can accelerate tread wear and bearing fatigue.
• Temperature Range: Operate within the recommended temperature range for rubber and bearing materials. Extreme temperatures can affect performance and lifespan.
• Speed: Avoid excessive speeds, especially with heavy loads, as this can generate heat and stress on the bearing and tread.
• Maneuvering: When changing direction, do so smoothly to minimize lateral stress on the wheel and axle assembly.

5. Maintenance

Regular maintenance is essential to ensure the longevity and optimal performance of your Hamilton W-1430-RT-1 wheel.

Maintenance Schedule:

• Daily/Before Use:
  • Visually inspect the rubber tread for cuts, cracks, or excessive wear.
  • Check for any loose hardware (nuts, bolts) and tighten as necessary.
  • Ensure the wheel rotates freely without binding or unusual noise.
• Monthly/Bi-Monthly (depending on usage):
  • Bearing Lubrication: The precision tapered roller bearing may require periodic lubrication. Consult the bearing manufacturer's guidelines for the appropriate grease type and lubrication frequency. Apply grease until a slight purge is observed from the seals, if applicable.
  • Inspect the cast iron core for any signs of damage or corrosion.
  • Clean any accumulated debris from around the axle and bearing area.
• Annually/As Needed:
  • Consider a more thorough inspection of the bearing for play or roughness. Replace if necessary.
  • Check for any signs of separation between the rubber tread and the cast iron core.

Note: The lifespan of the wheel and bearing is directly related to proper maintenance and operating conditions.

6. Troubleshooting

This section provides solutions to common issues you might encounter with your Hamilton W-1430-RT-1 wheel.

7. Specifications

Technical specifications for the Hamilton W-1430-RT-1 Mold-on Rubber Wheel:

• Model Number: W-1430-RT-1
• Brand: CasterHQ
• Wheel Diameter: 14 inches
• Wheel Width: 3 inches
• Hub Length: 3 1/4 inches
• Bearing Type: 1 inch Precision Tapered Roller Bearing
• Core Material: Cast Iron
• Tread Material: Mold-on Rubber
• Color: MultiColors (Red core, Black tread)
• Manufacturer: CasterHQ

8. Warranty and Support

For warranty information, technical support, or replacement parts, please contact CasterHQ directly. Keep your purchase receipt and model number (W-1430-RT-1) readily available when contacting support.

CasterHQ Contact Information:

• Website: Visit CasterHQ Store on Amazon
• General Inquiries: Refer to the contact details provided on the official CasterHQ website or your purchase documentation.

This product is from a small business brand. Your support is appreciated.
