TELESIN Triple Battery Charger User Manual

1. Product Overview

The TELESIN Triple Battery Charger is designed to efficiently charge up to three GoPro HERO13 and GoPro 13 Black Enduro batteries simultaneously. Its compact design and advanced safety features make it an essential accessory for GoPro users.

Image 1.1: The TELESIN Triple Battery Charger, showing its three charging slots and LED indicators.

Image 1.2: The TELESIN Triple Battery Charger with three GoPro Enduro batteries inserted, demonstrating its high capacity and triple-slot design.

2. Setup and Initial Use

Follow these steps to set up and begin using your TELESIN Triple Battery Charger:

1. Connect Power: Connect the provided Type-C USB cable to the charger's input port. For optimal performance, use a 5V-2.4A USB power adapter (not included).
2. Insert Batteries: Carefully insert up to three compatible GoPro HERO13 or GoPro 13 Black Enduro batteries into the charging slots. Ensure the battery contacts align correctly with the charger's pins.
3. Monitor Charging: The LED indicator for each slot will illuminate red when a battery is charging. Once fully charged, the indicator will turn green.

Image 2.1: The charger connected to a power source with three batteries inserted, illustrating the simultaneous charging capability.

3. Operating Instructions

The TELESIN Triple Battery Charger is designed for ease of use and efficient charging:

• Simultaneous Charging: The charger can charge one, two, or three batteries at the same time. The intelligent charging system optimizes power distribution.
• Charging Time: It takes approximately 3 hours to fully charge three depleted GoPro HERO13 batteries. Individual battery charging times may vary.
• Smart Charging Indicators:
  • Red LED: Indicates that the battery in the corresponding slot is currently charging.
  • Green LED: Indicates that the battery in the corresponding slot is fully charged.
• Battery Compatibility: This charger is specifically designed for GoPro HERO13 and GoPro 13 Black Enduro batteries, including official GoPro Enduro batteries.

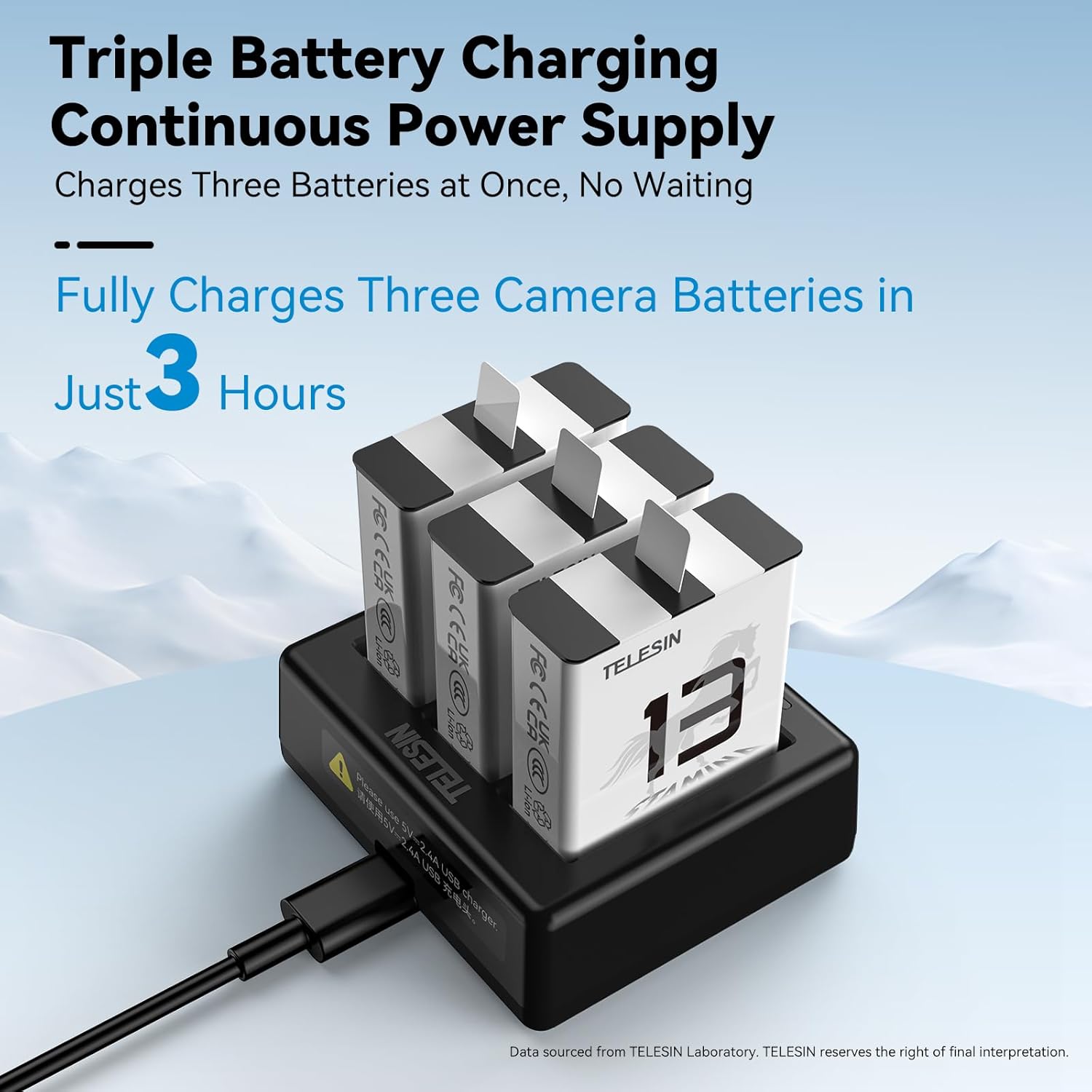

Image 3.1: Visual representation highlighting the charger's ability to fully charge three camera batteries in just 3 hours.

Image 3.2: A hand demonstrating the ease of inserting and removing batteries from the charger, emphasizing freedom to charge anytime.

4. Safety Features and Protection

The TELESIN Triple Battery Charger incorporates multiple intelligent protection circuits to ensure safe and reliable charging:

• Overcharge Protection: Prevents batteries from being overcharged, extending their lifespan. The charger switches to trickle mode and stops charging when full.
• Overdischarge Protection: Safeguards batteries from being discharged below safe levels.
• Overcurrent Protection: Protects against excessive current flow during charging.
• Overheat Protection: Monitors temperature to prevent overheating of the charger and batteries.
• Short Circuit Protection: Automatically cuts off power in case of a short circuit.
• Overvoltage Protection: Protects against input voltage surges.
• New Decoding Technology: Ensures safe charging for original GoPro batteries.

Image 4.1: An internal view of the charger highlighting the BMS (Battery Management System) for overcharge protection, which switches to trickle mode and stops charging when full.

Image 4.2: A graphic illustrating the multiple protection features, including overcharge, overcurrent, over-discharge, overvoltage, short circuit, overpower, recovery, electromagnetic field, and temperature protection.

5. Maintenance

To ensure the longevity and optimal performance of your TELESIN Triple Battery Charger, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to wipe the exterior of the charger. Avoid using harsh chemicals or abrasive materials.
• Contact Points: Periodically inspect the charging pins for any dust or debris. If necessary, gently clean them with a dry cotton swab.
• Storage: When not in use, store the charger in a cool, dry place away from direct sunlight and extreme temperatures.
• Avoid Moisture: Do not expose the charger to water or high humidity, as this can damage the internal electronics.

6. Troubleshooting

If you encounter issues with your TELESIN Triple Battery Charger, refer to the following common problems and solutions:

• Battery Not Charging (No Red LED):
  • Ensure the Type-C USB cable is securely connected to both the charger and the power source.
  • Verify that the power adapter is functioning and provides sufficient output (recommended 5V-2.4A).
  • Remove the battery and re-insert it, ensuring proper alignment with the charging pins. Sometimes, a slight adjustment is needed for proper contact.
  • Check if the battery itself is damaged or incompatible.
• LED Stays Red (Battery Not Fully Charging):
  • Allow sufficient time for charging (up to 3 hours for three batteries).
  • Ensure the power source provides stable power.
  • If the issue persists, the battery might be faulty or nearing the end of its lifespan.
• Charger Feels Warm:
  • It is normal for the charger to become slightly warm during operation. If it becomes excessively hot, disconnect it immediately and contact customer service.

7. Specifications

Image 7.1: Detailed product information including dimensions, weight, and electrical parameters.

8. Warranty and Support

TELESIN stands behind the quality of its products. Your TELESIN Triple Battery Charger comes with the following:

• 1-Year Warranty: Enjoy peace of mind with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures your product functions as intended.
• Customer Service: For any questions, concerns, or issues, TELESIN offers 24-hour customer service. Please do not hesitate to contact our support team for assistance.

For more information or to contact support, please visit the official TELESIN Store on Amazon.
