Introduction
Thank you for choosing the Infiniton WM-G124AWL Front-Load Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before first use and keep it for future reference.
Image: Front view of the Infiniton WM-G124AWL washing machine, white with a black door and control panel.
1. Setup and Installation
1.1 Unpacking
Carefully remove all packaging materials. Ensure all components are present and undamaged. Keep packaging materials out of reach of children.
1.2 Location
Place the washing machine on a firm, level surface. The appliance is designed for independent installation. Ensure there is adequate space around the machine for ventilation and maintenance.
1.3 Leveling
Adjust the leveling feet to ensure the machine is perfectly stable. Proper leveling prevents excessive vibration and noise during operation.
1.4 Water Connection
Connect the supplied water inlet hose to a cold water tap and to the water inlet valve on the back of the washing machine. Ensure connections are tight to prevent leaks.
1.5 Drain Connection
Connect the drain hose to a suitable drain pipe or place it over the edge of a sink, ensuring it is securely fastened to prevent displacement during draining.
1.6 Electrical Connection
Plug the power cord into a grounded electrical outlet. Ensure the voltage and frequency match the specifications of your appliance.

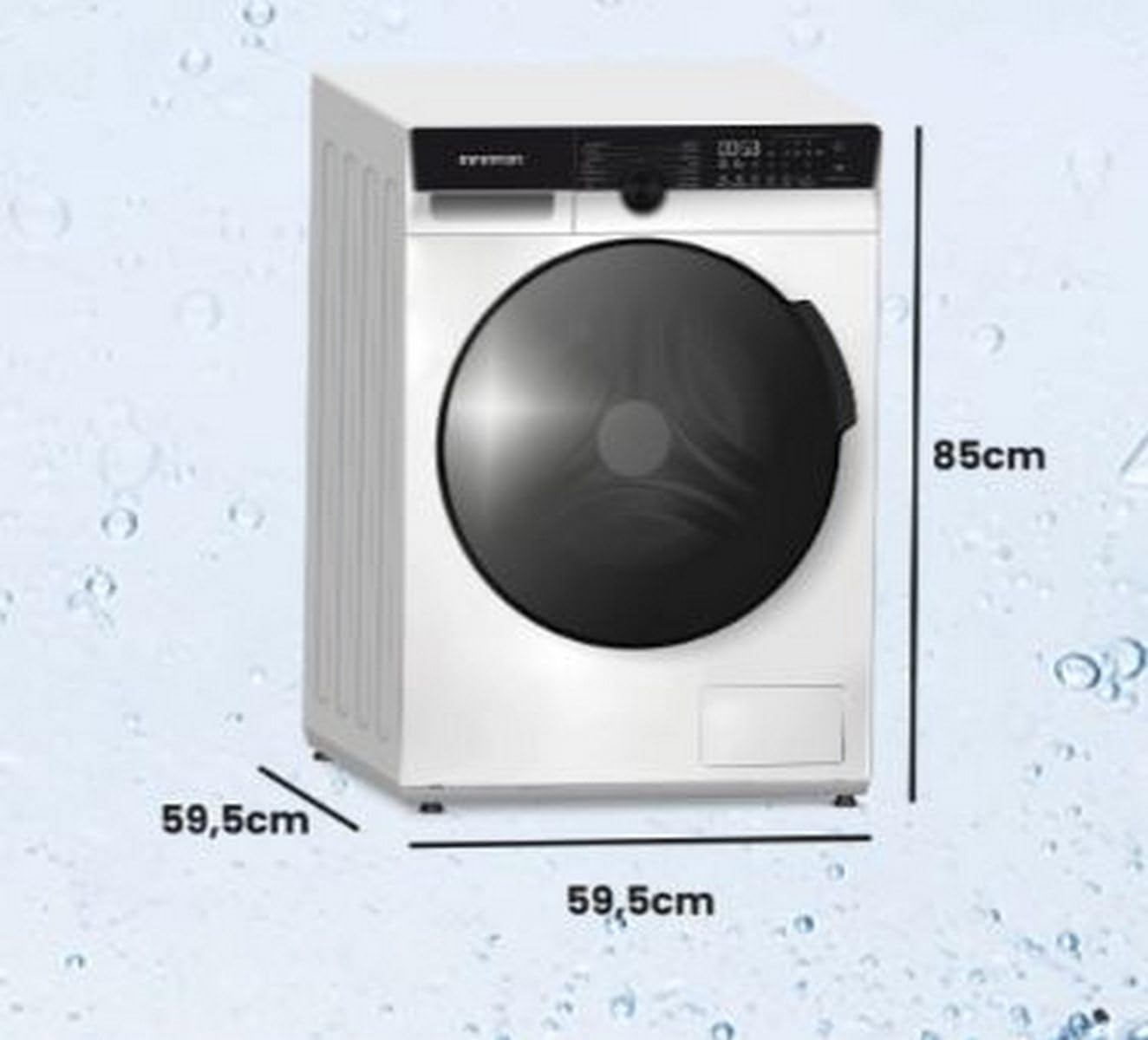

Image: Diagram showing the dimensions of the washing machine: 59.5 cm (width) x 59.5 cm (depth) x 85 cm (height).
2. Operating Instructions
2.1 Control Panel Overview
The washing machine features an electronic control panel with a full-touch display for easy program selection, settings adjustment, and time monitoring.
Image: Close-up view of the washing machine's full-touch display, showing digital time and program indicators.
2.2 Loading Laundry
Open the door and load laundry into the drum. Do not overload the machine; refer to program guidelines for maximum load capacity (up to 12 kg).
2.3 Adding Detergent
Add detergent and fabric softener to the appropriate compartments in the dispenser drawer. The machine supports standard detergent options.
2.4 Program Selection
Turn the program selector knob or use the touch display to choose one of the 14 available programs. Programs are designed for various fabric types and soil levels.
Image: Diagram illustrating the 14 available washing programs, including Cotton, Synthetic, Mix, Bedding, Baby Clothes, 20°C, My Cycle, Quick 15', Intensive, ECO 40-60, Wool, Rinse + Spin, Spin, and Drum Clean.
2.5 Special Functions
- My Cycle: Personalize and save your preferred washing settings.
- Faster Wash: Reduces the program duration for lightly soiled items.
- VAPORE CARE (Steam Care): Sterilizes and deodorizes clothes using steam.
- ADD CLOTHING: Allows you to add forgotten items during the initial stages of a wash cycle.
- Cold Wash Function: For energy-efficient washing of delicate items.
- Extra Drying Function: Enhances water extraction during the spin cycle.
- Safety Lock Function: Locks the control panel to prevent accidental changes.
- Programmed Start (Delay Start): Set the machine to start up to 24 hours later.
- Silent Mode: Disables acoustic alerts during the wash cycle.
Image: Illustration highlighting the "Easy Play" feature for simple operation and the "Inverter Motor" for energy efficiency and durability.
2.6 Starting the Wash Cycle
Press the Start/Pause button to begin the selected program. The display will show the program status and remaining time.
2.7 End of Program
An acoustic signal will indicate the end of the program (unless Silent Mode is active). Open the door and remove your laundry.
3. Maintenance and Care
3.1 Cleaning the Exterior
Wipe the exterior of the washing machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
3.2 Cleaning the Detergent Dispenser
Regularly remove and clean the detergent dispenser drawer to prevent residue buildup.
3.3 Cleaning the Drum
The machine features a RUBIK design stainless steel drum. Use the dedicated "Drum Clean" program periodically to maintain hygiene and prevent odors.
3.4 Cleaning the Drain Filter
Periodically check and clean the drain filter, usually located at the bottom front of the machine, to remove lint and small objects.
3.5 Anti-Allergen Program
The special anti-allergen program heats water up to 90°C to eliminate microorganisms, providing enhanced care for sensitive skin and baby clothes.
Image: Illustration of the Baby Care Anti-Allergen program, showing a baby wrapped in a towel and symbols for allergen removal.
4. Troubleshooting
4.1 Common Issues and Solutions
- Machine does not start: Check if the power cord is properly plugged in and the door is fully closed. Ensure a program is selected and the Start/Pause button is pressed.
- No water intake: Check if the water tap is open and the water inlet hose is not kinked.
- Water not draining: Check if the drain hose is properly positioned and not blocked. Clean the drain filter.
- Excessive vibration/noise: Ensure the machine is level and all transit bolts (if any) have been removed. Distribute laundry evenly in the drum.
- Stability Sensors: The washing machine is equipped with integral stability sensors that automatically cut off the wash cycle if an imbalance is detected, preventing damage.

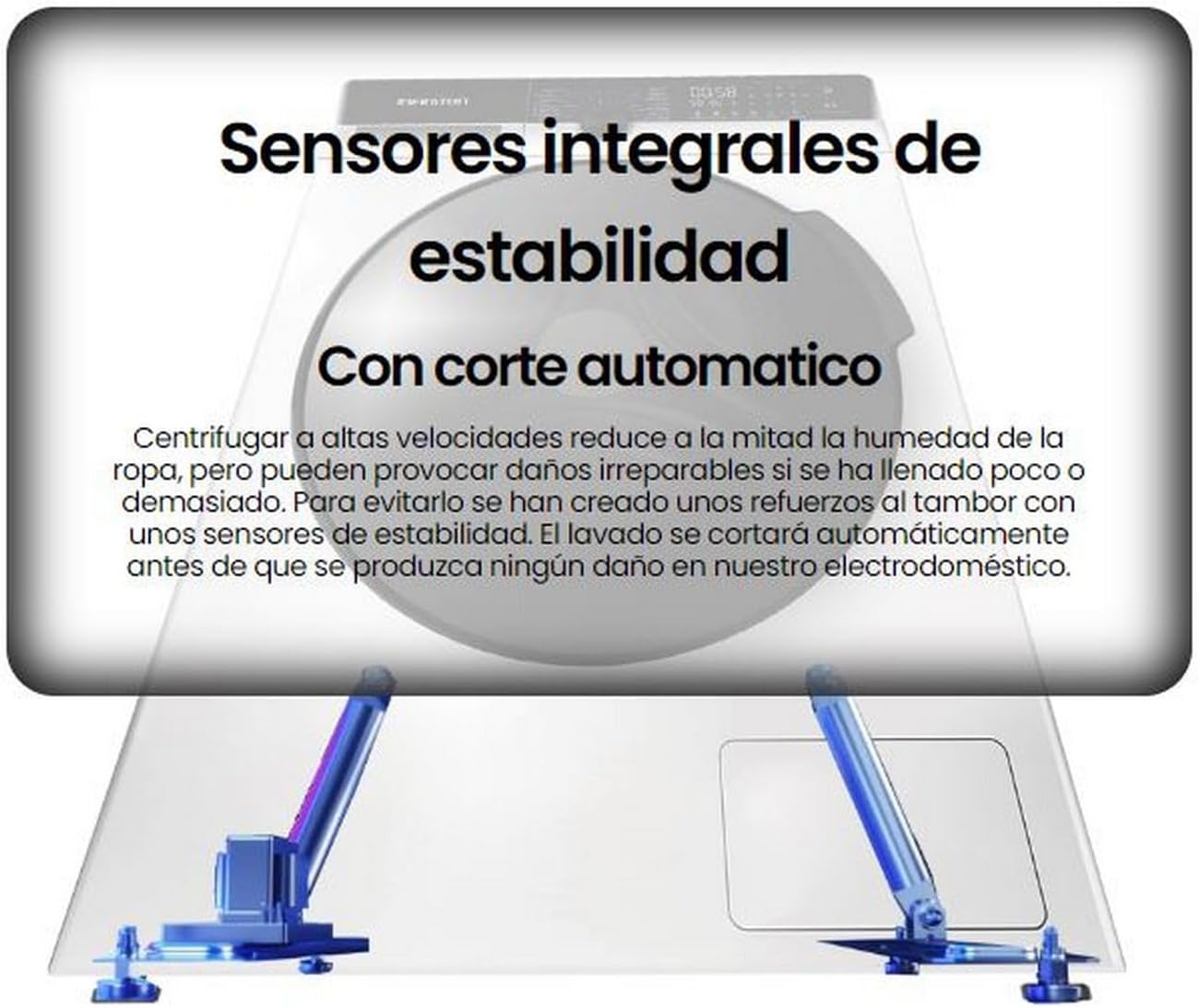

Image: Diagram illustrating the integral stability sensors within the washing machine, designed to prevent damage from imbalance during high-speed spinning.
4.2 Error Codes
If an error code appears on the display, consult the full user manual (if available) or contact customer support for assistance. Do not attempt to repair the appliance yourself.
5. Specifications
| Feature | Detail |
|---|---|
| Model Number | WM-G124AWL |
| Brand | INFINITON ELECTRONICS |
| Type | Front-Load Washing Machine |
| Capacity | 12 kg |
| Max Spin Speed | 1400 RPM |
| Motor Type | Inverter Technology |
| Programs | 14 |
| Special Functions | VAPORE CARE, ADD CLOTHING, Cold Wash, Programmed Start (up to 24h), Silent Mode, Anti-Allergen |
| Control Type | Full-Touch Electronic Display |
| Drum Material | Stainless Steel (RUBIK design) |
| Noise Level (Spin) | 80 dB |
| Energy Efficiency Class | A |
| Dimensions (WxDxH) | 59.5 x 59.5 x 85 cm |
| Weight | 73 kg |
| Included Components | Drain hose, Water inlet hose |
Image: Energy efficiency label for the Infiniton WM-G124AWL washing machine, showing Class A rating, 54 kWh/100 cycles, 12.0 kg capacity, 4:00 hour cycle duration, 57 L water consumption, and 80 dB noise level.
6. Warranty and Support
Specific warranty details and customer support contact information are typically provided with your purchase documentation or on the manufacturer's official website. Please refer to those resources for comprehensive warranty terms and service assistance.
