CRADIAC Top Gun 21 Speed Mountain Bike User Manual

1. Introduction

Thank you for choosing the CRADIAC Top Gun 21 Speed Mountain Bike. This manual provides essential information for the safe assembly, operation, maintenance, and care of your new bicycle. Please read it thoroughly before your first ride and keep it for future reference. Proper assembly and regular maintenance are crucial for your safety and the longevity of your bike.

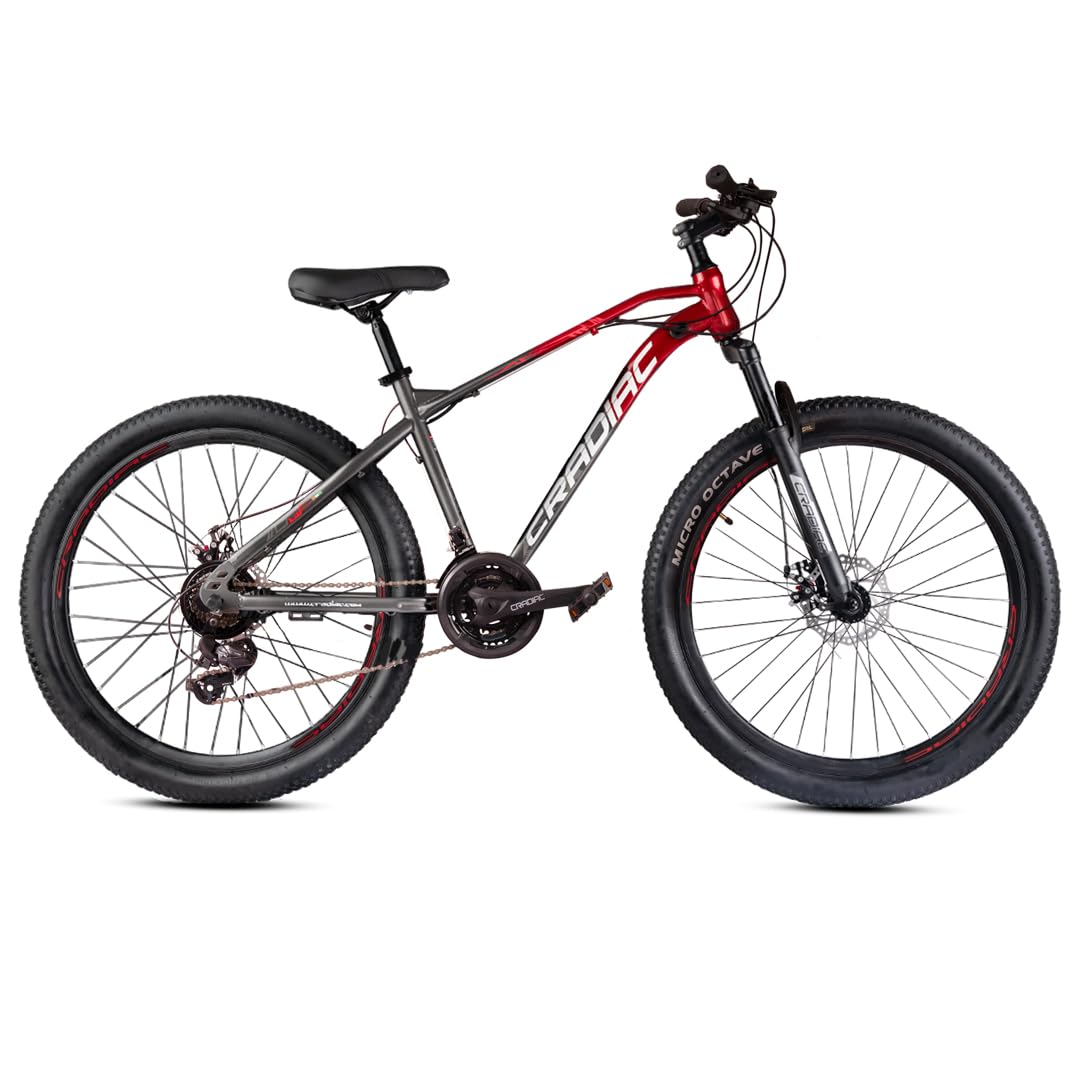

Image 1: CRADIAC Top Gun 21 Speed Mountain Bike, showcasing its design and color scheme.

2. Safety Information

Your safety is paramount. Always follow these guidelines:

• Wear a Helmet: Always wear a properly fitted bicycle helmet that meets safety standards.
• Pre-Ride Check: Before each ride, inspect your bike for loose parts, proper tire pressure, functional brakes, and smooth gear shifting.
• Know Traffic Laws: Obey all local traffic laws, signals, and signs. Ride predictably and signal your turns.
• Visibility: Use lights and reflectors when riding in low light conditions. Wear bright clothing.
• Braking: Practice using both front and rear brakes smoothly. Avoid sudden braking, especially with the front brake, which can cause loss of control.
• Weather Conditions: Exercise caution when riding in wet or slippery conditions, as braking distance increases.
• Age and Height: This bicycle is designed for adults, specifically for riders 15+ years old and between 5ft and 5.8ft in height.

3. What's in the Box

Upon unpacking, please ensure all the following components are present:

• BICYCLE (Main Frame, Wheels, Handlebar, Seat, etc.)
• ASSEMBLY TOOLS (Basic tools required for assembly)
• ASSEMBLY INSTRUCTIONS (Detailed guide for putting the bike together)

If any items are missing or damaged, please contact CRADIAC customer support immediately.

4. Setup and Assembly

Your CRADIAC Top Gun 21 Speed Mountain Bike requires assembly. Refer to the included 'ASSEMBLY INSTRUCTIONS' for detailed, step-by-step guidance. The following is a general overview of the assembly process:

1. Unpacking: Carefully remove all components from the packaging. Retain packaging materials until assembly is complete.
2. Handlebar Installation: Attach the handlebar to the stem, ensuring it is centered and tightened securely.
3. Front Wheel Installation: Install the front wheel into the fork. Ensure the quick-release skewer is properly secured.
4. Seat Post and Saddle: Insert the seat post into the frame and adjust the saddle height for comfortable pedaling. Secure the quick-release lever or bolt.
5. Pedal Attachment: Attach the pedals. Note that pedals are side-specific (L for left, R for right) and thread in opposite directions. Tighten firmly.
6. Brake Adjustment: Adjust the front and rear disc brakes for proper function and clearance. Ensure brake levers are easily accessible and provide firm stopping power.
7. Gear Adjustment: Fine-tune the Shimano 21-speed gears (front and rear derailleurs) for smooth and precise shifting across all cogs.
8. Final Inspection: Double-check all bolts, nuts, and quick releases for tightness. Ensure tires are inflated to the recommended pressure.

Image 2: Quick Release Wheel mechanism, simplifying front wheel installation and removal.

5. Operating Instructions

5.1. Gear Shifting (21 Speed Shimano)

Your CRADIAC Top Gun is equipped with a 21-speed Shimano gear system, featuring trigger shifters for precise control. The system includes a front derailleur (3 speeds) and a rear derailleur (7 speeds).

• Front Shifter (Left): Controls the front derailleur, moving the chain between the three larger chainrings. Use for significant changes in resistance (e.g., climbing steep hills or riding on flat terrain).
• Rear Shifter (Right): Controls the rear derailleur, moving the chain across the seven smaller cogs on the freewheel. Use for fine-tuning your pedaling cadence and resistance.
• Shifting Technique: Shift gears while pedaling with moderate pressure. Avoid shifting under heavy load or when stationary to prevent damage to the drivetrain.

Image 3: Shimano Trigger Shifters for efficient 21-speed gear changes.

Image 4: Chainwheel (42/34/24T) and 7-speed Freewheel, key components of the 21-speed drivetrain.

5.2. Braking (Dual Disc Brakes)

Your bike is equipped with powerful dual disc brakes for reliable stopping power in various conditions.

• Front Brake (Left Lever): Controls the front wheel brake. Provides strong stopping power but should be used with caution to avoid skidding or loss of control.
• Rear Brake (Right Lever): Controls the rear wheel brake. Offers stability and control, especially during gradual stops.
• Balanced Braking: For optimal stopping and control, apply both brakes simultaneously. Distribute braking force evenly, typically with slightly more pressure on the front brake.

Image 5: 160mm Dual Disc Brake system for reliable stopping power.

6. Maintenance

Regular maintenance ensures your bike remains safe and performs optimally.

• Cleaning: Regularly clean your bike, especially the drivetrain, to remove dirt and grime. Use mild soap and water, then rinse thoroughly and dry.
• Lubrication: Keep the chain, derailleurs, and brake pivots lubricated with appropriate bicycle lubricant. Avoid over-lubrication.
• Tire Pressure: Check tire pressure before each ride. Maintain the pressure recommended on the tire sidewall.
• Brake Check: Inspect brake pads for wear and ensure they are properly aligned with the disc rotors. Check brake cables for fraying or stiffness.
• Gear Check: Ensure gears shift smoothly and without hesitation. Adjust cable tension if necessary.
• Bolt Tightness: Periodically check all bolts and quick releases (especially on the handlebars, seat post, and wheels) for proper tightness.
• Suspension Fork: The front suspension fork requires minimal maintenance but should be kept clean. Consult a bike mechanic for any issues.

7. Troubleshooting

Here are solutions to common bicycle issues:

• Flat Tire: Inspect the tire for punctures. Remove the wheel, replace or patch the inner tube, and re-inflate.
• Noisy Brakes: Clean disc rotors and brake pads. Ensure calipers are aligned. If noise persists, brake pads may need replacement or professional adjustment.
• Gears Not Shifting Smoothly: Check for proper cable tension, ensure derailleurs are aligned, and the chain is clean and lubricated. Bent derailleur hangers can also cause issues.
• Chain Skipping: This can be due to a worn chain, worn cogs, or improper derailleur adjustment. Inspect components for wear.
• Loose Handlebar/Seat: Ensure quick releases or bolts are tightened securely. Do not overtighten.

For complex issues or repairs, it is recommended to consult a professional bicycle mechanic.

8. Specifications

Detailed specifications for your CRADIAC Top Gun 21 Speed Mountain Bike:

Image 6: High Tensile Steel Frame, providing durability and strength.

9. Warranty Information

Your CRADIAC Top Gun 21 Speed Mountain Bike comes with the following warranty:

• Frame: Lifetime warranty against manufacturing defects.
• Other Parts: 6-month warranty against manufacturing defects.

What is not covered: Damage resulting from improper assembly, accidents, misuse, neglect, or lack of proper maintenance is not covered under this warranty. Normal wear and tear of components such as tires, tubes, brake pads, and cables are also excluded.

Please retain your proof of purchase for warranty claims.

10. Support

For any questions, concerns, or assistance with your CRADIAC Top Gun 21 Speed Mountain Bike, please refer to the contact information provided with your purchase or visit the official CRADIAC website. When contacting support, please have your model number and purchase details ready.
