Aitjunz Farmhouse 9 Drawers Dresser User Manual

Introduction

Thank you for choosing the Aitjunz Farmhouse 9 Drawers Dresser. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new furniture. Designed with a blend of rustic charm and classical elegance, this dresser offers ample storage and enhances the aesthetic of any room.

Image: The Farmhouse 9 Drawers Dresser in Light Grey, showcasing its design and size in a typical bedroom environment.

Important Safety Information

Please read and understand all safety warnings before assembly and use. Failure to follow these instructions may result in injury or damage to the product.

• Anti-Tip Kit: Always install the provided wall anchor anti-tip kit to prevent the dresser from tipping over, especially in households with children or pets.
• Weight Limits: The dresser top can hold up to 130 lbs. Each drawer can hold up to 20 lbs. Do not exceed these weight limits.
• Assembly: Assembly should ideally be performed by two adults. Ensure all hardware is securely tightened before use.
• Placement: Place the dresser on a flat, stable surface.

Image: A diagram illustrating the three-step process for installing the wall anchor anti-tip kit, emphasizing safety.

Package Contents

Before beginning assembly, verify that all parts and hardware are present. If any items are missing or damaged, please contact customer support.

• Dresser Panels (various sizes)
• Drawer Fronts, Sides, and Backs
• Drawer Bottoms
• Drawer Slides (metal)
• Roman Column Decorative Pieces
• Hardware (screws, dowels, cam locks, handles, anti-tip kit)

Image: An overhead view of all dresser components neatly laid out, indicating a complete package content.

Assembly Instructions

Assembly typically takes about 1 hour with two people. Power tools, such as a screwdriver drill, are recommended for efficiency. Follow the steps below, referencing the assembly video for visual guidance.

Step 1: Prepare the Top Panel (0:00 - 0:21)

Attach the quick-fit screws to the designated holes on the underside of the top panel. Ensure they are securely fastened.

Step 2: Prepare Side Panels (0:21 - 0:42)

Insert wooden dowels and cam locks into the pre-drilled holes on the main side panels of the dresser frame.

Step 3: Prepare Bottom Panels (0:42 - 0:59)

Attach quick-fit screws to the designated holes on the bottom panels of the dresser frame.

Step 4: Assemble Main Frame Sections (0:59 - 1:29)

Connect the prepared side panels and bottom panels using the dowels and cam locks. Tighten the cam locks to secure the connections.

Step 5: Attach Drawer Slides to Side Panels (1:29 - 2:04)

Screw the metal drawer slides onto the interior surfaces of the main side panels. Ensure they are level and aligned.

Step 6: Assemble Inner Frame Sections (2:04 - 2:27)

Connect the inner vertical and horizontal support panels to form the internal structure of the dresser, using screws and dowels as indicated.

Step 7: Assemble Drawer Bases (2:27 - 3:24)

Attach quick-fit screws to the base panels of each drawer. These will connect to the drawer sides.

Step 8: Attach Drawer Slides to Drawer Bases (3:24 - 4:02)

Screw the corresponding metal drawer slides onto the sides of the assembled drawer bases.

Step 9: Attach Roman Columns (4:02 - 4:56)

Secure the decorative Roman column pieces to the front corners of the dresser frame using dowels and screws. These add to the farmhouse aesthetic.

Step 10: Secure Top Panel (4:56 - 5:26)

Carefully place the prepared top panel onto the assembled dresser frame. Secure it from the underside using cam locks and screws.

Step 11: Attach Back Panels (5:26 - 5:40)

Slide the thin back panels into the grooves at the rear of the dresser frame. Ensure they fit snugly.

Step 12: Secure Back Panels (5:40 - 6:00)

Use small screws to secure the back panels to the dresser frame, ensuring stability and preventing shifting.

Step 13: Assemble Drawer Fronts (6:00 - 6:11)

Prepare the drawer fronts by attaching the necessary quick-fit screws and dowels. These are the decorative outer panels of the drawers.

Step 14: Assemble Drawer Sides (6:11 - 6:57)

Connect the drawer side panels to the drawer fronts using dowels and cam locks. Ensure a tight fit.

Step 15: Assemble Drawer Backs (6:57 - 7:09)

Attach the drawer back panels to the assembled drawer sides and fronts, completing the basic drawer box structure.

Step 16: Complete Drawer Boxes (7:09 - 7:28)

Slide the thin bottom panels into the grooves of each drawer box and secure them with small nails or screws.

Step 17: Attach Drawer Slides to Drawer Boxes (7:28 - 7:48)

Screw the remaining metal drawer slides to the sides of each completed drawer box. Ensure the roller mechanism is at the front.

Step 18: Insert Drawers and Attach Handles (7:48 - 8:18)

Carefully slide each assembled drawer into its corresponding slot in the dresser frame. Attach the decorative metal handles to the front of each drawer.

Step 19: Install Anti-Tip Kit (8:18 - 8:28)

Attach the anti-tip bracket to the top rear of the dresser and secure it to a wall stud using the provided hardware. This is a crucial safety step.

Operating Instructions

The Farmhouse 9 Drawers Dresser is designed for smooth and efficient storage.

• Drawer Operation: Gently pull and push the drawers using the handles. The smooth metal slides ensure easy opening and closing.
• Weight Capacity: The top surface of the dresser can support up to 130 lbs. Each individual drawer has a maximum weight capacity of 20 lbs. Distribute weight evenly to prevent damage and ensure stability.

Image: Detailed product dimensions and maximum weight load capacities for the tabletop and individual drawers.

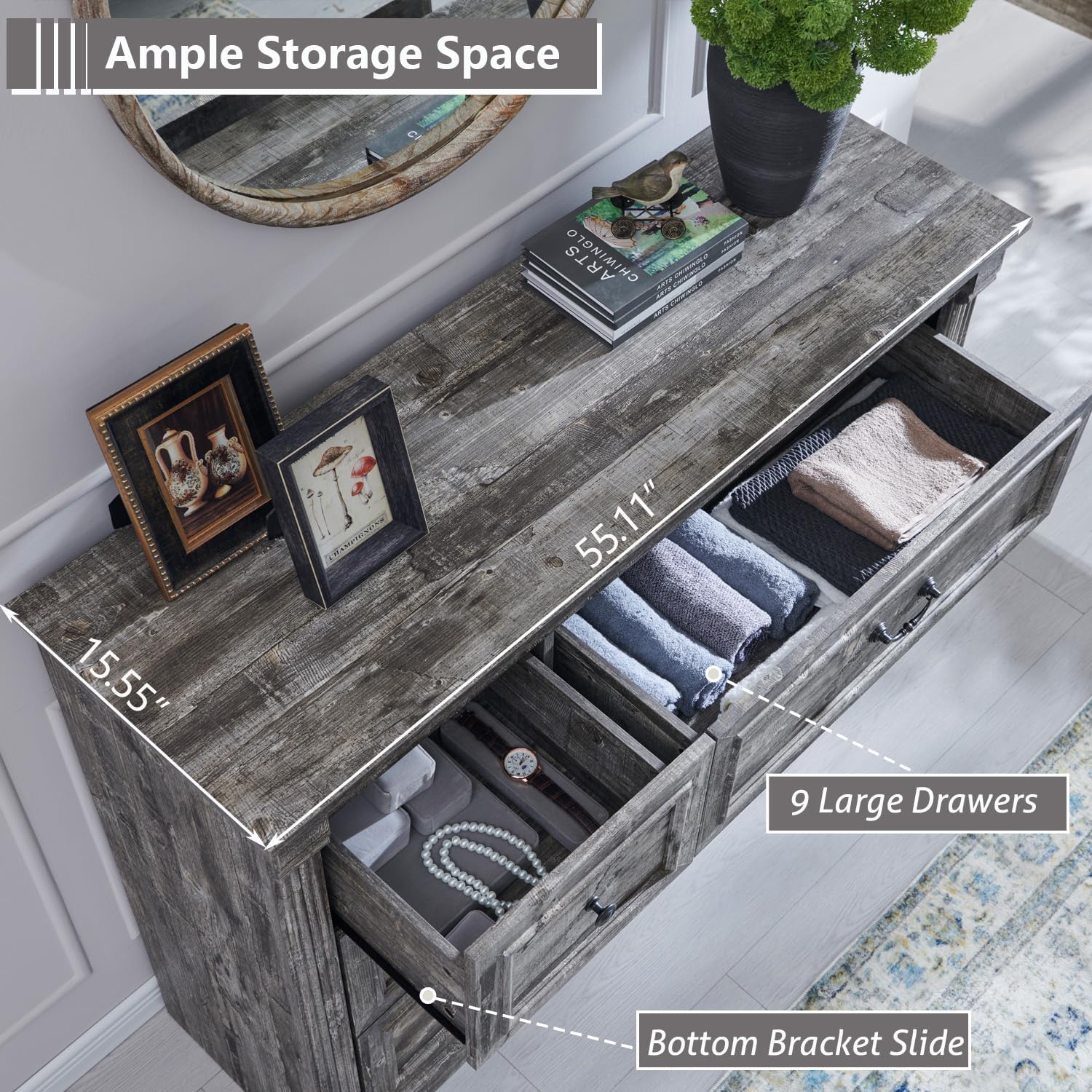

Image: An overhead view of the dresser with several drawers open, demonstrating the ample storage space available for various items.

Maintenance and Care

To maintain the beauty and longevity of your dresser, follow these simple care instructions:

• Cleaning: Wipe the surface with a dry, soft cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the finish.
• Spills: Clean spills immediately with a dry cloth to prevent staining.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration of the finish.
• Humidity: Maintain a consistent humidity level in the room to prevent warping or cracking of the wood.

Troubleshooting

If you encounter any issues with your dresser, refer to the common problems and solutions below:

• Drawers Sticking or Not Sliding Smoothly:
  • Check if the drawer slides are properly aligned and securely screwed into place.
  • Ensure the drawer box is assembled correctly and is not warped.
  • Verify that the drawer is not overloaded, exceeding the 20 lbs capacity.
• Dresser Wobbling or Unstable:
  • Confirm that the dresser is placed on a level surface.
  • Check all cam locks and screws throughout the frame assembly to ensure they are fully tightened.
  • Ensure the anti-tip kit is correctly installed and secured to the wall.
• Missing or Damaged Parts:
  • Refer to the package contents list. If parts are missing or damaged upon arrival, contact Aitjunz customer service immediately for replacements.

Product Specifications

Warranty and Support

Your satisfaction is our priority. The dresser is packaged with thick foam and wooden protection boards to ensure maximum protection during transportation.

If you encounter any problems during assembly or with the product itself, please contact Aitjunz customer service. We are committed to providing a satisfactory solution within 24 hours.
