Introduction
This manual provides essential instructions for the safe and effective setup, operation, and maintenance of your Generic Foldable Pop-Up Party Tent 3x3m Anthracite. Please read this manual thoroughly before assembly and use, and retain it for future reference.
Safety Information
IMPORTANT SAFETY WARNING: This product should NEVER be used under bad weather conditions, such as strong wind, heavy rain, snow, or storms. Failure to adhere to this warning can result in product damage, property damage, or personal injury.
- Ensure all components are securely fastened during assembly and use.
- Do not hang heavy objects from the tent frame.
- Keep away from open flames and heat sources.
- Always supervise children around the tent.
Package Contents
Please verify that all components listed below are present before beginning assembly.
- Powder-coated steel frame (pre-assembled folding mechanism)
- 600D Oxford fabric roof covering with PVC coating
- 4 fastening ropes
- 8 ground nails/stakes
Figure 1: Eight ground nails/stakes for securing the tent.
Setup Instructions
- Unpack and Position Frame: Carefully remove the folded tent frame from its packaging. Place the frame in the desired location for setup. Ensure the ground is level and clear of obstructions.
- Partially Extend Frame: With two people, gently pull the opposing corners of the frame outwards until it is partially extended. Do not fully extend yet.
- Attach Roof Covering: Drape the 600D Oxford fabric roof covering over the partially extended frame. Ensure the peak of the roof aligns with the center of the frame and the corners are correctly positioned. Secure the roof covering to the frame using any integrated fasteners (e.g., Velcro straps) if present.
- Fully Extend Frame: Continue to pull the frame outwards until it is fully extended and the locking mechanisms (if any) engage. Ensure all crossbars are straight and taut.
- Adjust Leg Height: Extend the telescopic legs to the desired height. Press the push-button or release lever on each leg and slide the inner leg section upwards until it locks into place at the desired height. Ensure all legs are set to the same height for stability.
- Secure the Tent: Use the provided fastening ropes and ground nails to secure the tent to the ground. Attach ropes to the tent's corners or designated points on the frame, and stake them firmly into the ground at an angle.
- Final Check: Verify that all connections are secure, the roof fabric is taut, and the tent is stable.
Figure 2: Detail of the corner joint where the roof fabric attaches.
Figure 3: View of the scissor-style frame mechanism, showing connection points.

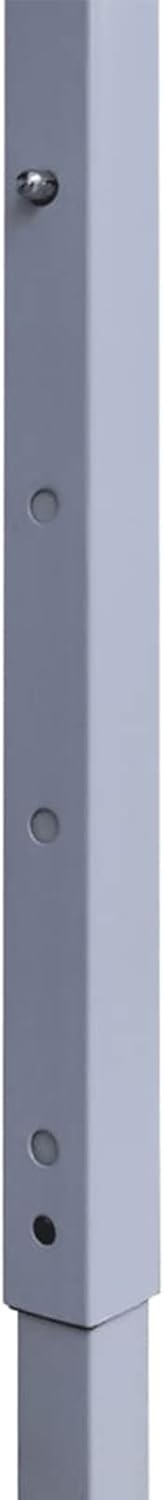

Figure 4: Tent leg showing multiple holes for height adjustment.
Figure 5: Base plate of a tent leg, designed for securing with ground stakes.
Figure 6: The Generic Foldable Pop-Up Party Tent 3x3m Anthracite fully assembled.
Operating the Tent
This pop-up tent is designed for temporary outdoor use as a sunshade or shelter for events. It is not intended for permanent installation or use in adverse weather conditions.
- Usage: Ideal for parties, BBQs, festivals, camping, or as a large sunshade in your backyard.
- Disassembly: To disassemble, reverse the setup steps. Lower the legs, release the frame locking mechanisms, and gently push the frame inwards to fold. Remove the roof covering and fold it neatly.
- Storage: Store the folded tent frame and roof covering in a dry, protected area to prevent damage and prolong product life.
Maintenance
- Cleaning: Clean the roof covering with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners. Allow to air dry completely before folding and storing.
- Frame Care: Inspect the powder-coated steel frame periodically for any signs of rust or damage. Clean any dirt or debris from the frame.
- Storage: Ensure the tent fabric is completely dry before storage to prevent mold and mildew. Store the tent in its original packaging or a suitable storage bag in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Tent is unstable or wobbly. | Legs not fully extended or locked; not properly secured to the ground; uneven ground. | Ensure all legs are fully extended and locked. Use all provided ropes and stakes to secure the tent. Relocate to a more level surface. |
| Roof fabric sags or collects water. | Frame not fully extended; fabric not properly attached or stretched. | Ensure the frame is fully extended and all crossbars are taut. Re-adjust the roof fabric to ensure it is evenly stretched and secured. |
| Difficulty folding the tent. | Legs not lowered; frame locking mechanisms not released. | Lower all legs first. Ensure any frame locking pins or levers are disengaged before attempting to collapse the frame. |
Specifications
- Colour: Anthracite
- Frame Material: Powder-coated steel
- Roof Material: 600D Oxford fabric with PVC coating
- Dimensions (L x W x H): 291 x 291 x 315 cm (approximately 9.5 x 9.5 x 10.3 feet)
- Eave Height from Ground: 2.35 m (approximately 7.7 feet)
- Features: Water and UV resistant
- Included Accessories: 4 ropes, 8 nails
- Fabric Composition: Polyester: 100%
Figure 7: Dimensional diagram of the tent, showing 291 cm width/length and 315 cm height.
Customer Support
For further assistance or inquiries regarding your Generic Foldable Pop-Up Party Tent, please refer to your retailer's customer service contact information.
