Mutaomay 3500PSI Gas Pressure Washer

1. Introduction

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Mutaomay 3500PSI Gas Pressure Washer, Model MTPW01. This powerful gas-powered unit delivers 3500 PSI and 2.3 GPM, featuring a 209CC 4-stroke OHV engine, designed for effective cleaning of various outdoor surfaces. Please read this manual thoroughly before operating the pressure washer to ensure proper use and to prevent injury or damage.

2. Safety Information

Always prioritize safety when operating the pressure washer. Failure to follow these instructions may result in serious injury or property damage.

2.1 General Safety Precautions

• Read and understand all instructions before use.
• Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and sturdy footwear.
• Keep children and pets away from the operating area.
• Do not operate the pressure washer in an enclosed space to avoid carbon monoxide poisoning. Ensure adequate ventilation.
• Never point the spray gun at people, animals, or electrical equipment.

2.2 Fuel and Oil Safety

• Use only fresh, unleaded gasoline with an octane rating of 87 or higher.
• Use SAE 10W-30 motor oil for optimal engine performance.
• Fill the fuel tank in a well-ventilated outdoor area. Do not smoke or allow open flames near the pressure washer during refueling.
• Check engine oil level before each use.

2.3 Pressure Washing Safety

• Always ensure the water supply is connected and turned on before starting the engine to prevent pump damage.
• Never operate the pressure washer without a water supply.
• Hold the spray gun firmly with both hands when operating.
• Be aware of kickback from the spray gun when starting or releasing the trigger.
• Test the spray on an inconspicuous area first to avoid damaging surfaces.

3. Package Contents

Verify that all items are present and undamaged upon unpacking. If any parts are missing or damaged, contact customer support.

Figure 3.1: Mutaomay Gas Pressure Washer with labeled components.

• Mutaomay Gas Pressure Washer Unit
• High-Pressure Spray Gun (16 inches)
• High-Pressure Hose (25 feet)
• 4 Quick-Connect Nozzles (0°, 25°, 40°, Soap)
• Wheels (10 inches)
• User Manual

4. Setup and Assembly

Follow these steps to assemble and prepare your pressure washer for first use.

4.1 Adding Engine Oil

1. Locate the oil fill cap/dipstick on the engine.
2. Remove the cap and, using a funnel, carefully pour SAE 10W-30 motor oil into the engine until it reaches the 'Full' mark on the dipstick. Do not overfill.
3. Replace the oil fill cap securely.

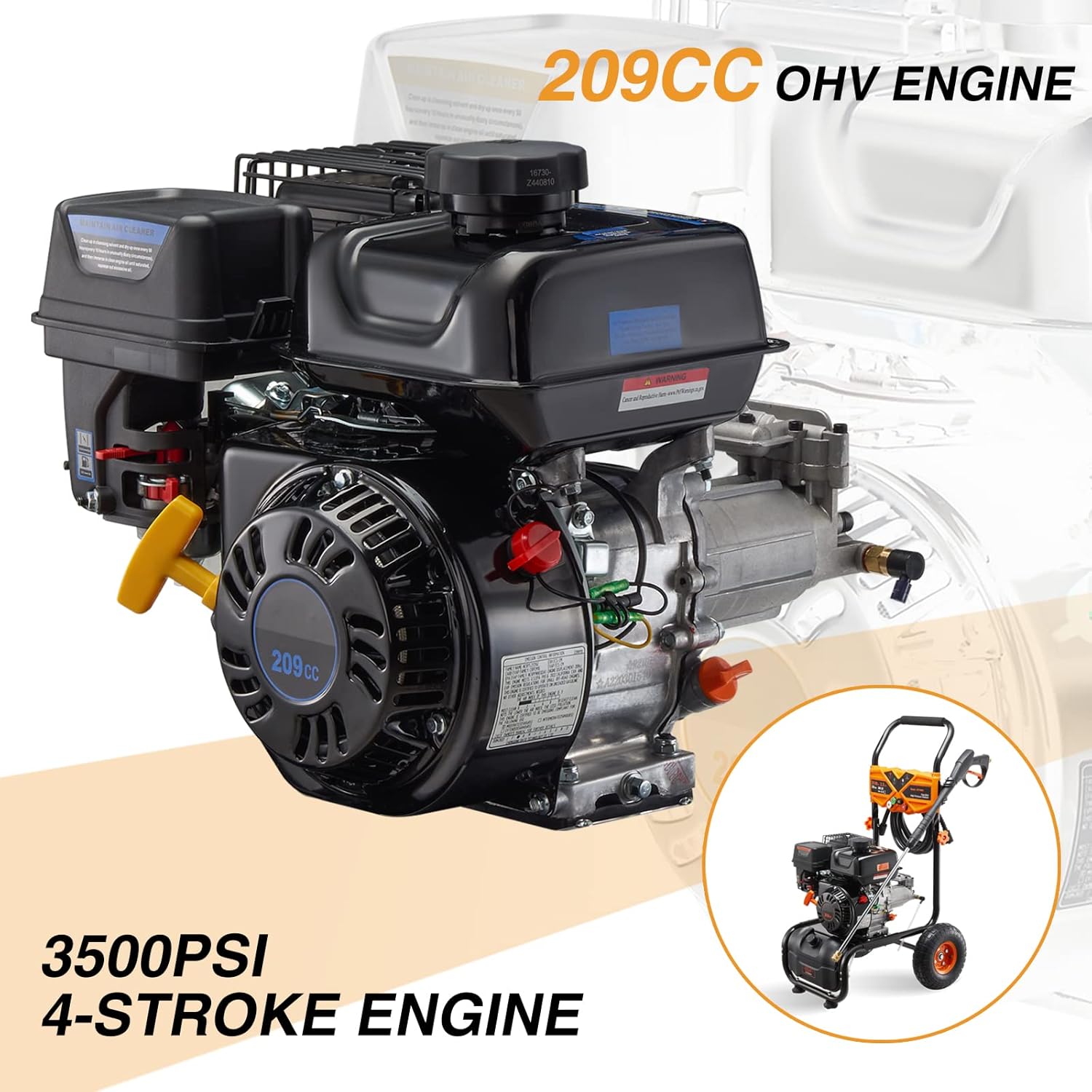

Figure 4.1: The 209CC OHV engine.

4.2 Adding Fuel

1. Ensure the engine is off and cool.
2. Unscrew the fuel tank cap.
3. Carefully pour fresh, unleaded gasoline (87+ octane) into the fuel tank, leaving a small air gap at the top.
4. Securely replace the fuel tank cap.

4.3 Connecting Water Supply

1. Connect a garden hose to the water inlet on the pressure washer pump. Ensure the gasket is properly seated to prevent leaks.
2. Connect the other end of the garden hose to a water faucet and turn on the water supply completely.
3. Squeeze the trigger on the spray gun to purge air from the system until a steady stream of water flows out.

4.4 Connecting High-Pressure Hose and Spray Gun

1. Attach one end of the high-pressure hose to the high-pressure outlet on the pump.
2. Attach the other end of the high-pressure hose to the spray gun.
3. Insert the desired quick-connect nozzle into the end of the spray gun wand.

Figure 4.2: The four quick-connect nozzles.

4.5 Adding Detergent (Optional)

1. Remove the cap from the detergent tank.
2. Pour pressure washer-safe detergent into the tank.
3. Replace the cap securely.

5. Operating Instructions

Follow these steps for safe and effective operation of your pressure washer.

5.1 Starting the Engine

1. Ensure all connections are secure and the water supply is on.
2. Turn the engine switch to the 'ON' position.
3. Open the fuel valve (if applicable).
4. Move the choke lever to the 'CLOSED' or 'START' position (for cold starts).
5. Pull the recoil starter handle firmly until the engine starts.
6. Once the engine starts, gradually move the choke lever to the 'OPEN' or 'RUN' position.

5.2 Using Nozzles and Cleaning Techniques

The pressure washer comes with four quick-connect nozzles, each designed for specific tasks:

• 0° (Red): Pin-point jet for intense spot cleaning and stubborn stains. Use with extreme caution.
• 25° (Green): Fan spray for general cleaning of most surfaces.
• 40° (White): Wide fan spray for delicate surfaces like vehicles, windows, and painted surfaces.
• Soap (Black): Low-pressure spray for applying detergent.

To change nozzles, pull back the collar on the spray gun wand, insert the desired nozzle, and release the collar to lock it in place. Always turn off the engine and release pressure before changing nozzles.

Figure 5.1: Cleaning a muddy vehicle tire with the pressure washer.

Figure 5.2: Examples of cleaning applications for the pressure washer.

5.3 Applying Detergent

To apply detergent, ensure the soap nozzle (black) is installed. The pressure washer will automatically draw detergent from the tank at low pressure. After applying detergent, switch to a high-pressure nozzle (e.g., 25° or 40°) to rinse the surface thoroughly.

5.4 Shutting Down

1. Turn off the engine switch.
2. Turn off the water supply.
3. Squeeze the spray gun trigger to release any remaining pressure in the system.
4. Disconnect the garden hose and high-pressure hose.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pressure washer.

6.1 Engine Oil

• Check the engine oil level before each use.
• Change the engine oil after the first 5 hours of operation, then every 50 hours or annually, whichever comes first.

6.2 Air Filter

• Inspect the air filter every 25 hours or more frequently in dusty conditions.
• Clean or replace the air filter as needed.

6.3 Spark Plug

• Inspect the spark plug annually or every 100 hours.
• Clean or replace if necessary.

6.4 Fuel System

• For long-term storage (over 30 days), drain the fuel tank and carburetor or use a fuel stabilizer.

6.5 Pump Maintenance and Winterization

• After each use, flush the pump with clean water.
• Before storing in freezing temperatures, use a pump protector or RV antifreeze to prevent damage.

7. Troubleshooting

Refer to this section for common issues and their solutions.

8. Specifications

Technical details for the Mutaomay 3500PSI Gas Pressure Washer.

Figure 8.1: Product Dimensions.
