OUTIGO Cordless Electric Chainsaw User Manual

1. Introduction

Thank you for choosing the OUTIGO Cordless Electric Chainsaw. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference.

This chainsaw is designed for cutting wood, branches, and small logs. Its cordless design offers portability and convenience for various outdoor tasks.

2. Safety Instructions

Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or property damage.

General Safety Precautions:

• Wear appropriate personal protective equipment (PPE), including safety goggles, gloves, hearing protection, and sturdy footwear.
• Keep children and bystanders away from the work area.
• Do not operate the chainsaw in wet conditions or in the presence of flammable liquids or gases.
• Ensure the work area is well-lit and clear of obstacles.
• Always maintain a firm grip on the chainsaw with both hands.

Four-Level Safety Protection:

1. Lock Switch: To prevent accidental activation, the chainsaw is equipped with a lock switch. To start the saw, you must press the safety button and the main switch simultaneously.
2. Hinged Safety Cover: A hinged safety cover is integrated to protect the user from wood chips and debris splashing during operation. Ensure it is properly positioned before use.
3. Protective Goggles: Safety goggles are included in the package to protect your eyes from flying wood splinters and dust. Always wear them when operating the chainsaw.
4. Protective Gloves: Gloves are provided to enhance grip and protect your hands from cuts and abrasions. Use them during operation.

3. Package Contents

Upon opening the package, verify that all items listed below are present and in good condition:

• 1 x OUTIGO Cordless Electric Chainsaw
• 2 x 4000mAh High-Capacity Lithium Batteries
• 2 x Chains (Sharp Right-Angle Chains)
• 1 x Guide Bar
• 1 x CE Fast Charger
• 1 x Wrench
• 1 x Safety Goggles
• 1 x Oil Bottle (empty, for lubricant)
• 1 x Instruction Manual (this document)
• 1 x Accessory Kit Box

Figure 3.1: Complete package contents including the chainsaw, batteries, chains, guide bar, charger, wrench, goggles, and oil bottle.

4. Product Overview

Familiarize yourself with the main components of your OUTIGO Chainsaw.

Figure 4.1: Key features and components of the OUTIGO Chainsaw, including automatic chain tightness adjustment, power residual indicator, oil output adjustment, and double protection.

Key Features:

• Powerful Brushless Motor: Equipped with an 800W high-power pure copper brushless motor for increased efficiency and extended service life.
• High-Capacity Batteries: Comes with two upgraded 4000mAh lithium batteries, providing ample power for prolonged use. Each battery features a status indicator light.
• Automatic Lubrication System: Ensures the chain is automatically lubricated during operation, reducing wear and improving cutting performance. The black gear allows adjustment of oil output.
• Tool-Free Chain Tension Adjustment: Easily adjust the chain tightness without requiring additional tools.
• Durable Chain and Guide Bar: Features sharp, right-angled chains and a robust guide bar designed for efficient and clean cuts.

Figure 4.2: Illustration of the chainsaw's powerful pure copper motor, designed for high efficiency and durability.

Figure 4.3: The high-capacity 4000mAh battery, showing its 21V output and integrated battery indicator for easy status checks.

Figure 4.4: An example of battery performance, indicating up to 100 cuts per charge on 20x20 cm lumber with the 4000mAh battery.

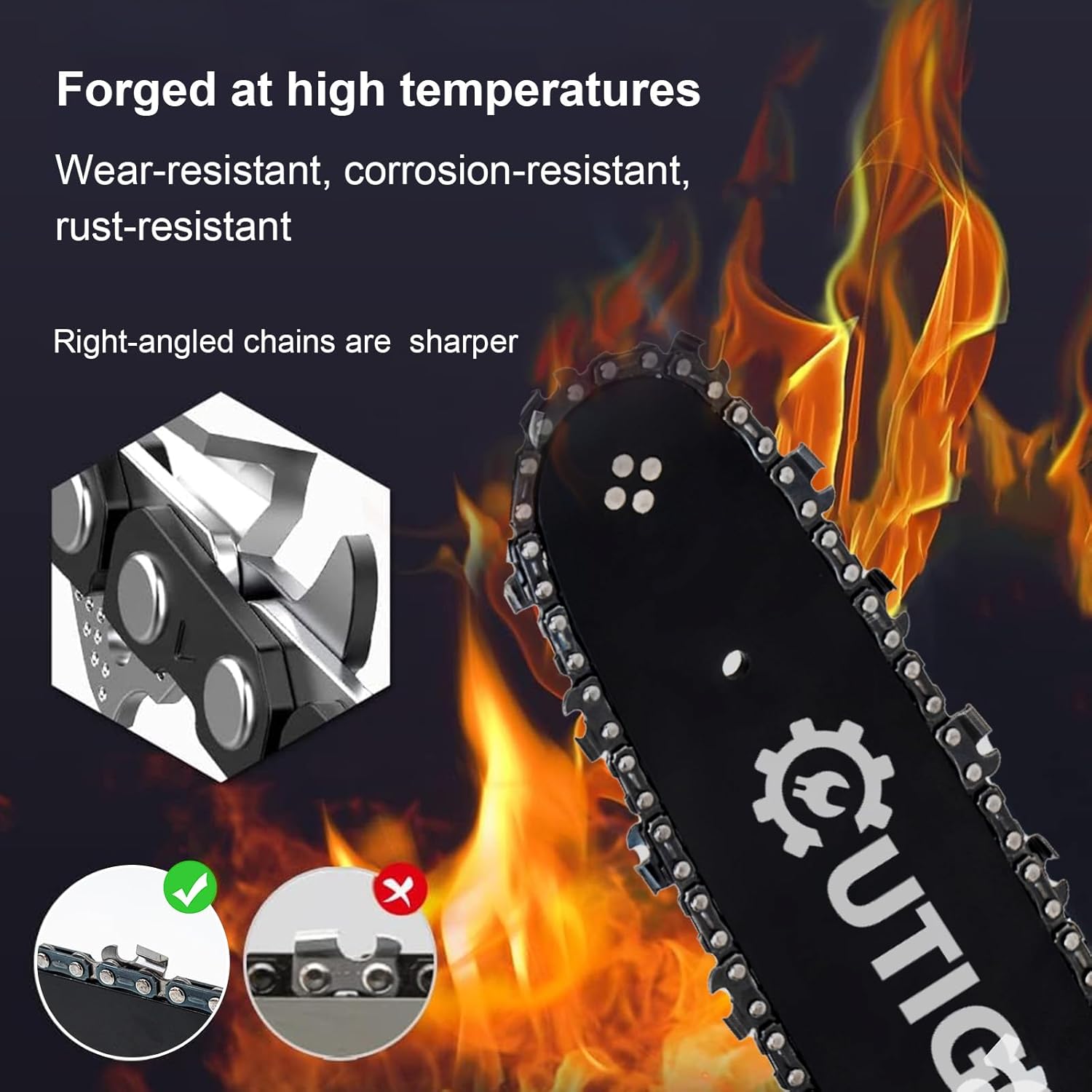

Figure 4.5: Detail of the forged, wear-resistant, corrosion-resistant, and rust-resistant chain, highlighting the sharper right-angled design.

5. Setup

5.1. Charging the Batteries

1. Insert the 4000mAh battery into the provided CE fast charger.
2. Plug the charger into a standard power outlet.
3. The battery indicator light will show the charging status. Charge until the battery is full.
4. Once fully charged, disconnect the charger from the power outlet and remove the battery.

5.2. Installing the Chain and Guide Bar

Refer to the product diagram (Figure 4.1) for component locations.

1. Ensure the battery is removed from the chainsaw before installation.
2. Carefully place the chain around the guide bar, ensuring the cutting teeth are facing the correct direction for cutting.
3. Align the guide bar and chain with the chainsaw's sprocket and mounting studs.
4. Secure the guide bar cover and tighten the retaining nut. The chainsaw features tool-free chain tension adjustment; rotate the adjustment knob to achieve proper chain tension. The chain should be snug but still able to be pulled freely around the guide bar by hand.

5.3. Adding Lubricating Oil

1. Locate the oil reservoir cap on the chainsaw (refer to Figure 4.1).
2. Unscrew the cap.
3. Using the provided oil bottle, fill the reservoir with appropriate chainsaw bar and chain oil. Do not overfill.
4. Securely replace the oil reservoir cap.

6. Operating Instructions

6.1. Starting the Chainsaw

1. Ensure the battery is fully charged and securely inserted into the chainsaw.
2. Hold the chainsaw firmly with both hands.
3. To start the chainsaw, simultaneously press the safety button (usually located near the handle) and then squeeze the main trigger switch. The chainsaw will not operate if only the trigger switch is pressed.

6.2. Cutting Operation

Always wear all recommended PPE before starting any cutting operation.

1. Position yourself securely and maintain balance.
2. Place the running chain against the material to be cut. Allow the chainsaw to do the work; do not force it.
3. The automatic lubrication system will supply oil to the chain during operation. You can adjust the oil output amount using the black gear (refer to Figure 4.1).
4. For optimal performance and safety, make smooth, controlled cuts.
5. Be aware of kickback potential and always cut with the bottom of the guide bar when possible.

Figure 6.1: The OUTIGO Chainsaw efficiently cutting through a log, demonstrating its powerful performance.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your chainsaw.

7.1. Chain Lubrication

The chainsaw features an automatic lubrication system. Regularly check the oil reservoir and refill with appropriate bar and chain oil when the level is low.

7.2. Chain Tension

Check chain tension frequently, especially during initial use. Adjust the tension using the tool-free adjustment knob as needed. A properly tensioned chain should be snug against the guide bar but still allow you to pull it around the bar by hand.

7.3. Cleaning

• Always remove the battery before cleaning.
• Use a brush or compressed air to remove sawdust and debris from the motor housing, guide bar, and chain.
• Wipe down the exterior with a damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure the oil ports are clear of debris.

7.4. Storage

Store the chainsaw in a dry, secure location, out of reach of children and unauthorized users. Remove the battery before long-term storage.

8. Troubleshooting

This section addresses common issues you might encounter. If you experience problems not listed here, please contact customer support.

9. Specifications

10. Warranty and Support

While specific warranty details are not provided in this manual, OUTIGO is committed to providing excellent customer service. If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our customer support team.

Please retain your proof of purchase for any warranty claims or support inquiries.
