Curtis Stone 2-Quart Nonstick Smart Multi Cooker

Introduction

Thank you for choosing the Curtis Stone 2-Quart Nonstick Smart Multi Cooker. This versatile appliance is designed to simplify your cooking process with its multiple functions and user-friendly design. Please read this manual thoroughly before first use to ensure safe and optimal operation.

This multi-cooker features six preset cooking modes: Multi Cook, Slow Cook, Bake, Rice, Steam, and Keep Warm. It has a 2-quart capacity, 400 watts of cooking power, and a Dura-Pan nonstick removable pot for easy cleaning. Additional features include a delay timer and automatic Keep Warm function.

Important Safety Instructions

WARNING: To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions.

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

Components and Features

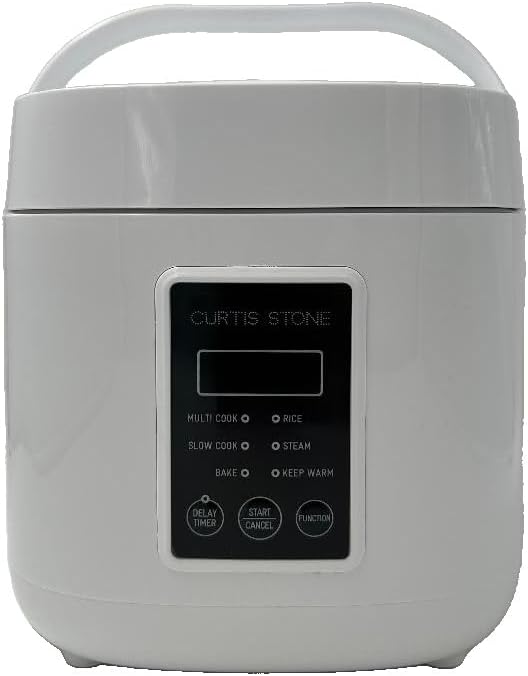

Figure 1: Front view of the Curtis Stone 2-Quart Multi Cooker. This image shows the main body of the cooker, its integrated handle, and the central control panel with various cooking mode indicators and function buttons.

Figure 2: Angled front view of the Curtis Stone 2-Quart Multi Cooker. This perspective provides a clearer view of the control panel's layout, including the digital display, cooking mode lights (Multi Cook, Slow Cook, Bake, Rice, Steam, Keep Warm), and control buttons (Delay Timer, Start/Cancel, Function).

The Curtis Stone 2-Quart Multi Cooker consists of the following main components:

• Main Unit: The outer housing containing the heating element and control panel.
• Removable Inner Pot: A 2-quart capacity pot with Dura-Pan nonstick coating for easy food release and cleaning.
• Lid: A removable lid that seals the cooking pot.
• Control Panel: Features a digital display, touch button controls for various cooking modes (Multi Cook, Slow Cook, Bake, Rice, Steam, Keep Warm), Delay Timer, Start/Cancel, and Function buttons.
• Measuring Cup: For precise ingredient measurements.
• Spoon: For serving or stirring.

Setup and First Use

1. Unpacking: Carefully remove all packaging materials and accessories from the box.
2. Initial Cleaning: Before first use, wash the removable inner pot, measuring cup, and spoon with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the multi-cooker on a stable, flat, heat-resistant surface, away from walls or other appliances to allow for proper ventilation.
4. Power Connection: Ensure the voltage of your power outlet matches the rating label on the appliance. Plug the power cord into a grounded electrical outlet.

Operating Instructions

General Operation

1. Add ingredients to the removable inner pot.
2. Place the inner pot into the main unit and close the lid securely.
3. Plug the appliance into a power outlet. The digital display will illuminate.
4. Press the "Function" button repeatedly to cycle through the available cooking modes: Multi Cook, Slow Cook, Bake, Rice, Steam, Keep Warm. The indicator light for the selected mode will illuminate.
5. Once the desired mode is selected, press "Start/Cancel" to begin cooking.
6. To cancel a cooking program at any time, press "Start/Cancel" again.

Specific Cooking Modes

• Multi Cook: Ideal for general cooking, sautéing, or simmering. Time and temperature may be adjustable depending on the recipe.
• Slow Cook: For slow-cooked meals. This mode typically operates at a lower temperature over a longer period.
• Bake: Suitable for baking small cakes, casseroles, or other baked dishes.
• Rice: Optimized for cooking various types of rice. Follow recommended water-to-rice ratios.
• Steam: For steaming vegetables, fish, or other foods. Ensure adequate water is in the inner pot below the steaming rack (if included).
• Keep Warm: Automatically activates after most cooking cycles to keep food warm until serving. Can also be selected manually.

Using the Delay Timer

The Delay Timer allows you to set a future time for the cooking process to begin.

1. Add ingredients to the inner pot and close the lid.
2. Select your desired cooking mode using the "Function" button.
3. Press the "Delay Timer" button. The display will show a default delay time.
4. Use the control panel (if applicable, usually up/down arrows or repeated presses of Delay Timer) to adjust the delay time.
5. Press "Start/Cancel" to confirm the delay time and start the countdown. The cooker will begin cooking once the delay time has elapsed.

Maintenance and Cleaning

Proper cleaning and maintenance will extend the life of your multi-cooker.

1. Always Unplug: Before cleaning, always unplug the appliance from the power outlet and allow it to cool completely.
2. Removable Inner Pot, Measuring Cup, and Spoon: These accessories are not dishwasher safe. Wash them with warm, soapy water using a soft sponge or cloth. Rinse thoroughly and dry completely. Do not use abrasive cleaners or metal scouring pads, as they can damage the nonstick coating.
3. Lid: Wash the lid with warm, soapy water and rinse thoroughly. Ensure all food residue is removed.
4. Main Unit: Wipe the exterior of the main unit with a damp cloth. For stubborn stains, use a mild detergent. Never immerse the main unit, power cord, or plug in water or any other liquid.
5. Storage: Ensure all parts are clean and dry before storing. Store the multi-cooker in a cool, dry place.

Troubleshooting

Specifications

• Model Number: 865368100
• Capacity: 2 Quarts
• Wattage: 400 watts
• Material: Polypropylene (exterior), Nonstick (inner pot)
• Color: White
• Product Dimensions: 8"D x 8"W x 8.5"H
• Item Weight: 5 pounds
• Control Method: Touch Button
• Special Features: Non-stick, Programmable, Delay Timer, Keep Warm Function
• UPC: 723436232349

Warranty and Support

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Curtis Stone customer service.

(Specific contact information is not provided in this manual. Please refer to the product packaging or manufacturer's website for up-to-date contact details.)
