1. Introduction and Overview
This manual provides essential instructions for the safe assembly, operation, and maintenance of your VEVOR WB-048A 2-Wheel Garden Dump Cart. Designed for versatility and ease of use, this cart features a 5 cubic foot capacity and can handle loads up to 397 lbs. Its ergonomic design, durable construction, and patented dump feature make it suitable for various outdoor tasks in gardens, yards, farms, and warehouses.
Image 1: The VEVOR 2-Wheel Garden Dump Cart, showcasing its capacity with soil and potted plants.
2. Safety Instructions
- Always read and understand all instructions before assembly and operation.
- Do not exceed the maximum load capacity of 397 lbs (180 kg). For optimal performance and safety, a recommended load of 120-150 kg (approximately 265-330 lbs) is advised.
- Ensure all bolts and fasteners are securely tightened before each use.
- Use caution when transporting heavy or unevenly distributed loads to maintain balance and prevent tipping.
- Keep hands and feet clear of moving parts, especially wheels and the dumping mechanism.
- Store the cart in a secure location, away from children and pets, when not in use.
- Wear appropriate safety gear, such as gloves, when handling materials or assembling the cart.
3. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact VEVOR customer support.

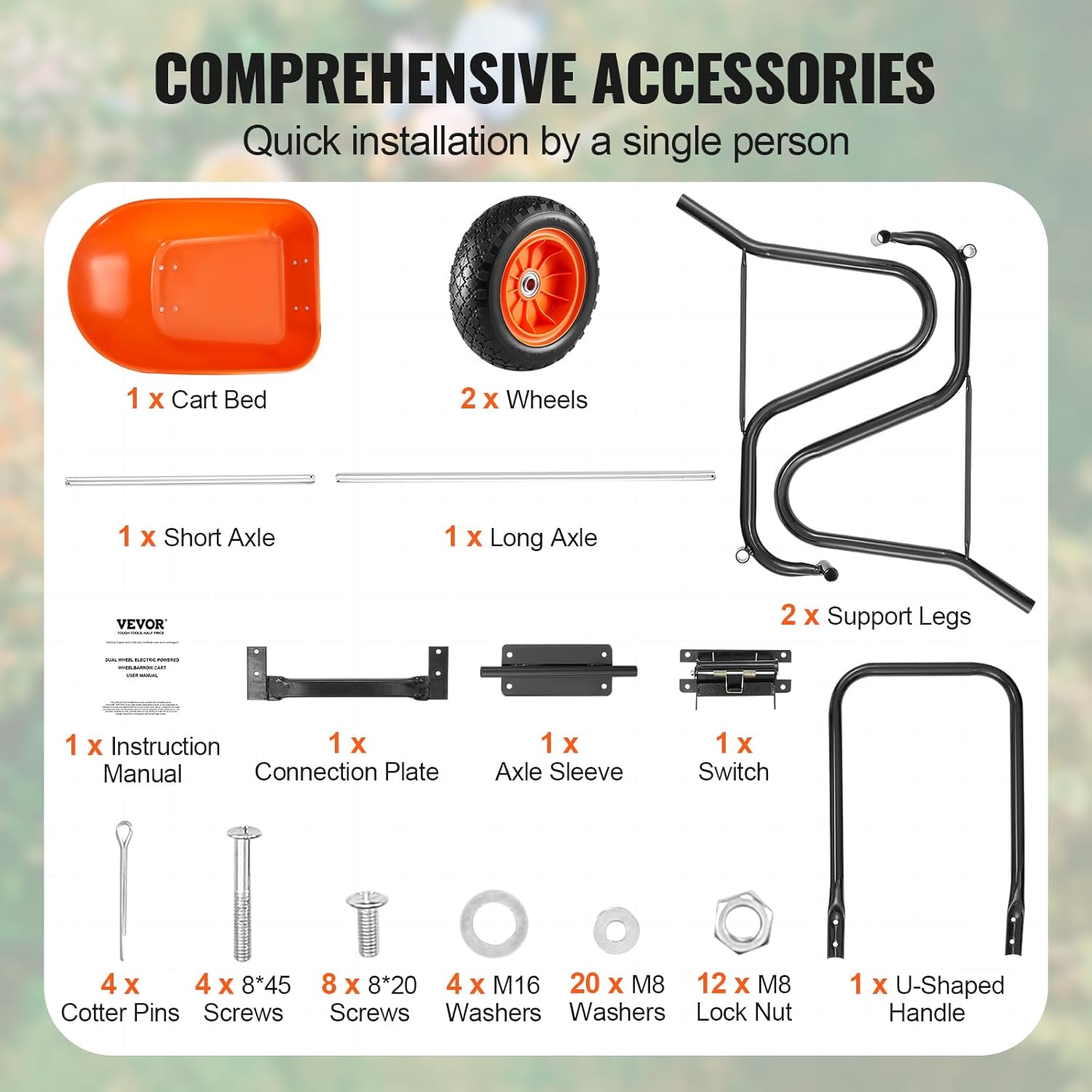

Image 2: All components included in the VEVOR Wheelbarrow Cart package.
- 1 x Tray
- 1 x U-shaped Handle
- 1 x Connecting Plate
- 1 x Axle Sleeve
- 1 x Switch (for dump mechanism)
- 2 x Legs
- 2 x Wheels (10-inch solid foam)
- 1 x Long Axle
- 1 x Short Axle
- 8 x Screws (8*20)
- 4 x Screws (8*45)
- 2 x Washers
- 4 x Cotter Pins
- 1 x Instruction Manual
4. Setup and Assembly
Assembly is straightforward and typically requires basic tools such as a wrench and a screwdriver (not included). Follow the detailed instructions provided in the included manual for proper assembly. Ensure all connections are secure before use.
- Attach the connecting plate and switch mechanism to the underside of the tray using the appropriate screws and washers.
- Secure the two legs to the main frame of the cart.
- Insert the long axle through the designated holes in the frame and attach the wheels, securing them with washers and cotter pins.
- Attach the U-shaped handle to the front of the cart, ensuring it aligns with the dumping mechanism.
- Double-check all bolts and connections for tightness.
Note: No official VEVOR assembly videos were available for embedding. Please refer to the printed instruction manual for detailed visual guides.
5. Operating Instructions
5.1 Loading the Cart
Place items evenly within the 5 cubic foot tray to maintain balance. Avoid overloading the cart beyond its 397 lbs capacity. The wide base helps distribute weight, making it suitable for transporting various materials like gravel, soil, fertilizer, and tools.
Image 3: Demonstrating the cart's capacity, capable of hauling multiple bags of soil.
5.2 Moving the Cart
Grasp the padded U-shaped handle firmly. The 10-inch solid foam wheels provide traction and a smooth ride across various terrains, including hilly and uneven paths. Push or pull the cart with steady motion, especially when loaded, to prevent loss of control.
Image 4: The 10-inch solid foam tires are designed for all-terrain use, offering shock absorption and anti-tip stability.
5.3 Dumping Contents
The cart features a patented dump design for easy unloading. To dump, engage the switch mechanism (refer to your manual for exact location and operation) which allows the tray to tilt forward, effortlessly releasing its contents. This flip-over hopper design simplifies garden work.
Image 5: The cart's design allows for effortless transport and unloading with its tilting bed.
6. Maintenance
- Cleaning: The PP plastic tray is resistant to cracking and deformation. Clean the tray with water and mild soap after each use to remove soil, debris, and chemicals.
- Tires: The PU solid tires are explosion-proof and anti-leakage, requiring no inflation. Periodically check the wheels for any signs of wear or damage.
- Frame: The heavy-duty metal frame is designed for durability. Inspect the frame regularly for any signs of rust, bending, or loose connections. Tighten any loose bolts as needed.
- Storage: For space-efficient storage, the U-shaped handle allows the cart to be easily hung on a wall. Store in a dry, protected area to prolong its lifespan.
Image 6: The PP material of the cart bed is corrosion-resistant and wear-resistant, suitable for outdoor conditions.
7. Troubleshooting
- Difficulty Moving: Check for overloaded conditions or uneven weight distribution. Ensure wheels are free of debris and axles are properly secured.
- Unstable Operation: Verify that all assembly bolts are tightened. Ensure the ground surface is as level as possible when loading or parking the cart.
- Dumping Mechanism Issues: Inspect the switch and connecting plate for any obstructions or damage. Ensure the mechanism is properly engaged.
8. Specifications
| Feature | Detail |
|---|---|
| Item Model Number | WB-048A |
| Maximum Load Capacity | 397 lbs (180 kg) |
| Hopper Capacity | 5 Cubic Feet |
| Net Weight | 26.5 lbs (12 kg) |
| Product Dimensions (L x W x H) | 49.21" x 24.8" x 32.28" (125 x 63 x 82 cm) |
| Hopper Size (L x W x H) | 36.22" x 24.8" x 10.24" (92 x 63 x 26 cm) |
| Main Materials | Iron, Polypropylene (PP), Polyurethane (PU) |
| Color | Orange + Black |
| Tire Type | 10" Tubeless PU Solid Foam Wheels |
| Number of Wheels | 2 |
| Assembly Required | Yes |
Image 7: Detailed dimensions and key specifications of the VEVOR WB-048A cart.
9. Warranty and Support
For warranty information, please refer to the documentation included with your product or visit the official VEVOR website. If you encounter any issues or require technical assistance, please contact VEVOR customer support for guidance.
Contact Information: Refer to your product packaging or the VEVOR official website for the most current customer support details.
