KUAFU BL3329 45-Degree 4-Inch Aluminum Intercooler Pipe Instruction Manual

1. Introduction

Welcome to the instruction manual for your KUAFU BL3329 45-Degree Aluminum Intercooler Pipe. This manual provides essential information regarding the product's features, specifications, installation guidelines, and maintenance recommendations. Please read this manual thoroughly before installation and use.

2. Product Overview

The KUAFU BL3329 is a high-performance 45-degree aluminum intercooler pipe designed to optimize airflow in automotive air intake, cooling systems, and turbo intercooler piping setups. Its construction and design aim to enhance vehicle performance.

• High-Performance Material: Constructed from high-grade aluminum to ensure lightweight properties and contribute to improved engine efficiency.
• Optimized Airflow Design: Features a streamlined design intended to reduce airflow resistance, increase air intake volume, and potentially improve power and acceleration.
• Polished Exterior: The pipe features a polished silvery exterior finish.

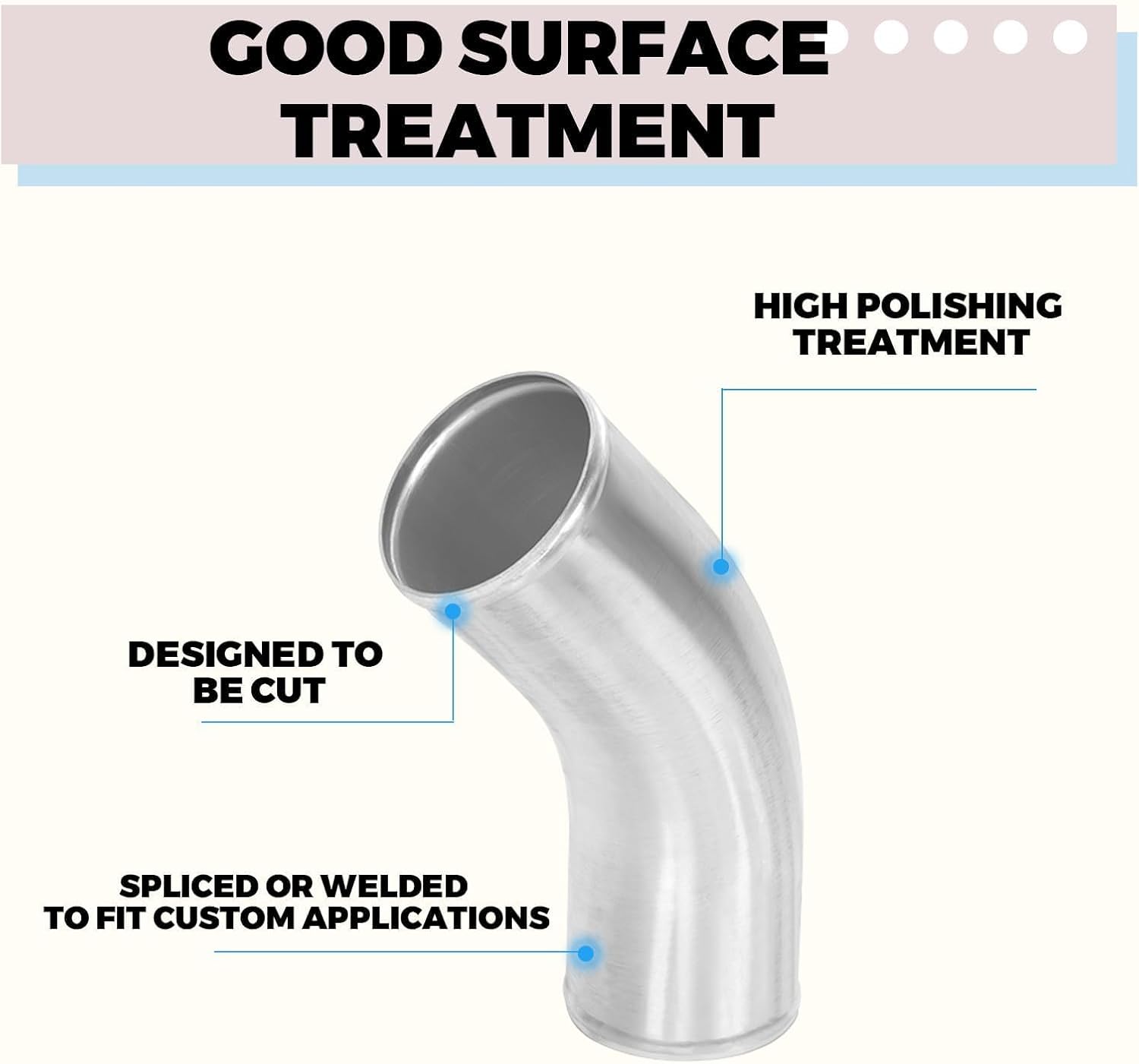

• Customizable: Designed to be cut, spliced, or welded to fit various custom applications.

3. Package Contents

Upon unpacking, please verify that all components are present and undamaged.

• 1 x KUAFU BL3329 45-Degree Aluminum Intercooler Pipe

Note: Mounting hardware and additional installation instructions are not included with this product. These items must be sourced separately based on your specific application.

4. Specifications

Refer to the table below for detailed product specifications:

5. Installation Guidelines

This aluminum intercooler pipe is designed for clamp installation, which can be a straightforward process. However, due to the nature of automotive modifications and the potential for custom applications, professional installation is highly recommended to ensure proper fitment, optimal performance, and safety. This product does not include mounting hardware or detailed vehicle-specific installation instructions.

General Installation Steps:

1. Preparation: Ensure the vehicle's engine is cool and disconnected from the battery before beginning any work. Identify the intended location for the intercooler pipe within your vehicle's system.
2. Measurement and Cutting (if necessary): If your application requires a specific length, carefully measure and cut the pipe using appropriate metal-cutting tools. Ensure all cut edges are clean and free of burrs to prevent damage to connecting hoses.
3. Test Fitment: Temporarily position the pipe to ensure proper alignment with existing components and check for any clearance issues.
4. Securing Connections: Use appropriate high-quality clamps (not included) to secure the pipe firmly to the connecting silicone hoses or other components. Ensure all connections are tightened to the manufacturer's specifications to prevent air leaks under boost pressure.
5. Final Inspection: After installation, visually inspect all connections and ensure there is no interference with other engine components, wiring, or moving parts. Reconnect the battery.

Important: If you are unsure about any step of the installation process or lack the necessary tools and experience, consult a qualified automotive technician. Improper installation can lead to reduced performance or damage to your vehicle.

6. Maintenance

To ensure the longevity and optimal performance of your KUAFU aluminum intercooler pipe, follow these general maintenance tips:

• Regular Inspection: Periodically check the pipe and its connections for any signs of wear, such as dents, cracks, or corrosion. Also, inspect the clamps for tightness and ensure they are not corroded or damaged.
• Cleaning: Clean the exterior of the pipe with a soft cloth and a mild automotive-safe cleaner to maintain its polished finish. Avoid using abrasive materials or harsh chemicals that could scratch or damage the aluminum surface.
• Leak Checks: If you notice any signs of reduced engine performance, unusual noises (like whistling or hissing), or a drop in boost pressure, perform a thorough check for air leaks around all connections and along the pipe itself.

7. Troubleshooting

This section addresses common issues that may arise with intercooler piping and provides general troubleshooting steps.

• Issue: Reduced Engine Performance or Loss of Boost
  • Possible Cause: Air leaks in the intercooler system, loose connections, or damaged hoses.
  • Solution: Inspect all connections and clamps for tightness. Ensure hoses are properly seated and free from cracks or tears. Replace any damaged components.
• Issue: Whistling or Hissing Noises from Engine Bay
  • Possible Cause: Air escaping from a loose connection, a small crack in the pipe, or a faulty hose.
  • Solution: Carefully listen to locate the source of the noise. Tighten any loose clamps or connections. If the pipe is damaged, it may need to be repaired or replaced.
• Issue: Pipe Movement or Excessive Vibration
  • Possible Cause: Insufficiently secured pipe, loose clamps, or inadequate mounting points.
  • Solution: Ensure all clamps are properly tightened. For custom setups, consider adding additional support brackets or mounting points to prevent movement and potential damage.

8. Warranty and Support

For information regarding warranty coverage, terms, and conditions, please refer to the purchase documentation provided at the time of sale. For customer support, technical assistance, or inquiries about your KUAFU product, please utilize the following contact information:

Contact Information:

• Visit the KUAFU Store on Amazon for more product information and support options.
