1. Introduction
The SANYI Dowsil 3145 RTV Adhesive Sealant is a high-strength, one-part, moisture-curing RTV (Room Temperature Vulcanizing) silicone adhesive. Designed for non-flow applications, this sealant offers robust adhesion and sealing capabilities for various electronic and industrial uses. It meets MIL-A-46146 specifications, ensuring reliability in demanding environments.
Image 1.1: The Dowsil 3145 RTV Adhesive Sealant tube, showing the product packaging and branding.
2. Product Features and Benefits
The Dowsil 3145 RTV Adhesive Sealant provides a range of features and benefits for industrial and electronic applications:
- Non-Flowing: Maintains its shape and position after application, ideal for vertical or overhead surfaces.
- High Strength: Offers excellent tensile strength (940 psi) and elongation (660%) for durable bonds.
- Enhanced Thermal Stability: Operates effectively across a wide temperature range of -45 °C to 200 °C.
- MIL-A-46146 Compliance: Meets Group II/III, Type I military specifications for quality and performance.
- One-Part System: Requires no mixing, simplifying application.
- Room Temperature Cure: Cures at ambient conditions, eliminating the need for ovens.
- Faster In-Line Processing: Can be accelerated with heat for quicker production cycles.
- Primerless Adhesion: Bonds effectively to various substrates like glass and Nylon 6/6 without a primer.
- Water Resistant: Provides reliable sealing against moisture.
3. Intended Uses
This adhesive sealant is suitable for a variety of critical applications, including:
- Sealing openings in electronic modules and housings.
- Adding mechanical stability to individual components on Printed Wiring Boards (PWBs).
- Assembly of components on PWBs.
- Sealing in and around wired and electrical leads.
- Applications in battery packs, boards, assemblies, and various housings.
4. Technical Specifications
| Property | Value |
|---|---|
| Product Form | Paste |
| Color | Clear |
| Temperature Range | -45 °C to 200 °C |
| Cure Type | Alkoxy Cure, Condensation Cure, Methoxy Cure |
| Number of Parts | 1 part |
| Room Temperature Cure Time | 48 Hours |
| Tack-Free Time (50% RH) | 55 Minutes |
| Working Time | > 10 minutes |
| Adhesion To | Glass, Nylon 6/6 |
| Dielectric Strength | 500 volts per mil (v/mil) |
| Tensile Strength | 940 psi |
| Elongation | 660% |
| Durometer - Shore A | 45 |
| Specific Gravity (at 25°C) | 1.1 |
| Shelf Life | 360 Days |
| Volume Resistivity | 4.4e+014 Ω·cm |
| Package Size | 305ml (10.3 oz) bottle |
| Regulatory Approvals | MIL Spec |
5. Setup and Preparation
Proper preparation is crucial for optimal performance and adhesion of the Dowsil 3145 RTV Adhesive Sealant.
5.1 Safety Precautions
- Ensure adequate ventilation in the work area.
- Wear appropriate personal protective equipment, including gloves and eye protection.
- Refer to the product's Safety Data Sheet (SDS) for detailed safety information.
5.2 Surface Preparation
Surfaces to be bonded or sealed must be clean, dry, and free of oil, grease, dust, and other contaminants. For best results:
- Clean surfaces with a suitable solvent (e.g., isopropyl alcohol) and allow them to dry completely.
- Abrade smooth, non-porous surfaces lightly to improve mechanical keying, then clean again.
5.3 Product Preparation
The Dowsil 3145 RTV is a one-part sealant and requires no mixing. Ensure the product is at room temperature (20-25°C) before use for optimal flow and cure characteristics.

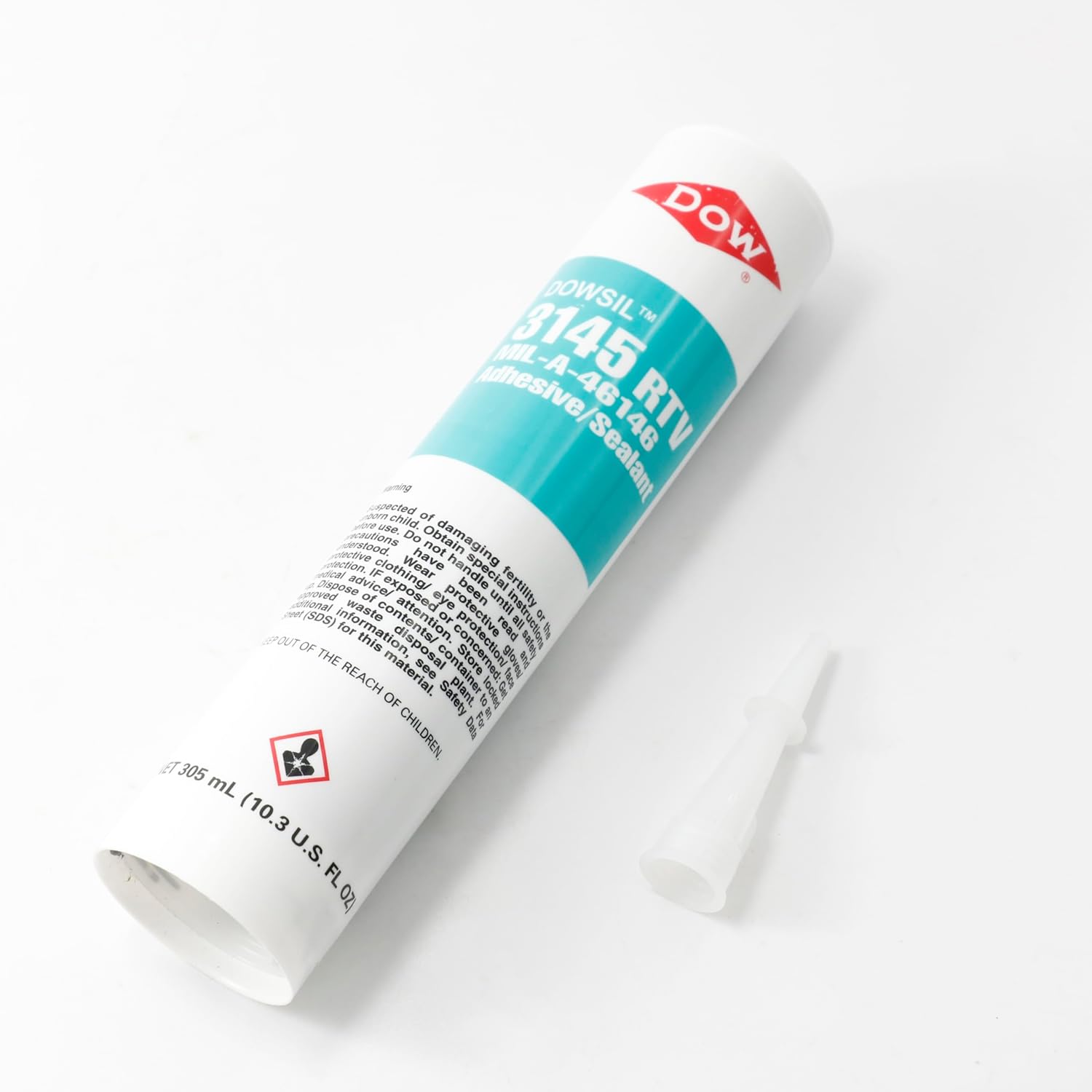

Image 5.1: The Dowsil 3145 RTV tube with an applicator nozzle, ready for use.
6. Application (Operating Instructions)
Follow these steps for effective application of the Dowsil 3145 RTV Adhesive Sealant:
- Prepare the Cartridge: Cut the tip of the nozzle to the desired bead size.
- Dispense the Sealant: Apply a continuous, uniform bead of sealant to one of the prepared surfaces. A caulking gun or pneumatic dispenser can be used for larger applications.
- Assemble Components: If bonding, assemble the components within the sealant's working time (approximately 10 minutes). Apply light pressure to ensure good contact and spread of the sealant.
- Tooling (Optional): If necessary, tool the sealant bead immediately after application to achieve the desired finish.
- Curing: The sealant begins to cure upon exposure to atmospheric moisture. The tack-free time is approximately 55 minutes at 50% relative humidity. Full room temperature cure typically takes 48 hours. Cure time may vary depending on humidity, temperature, and bond line thickness.

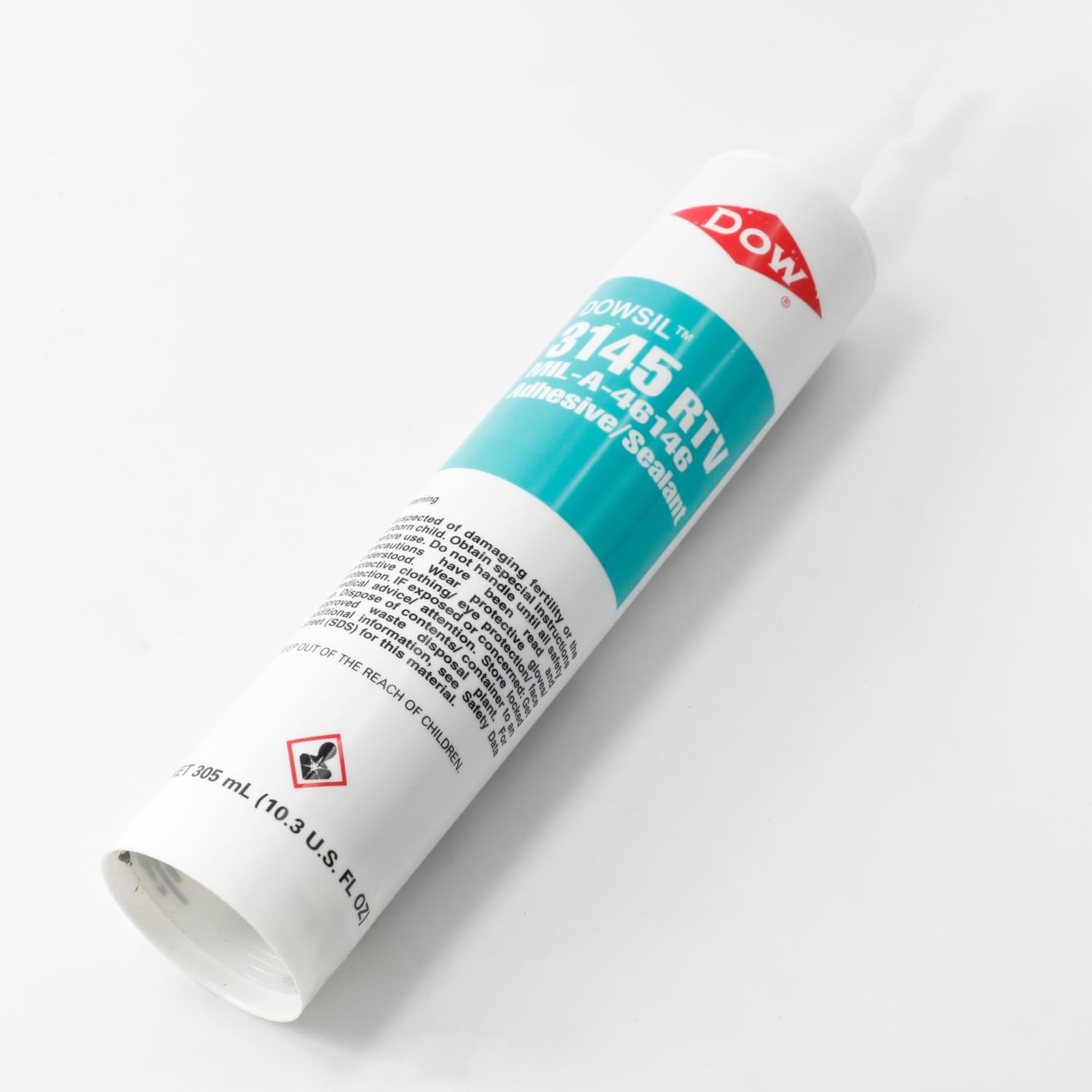

Image 6.1: Angled view of the Dowsil 3145 RTV tube, highlighting the nozzle for precise application.
7. Maintenance
7.1 Storage
Store the Dowsil 3145 RTV Adhesive Sealant in its original, unopened container in a cool, dry place at or below 30°C (86°F). The shelf life is 360 days from the date of manufacture when stored under these conditions.
7.2 Cleaning
Uncured sealant can be cleaned from tools and surfaces using a suitable solvent. Once cured, the sealant is difficult to remove and may require mechanical abrasion.
8. Troubleshooting
This section addresses common issues that may arise during the use of Dowsil 3145 RTV Adhesive Sealant.
8.1 Poor Adhesion
- Cause: Insufficient surface preparation (e.g., dirty, oily, or wet surfaces).
- Solution: Ensure all surfaces are thoroughly cleaned and dried before application. Consider light abrasion for very smooth substrates.
- Cause: Incompatible substrate.
- Solution: While Dowsil 3145 offers primerless adhesion to many materials, test on a small, inconspicuous area first if unsure about substrate compatibility.
8.2 Slow or Incomplete Cure
- Cause: Low humidity or temperature.
- Solution: Dowsil 3145 cures by reacting with atmospheric moisture. Ensure the application environment has adequate humidity (ideally 30-70% RH) and is within the recommended temperature range (20-25°C).
- Cause: Excessive sealant thickness.
- Solution: For very thick applications, cure time will be significantly longer as moisture must diffuse through the sealant. Apply in thinner layers if possible, or allow extended cure time.
- Cause: Expired product.
- Solution: Check the expiration date. Ensure the product has been stored correctly.
8.3 Sealant Does Not Flow
- Cause: This product is intentionally non-flowing.
- Solution: Dowsil 3145 is designed to be non-slump and non-flowing. If a flowing sealant is required, a different product should be selected.
9. What's in the Box
The product package typically includes:
- One 305ml (10.3 oz) bottle of Dowsil 3145 RTV Adhesive Sealant (Paste)
- Applicator nozzle(s)
- Outer packaging box
Image 9.1: Top-down view of the Dowsil 3145 RTV tube with its nozzle, illustrating the complete product unit.
10. Warranty and Support
Specific warranty information for the SANYI Dowsil 3145 RTV Adhesive Sealant is not provided in the product details. For warranty claims, technical support, or further inquiries, please contact the seller or manufacturer directly.
Manufacturer: Dowsil
Brand/Distributor: SANYI
