XUZENEST 5-Drawer Dresser (Model BFD-006) Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, safe use, and maintenance of your XUZENEST 5-Drawer Dresser, Model BFD-006. Designed with a modern aesthetic featuring a waveform fluted panel and walnut finish, this dresser offers practical storage solutions for various rooms.

Image: The XUZENEST 5-Drawer Dresser in walnut finish, showcasing its modern design and five drawers.

Safety Information

To prevent injury and ensure stability, it is crucial to follow all safety guidelines during assembly and use. Furniture tip-over can cause serious or fatal injuries. Always secure the dresser to the wall using the provided anti-tipping device.

• Always use the anti-tipping device provided to secure the dresser to a wall.
• Do not allow children to climb on drawers or shelves.
• Place heavier items in lower drawers.
• Do not open multiple drawers simultaneously.
• Ensure the dresser is placed on a level surface.

Image: Illustration demonstrating the proper installation of the anti-tipping device to secure the dresser to a wall, preventing accidental tip-overs.

Package Contents

Before beginning assembly, verify that all components and hardware are present and undamaged. Refer to the included parts list in your packaging for a complete inventory. If any parts are missing or damaged, contact customer support.

Typical contents include:

• Dresser panels (top, bottom, sides, back)
• Drawer components (fronts, sides, backs, bottoms)
• Drawer slides and hardware
• Handles
• Legs
• Anti-tipping device
• Assembly hardware (screws, dowels, cam locks, etc.)
• Instruction manual

Assembly Instructions

Assembly requires a Phillips head screwdriver. It is recommended to have two people for assembly to ensure stability and ease of handling larger components. Follow the step-by-step instructions provided in the physical manual included with your product. Ensure all parts are correctly oriented before tightening fasteners.

1. Prepare Workspace: Clear a spacious, clean, and flat area for assembly. Lay out all parts and hardware, organizing them by their labels.
2. Assemble Frame: Begin by connecting the side panels to the bottom panel using the specified hardware. Ensure the back panel grooves are correctly aligned.
3. Attach Legs: Secure the four solid wooden legs to the bottom of the dresser frame.
4. Install Drawer Slides: Attach the drawer slides to the inner side panels of the dresser frame. Pay close attention to the orientation of each slide (left and right).
5. Assemble Drawers: For each of the five drawers, connect the front, back, and side panels. Insert the drawer bottom into the grooves. Attach the corresponding drawer slides to the drawer sides.
6. Attach Handles: Secure the aluminum handles to the front of each drawer.
7. Insert Drawers: Carefully slide each assembled drawer into its designated slot on the dresser frame. Ensure smooth operation. If a drawer appears crooked, verify the left/right orientation of the drawer slides and drawer components.
8. Install Anti-Tipping Device: Securely attach the anti-tipping device to the top rear of the dresser and to a wall stud, following the specific instructions provided with the device. This step is critical for safety.

Image: Close-up views highlighting the five large drawers, the design of the stylish metal handles, and the construction of the sturdy legs.

Operating Instructions

Your XUZENEST 5-Drawer Dresser is designed for easy and efficient storage.

• Drawer Operation: The drawers feature smooth metal guide rails for easy opening and closing. Pull the aluminum handle gently to open and push to close.
• Storage Capacity: Each drawer is designed to hold up to 35 lbs (15.8 kg). The spacious top surface can support items such as lamps, decorative objects, and small electronics, with a maximum weight capacity of 100 lbs (45.3 kg).
• Organization: Utilize the five large drawers to organize clothing, linens, books, toys, or other personal items.

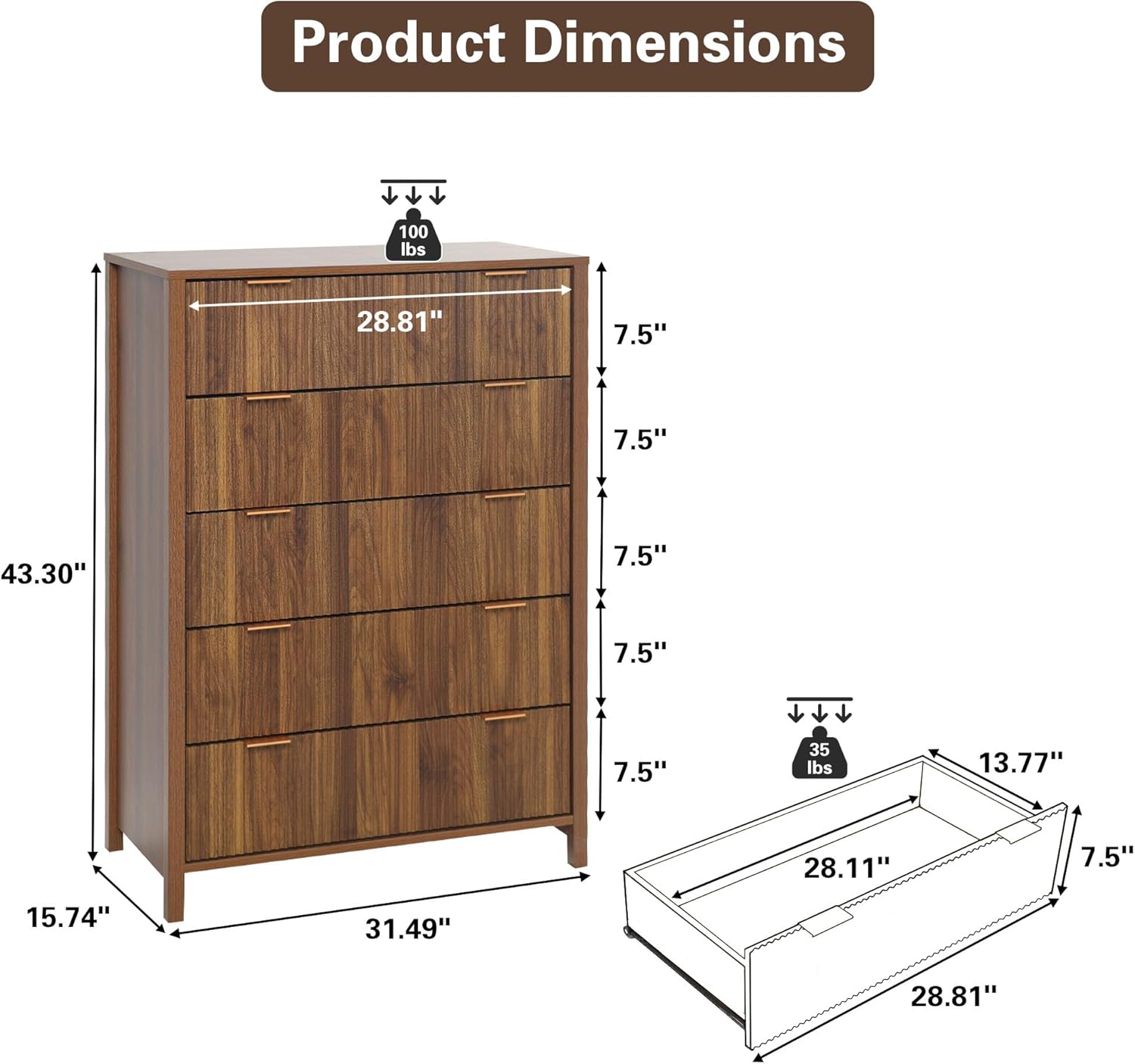

Image: Diagram detailing the overall product dimensions (15.74"D x 31.49"W x 43.30"H) and the internal dimensions and weight capacity of each drawer (35 lbs per drawer, 100 lbs for the top surface).

Maintenance

Proper care will extend the life and appearance of your dresser.

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, which can damage the finish.
• Spills: Immediately wipe up any spills to prevent staining or damage to the wood finish.
• Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration.
• Humidity: Maintain a stable room temperature and humidity level to prevent warping or cracking of the wood.
• Hardware: Periodically check and tighten all assembly hardware to ensure the dresser remains stable.

Troubleshooting

Refer to the following common issues and solutions:

Specifications

• Brand: XUZENEST
• Model Name: 5 Drawer Dressers for Bedroom
• Model Number: BFD-006
• Color: Walnut
• Product Dimensions (Overall): 15.74"D x 31.49"W x 43.30"H
• Item Weight: 60 Pounds (27.2 kg)
• Number of Drawers: 5
• Drawer Type: Side Mount
• Material: Premium MDF wood
• Drawer Weight Capacity: Up to 35 lbs (15.8 kg) per drawer
• Top Surface Weight Capacity: Up to 100 lbs (45.3 kg)
• Assembly Required: Yes
• Room Type: Bedroom, Dining Room, Living Room, Nursery, Hallway, Closet

Image: Multiple views of the dresser (front, angled, side, back) to illustrate its complete design and structure.

Warranty and Support

For any questions regarding your XUZENEST 5-Drawer Dresser, including assembly assistance, missing parts, or product concerns, please contact XUZENEST customer support. Refer to your purchase documentation for specific warranty details. The manufacturer is XUZENEST.

Contact information can typically be found on the packaging or through the retailer where the product was purchased.
