Introduction
This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your MUPATER 12x16 FT Cedar Wood Pergola. Please read this manual thoroughly before beginning assembly or use to ensure safe and proper installation and longevity of your product.
Safety Information
Always follow the assembly instructions and use the provided stakes or additional anchor bolts to secure the pergola to a stable foundation. Be cautious during assembly and disassembly, as the process may involve heavy components. Regularly inspect the pergola for any signs of wear or damage, especially after exposure to harsh weather conditions. Do not exceed the weight limit of the pergola when using or adding accessories.
Product Overview
The MUPATER 12x16 FT Cedar Wood Pergola is designed to enhance your outdoor living space, providing a sturdy and aesthetically pleasing structure for various activities.
Image: The MUPATER 12x16 FT Cedar Wood Pergola provides an elegant outdoor living space, shown here next to a swimming pool with comfortable seating.
Key Features
- Strong Stability: Utilizes metal ground piles for secure fixation on soil. Can also be anchored to cement or other stable surfaces with additional bolts.
- Solid Cedar Wood Construction: Made from rot-resistant cedar wood, suitable for various climates.
- Flat Roof Design: Offers ample sunlight and can be adapted with additional covers for more shade or rain protection.
- Traditional Antique Exterior: Rustic design complements most outdoor decorations and is ideal for climbing plants.
- Simplified Assembly: Includes detailed instructions and assembly video support.
Specifications
| Attribute | Detail |
|---|---|
| Brand | MUPATER |
| Model Number | PG0202-08-H |
| Material | Cedar Wood |
| Style | Classic |
| External Dimensions (L x W x H) | 192.1" x 137.8" x 88.2" |
| Interior Dimensions (L x W x H) | 159.4" x 107.5" x 81.8" |
| Maximum Entrance Height | 81.8 inches |
| Item Weight | 321.9 Pounds |
| Water Resistance Level | Water Resistant |
| Assembly Required | Yes |
Setup and Assembly
Assembly of the MUPATER pergola requires careful attention to detail. It is recommended to have at least two people for assembly due to the size and weight of the components. Follow the step-by-step instructions provided in the included assembly guide. An assembly video is also available to assist with the process.

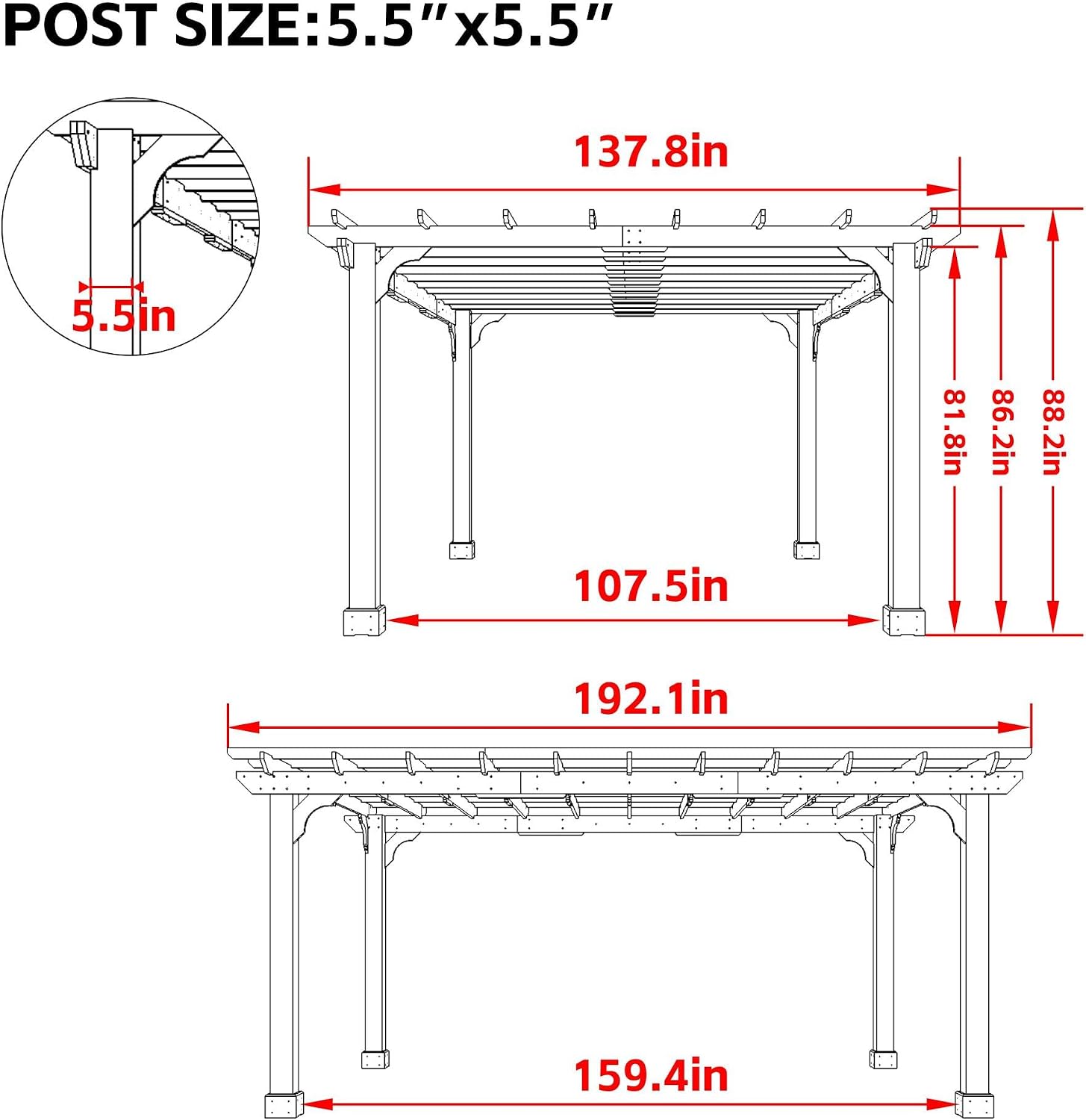

Image: Detailed dimensional diagram of the pergola, illustrating key measurements for planning and assembly.
Image: The pergola includes stakes for installation on dirt ground. It is also applicable for installation on cement, wood decks, and concrete surfaces, though pavers are not recommended.
Foundation and Anchoring
The pergola comes with metal ground piles for securing the posts into soil. For installation on hard surfaces such as cement, wood decks, or concrete, additional anchor bolts (not included) will be required to ensure stability. It is not recommended to install the pergola on stone or paver surfaces as they may lift over time.
Operating and Usage
Your MUPATER pergola provides a versatile outdoor space. Its flat roof design allows for ample natural light, making it ideal for various daytime activities. The slatted roof trellis is designed to support lightweight hanging items, decorations, or climbing plants.

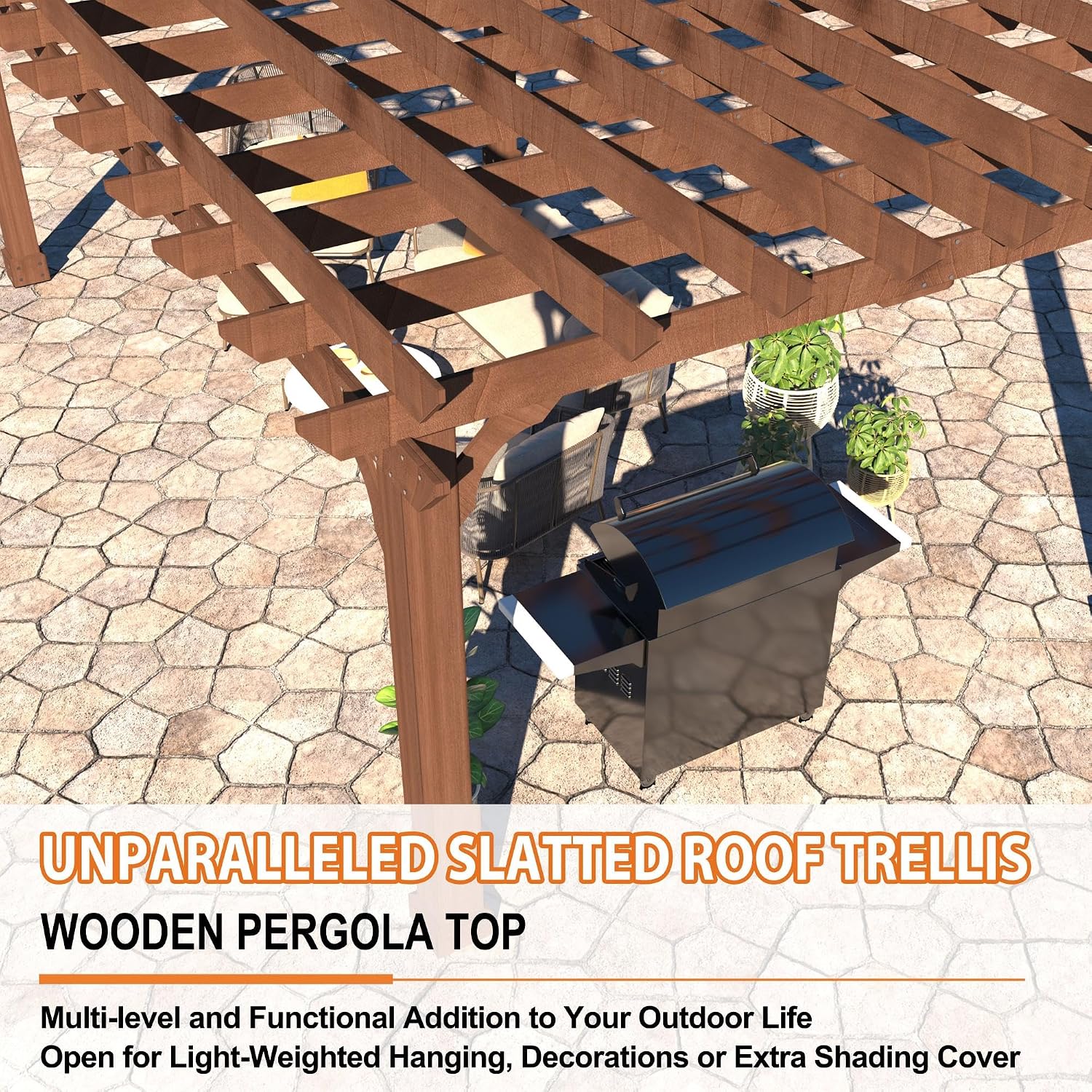

Image: The slatted roof trellis of the pergola allows for multi-level light filtering and can be used for hanging lightweight decorations or supporting climbing plants.
Enhancing Your Pergola
For increased shade or rain protection, you may add an extra cover to the top of the pergola. Ensure any added covers are securely fastened and do not exceed the structural integrity of the pergola, especially during windy conditions. The robust design allows for hanging lightweight hammocks, swings, or ceiling fans if desired, within safe weight limits.
Maintenance
Regular maintenance will extend the life and preserve the appearance of your MUPATER Cedar Wood Pergola.
Image: The MUPATER pergola is built with solid wood construction to withstand up to 4 seasons and winds up to 80 MPH, demonstrating its durability in various weather conditions.
Wood Care
While cedar wood is naturally resistant to rot, applying an additional water-based stain is highly recommended for better protection against the elements and to maintain its aesthetic appeal. This should be done periodically, especially if the pergola is exposed to harsh weather conditions. Ensure the stain is non-toxic and suitable for outdoor use.
Seasonal Inspection
Before and after periods of extreme weather (e.g., heavy snow, strong winds), inspect all structural components, connections, and anchors for any signs of loosening, cracking, or damage. Tighten any loose bolts and replace damaged parts promptly to ensure continued stability and safety.
Troubleshooting
This section addresses common issues you might encounter with your pergola.
- Issue: Pergola feels unstable or wobbly.
- Solution: Ensure all bolts and screws are securely tightened. Verify that the posts are properly anchored to the ground using the provided stakes or appropriate anchor bolts for your surface type. Check the ground for unevenness and level the pergola if necessary.
- Issue: Wood appears faded or weathered.
- Solution: Apply a fresh coat of water-based stain designed for outdoor cedar wood. Clean the wood surface thoroughly before applying the stain.
- Issue: Difficulty during assembly.
- Solution: Review the detailed assembly instructions and diagrams carefully. Watch the assembly video if available. Ensure all parts are correctly identified and oriented before attempting to connect them. Do not force components; if they don't fit, re-check the instructions.
Warranty and Support
MUPATER is committed to providing quality products. For any questions, concerns, or assistance with your pergola, please contact customer support.
Return Policy
This product is eligible for a 30-day easy return policy. Please refer to your purchase documentation or the retailer's website for specific details regarding returns and refunds.
Customer Support
For further assistance, please visit the MUPATER Store on Amazon or contact the seller directly. You can also find general customer support information here.
