1. Introduction
Thank you for choosing the White Point WPR543DVX No Frost Digital Inverter Refrigerator. This manual provides important information regarding the installation, operation, maintenance, and troubleshooting of your appliance. Please read it thoroughly before using the refrigerator to ensure safe and efficient operation.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury. Keep this manual for future reference.
- Ensure the refrigerator is properly grounded.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- Do not damage the refrigerant circuit.
- This appliance is intended for household use only.
2. Product Overview
The White Point WPR543DVX is a 525-liter No Frost Digital Inverter Refrigerator designed for optimal food preservation and energy efficiency. It features a sleek stainless steel finish and advanced cooling technologies.
Key Features:
- Inverter Technology: Ensures energy-efficient operation with stable cooling and low noise levels.
- No Frost Technology: Prevents ice buildup, eliminating the need for manual defrosting.
- Digital Control Panel: Easy-to-use interface for precise temperature adjustment.
- Adjustable Shelves: Three adjustable shelves in the refrigerator and one in the freezer for flexible storage.
- LED Lighting: Bright LED illumination in both compartments for clear visibility.
- Holiday Mode: Reduces energy usage when the refrigerator is not frequently used.
- Safety Lock: Prevents accidental changes to settings.
- Quick Cool & Freeze: Options for rapid cooling or preserving fresh food.
- Door Open Alarm: Alerts if the door is left open, saving energy and keeping food fresh.
- Humidity-Controlled Crisper: Maintains freshness of produce.
- 0-Degree Drawer: Dedicated drawer for perishable items like meats and fish.
- Multi-Air Flow System: Ensures even cooling throughout all compartments.
- Reversible Doors: Allows flexible installation with left or right door opening.
Components Diagram
Refer to the following images for a visual representation of the refrigerator's exterior and interior components.

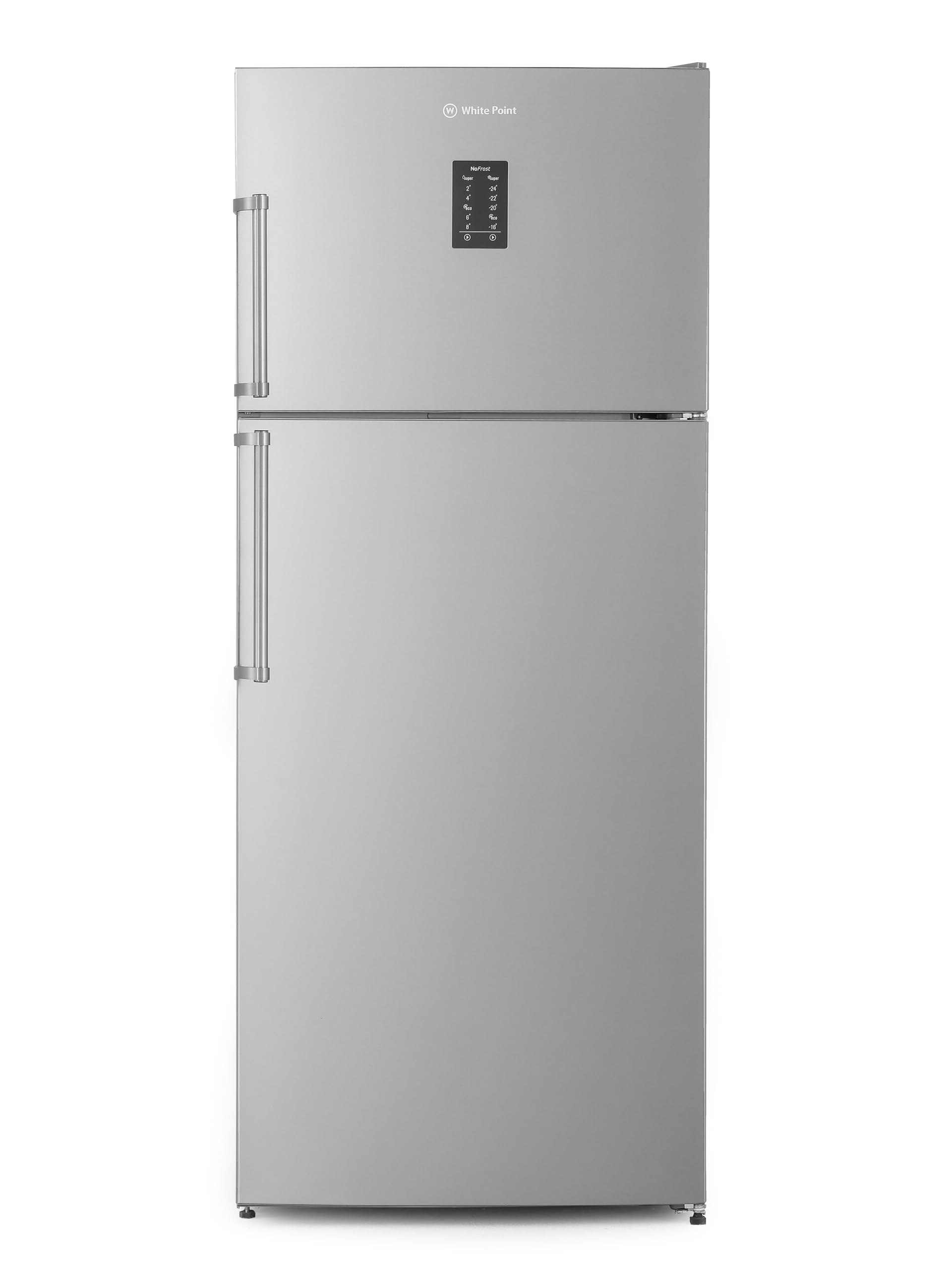

Figure 2.1: Front view of the White Point WPR543DVX No Frost Digital Inverter Refrigerator. Shows the stainless steel finish and dual doors with handles.
Figure 2.2: Interior view of the White Point WPR543DVX Refrigerator. Displays the adjustable shelves, crisper drawers, door shelves, and freezer compartment.
3. Setup and Installation
Unpacking
- Remove all packaging materials, including foam and adhesive tape.
- Inspect the refrigerator for any shipping damage. Report any damage to your retailer immediately.
- Keep packaging materials out of reach of children.
Location Requirements
- Place the refrigerator on a firm, level floor.
- Ensure adequate ventilation around the appliance. Maintain at least 10 cm (4 inches) clearance from the back and sides.
- Avoid direct sunlight or heat sources (e.g., stoves, radiators).
- The ambient temperature should be between 10°C and 43°C (50°F and 109°F).
Leveling the Appliance
Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.
Electrical Connection
- Connect the refrigerator to a dedicated, grounded 220V AC power outlet.
- Do not use extension cords or adapters.
- Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
Reversible Doors
The doors of this refrigerator can be reversed to open from either the left or right side, depending on your kitchen layout. Refer to the detailed instructions in the separate installation guide for door reversal procedures. It is recommended to have this procedure performed by a qualified technician.
4. Operating Instructions
Digital Control Panel
The digital control panel is located on the front of the refrigerator door. It allows you to adjust temperature settings and activate special functions.
Figure 4.1: Close-up of the digital control panel. Shows temperature display and function buttons.
Temperature Adjustment
- Refrigerator Compartment: Press the 'Fridge' button to cycle through temperature settings. Recommended setting is 4°C (39°F).
- Freezer Compartment: Press the 'Freezer' button to cycle through temperature settings. Recommended setting is -18°C (0°F).
- Allow several hours for the temperature to stabilize after making adjustments.
Special Functions
- Quick Cool: Activates rapid cooling in the refrigerator compartment for a set period, ideal for quickly chilling newly added groceries.
- Quick Freeze: Activates rapid freezing in the freezer compartment, useful for freezing large quantities of fresh food quickly.
- Holiday Mode: Sets the refrigerator to an energy-saving mode when you are away for an extended period. The freezer continues to operate normally, while the refrigerator compartment maintains a higher temperature to prevent odors.
- Safety Lock: Press and hold the 'Lock' button for 3 seconds to activate/deactivate the control panel lock, preventing accidental changes.
Door Open Alarm
If a door is left open for an extended period, an audible alarm will sound, and an indicator light may illuminate on the control panel. Close the door promptly to conserve energy and maintain food freshness.
5. Maintenance and Care
Cleaning the Interior
- Always unplug the refrigerator before cleaning.
- Wash the interior surfaces with a solution of mild detergent and warm water.
- Rinse thoroughly and dry with a soft cloth.
- Removable shelves and drawers can be washed in warm soapy water.
- Do not use abrasive cleaners, scouring pads, or harsh chemicals.
Cleaning the Exterior
- Wipe the exterior with a soft cloth dampened with mild detergent.
- For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain.
- Clean the door gaskets regularly to ensure a tight seal.
Defrosting
This refrigerator features No Frost technology, which automatically prevents ice buildup in both the freezer and refrigerator compartments. Manual defrosting is not required.
Power Outage
In case of a power outage, keep the refrigerator doors closed to maintain the internal temperature for as long as possible. Food will remain frozen for approximately 12-24 hours depending on the ambient temperature and how full the freezer is.
6. Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power supply; power cord unplugged; circuit breaker tripped. | Check power connection; reset circuit breaker. |
| Refrigerator is not cold enough. | Temperature setting too high; door left open; too much food loaded; poor ventilation. | Adjust temperature setting; ensure door is closed; do not overload; ensure proper clearance. |
| Unusual noises. | Appliance not level; objects touching the back; normal operating sounds. | Level the appliance; move objects away; gurgling/hissing sounds are normal. |
| Water on floor. | Drain tube clogged; drip tray overflowing. | Clear drain tube; ensure drip tray is correctly positioned. |
| Door does not close properly. | Door gasket dirty/damaged; appliance not level; food blocking door. | Clean/replace gasket; level appliance; rearrange food items. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand Name | White Point |
| Model Information | WPR543DVX |
| Product Dimensions (D x W x H) | 75 x 76 x 186 cm |
| Energy Efficiency | A+ |
| Total Capacity | 525 Liters |
| Annual Energy Consumption | 550 kWh per year |
| Fresh Food Capacity in Refrigerator | 525 Liters |
| Freezer Capacity | 52 Liters |
| Special Features | No Frost |
| Color | Silver |
| Voltage | 220 Volts |
| Number of Vegetable Drawers | 1 |
| Defrost System Type | No Frost |
| Door Hinges | Reversible |
| Number of Shelves | 3 |
| Included Components | No Frost Digital Inverter Refrigerator, 525 Liter, Stainless Steel |
| Item Weight | 55 Kilograms |
| Inverter Type | Inverter Present |
8. Warranty and Support
Warranty Information
Your White Point WPR543DVX Refrigerator comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
Extended warranty options may be available from your retailer or third-party providers. For example, 1-Year or 2-Year Extended Warranty by Boxi (Email Delivery) and 1-Year Accidental Damage Protection by Boxi (Email Delivery) are offered.
Customer Support
For technical assistance, service requests, or inquiries regarding your product, please contact White Point customer support or your authorized service center. Contact details can typically be found on the manufacturer's website or in your warranty documentation.
When contacting support, please have your model number (WPR543DVX) and serial number ready.
