Gdrasuya10 1500 Watt LED Snow Machine Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and effective operation of your Gdrasuya10 1500 Watt LED Snow Machine. Please read this manual thoroughly before use and retain it for future reference. This robust machine is designed to produce abundant artificial snow with integrated LED lighting effects, suitable for various events.

2. Safety Information

To ensure safe operation and prevent damage to the machine or injury, please observe the following safety precautions:

• Power Cord: Always unplug the power cord before performing any maintenance or if the unit is not in use.
• Liquid Level: Do not overfill the liquid tank. Adding too much liquid can cause spills and potentially damage the machine.
• Liquid Type: Only use recommended snow juice/snow machine fluid. Using other liquids may damage the pump and void the warranty. This machine is not designed to produce real snow.
• Operation Without Liquid: Operating the unit without liquid in the tank can damage the pump. Ensure the tank contains sufficient fluid before operation.
• Output Nozzle: Never point the snow output nozzle directly towards people's faces.
• Placement: Ensure the machine is placed on a stable, level surface. Keep it away from heat sources and ensure adequate ventilation.
• Moisture: Protect the device from moisture and humidity.
• Maintenance: Only qualified personnel should perform repairs.

Image 2.1: Rear panel of the snow machine with control interface and safety warnings. The warnings are in German and English, advising to unplug before maintenance, not to operate without fluid, and to use recommended liquid only.

3. Package Contents

Verify that all items are present and in good condition upon opening the package:

• 1x Gdrasuya10 1500 Watt LED Snow Machine
• 1x Wireless Remote Control
• 1x Power Wire (US Plug)

4. Product Overview

The Gdrasuya10 1500 Watt LED Snow Machine is a high-pressure, high-output device designed to create a realistic snow effect with integrated LED lighting. It features a durable motor, a portable design, and multiple control options.

Key Features:

• High Output: Produces abundant artificial snow capable of being blown considerable distances.
• Integrated LED Lighting: Enhances the snow effect with dynamic light displays.
• Durable Construction: Features a robust design with a motor enclosed in rubber cushions for high output and low vibration.
• Portability: Lightweight design with a handle for easy transport to various venues.
• Control Options: Manual, Wireless Remote, and DMX control for versatile operation.
• LCD Digital Display: For easy mode switching and monitoring.

Image 4.1: The Gdrasuya10 1500 Watt LED Snow Machine, showcasing its main body, fluid tank, and output nozzle. The machine is black with white snowflake graphics and "1500W Led snow machine" text.

Image 4.2: Close-up front view of the snow machine, highlighting the output nozzle and the surrounding LED lights that illuminate the artificial snow.

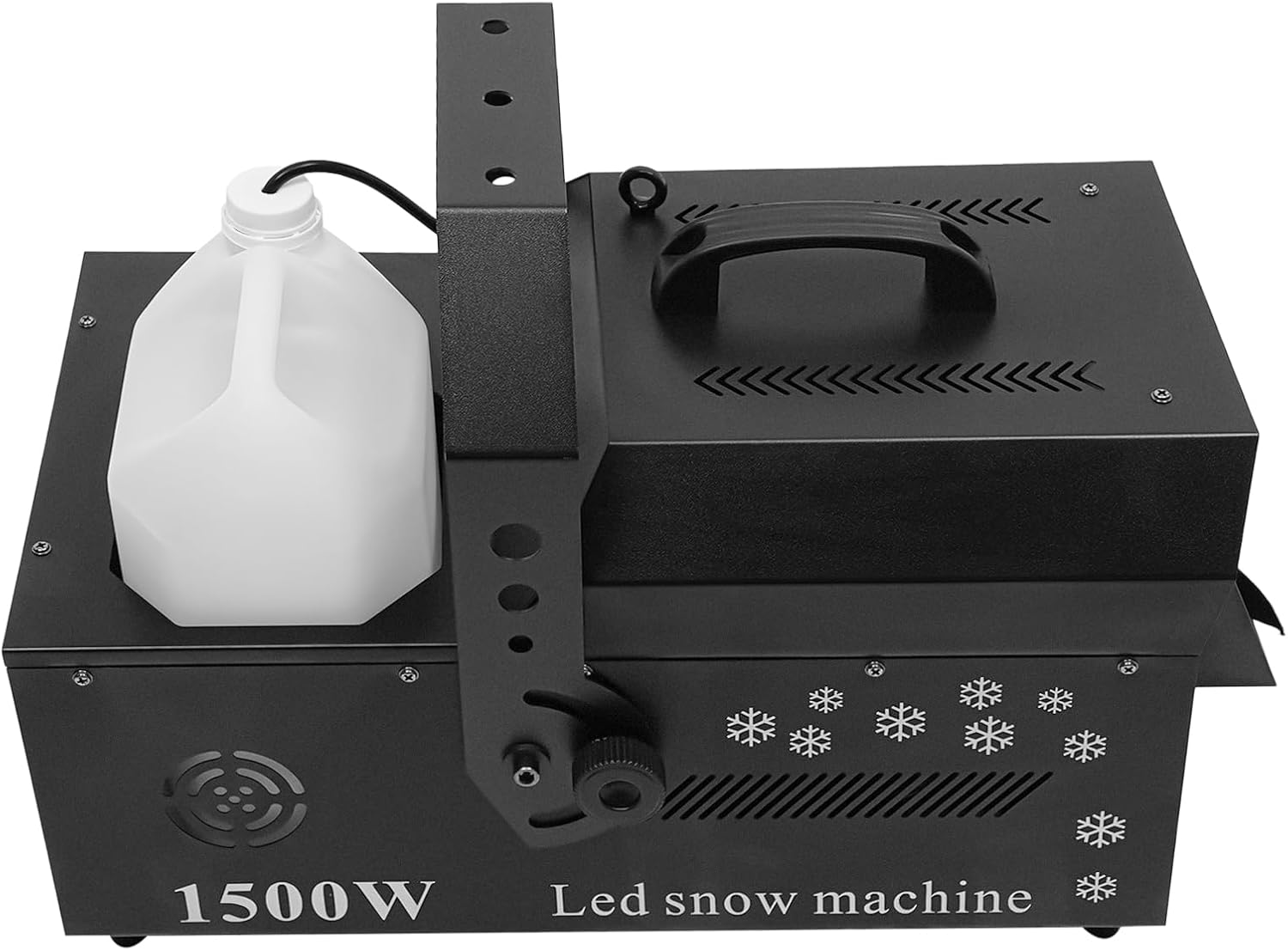

Image 4.3: Side profile of the snow machine, illustrating the transparent fluid tank connected to the main unit and the robust handle/mounting bracket.

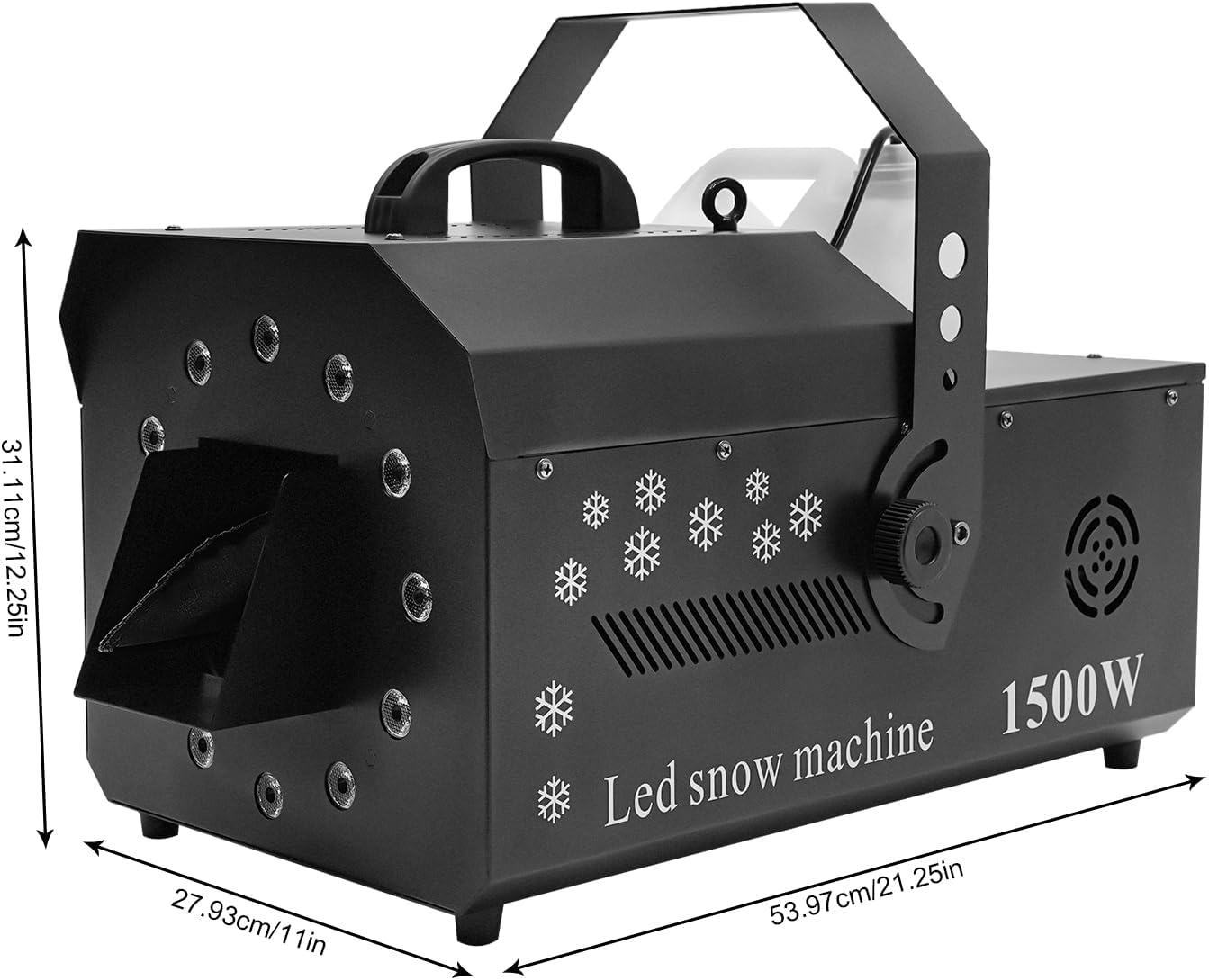

Image 4.4: Diagram illustrating the physical dimensions of the snow machine: approximately 53.97 cm (21.25 in) in length, 27.93 cm (11 in) in width, and 31.11 cm (12.25 in) in height.

5. Setup

1. Unpacking: Carefully remove the snow machine and all accessories from its packaging. Inspect for any signs of damage during transit.
2. Placement: Position the machine on a stable, level surface. Ensure there is adequate space around the unit for ventilation and that the output nozzle is directed safely. If hanging, use the provided bracket and ensure it is securely mounted.
3. Fill Fluid Tank: Unscrew the cap of the fluid tank. Carefully pour recommended snow machine fluid into the tank. Do not overfill. The tank capacity is 5 liters. Securely close the cap.
4. Power Connection: Connect the provided power wire to the machine's power input and then plug it into a standard AC 110V / 60Hz power outlet.
5. Initial Power On: Flip the power switch to the "ON" position. The machine will begin to warm up. The LCD display will show status information.

6. Operating Instructions

The Gdrasuya10 1500 Watt LED Snow Machine offers multiple control methods: Manual, Wireless Remote, and DMX.

6.1. Manual Control

Use the control panel on the rear of the machine to operate manually. The LCD display and buttons (MENU, UP, DOWN, ENTER) allow for direct control over snow output and LED functions.

6.2. Wireless Remote Control

The included wireless remote provides convenient control from a distance.

• "A" Key: Press to spray snowflakes and activate the LED walking light effect simultaneously.
• "B" Key: Press to spray snowflakes only, without activating the LED lights.

6.3. DMX Control

For advanced control and integration into a lighting system, use DMX. The machine utilizes 8 DMX channels:

Note: For optimal snowflake effect and spray distance, it is recommended to use the product in the direction of the wind.

7. Maintenance

Regular maintenance ensures the longevity and optimal performance of your snow machine.

• Cleaning: Periodically clean the exterior of the machine with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Fluid System Flush: After extended use or before long-term storage, it is recommended to flush the fluid system with distilled water to prevent clogs. Run distilled water through the machine for a few minutes until the tank is empty.
• Storage: Store the machine in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the fluid tank is either empty or contains fresh fluid if storing for a short period.
• Nozzle Check: Regularly check the output nozzle for any blockages.

8. Troubleshooting

If you encounter issues with your snow machine, refer to the following common problems and solutions:

• No Power:
  • Ensure the power cord is securely plugged into both the machine and a working power outlet.
  • Check the power switch on the machine.
  • Verify the power outlet is functional by plugging in another device.
• No Snow Output:
  • Check if the fluid tank has sufficient snow machine fluid.
  • Ensure the machine has completed its warm-up cycle.
  • Inspect the output nozzle for any blockages.
  • Verify the remote control or DMX settings are correctly configured to trigger snow output.
• Weak Snow Output:
  • Ensure the fluid tank is adequately filled.
  • Check for any partial blockages in the nozzle or fluid lines.
  • Confirm the DMX channel for snowflake spray intensity is set to a high value.
• LED Lights Not Working:
  • If using the wireless remote, ensure you are pressing the "A" key for snow with LED lights.
  • If using DMX, verify the LED channels (3, 4, 5, 6, 7, 8) are correctly configured and receiving signals.

If the problem persists after attempting these solutions, please contact customer support.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your purchase receipt as proof of purchase.

For further assistance, you may visit the Gdrasuya10 Store on Amazon.
