1. Introduction
This manual provides essential instructions for the safe and efficient operation of your JYXYXSCP Automatic Cordless Vertical Steam Iron and Clothes Dryer. Please read this manual thoroughly before first use and retain it for future reference.

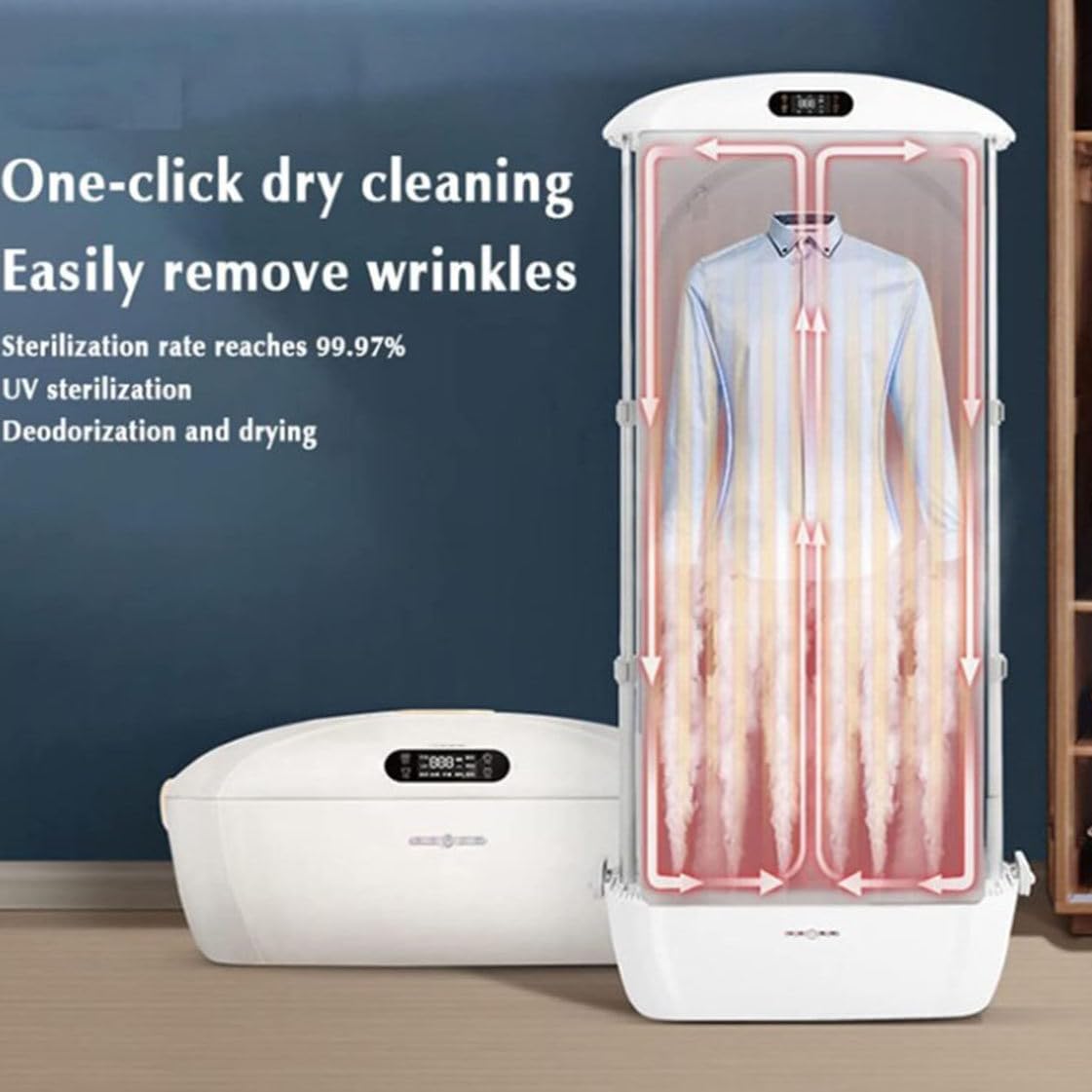

Image 1.1: The JYXYXSCP Automatic Cordless Vertical Steam Iron and Clothes Dryer in operation, illustrating the steam circulation process within the unit for effective wrinkle removal and drying of garments.
2. Safety Information
To prevent injury or damage, always observe the following safety precautions:
- Read all instructions before using the appliance.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Keep the appliance out of reach of children.
- Always unplug the appliance from the electrical outlet when filling with water, emptying, or when not in use.
- Use only distilled or demineralized water to prevent mineral buildup.
- Do not operate the appliance with a damaged cord or plug, or if it has been dropped or damaged.
- Ensure the voltage rating matches your local power supply.
- The appliance features a human body remote sensing design that automatically stops operation when a human body is detected, enhancing safety.
- The machine includes a power-off function that automatically shuts down when unloaded to ensure safety.
- Do not open the silver cloth cover during operation as steam circulates inside.
3. Package Contents
Verify that all items are present in the package:
- 1 x Clothes Drying Rack (Main Unit)
- 2 x Telescopic Rods
- 1 x User Manual (This document)
- 2 x Exclusive Coat Hangers (as depicted in product images)
4. Setup
- Unpack the Unit: Carefully remove all components from the packaging.
- Assemble the Drying Rack: Insert the two telescopic rods into their designated slots on the main unit. Ensure they are securely locked in place.
- Fill the Water Tank: Locate the water tank at the base of the steamer. Remove it and fill with clean, distilled or demineralized water up to the indicated maximum level. Reinsert the water tank securely into the base.
- Position the Unit: Place the assembled unit on a stable, flat surface. Ensure there is adequate space around the unit for proper ventilation.
- Connect Power: Plug the power cord into a suitable electrical outlet.
Image 4.1: Detail of the exclusive coat hangers provided with the unit, designed to securely hold garments in a vertical position for optimal steaming and drying.
5. Operating Instructions
Follow these steps to effectively steam and dry your clothes:
- Prepare Garments: Hang the clothes you wish to steam and dry onto the provided coat hangers. Ensure garments are spread out to allow steam to circulate freely.
- Place Garments in Unit: Carefully place the hung garments inside the main unit.
- Close the Cover: Zip up the silver cloth cover completely. This creates an enclosed environment for efficient steam circulation and drying.
- Start Steaming/Drying: Use the intelligent LED wireless remote control to select the desired operating mode and press the start button. The unit will begin generating steam.
- Wrinkle Removal Times:
- Quick Wrinkle Removal: Approximately 15 minutes
- Standard Wrinkle Removal: Approximately 40 minutes
- Deep Wrinkle Removal: Approximately 60 minutes
- Human Body Sensing: The unit is equipped with a human body remote sensing feature. If a person approaches the unit during operation, the light will automatically go out, and the unit will pause for safety. It will restart automatically once the person moves away.
- Completion: Once the selected cycle is complete, the unit will automatically shut off. Carefully open the cover and remove your clothes.
Image 5.1: An internal view illustrating the steam generation system, featuring 6 steam holes and the high-pressure steam wave (300 kPa) for quick and effective garment smoothing.
Image 5.2: A visual comparison showing a garment before and after treatment with the steam iron and dryer, highlighting its wrinkle removal capabilities.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your appliance.
- Empty Water Tank: After each use, or when storing, empty any remaining water from the water tank.
- Clean Exterior: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Descaling (if necessary): If you notice mineral buildup or reduced steam output, descale the unit according to general appliance descaling instructions (e.g., using a vinegar solution, then rinsing thoroughly). Refer to specific descaling instructions for steam appliances if available from the manufacturer.
- Storage: The unit features a foldable design for convenient storage. When not in use, fold the unit and store it in a dry, cool place.

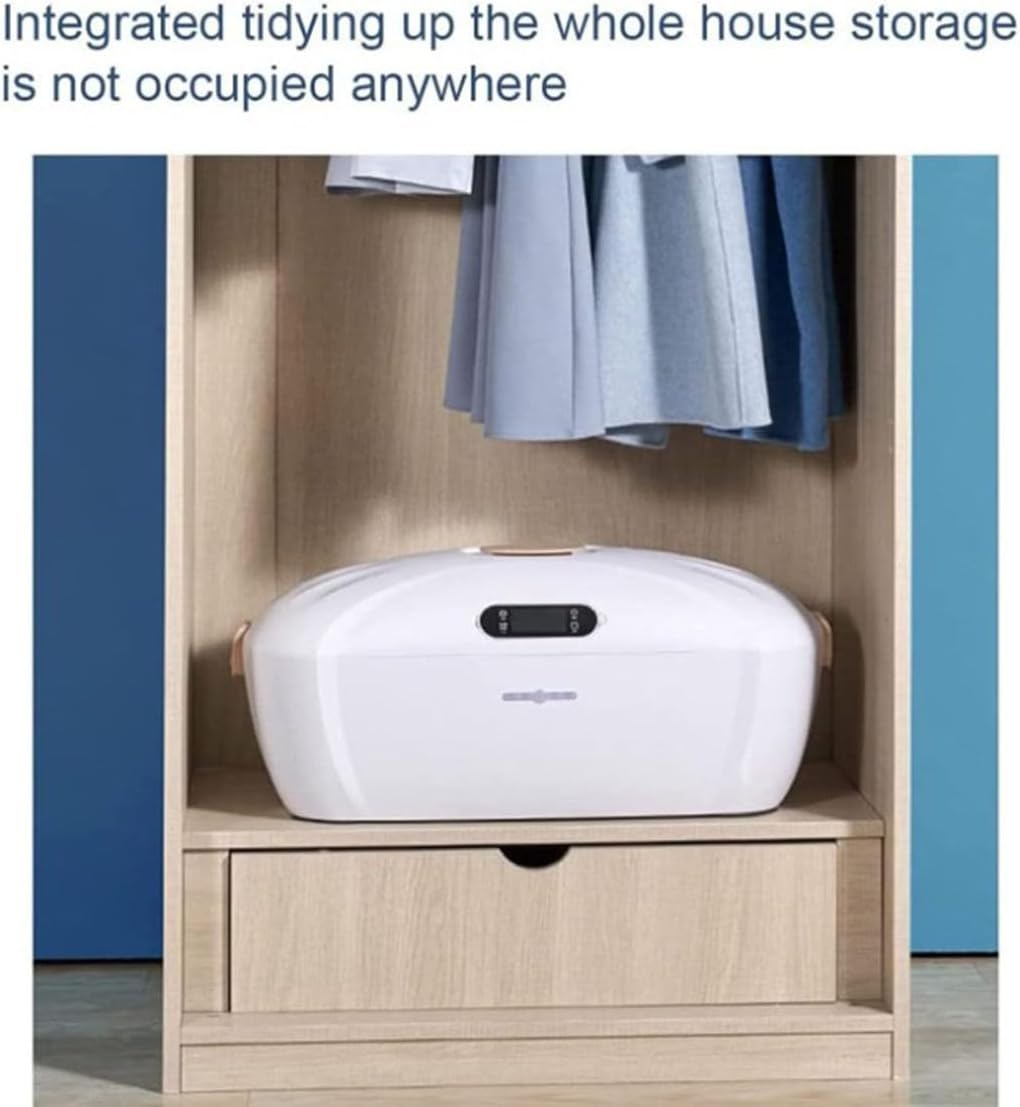

Image 6.1: The unit in its folded state, stored within a wardrobe, showcasing its space-saving design for easy integration into home storage.
7. Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No steam output | Water tank empty or not properly seated. Unit not powered on. Mineral buildup. | Fill water tank and ensure it's correctly inserted. Check power connection. Perform descaling if necessary. |
| Unit not turning on | Power cord not plugged in. Power outlet not working. Safety auto-shutoff activated. | Ensure power cord is securely plugged in. Test outlet with another appliance. Check if the unit is unloaded or if human body sensing is active. |
| Wrinkles not fully removed | Garment overloaded. Insufficient steaming time. Cover not fully zipped. | Do not overload the unit (max 4 pieces under 5 kg). Select a longer steaming cycle. Ensure the silver cloth cover is fully zipped. |
| Excessive noise during operation | Normal operation sound. Unit not on a stable surface. | The machine is designed for ultra-low noise. Ensure the unit is on a stable, flat surface. If noise is unusual, contact support. |
8. Specifications
| Feature | Detail |
|---|---|
| Product Type | Clothes Dryer / Vertical Steam Iron |
| Brand | JYXYXSCP |
| Material | ABS, Aluminum Alloy |
| Voltage | 110 V / 220 V |
| Frequency | 50 Hz |
| Drying Power | 600 W |
| Steam Power | 900 W |
| Drying Capacity | 4 pieces under 5 kg |
| Noise Level | Ultra-low noise |
| Special Features | Human body remote sensing, Automatic power-off, Foldable design, Intelligent LED wireless remote control |
Image 8.1: Dimensions of the unit, indicating a height of 1490mm, width of 680mm, and depth of 320mm.
9. Warranty and Support
Specific warranty information for this product is not provided in the available documentation. For warranty details, technical support, or service inquiries, please refer to the contact information provided by your retailer or the manufacturer's official website.
