P Polerden DG68-00100B-01 Knobs Instruction Manual

1. Introduction

Thank you for choosing P Polerden DG68-00100B-01 Knobs. This product is designed as a replacement for compatible Samsung range stove knobs, offering a sturdy and functional alternative. This manual provides essential information for the proper installation, operation, and maintenance of your new knobs.

Image 1.1: A set of five P Polerden DG68-00100B-01 replacement knobs, showcasing their silver finish and clear markings for 'OFF' and 'LITE HI'.

2. Safety Information

Always prioritize safety when working with appliances. Please read and understand all safety instructions before proceeding with installation or maintenance.

• Disconnect Power: Before attempting any installation or removal of stove components, ensure the range stove is completely disconnected from its power source (unplugged or circuit breaker turned off).
• Cool Surfaces: Allow the stove and surrounding areas to cool down completely before handling any parts to prevent burns.
• Proper Fit: Ensure the replacement knobs fit securely onto the stove's control shafts. A loose fit can lead to improper operation or accidental activation.
• Adult Supervision: Installation should be performed by an adult. Keep small parts away from children.

3. Setup and Installation

Installing the P Polerden DG68-00100B-01 Knobs is a straightforward process. Follow these steps carefully:

1. Prepare the Stove: Ensure the range stove is turned off and completely cool. Disconnect the stove from its power supply.
2. Remove Old Knobs: Gently pull the existing knobs straight off the control shafts. They are typically held in place by friction. Avoid twisting or prying forcefully, which could damage the shafts.
3. Inspect Control Shafts: Check the control shafts for any debris or damage. Clean them if necessary.
4. Install New Knobs: Align the D-shaped opening on the back of the new P Polerden knob with the D-shaped control shaft on the stove. Push the knob firmly onto the shaft until it is seated securely. Do not force it if it does not align properly.
5. Test Fit: Once installed, gently pull on each knob to ensure it is securely attached. Rotate the knob through its full range of motion (OFF, LITE HI) to confirm smooth operation and proper engagement with the stove's valve.
6. Reconnect Power: After all knobs are installed and tested for fit, reconnect the stove to its power supply.

Image 3.1: P Polerden replacement knobs shown installed on a Samsung range stove, demonstrating their appearance and fit as an ideal replacement.

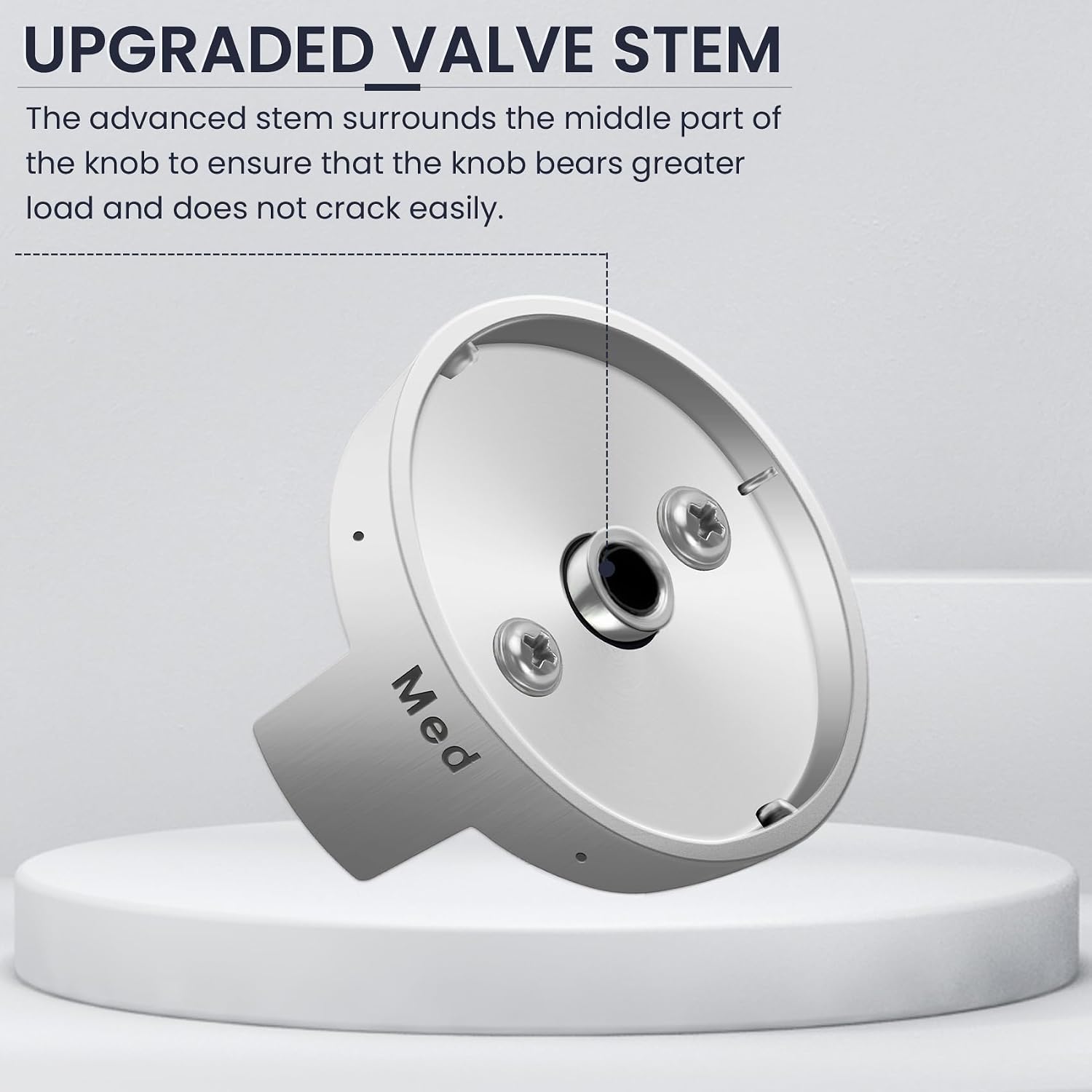

Image 3.2: A detailed view of the underside of a P Polerden knob, highlighting the upgraded valve stem designed for enhanced durability and load bearing.

4. Operating Instructions

The P Polerden DG68-00100B-01 Knobs function identically to the original knobs on your Samsung range stove. To operate:

• Turning On: Push the knob in and rotate it to the desired setting (e.g., LITE HI) to ignite the burner and adjust the flame intensity.
• Turning Off: Rotate the knob back to the 'OFF' position. Ensure the burner flame is extinguished.

Always ensure the knob is fully engaged with the control shaft before attempting to turn it.

5. Maintenance

Proper care will ensure the longevity and appearance of your P Polerden knobs.

• Cleaning: To clean the knobs, gently pull them off the control shafts. Wash them with mild soap and warm water. Avoid abrasive cleaners or harsh chemicals, which can damage the finish. Dry thoroughly before reattaching.
• Regular Inspection: Periodically check the knobs for any signs of wear, cracking, or looseness. Replace if significant damage is observed.

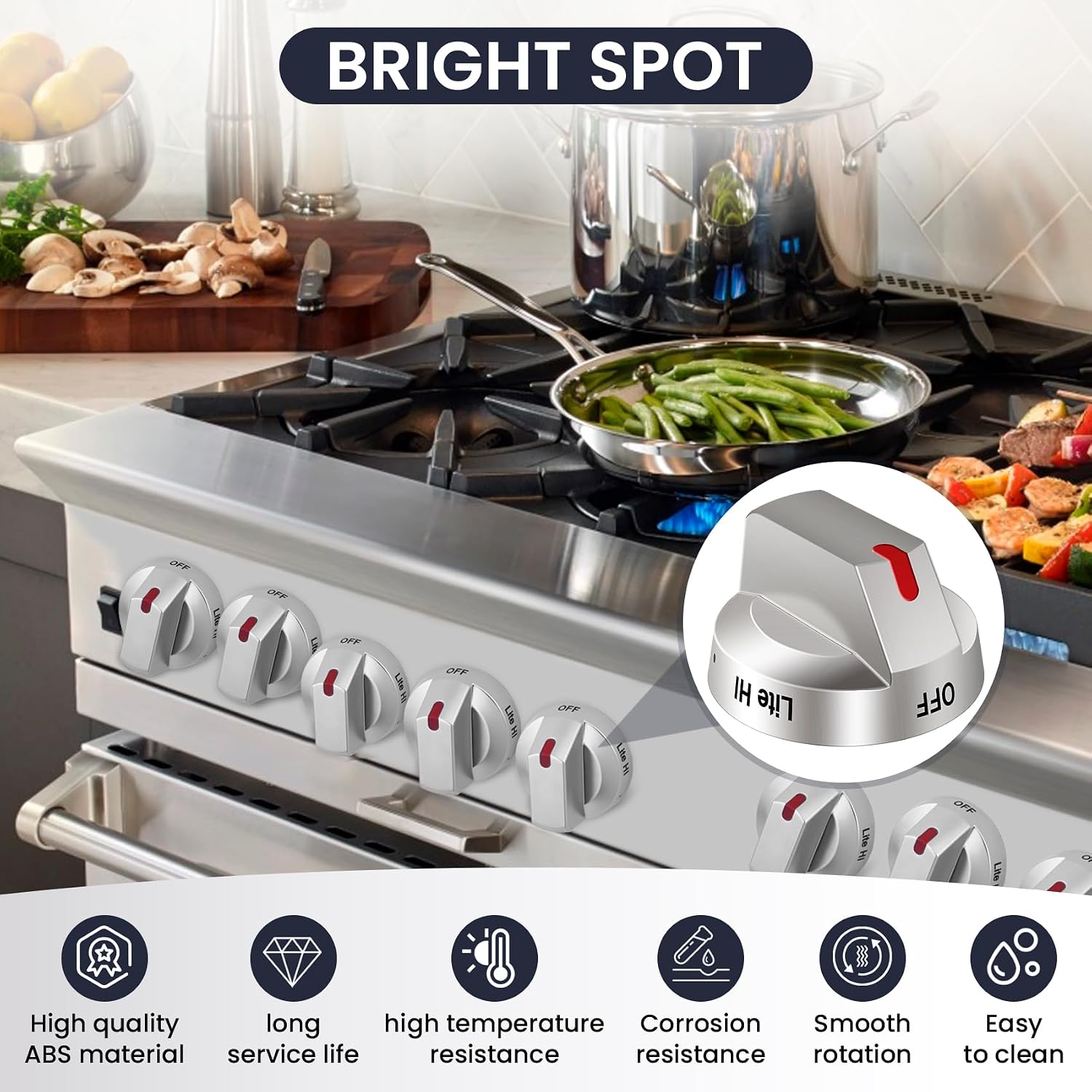

Image 5.1: P Polerden knobs seamlessly integrated into a clean stove environment, emphasizing ease of maintenance and aesthetic appeal.

6. Troubleshooting

If you encounter issues with your P Polerden knobs, consider the following common solutions:

• Knob Feels Loose: Ensure the knob is pushed all the way onto the D-shaped control shaft. If it continues to feel loose, inspect the shaft for damage or wear.
• Difficulty Turning Knob: Remove the knob and check the control shaft for any obstructions or sticky residue. Clean the shaft and the inside of the knob. Ensure the knob is aligned correctly with the D-shape of the shaft.
• Knob Does Not Engage Burner: Verify that the knob is fully seated and properly aligned with the control shaft. If the issue persists, the problem may lie with the stove's internal valve mechanism, not the knob itself. Consult a qualified technician for stove repairs.

7. Specifications

8. Warranty Information

P Polerden DG68-00100B-01 Knobs come with a 365-day warranty from the date of purchase. This warranty covers defects in material and workmanship under normal use. Please retain your proof of purchase for warranty claims.

9. Support

For further assistance, technical support, or warranty inquiries, please contact P Polerden customer service through the retailer where the product was purchased or visit the official P Polerden store page.

We are committed to providing high-quality products and support to our customers.
